Model Kenmore 790.46262501 RANGE – Common Parts & Diagrams

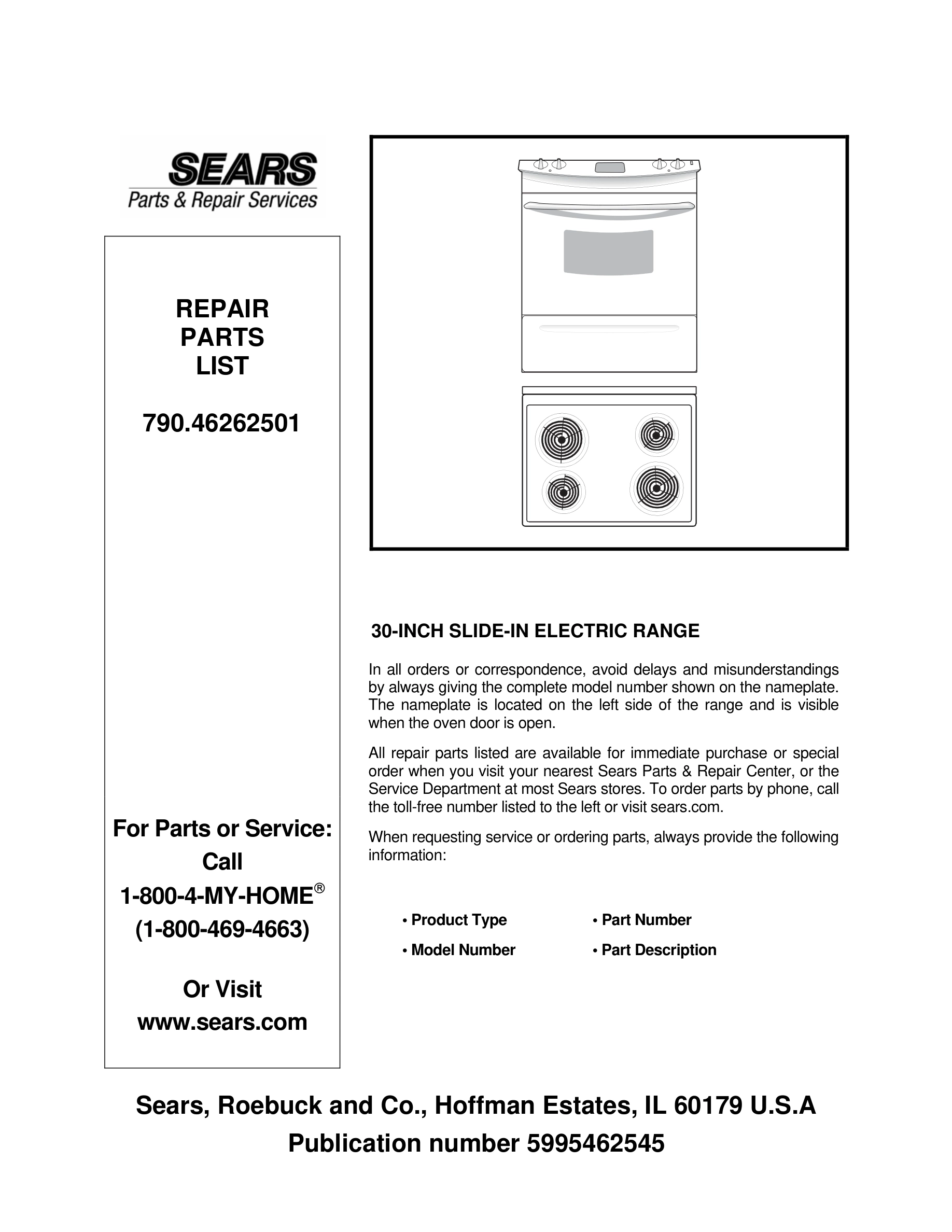

01 - COVER

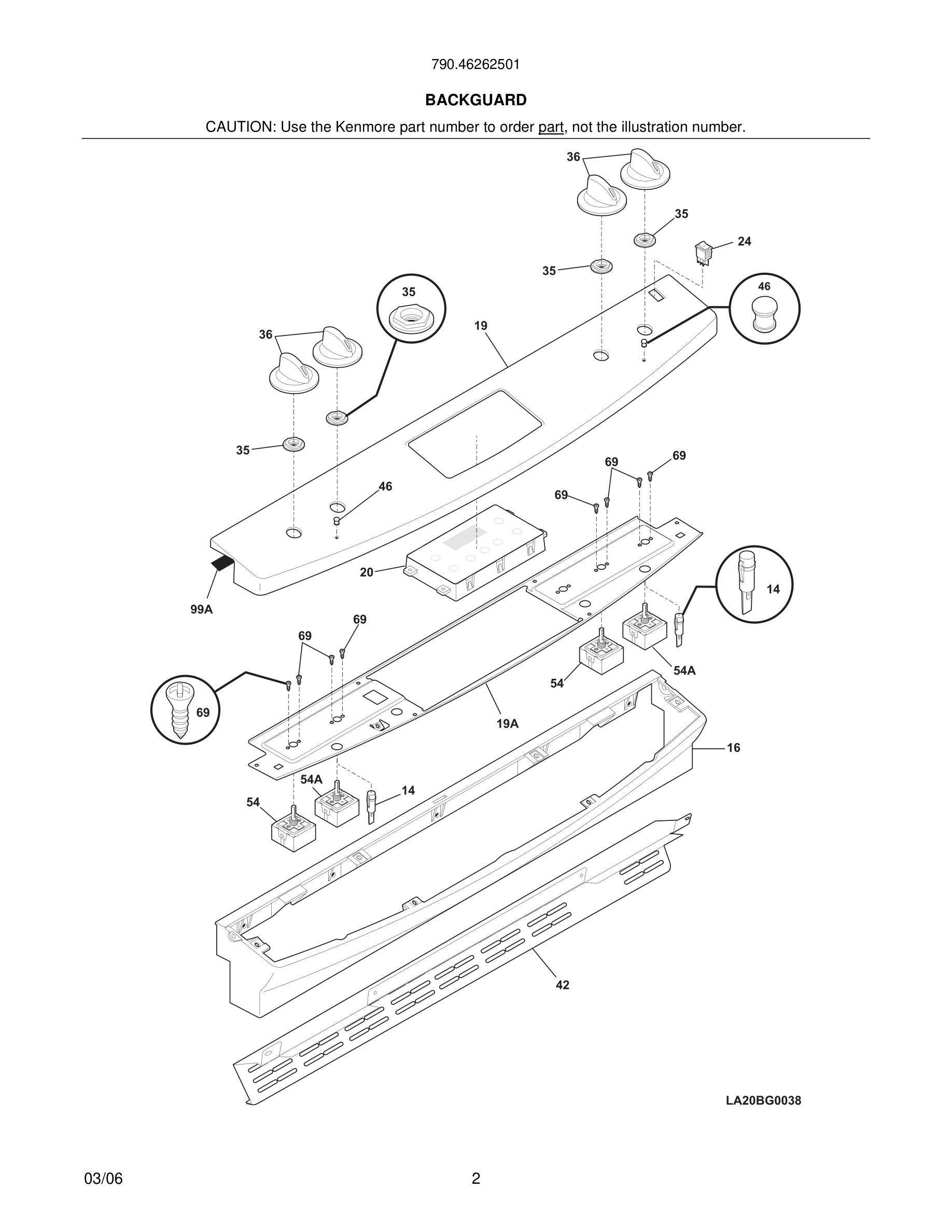

03 - BACKGUARD
05 - BODY
07 - TOP/DRAWER
09 - DOOR
10 - WIRING DIAGRAM
Common parts from model Kenmore 790.46262501 RANGE
*
Wiring Harness, backguard WCI 318301100 Contact Us For Availability
*
Label, anti-tip WCI 316221000 Contact Us For Availability
*#
Harness, wiring, timer WCI 318224817 Contact Us For Availability
*#
Harness, wiring, infinite switch WCI 318224815 Contact Us For Availability
*#
Harness, wiring, main WCI 318224920 Contact Us For Availability
3
Trim, oven door, black, upper WCI 318260201 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Glass Assy., oven door, white, outer, w/trim WCI 318261309 Contact Us For Availability
5
Screw, leveling WCI 318175503 Contact Us For Availability
7
Spacer WCI 318014800 Contact Us For Availability
8
Glass, oven door, inner WCI 316427700 Contact Us For Availability
9
Liner, oven door WCI 318259625 Contact Us For Availability
11
Bracket, drawer support, (2) WCI 318298601 Contact Us For Availability
12
Seal, door, lower oven WCI 318053325 Contact Us For Availability
13
Channel, drawer, RH WCI 318018100 Contact Us For Availability
13A
Channel, drawer, LH WCI 318018101 Contact Us For Availability
16
Console, assy., white WCI 318296600 Contact Us For Availability
16
Main Top, white WCI 318225602 Contact Us For Availability
16*
Clip, console, (2) WCI 5304447071 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Rod, support, main top panel WCI 3051554 Contact Us For Availability
17
Bracket, glass WCI 318300503 Contact Us For Availability
17A
Bracket, glass, lower WCI 318300601 Contact Us For Availability
18
Hinge, maintop, (2) WCI 318227710 Contact Us For Availability
19
Panel, control, white WCI 318297508 Contact Us For Availability
23
Hinge, oven door WCI 5303320452 Contact Us For Availability
28
Medallion, stainless steel, surf elem WCI 3017801 Contact Us For Availability
29
Spacer, door WCI 318014402 Contact Us For Availability
35
Support, glass, white, (4) WCI 318183101 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
90
Panel, filler, white, RH WCI 318296902 Contact Us For Availability
90A
Panel, filler, white, LH WCI 318296903 Contact Us For Availability
91
Trim, filler, white, rear WCI 318304301 Contact Us For Availability
93
Support, terminal block, (4) WCI 318122500 Contact Us For Availability
99A
Gasket, grey WCI 318313200 Contact Us For Availability
127
Adapter, vent tube WCI 318317000 Contact Us For Availability
166
Bracket, base support, (4) WCI 318298400 Contact Us For Availability
170
Anti-tip & accessories WCI 318335500 Contact Us For Availability
200
Frame & Wheel Assembly, black WCI 318335600 Contact Us For Availability
201
Frame, drawer WCI 318298210 Contact Us For Availability
× ![]()
