Model Kenmore 790.46262500 RANGE – Common Parts & Diagrams

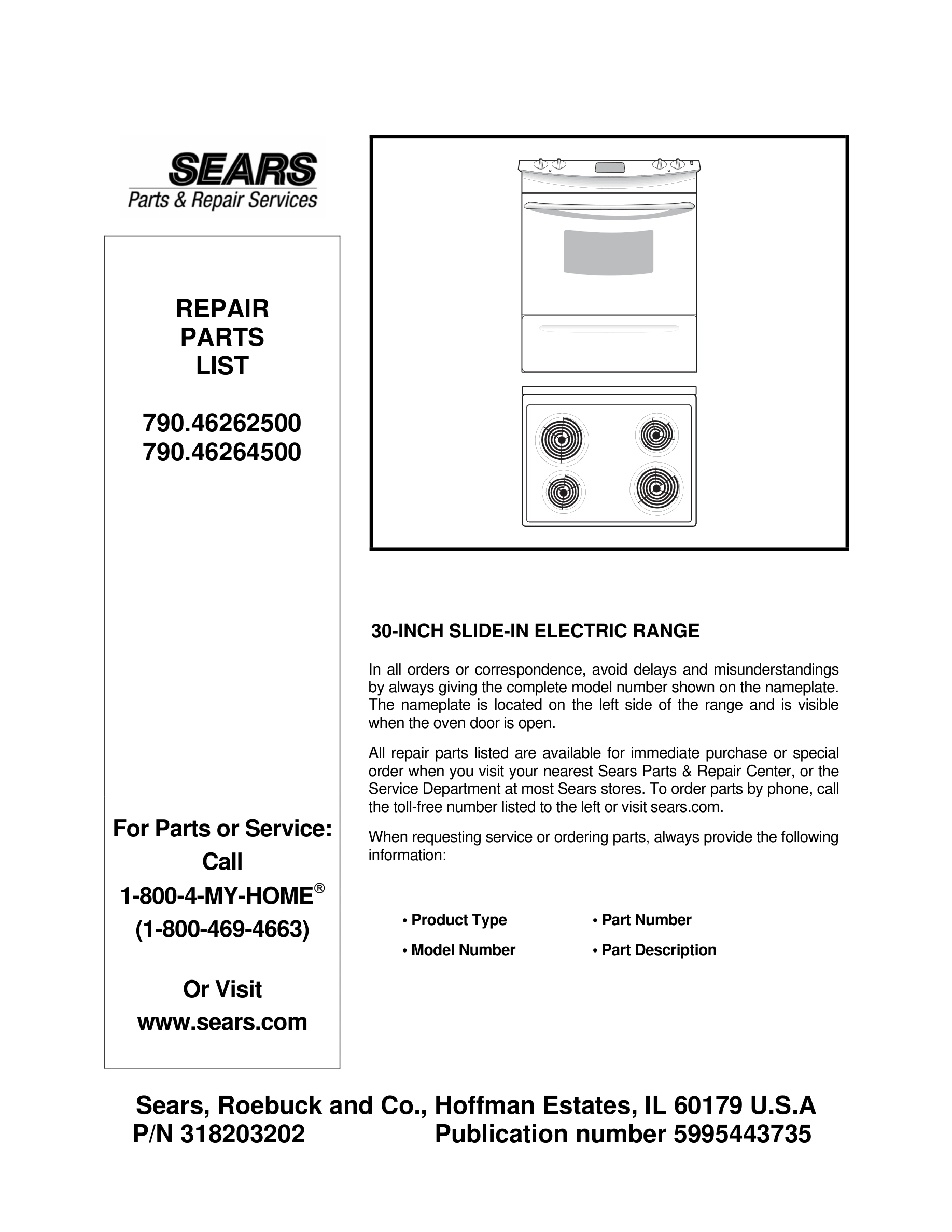

01 - COVER

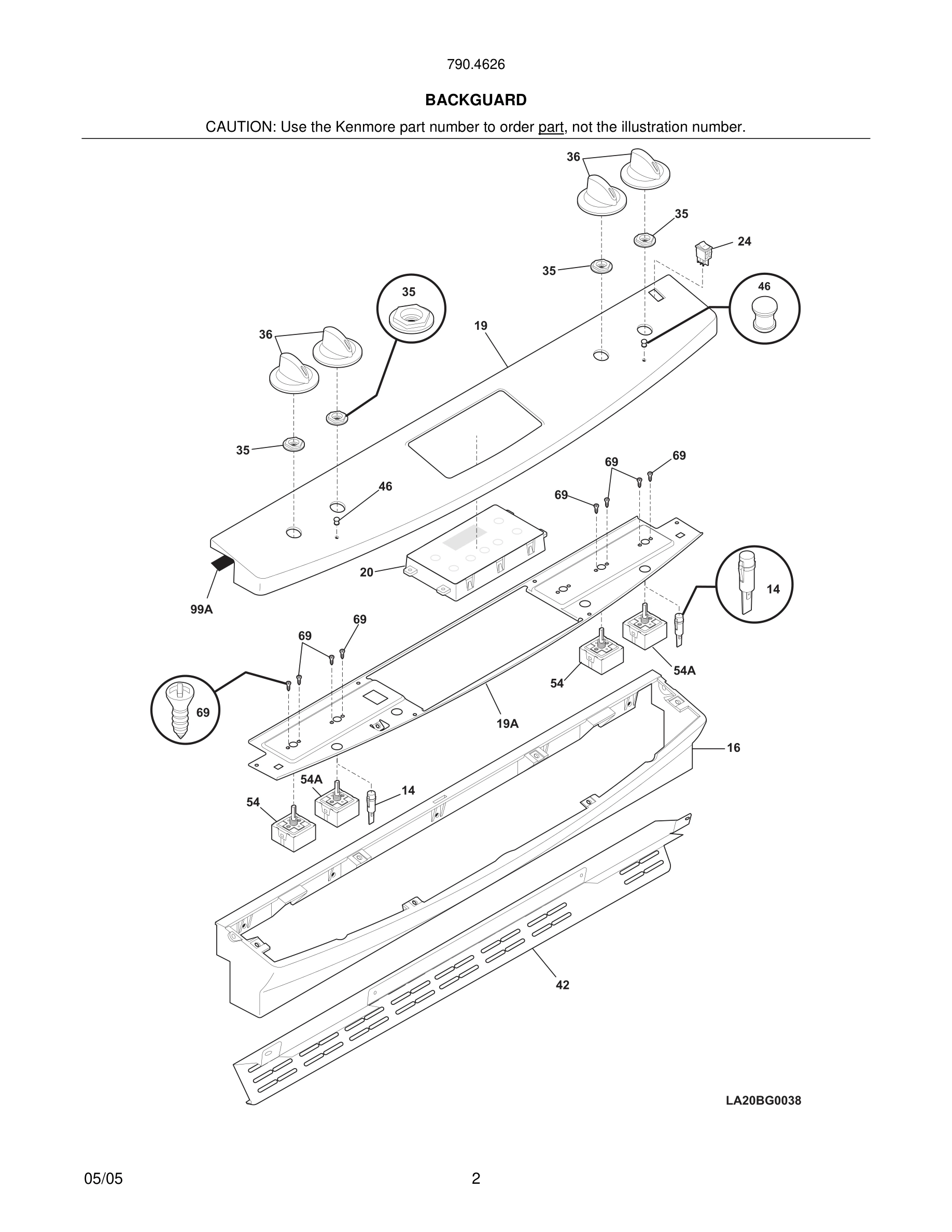

03 - BACKGUARD

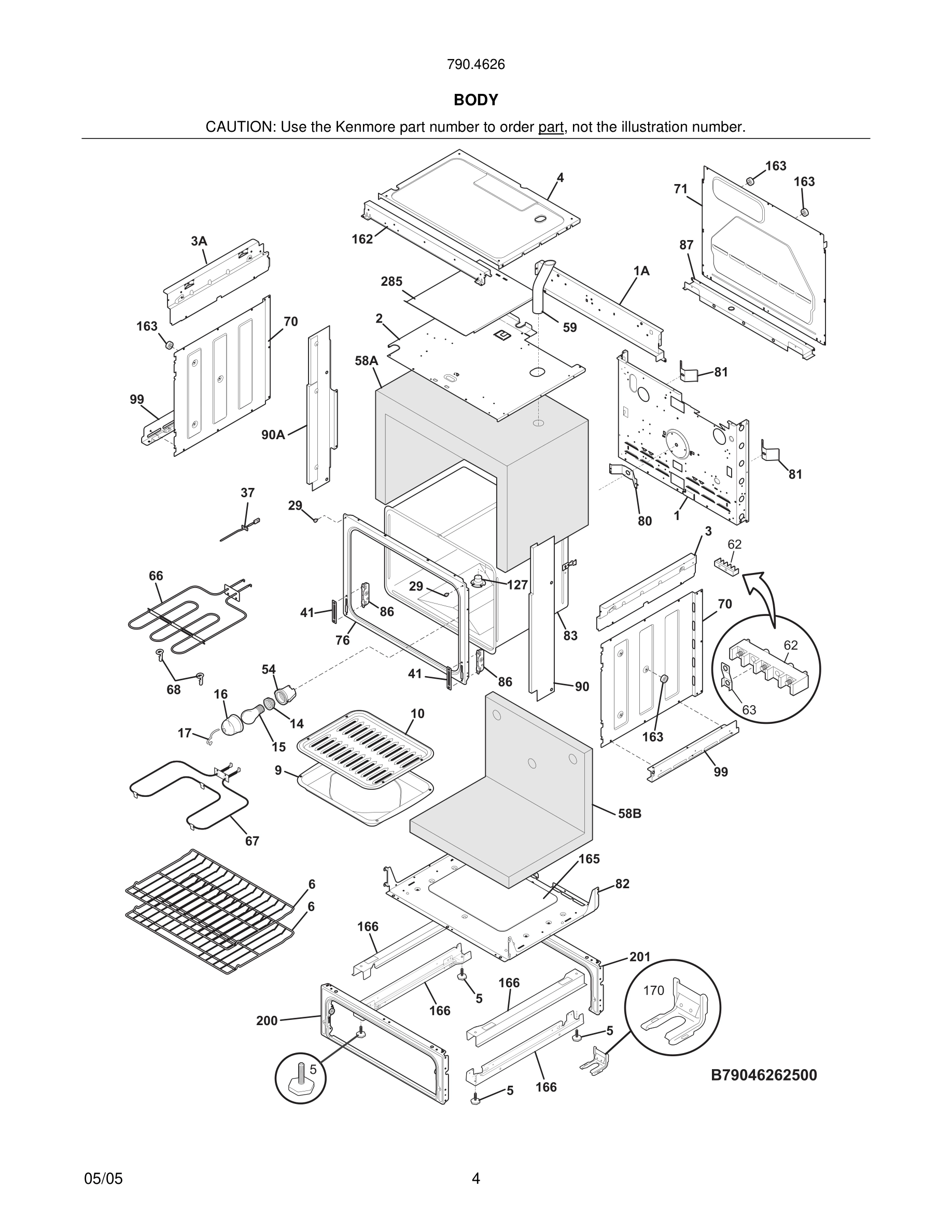

05 - BODY

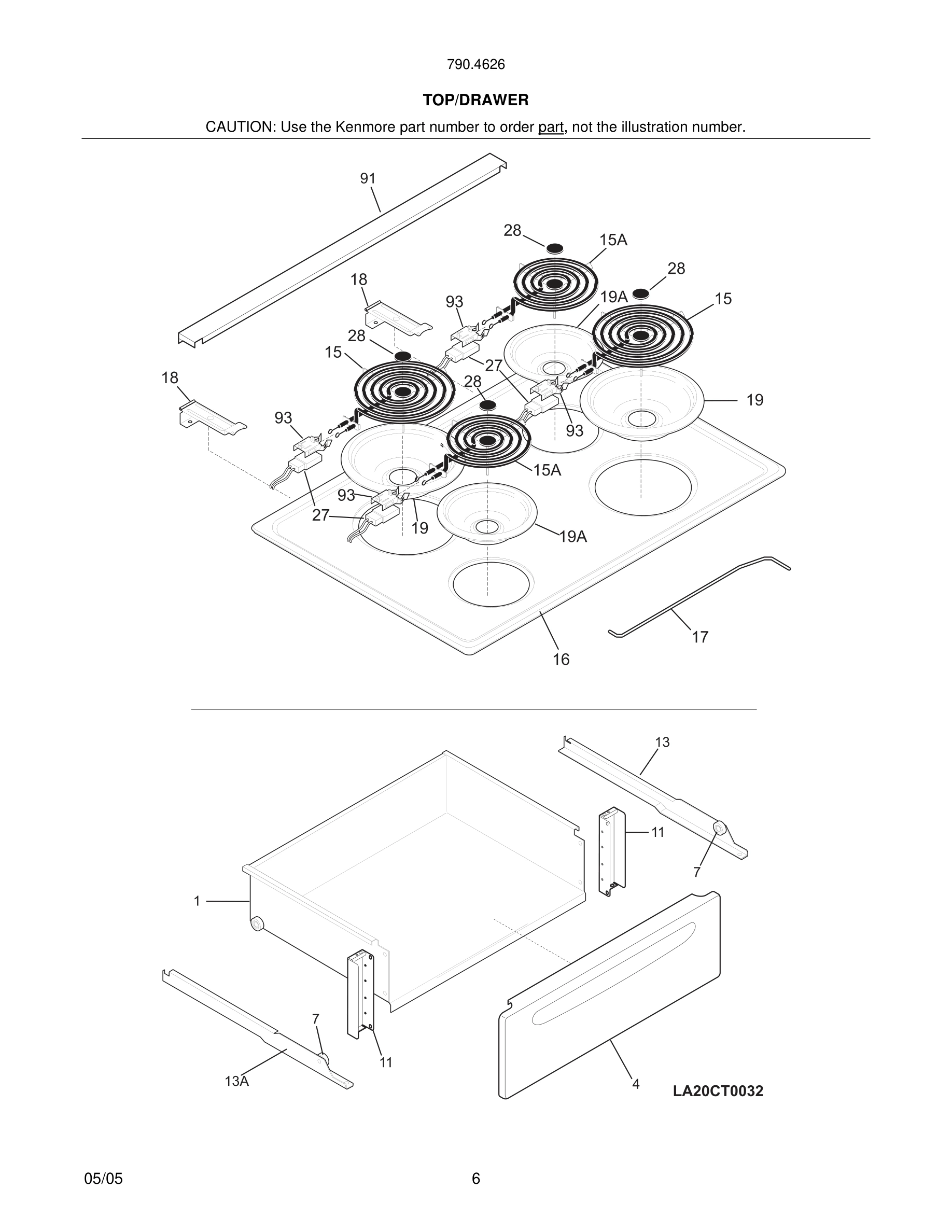

07 - TOP/DRAWER

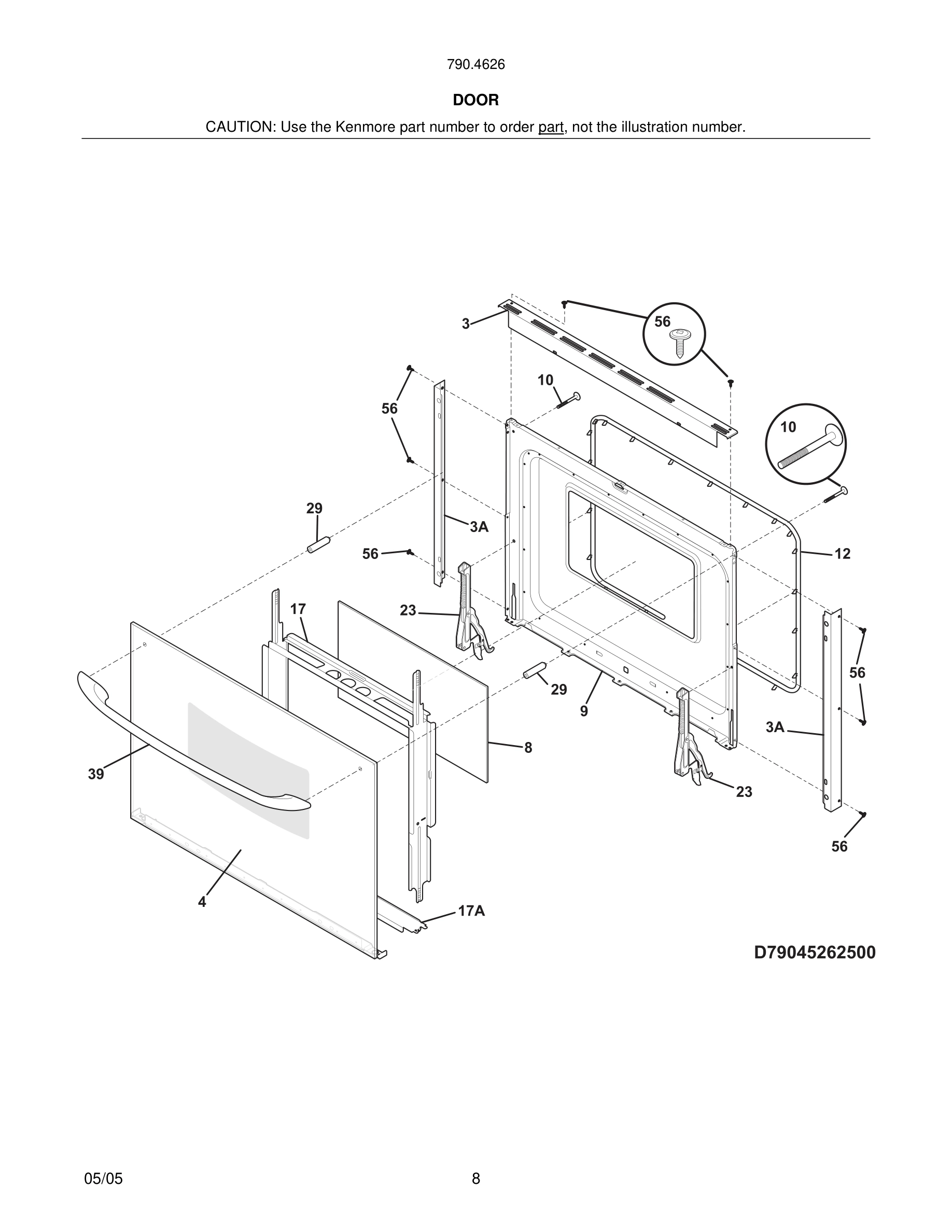

09 - DOOR

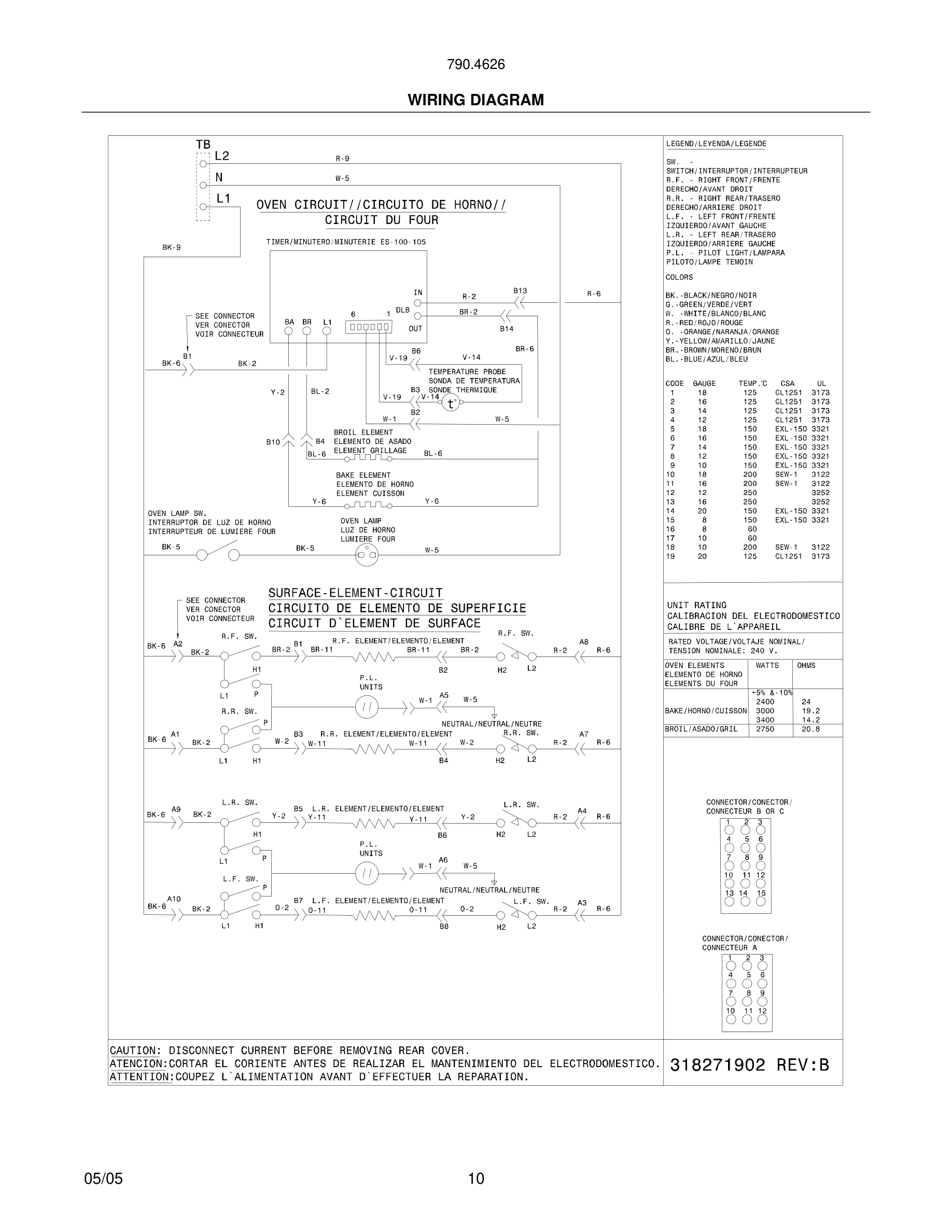

10 - WIRING DIAGRAM
Common parts from model Kenmore 790.46262500 RANGE
*
Wiring Harness, backguard WCI 318301100 Contact Us For Availability
*
Washer, plastic WCI 5303325171 Contact Us For Availability
*
retainer wire WCI 5304400192 Contact Us For Availability
*
Cap, plug WCI 5303325173 Contact Us For Availability
*
Label, anti-tip WCI 316221000 Contact Us For Availability
*#
Harness, wiring, timer WCI 318224817 Contact Us For Availability
*#
Harness, wiring, infinite switch WCI 318224815 Contact Us For Availability
*#
Harness, wiring, main WCI 318224920 Contact Us For Availability
*#
Wiring Harness, surface units WCI 318301000 Contact Us For Availability
3
Trim, oven door, black, upper WCI 318260201 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Panel, drawer, white, front WCI 318298901 Contact Us For Availability
4
Panel, drawer, bisque, front WCI 318298902 Contact Us For Availability
4
Glass Assy., oven door, white, outer, w/trim WCI 318261307 Contact Us For Availability
4
Glass Assy., oven door, bisque, outer, w/trim WCI 318261308 Contact Us For Availability
5
Screw, leveling WCI 318175503 Contact Us For Availability
7
Spacer WCI 318014800 Contact Us For Availability
8
Glass, oven door, inner WCI 316427700 Contact Us For Availability
9
Liner, oven door WCI 318259625 Contact Us For Availability
11
Bracket, drawer support, (2) WCI 318298601 Contact Us For Availability
12
Seal, door WCI 318053325 Contact Us For Availability
13
Channel, drawer, RH WCI 318018100 Contact Us For Availability
13A
Channel, drawer, LH WCI 318018101 Contact Us For Availability
16
Console, assy., white WCI 318296600 Contact Us For Availability
16
Main Top, white WCI 318225602 Contact Us For Availability
16
Main Top, bisque WCI 318225603 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Rod, support, main top panel WCI 3051554 Contact Us For Availability
17
Bracket, glass WCI 318300503 Contact Us For Availability
17A
Bracket, glass, lower WCI 318300601 Contact Us For Availability
18
Hinge, maintop, (2) WCI 318227710 Contact Us For Availability
19A
Pan, surface element, small, bisque WCI 318067060 Contact Us For Availability
23
Hinge, door, (2) WCI 5303320452 Contact Us For Availability
28
Medallion, stainless steel, surf elem WCI 3017801 Contact Us For Availability
29
Spacer, door WCI 318014402 Contact Us For Availability
35
Support, glass, white, (4) WCI 318183101 Contact Us For Availability
35
Support, glass, bisque, (4) WCI 318183102 Contact Us For Availability
39
Handle, door, bisque WCI 316209702 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
87
Bracket, cable mtg. WCI 318260603 Contact Us For Availability
90
Panel, filler, white, RH WCI 318296902 Contact Us For Availability
90
Panel, filler, bisque, RH WCI 318296906 Contact Us For Availability
90A
Panel, filler, white, LH WCI 318296903 Contact Us For Availability
90A
Panel, filler, bisque, LH WCI 318296907 Contact Us For Availability
91
Trim, filler, white, rear WCI 318304301 Contact Us For Availability
91
Trim, filler, bisque, rear WCI 318304302 Contact Us For Availability
93
Support, terminal block, (4) WCI 318122500 Contact Us For Availability
99A
Gasket, grey WCI 318313200 Contact Us For Availability
127
Adapter, vent tube WCI 318317000 Contact Us For Availability
162
Box, extension WCI 318225810 Contact Us For Availability
165
Plate, shield WCI 318322600 Contact Us For Availability
166
Bracket, base support, (4) WCI 318298400 Contact Us For Availability
170
Anti-tip & accessories WCI 318335501 Contact Us For Availability
200
Frame, drawer, black, front WCI 318298201 Contact Us For Availability
201
Frame, drawer WCI 318298210 Contact Us For Availability
× ![]()
