Model Electrolux 790.45799100 Electric Range (Kenmore 79045799100) – Common Parts & Diagrams
BODY
TOP/DRAWER
DOOR
All Parts

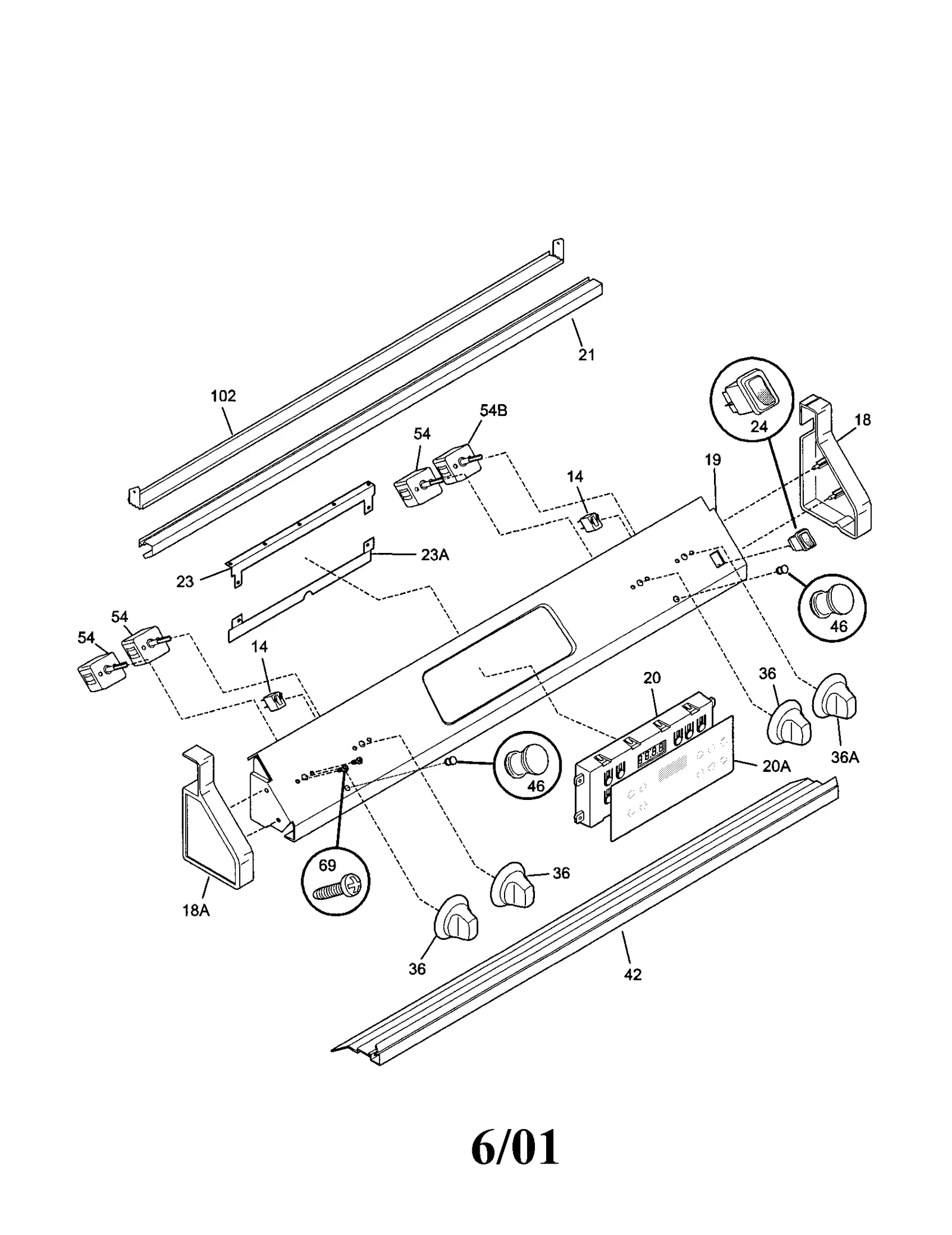

BACKGUARD
Common parts from model Electrolux 790.45799100 Electric Range (Kenmore 79045799100)
1
Bracket WCI 318180310 Contact Us For Availability
2
Bracket WCI 318180311 Contact Us For Availability
3
Trim,door,wh WCI 318187800 Contact Us For Availability
3A
Oven Door Trim WCI 318187801 Contact Us For Availability
3AA
Oven Drive Retainer WCI 318187803 Contact Us For Availability
3AB
Door Trim WCI 318187805 Contact Us For Availability
3B
Door Trim WCI 318176624 Contact Us For Availability
3BA
Up Dr Trim WCI 318176626 Contact Us For Availability
3BB
TRIM, DOOR, BLACK, TOP WCI 318176625 Contact Us For Availability
3C
Bisq Dr Trim WCI 318187802 Contact Us For Availability
3D
Door Trim WCI 318187804 Contact Us For Availability
4
Range Oven Door Outer Panel Assembly (White) WCI 318187715 Contact Us For Availability
4A
Trim WCI 318187716 Contact Us For Availability
4B
Oven Trim WCI 318187714 Contact Us For Availability
6
SUPPORT, ELEMENT (2) WCI 318194800 Contact Us For Availability
6
Shield WCI 318056802 Contact Us For Availability
7
Insulation WCI 318106001 Contact Us For Availability
9
Panel WCI 318157011 Contact Us For Availability
14
Range Indicator Light WCI 5303051533 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 318041603 Contact Us For Availability
16
Range Main Top WCI 318079543 Contact Us For Availability
16A
Top WCI 318079542 Contact Us For Availability
16B
Top WCI 318079545 Contact Us For Availability
16C
Cooktop Main Top (Black) WCI 318079544 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
17
Spacer WCI 318042102 Contact Us For Availability
18
Range Control Panel End Cap Set WCI 318254698 Contact Us For Availability
18
Oven Seal WCI 318053001 Contact Us For Availability
18B
Range Control Panel End Cap Set WCI 318254697 Contact Us For Availability
18C
End Cap-rh WCI 5303300160 Contact Us For Availability
19
Control Panel WCI 318182906 Contact Us For Availability
19A
Control Panel WCI 318182908 Contact Us For Availability
19B
Control Panel WCI 318182907 Contact Us For Availability
20
Clock WCI 318184401 Contact Us For Availability
20AA
Clock Overlay WCI 316220819 Contact Us For Availability
21
Trim Backguard WCI 318027804 Contact Us For Availability
21A
Trim Backguard WCI 318027807 Contact Us For Availability
21B
Trim Backguard WCI 318027803 Contact Us For Availability
23
Hinge Assembly WCI 318024700 Contact Us For Availability
23
Range Oven Control Board Bracket, Upper WCI 318015040 Contact Us For Availability
23A
Range Lower Bracket WCI 318015041 Contact Us For Availability
24A
Oven Switch WCI 318037520 Contact Us For Availability
31
Range Oven Door Latch WCI 5303310536 Contact Us For Availability
36
Control Knob WCI 318196300 Contact Us For Availability
36A
Control Knob WCI 318196310 Contact Us For Availability
36AA
Range Control Knob WCI 318196311 Contact Us For Availability
36AB
Control Knob WCI 318196312 Contact Us For Availability
36B
Control Knob WCI 318196301 Contact Us For Availability
36C
Control Knob WCI 318196302 Contact Us For Availability
39A
Range Oven Door Handle (Bisque) WCI 316235503 Contact Us For Availability
39B
Door Handle WCI 316235500 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
42
Trim-vent Wh WCI 318106924 Contact Us For Availability
42A
Console Plate WCI 318106925 Contact Us For Availability
42B
Trim-vent Bl WCI 318106927 Contact Us For Availability
53
Bracket WCI 318125932 Contact Us For Availability
54
Range Surface Element Control Switch WCI 318120501 Contact Us For Availability
55
Cooking Appliance Element Spacer WCI 5303317178 Contact Us For Availability
56
Range Surface Element Screw WCI 5303317179 Contact Us For Availability
64
Tape WCI 5304417120 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
83
Oven Liner WCI 318089613 Contact Us For Availability
86
Hinge Channel WCI 5303310524 Contact Us For Availability
87
Mounting Plate WCI 318111800 Contact Us For Availability
88
Range Oven Door Lock Latch Rod WCI 5303311160 Contact Us For Availability
89A
Latch Switch WCI 318120710 Contact Us For Availability
102
Mounting Bracket WCI 318055601 Contact Us For Availability
103
Trim (White) WCI 5303300213 Contact Us For Availability
103A
Trim WCI 318169302 Contact Us For Availability
103B
Trim WCI 5303300217 Contact Us For Availability
108
Oven Blower WCI 318073012 Contact Us For Availability
114
Filler Plate WCI 318175100 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
141
Thermostat Switch WCI 5303284446 Contact Us For Availability
142
Air Deflector WCI 318123901 Contact Us For Availability
177
Gasket WCI 5303324040 Contact Us For Availability
217
Warming Plate WCI 318112101 Contact Us For Availability
218
Bracket WCI 318054700 Contact Us For Availability
220
Bracket WCI 5304401475 Contact Us For Availability
221
Bracket WCI 5304401476 Contact Us For Availability
NI
Screw WCI 08016432 Contact Us For Availability
NI
Box Wire WCI 318078515 Contact Us For Availability
NI
Service Data Sheet WCI 318127005 Contact Us For Availability
NI
Installation Instructions WCI 318201602 Contact Us For Availability
NI
Thermostat Screw WCI 5303311124 Contact Us For Availability
NI
Door Bumper WCI 5303311156 Contact Us For Availability
NI
Parts List WCI 5995353611 Contact Us For Availability
× ![]()
