Model Electrolux 790.45794103 Electric Range (Kenmore 79045794103) – Common Parts & Diagrams
BODY

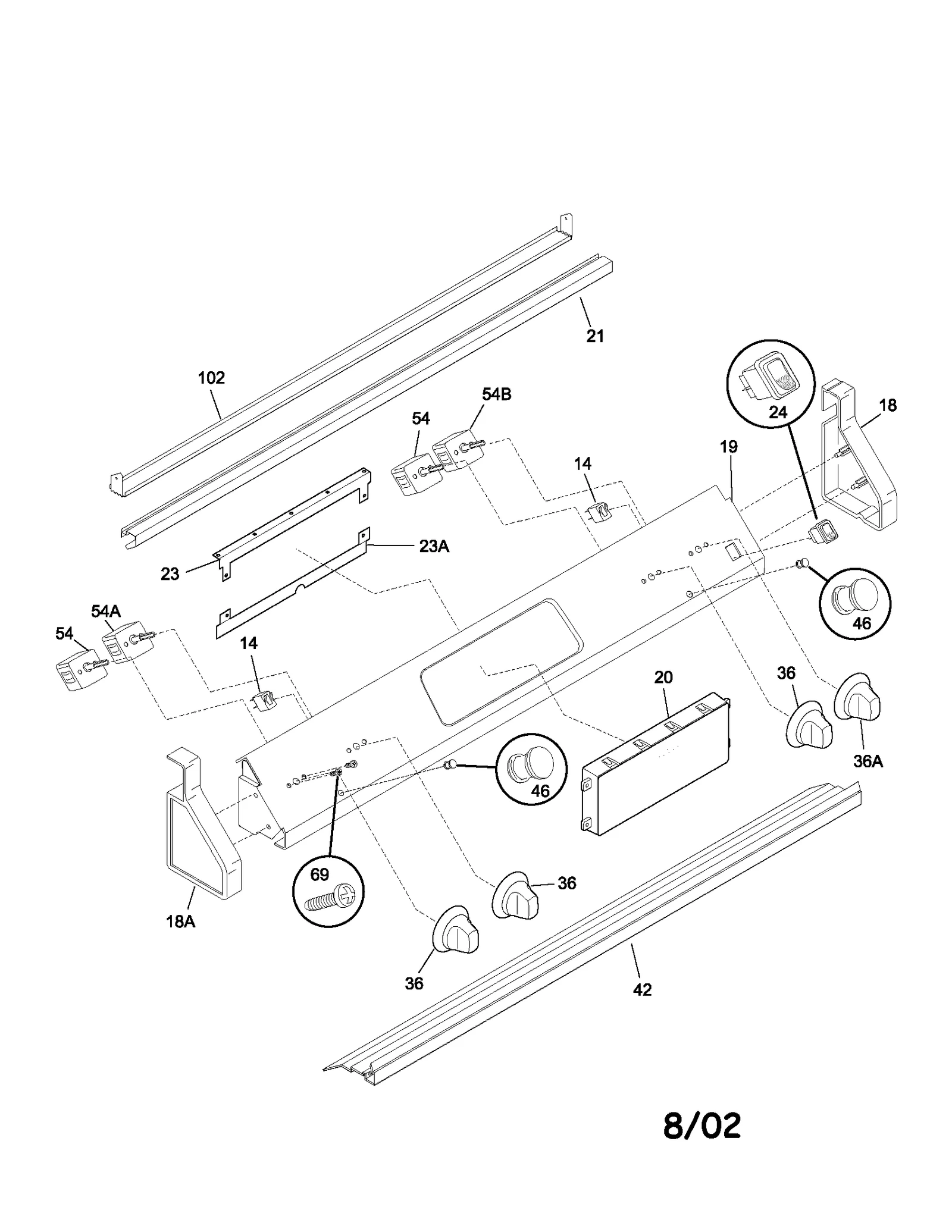

BACKGUARD
MAINTOP
DOOR
Common parts from model Electrolux 790.45794103 Electric Range (Kenmore 79045794103)
1
Bracket WCI 318180310 Contact Us For Availability
2
Bracket WCI 318180312 Contact Us For Availability
3
Oven Trim WCI 318187810 Contact Us For Availability
3
Trim WCI 318187812 Contact Us For Availability
3
Range Trim WCI 318187814 Contact Us For Availability
3A
Oven Trim WCI 318187811 Contact Us For Availability
3A
Lh Door Trim WCI 318187813 Contact Us For Availability
3A
Trim, Left WCI 318187815 Contact Us For Availability
3B
Door Trim To WCI 318176646 Contact Us For Availability
3B
Trim WCI 318176647 Contact Us For Availability
3B
Trim WCI 318176648 Contact Us For Availability
4
Range Oven Door Outer Panel Assembly (White) WCI 318187715 Contact Us For Availability
4
Oven Trim WCI 318187714 Contact Us For Availability
4
Trim WCI 318187716 Contact Us For Availability
6
SUPPORT, ELEMENT (2) WCI 318194800 Contact Us For Availability
6
Shield WCI 318056802 Contact Us For Availability
7
Insulation WCI 318133754 Contact Us For Availability
9
Panel WCI 318157011 Contact Us For Availability
14
Light Lamp WCI 318076700 Contact Us For Availability
15B
Element WCI 318198911 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 318041603 Contact Us For Availability
16
Top WCI 318079542 Contact Us For Availability
16
Range Main Top WCI 318079543 Contact Us For Availability
16
Cooktop Main Top (Black) WCI 318079544 Contact Us For Availability
16
Top WCI 318079553 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
17
Spacer WCI 318042102 Contact Us For Availability
18
Range Control Panel End Cap Set WCI 318254698 Contact Us For Availability
18
Range Control Panel End Cap Set WCI 318254697 Contact Us For Availability
18
Range Control Panel End Cap Set WCI 318254699 Contact Us For Availability
18
Oven Seal WCI 318053001 Contact Us For Availability
19
Control Panel WCI 318182906 Contact Us For Availability
19
Control Panel WCI 318182907 Contact Us For Availability
19
Control Panel WCI 318182908 Contact Us For Availability
20
Clock Timer WCI 318185410 Contact Us For Availability
20
Clock Timer WCI 318185411 Contact Us For Availability
20
Clock Timer WCI 318185412 Contact Us For Availability
21
Trim WCI 318027810 Contact Us For Availability
21
Trim WCI 318027811 Contact Us For Availability
21
Trim WCI 318027814 Contact Us For Availability
23
BRACKET,CLOC WCI 318015042 Contact Us For Availability
23
Hinge Assembly WCI 318024700 Contact Us For Availability
23A
BRACKET,CLOC WCI 318015043 Contact Us For Availability
24
Oven Switch WCI 318037520 Contact Us For Availability
31
Range Oven Door Latch WCI 5303310536 Contact Us For Availability
36
Control Knob WCI 318196300 Contact Us For Availability
36
Control Knob WCI 318196301 Contact Us For Availability
36
Control Knob WCI 318196302 Contact Us For Availability
36A
Range Control Knob WCI 318196311 Contact Us For Availability
36A
Control Knob WCI 318196310 Contact Us For Availability
36A
Control Knob WCI 318196312 Contact Us For Availability
39
Door Handle WCI 316235500 Contact Us For Availability
39
Range Oven Door Handle (Bisque) WCI 316235503 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
42
Trim-vent Bl WCI 318106927 Contact Us For Availability
42
Trim-vent Wh WCI 318106924 Contact Us For Availability
42
Console Plate WCI 318106925 Contact Us For Availability
53
Bracket WCI 318125932 Contact Us For Availability
55
Cooking Appliance Element Spacer WCI 5303317178 Contact Us For Availability
56
Range Surface Element Screw WCI 5303317179 Contact Us For Availability
64
Tape WCI 5304417120 Contact Us For Availability
77
Range Oven Door Handle Mounting Bracket WCI 318043100 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
87
Mounting Plate WCI 318111800 Contact Us For Availability
88
Latch Rod WCI 318118904 Contact Us For Availability
102
Mounting Bracket WCI 318055601 Contact Us For Availability
103
Trim WCI 318169302 Contact Us For Availability
103
Trim (White) WCI 5303300213 Contact Us For Availability
103
Trim WCI 5303300217 Contact Us For Availability
108
Oven Blower WCI 318073012 Contact Us For Availability
114
Filler Plate WCI 318175100 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
141
Range Thermal Cut-Off WCI 318005201 Contact Us For Availability
142
Air Deflector WCI 318123901 Contact Us For Availability
177
Gasket WCI 5303324040 Contact Us For Availability
217
Warming Plate WCI 318112101 Contact Us For Availability
218
Bracket WCI 318054700 Contact Us For Availability
219
Thermostat Oven Griddle WCI 318005000 Contact Us For Availability
220
Bracket WCI 5304401475 Contact Us For Availability
221
Bracket WCI 5304401476 Contact Us For Availability
NI
Range Oven Door Lock Switch WCI 318120711 Contact Us For Availability
NI
Box Wire WCI 318078515 Contact Us For Availability
NI
Screw WCI 08016432 Contact Us For Availability
NI
Wiring Diagram WCI 318045062 Contact Us For Availability
NI
Service Data Sheet WCI 318127005 Contact Us For Availability
NI
Installation Instructions WCI 318201602 Contact Us For Availability
NI
Parts List WCI 5995374856 Contact Us For Availability
NI
Cleaner-cook WCI 316112100 Contact Us For Availability
NI
Door Bumper WCI 5303311156 Contact Us For Availability
× ![]()
