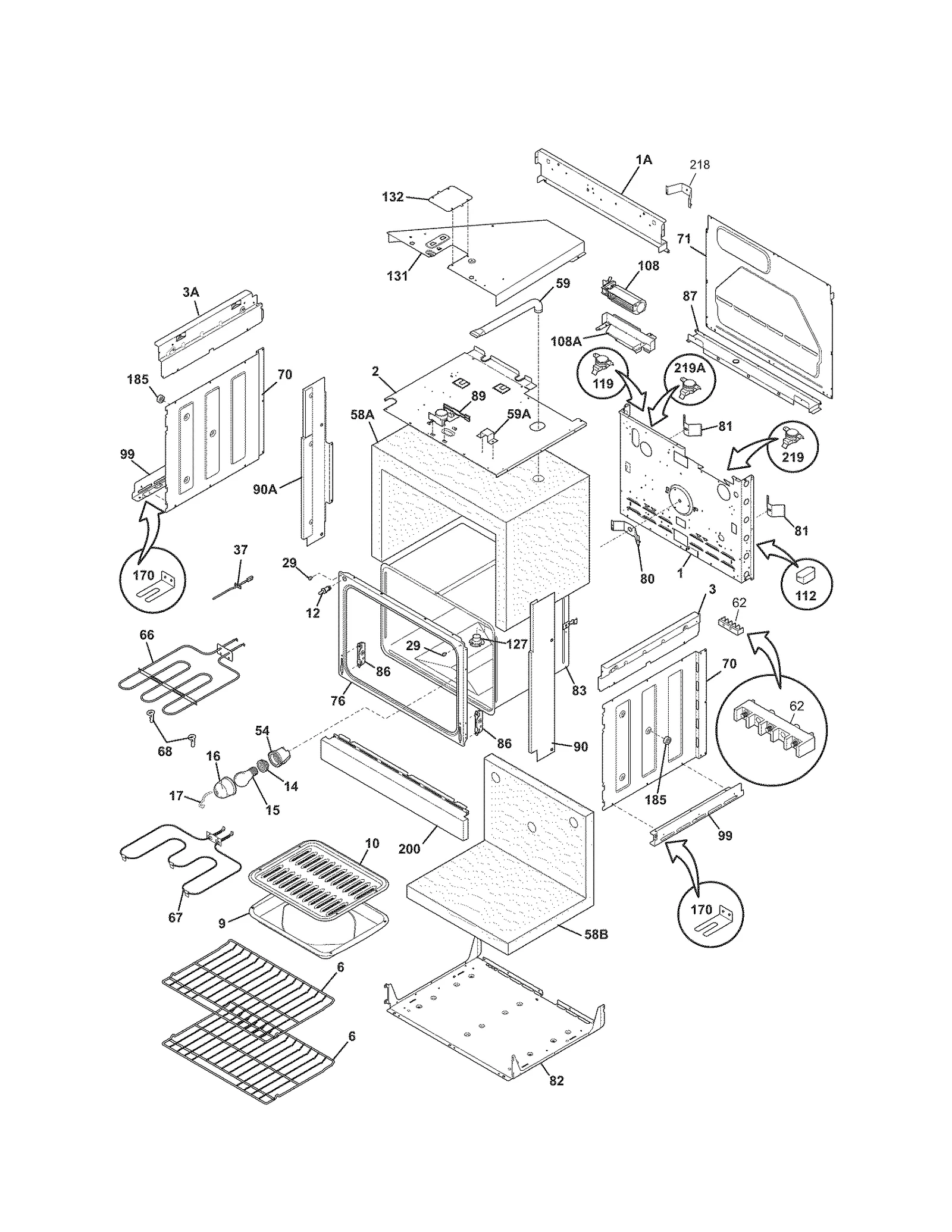

Model Electrolux 790.45494504 Electric Range (Kenmore 79045494504) – Common Parts & Diagrams

3
Crosley Range Oven Door Trim
Crosley Range Oven Door Trim WCI 318260201 Contact Us For Availability
View on Model
3A
Range Oven Door Trim
Range Oven Door Trim WCI 318260401 Contact Us For Availability
View on Model
4
Range Oven Door Outer Panel Assembly (White)
Range Oven Door Outer Panel Assembly (White) WCI 318261356 Contact Us For Availability
View on Model
9
Range Broil Pan
Range Broil Pan WCI 316081900 Contact Us For Availability
View on Model
10
Range Broil Pan Insert
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
View on Model
14
Range Indicator Light
Range Indicator Light WCI 318293901 Contact Us For Availability
View on Model
16
Range Oven Door Inner Glass
Range Oven Door Inner Glass WCI 318212210 Contact Us For Availability
View on Model
16
Range Control Panel
Range Control Panel WCI 318296600 Contact Us For Availability
View on Model
16
Range Main Top
Range Main Top WCI 318223609 Contact Us For Availability
View on Model
17
Wall Oven Light Lens Retainer
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
View on Model
19A
Range Control Panel Support
Range Control Panel Support WCI 318289715 Contact Us For Availability
View on Model
20
Range Oven Control Board and Overlay (Black)
Range Oven Control Board and Overlay (Black) WCI 318296802 Contact Us For Availability
View on Model
20
Range Oven Control Board and Clock
Range Oven Control Board and Clock WCI 318296800 Contact Us For Availability
View on Model
20
Range Oven Control Board and Clock
Range Oven Control Board and Clock WCI 318296801 Contact Us For Availability
View on Model
23
Range Oven Door Hinge
Range Oven Door Hinge WCI 318567101 Contact Us For Availability
View on Model
35
Range Surface Burner Knob Support
Range Surface Burner Knob Support WCI 318183101 Contact Us For Availability
View on Model
35
Range Surface Burner Knob Support (Bisque)
Range Surface Burner Knob Support (Bisque) WCI 318183102 Contact Us For Availability
View on Model
36
Range Surface Burner Knob
Range Surface Burner Knob WCI 316442416 Contact Us For Availability
View on Model
36A
Range Surface Burner Knob
Range Surface Burner Knob WCI 316442419 Contact Us For Availability
View on Model
39
Range Oven Door Handle
Range Oven Door Handle WCI 316443602 Contact Us For Availability
View on Model
46
Range Indicator Light Lens
Range Indicator Light Lens WCI 318228301 Contact Us For Availability
View on Model
54
Range Oven Light Housing
Range Oven Light Housing WCI 318222400 Contact Us For Availability
View on Model
54A
Range Surface Element Control Switch
Range Surface Element Control Switch WCI 318120521 Contact Us For Availability
View on Model
81
Wall Oven Rear Shield Spring Clip
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
View on Model
108
Range Convection Fan Motor Support Bracket
Range Convection Fan Motor Support Bracket WCI 318251300 Contact Us For Availability
View on Model
112
Range Control Panel Cooling Fan Relay
Range Control Panel Cooling Fan Relay WCI 318112703 Contact Us For Availability
View on Model
200
Range Base Trim (White)
Range Base Trim (White) WCI 318330001 Contact Us For Availability
View on Model
200
Range Oven Trim, Lower (Black)
Range Oven Trim, Lower (Black) WCI 318330003 Contact Us For Availability
View on Model
NI
Appliance Cleaning Pad
Appliance Cleaning Pad WCI 316459400 Contact Us For Availability
View on Model
NI
Range Oven Control Overlay
Range Oven Control Overlay WCI 316419308 Contact Us For Availability
View on Model
NI
Range Wire Harness
Range Wire Harness WCI 318224810 Contact Us For Availability
View on Model
