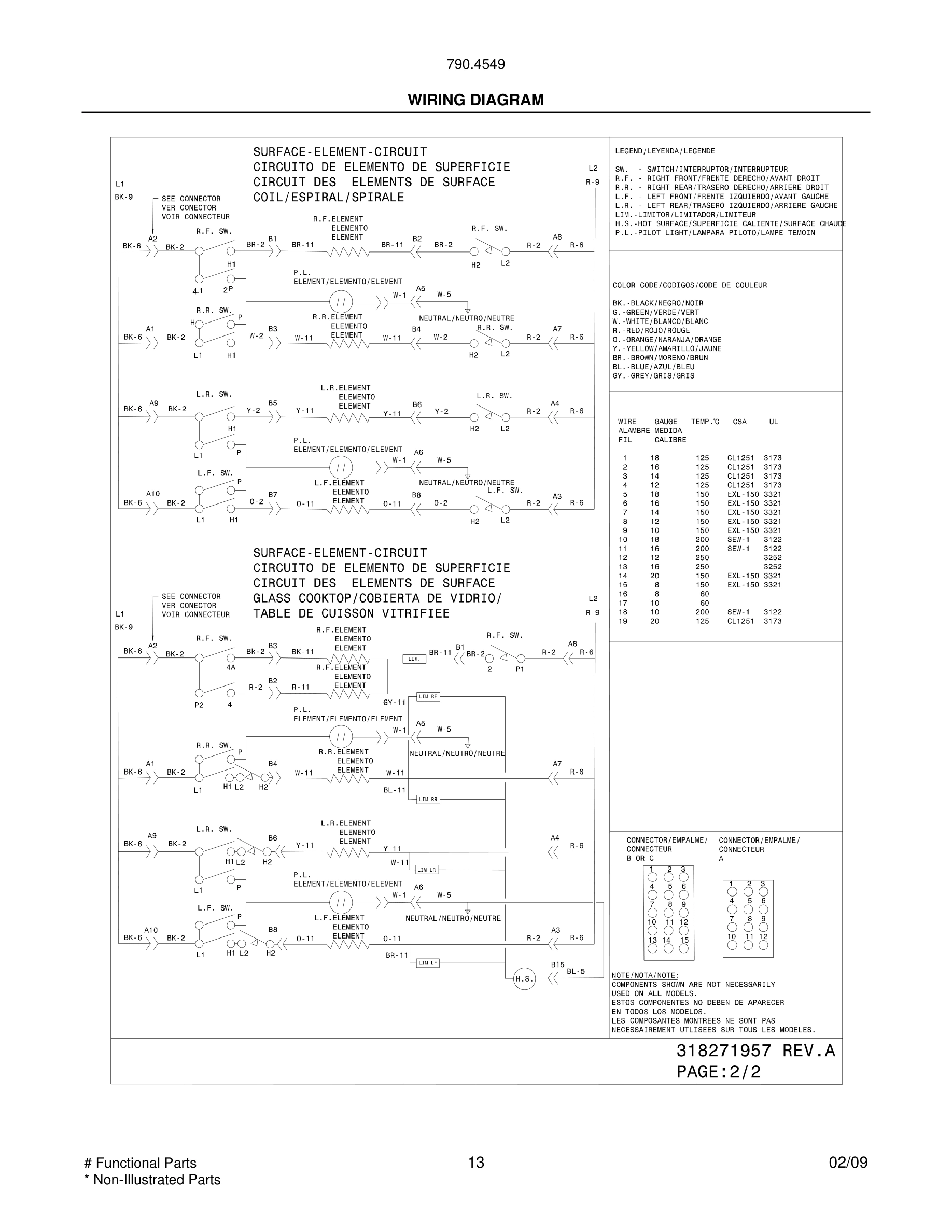

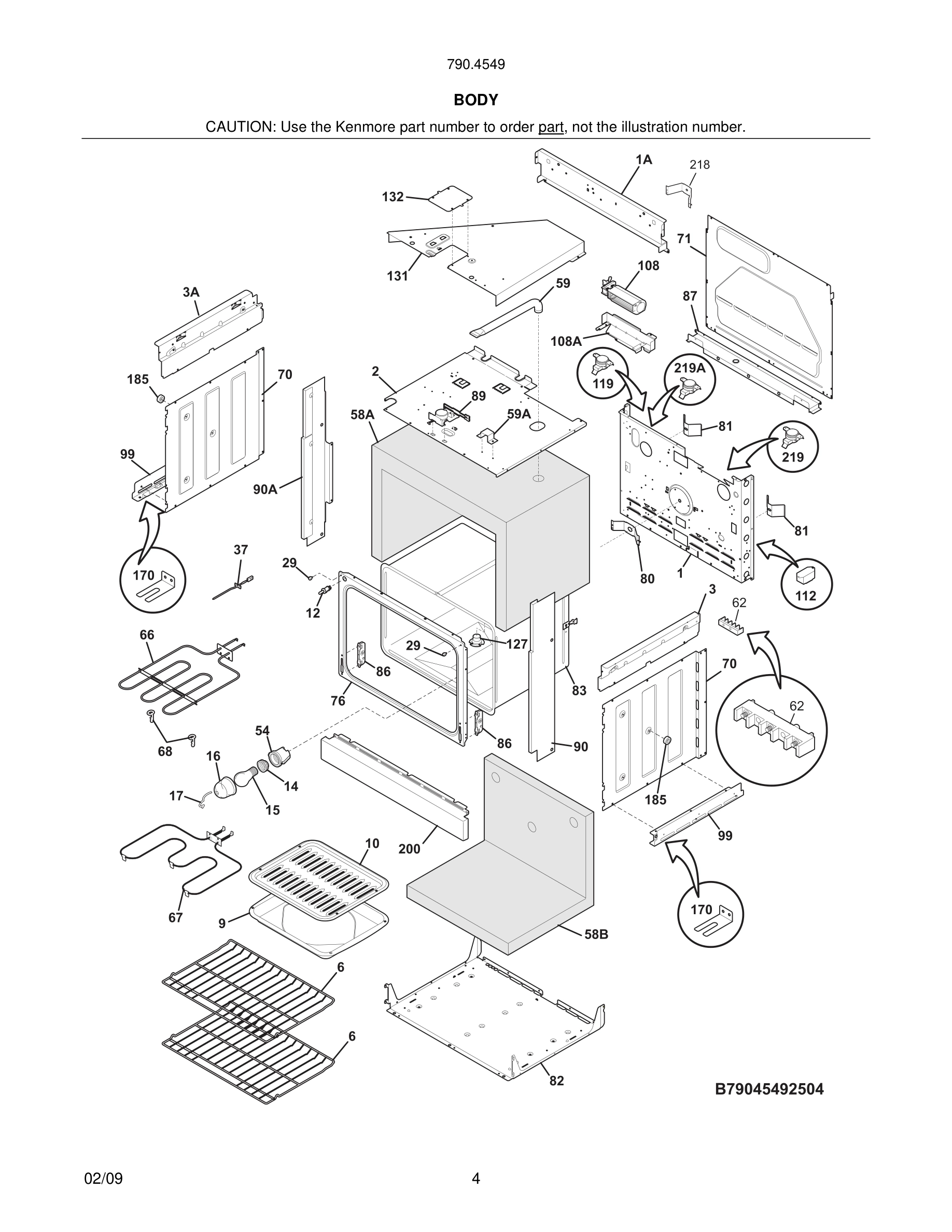

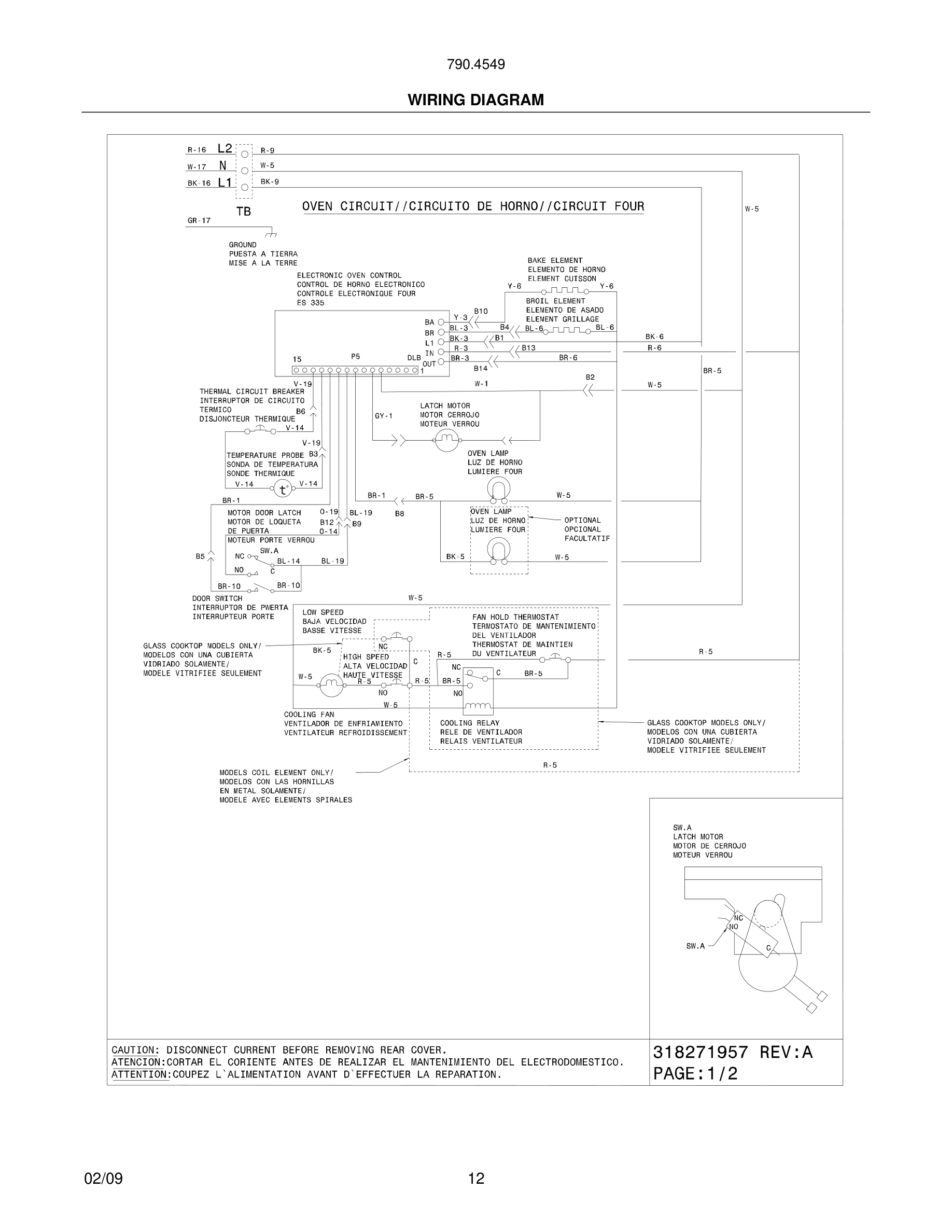

Model Kenmore 790.45492504 RANGE – Common Parts & Diagrams

*
Pad, cleaning
Pad, cleaning WCI 316459400 Contact Us For Availability
View on Model
*#
Harness, wiring, timer
Harness, wiring, timer WCI 318224810 Contact Us For Availability
View on Model
3

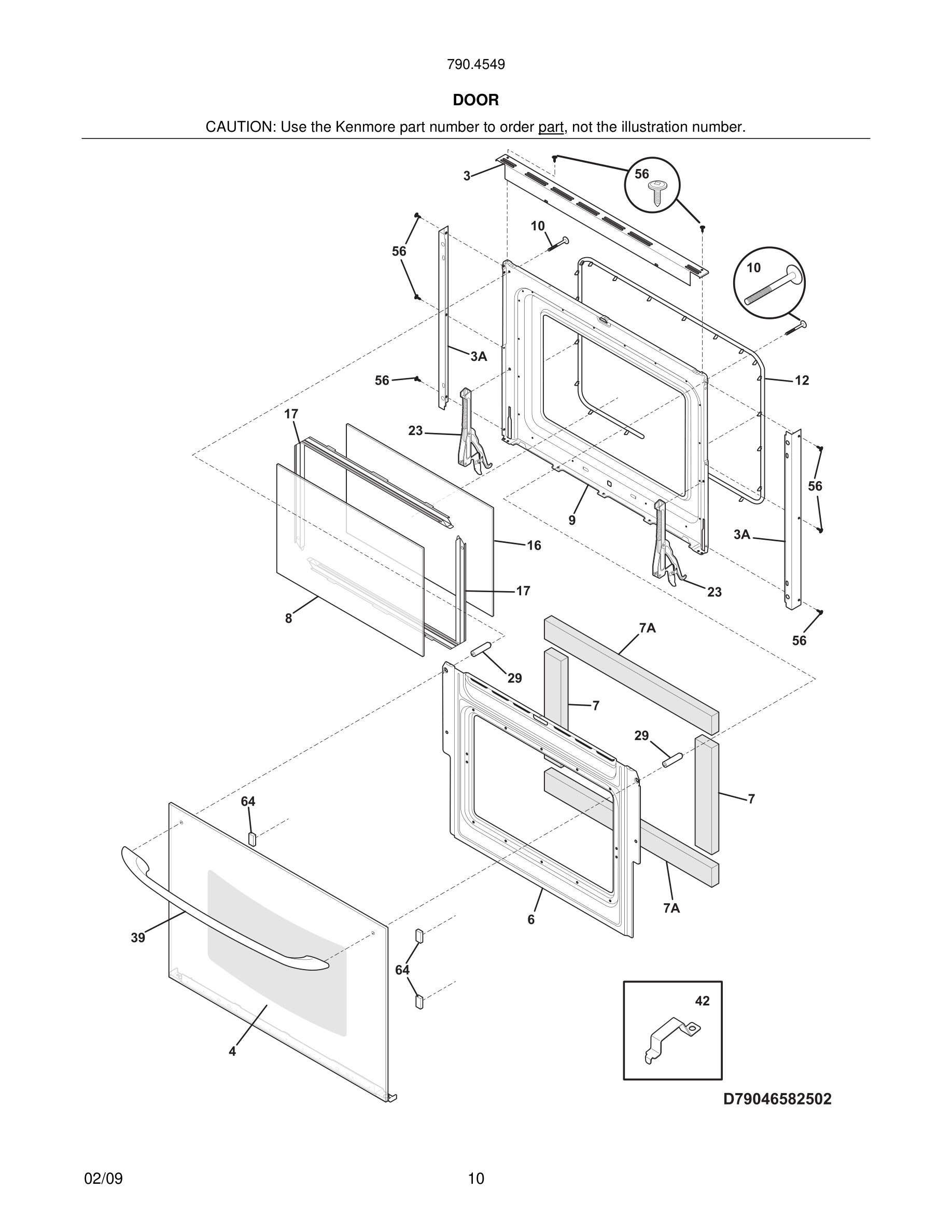

Trim, oven door, black, upper
Trim, oven door, black, upper WCI 318260201 Contact Us For Availability
View on Model
3A
Trim, oven door, side, (2)
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
View on Model
4
Glass Assy., oven door, white, outer, w/trim
Glass Assy., oven door, white, outer, w/trim WCI 318261356 Contact Us For Availability
View on Model
9
Pan, broilerOPTIONAL ACCESS0RY
Pan, broilerOPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
View on Model
10
Insert, broiler panOPTIONAL ACCESS0RY
Insert, broiler panOPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
View on Model
14#
Light, indicator, 125v, (2)
Light, indicator, 125v, (2) WCI 318293901 Contact Us For Availability
View on Model
16
Glass, oven door, heat barrier, lower door
Glass, oven door, heat barrier, lower door WCI 318212210 Contact Us For Availability
View on Model
16
Console, assy., white
Console, assy., white WCI 318296600 Contact Us For Availability
View on Model
16

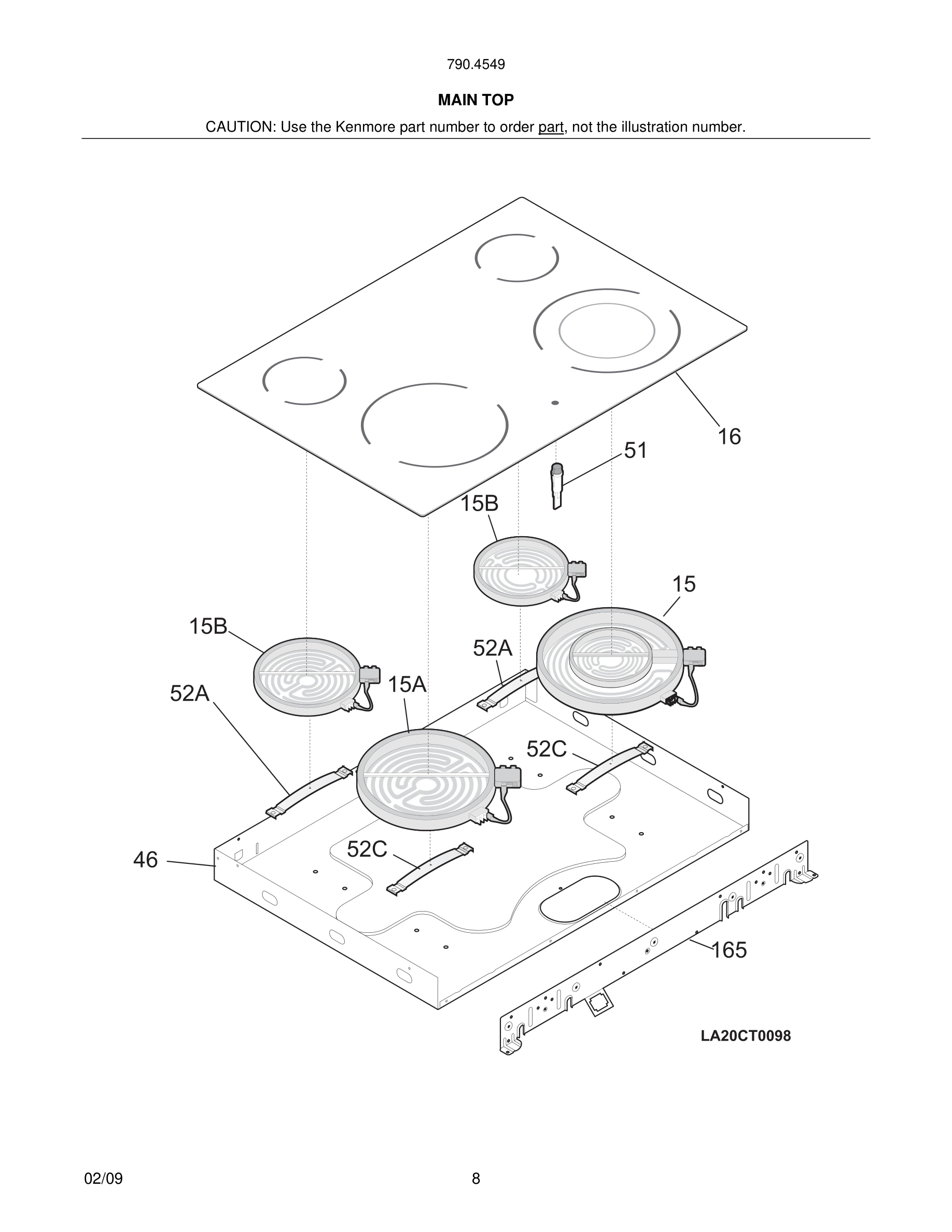

Main Top, glass assy., white
Main Top, glass assy., white WCI 318223609 Contact Us For Availability
View on Model
17
Retainer, light cover
Retainer, light cover WCI 5304400195 Contact Us For Availability
View on Model
19A
Panel, control mtg.
Panel, control mtg. WCI 318289715 Contact Us For Availability
View on Model
20#
Clock/Timer, electronic, ES335, black, w/over
Clock/Timer, electronic, ES335, black, w/over WCI 318296802 No Longer Available
View on Model
20#
Clock/Timer, electronic, ES335, white, w/over
Clock/Timer, electronic, ES335, white, w/over WCI 318296800 Contact Us For Availability
View on Model
20#
Clock/Timer, electronic, ES335, bisque, w/ove
Clock/Timer, electronic, ES335, bisque, w/ove WCI 318296801 Contact Us For Availability
View on Model
20*
Overlay, clock, bisque, ES335
Overlay, clock, bisque, ES335 WCI 316419308 Contact Us For Availability
View on Model
23
Hinge, oven door, (2)
Hinge, oven door, (2) WCI 318567101 Contact Us For Availability
View on Model
35
Support, glass, white, (4)
Support, glass, white, (4) WCI 318183101 Contact Us For Availability
View on Model
35
Support, glass, bisque, (4)
Support, glass, bisque, (4) WCI 318183102 Contact Us For Availability
View on Model
36
Knob, control, black
Knob, control, black WCI 316442416 Contact Us For Availability
View on Model
36A
Knob, control, black
Knob, control, black WCI 316442419 Contact Us For Availability
View on Model
46
Lens, indicator light
Lens, indicator light WCI 318228301 Contact Us For Availability
View on Model
54
Housing, oven light
Housing, oven light WCI 318222400 Contact Us For Availability
View on Model
54A#
Switch, surface unit
Switch, surface unit WCI 318120521 Contact Us For Availability
View on Model
81
Spring, oven
Spring, oven WCI 318192400 Contact Us For Availability
View on Model
108A
Bracket, fan support
Bracket, fan support WCI 318251300 Contact Us For Availability
View on Model
112#
Relay
Relay WCI 318112703 Contact Us For Availability
View on Model
200
Trim, door opening, white, bottom
Trim, door opening, white, bottom WCI 318330001 Contact Us For Availability
View on Model
200
Trim, door opening, black, bottom
Trim, door opening, black, bottom WCI 318330003 Contact Us For Availability
View on Model
