Model Kenmore 790.45492502 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

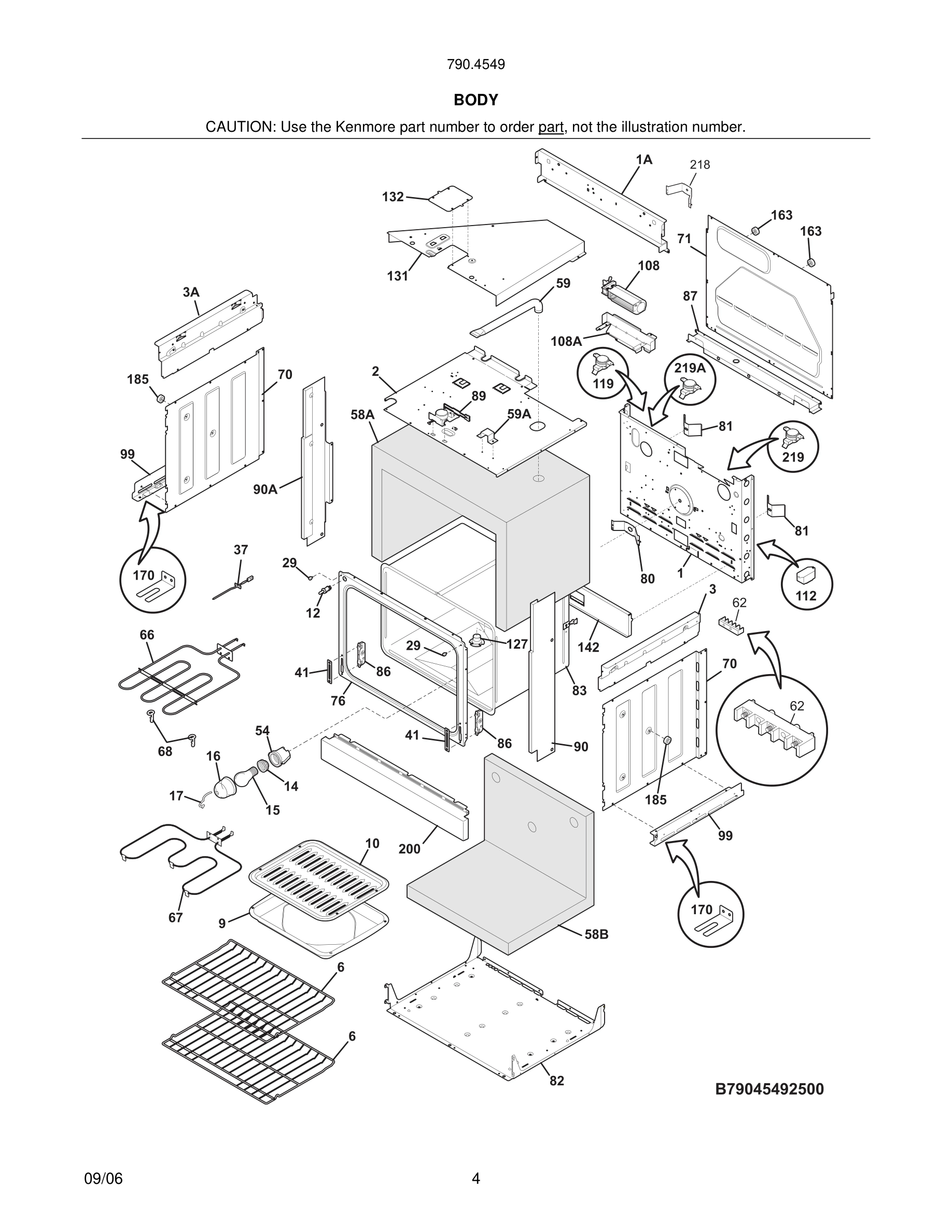

05 - BODY
07 - BODY

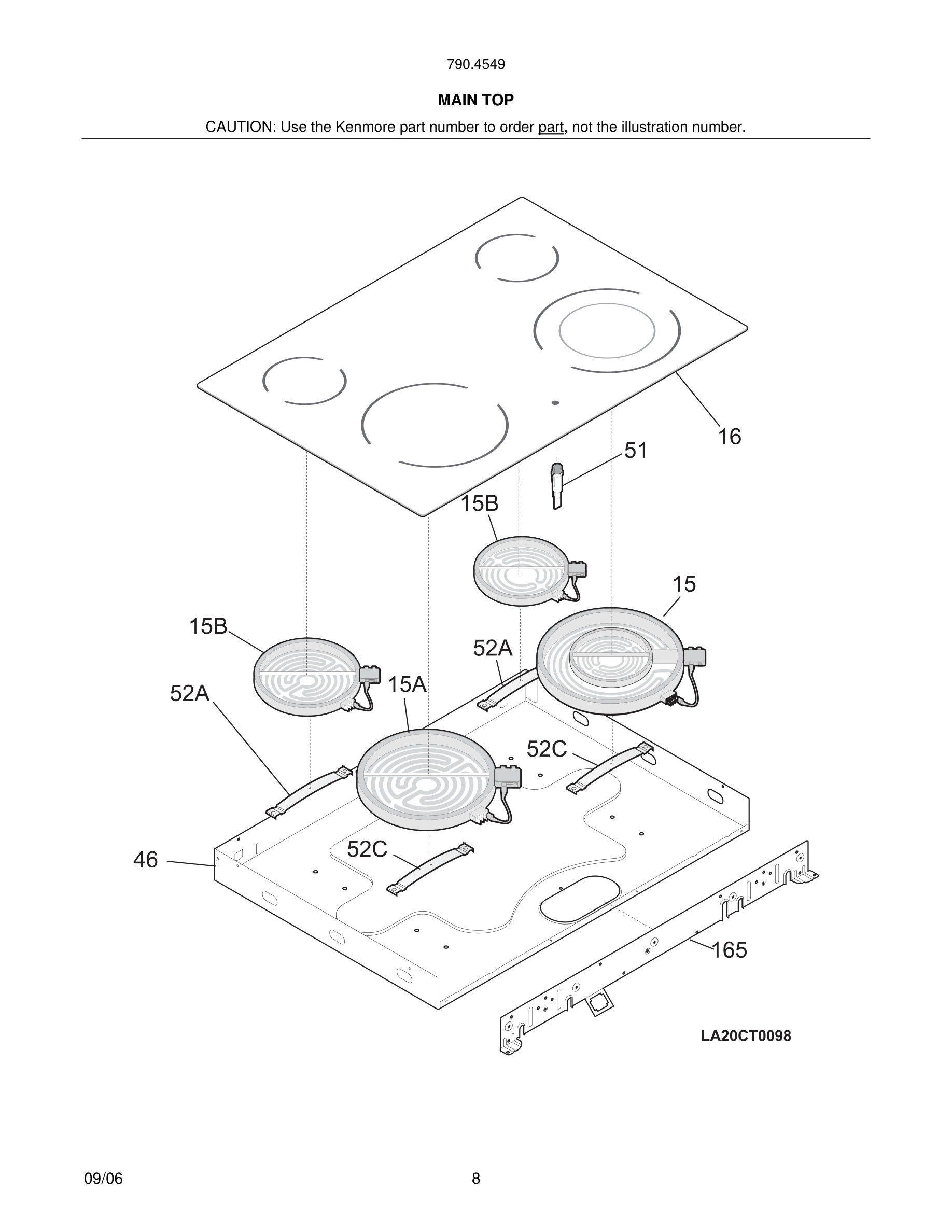

09 - MAIN TOP
11 - DOOR

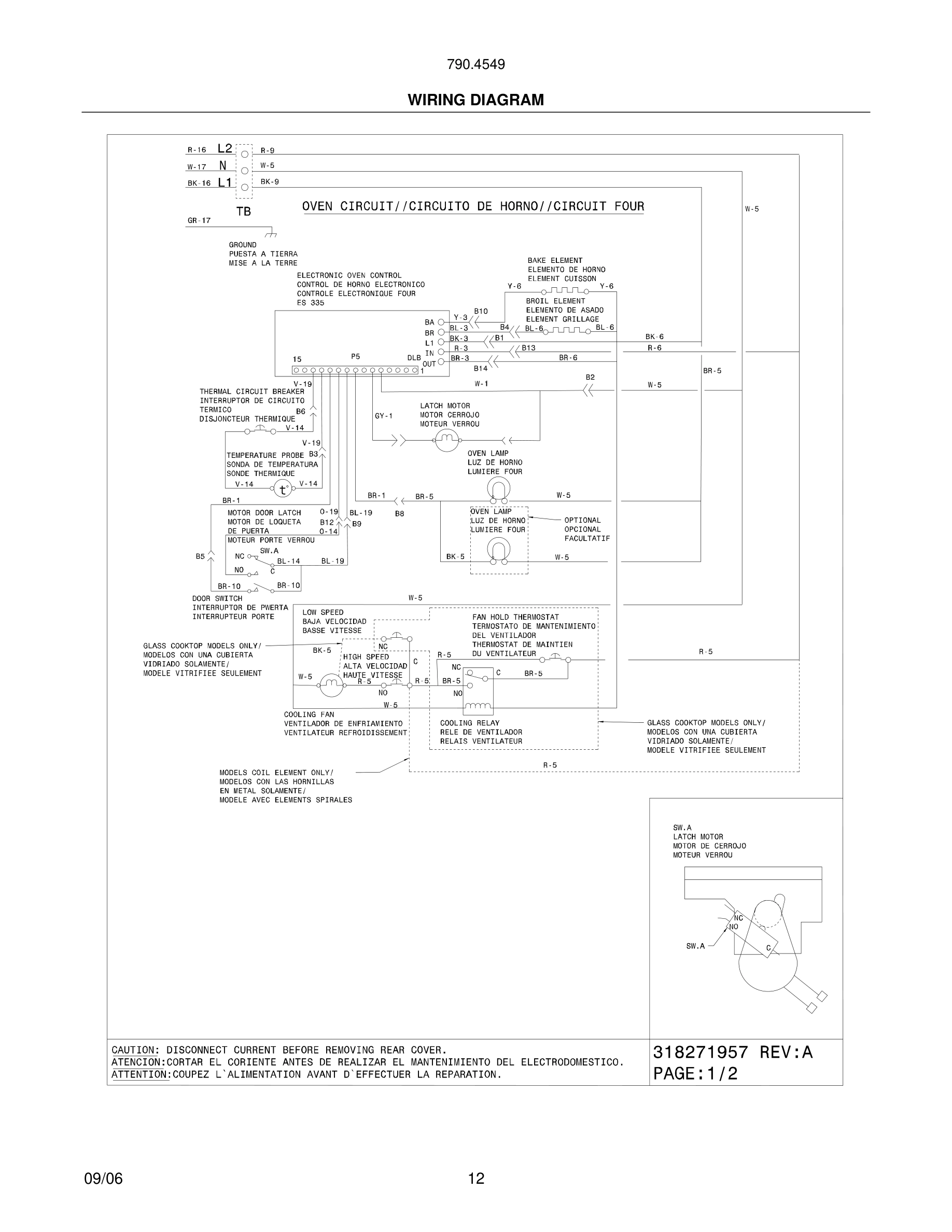

12 - WIRING DIAGRAM

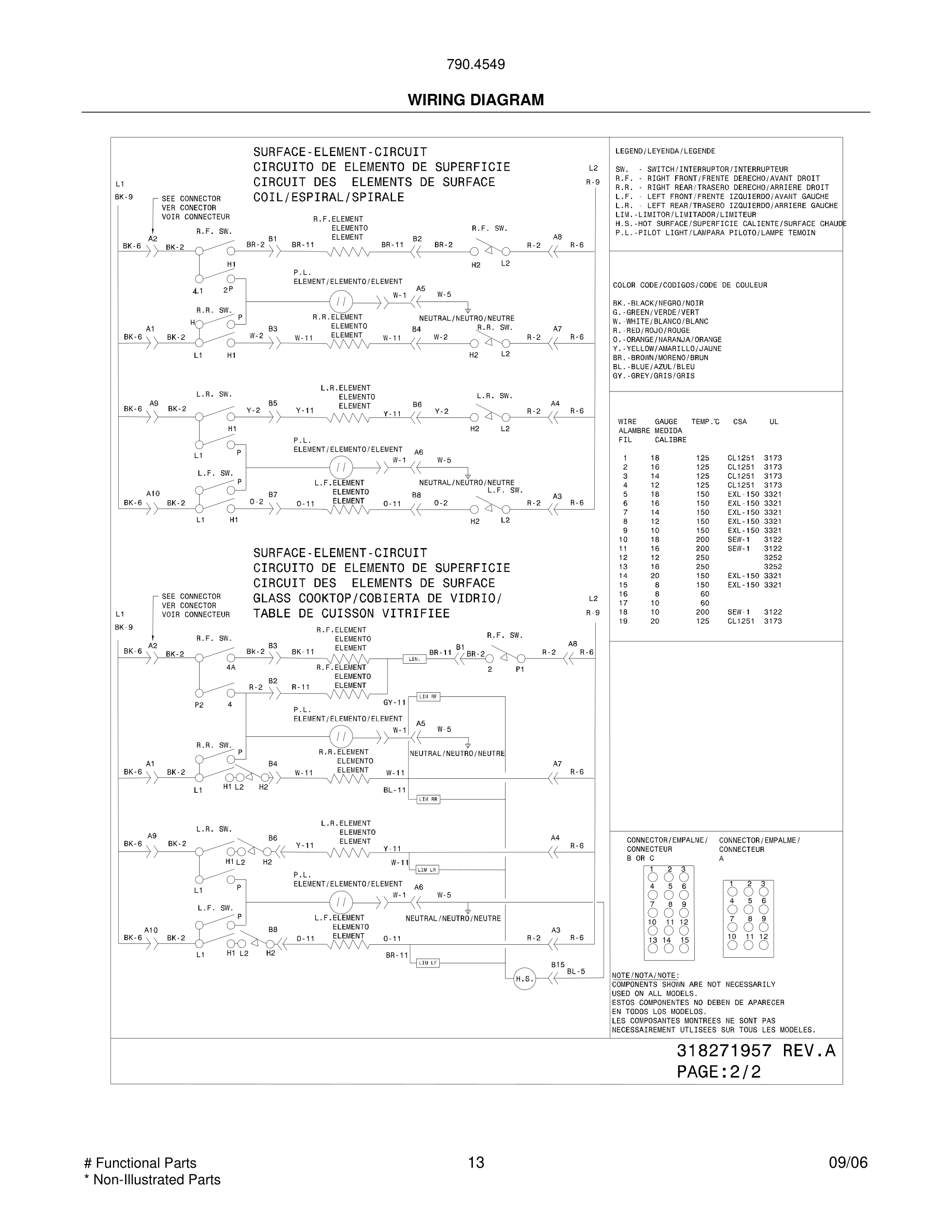

13 - WIRING DIAGRAM
Common parts from model Kenmore 790.45492502 RANGE
*
Cleaner, cooktop WCI 316112100 Contact Us For Availability
*
Label, anti-tip WCI 316221000 Contact Us For Availability
*#
Harness, wiring, timer WCI 318224810 Contact Us For Availability
*#
Harness, wiring, cooktop WCI 318228926 Contact Us For Availability
3
Trim, oven door, black, upper WCI 318260201 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Glass Assy., oven door, white, outer, w/trim WCI 318261356 Contact Us For Availability
4
Glass Assy., oven door, bisque, outer, w/trim WCI 318261357 Contact Us For Availability
6
Baffle, door WCI 318260520 Contact Us For Availability
9
Liner, oven door, upper WCI 318259601 Contact Us For Availability
16
Console, assy., white WCI 318296600 Contact Us For Availability
16
Main Top, glass assy., white WCI 318223609 Contact Us For Availability
16
Main Top, glass assy., bisque WCI 318223610 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
20#
Clock/Timer, electronic, ES335, black, w/over WCI 318296802 Contact Us For Availability
20#
Clock/Timer, electronic, ES335, white, w/over WCI 318296800 Contact Us For Availability
20#
Clock/Timer, electronic, ES335, bisque, w/ove WCI 318296801 Contact Us For Availability
20*
Overlay, clock, bisque, ES335 WCI 316419308 Contact Us For Availability
23
Hinge, door, (2) WCI 318024722 Contact Us For Availability
29
Spacer, door WCI 318014402 Contact Us For Availability
35
Support, glass, white, (4) WCI 318183101 Contact Us For Availability
35
Support, glass, bisque, (4) WCI 318183102 Contact Us For Availability
36
Knob, control, black WCI 316442416 Contact Us For Availability
36A
Knob, control, black WCI 316442419 Contact Us For Availability
39
Handle, oven door, bisque WCI 316443602 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
46
Box, burner WCI 318225410 Contact Us For Availability
51#
Light, indicator, 125v, (6) WCI 318044823 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
54A#
Switch, surface unit WCI 318120521 Contact Us For Availability
76
Front, oven WCI 318056217 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
112#
Relay WCI 318112703 Contact Us For Availability
165
Plate, mounting WCI 318227503 Contact Us For Availability
200
Trim, door opening, white, bottom WCI 318330001 Contact Us For Availability
200
Trim, door opening, black, bottom WCI 318330003 Contact Us For Availability
× ![]()
