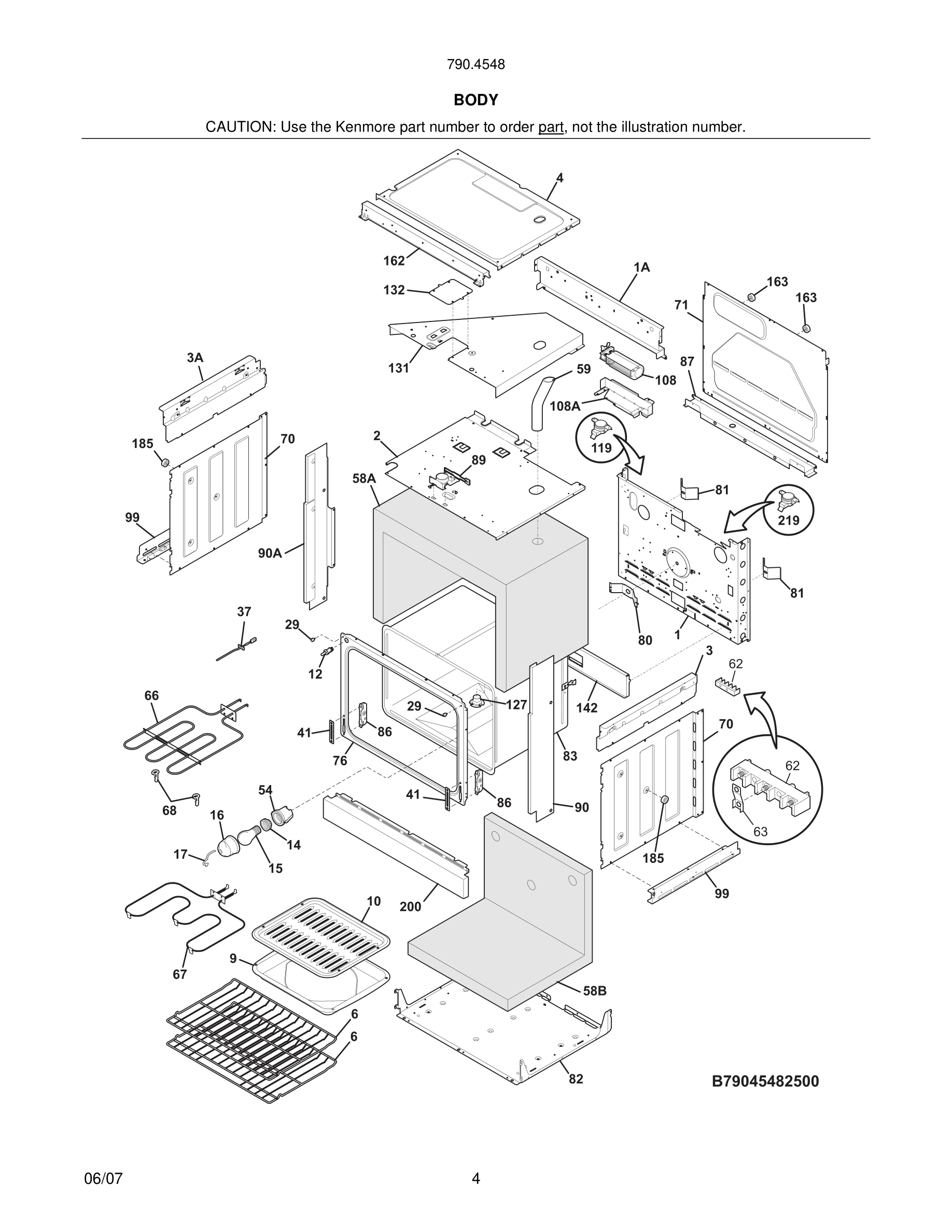

Model Kenmore 790.45482502 RANGE – Common Parts & Diagrams

*

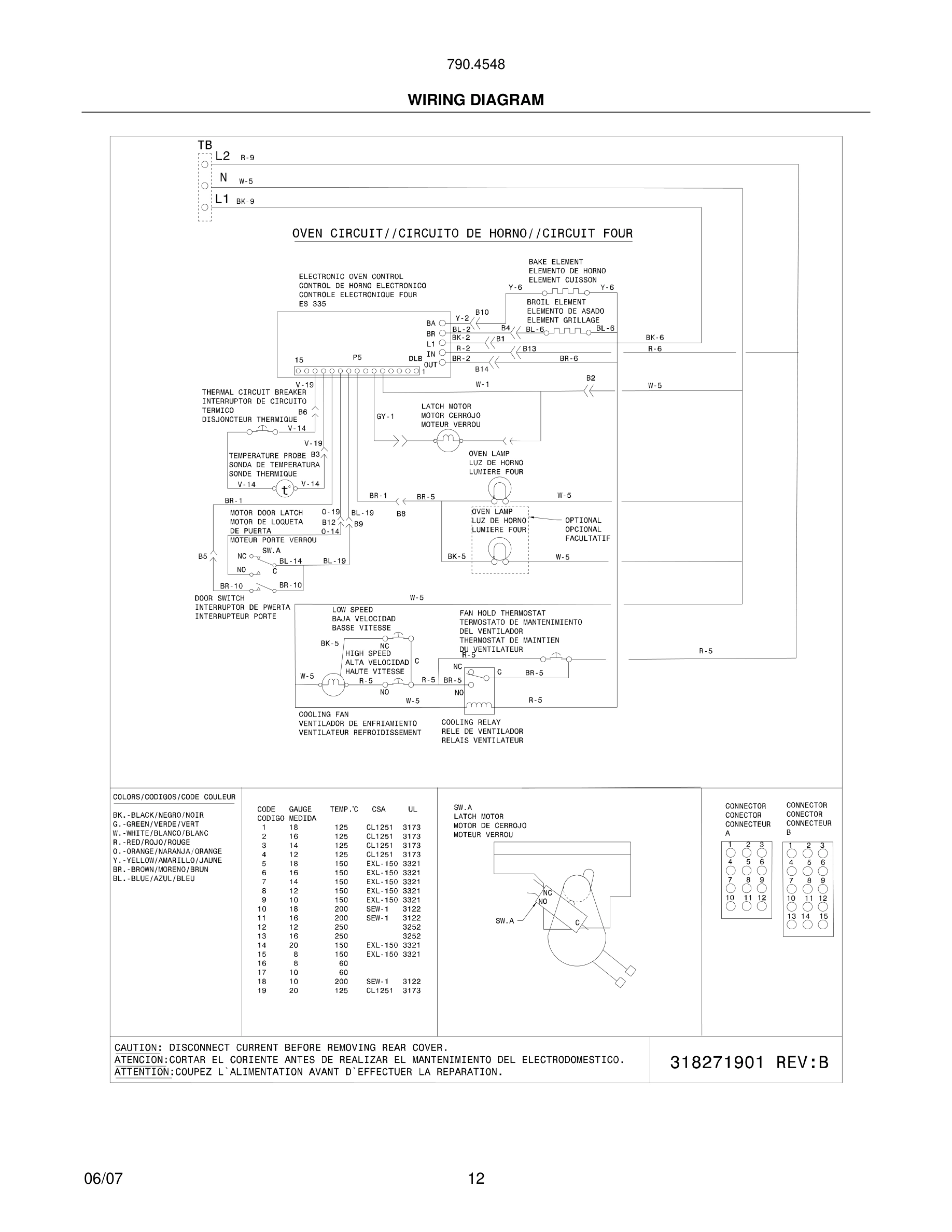

Wiring Harness, backguard
Wiring Harness, backguard WCI 318301100 Contact Us For Availability
View on Model
*#
Harness, wiring, main
Harness, wiring, main WCI 318224926 Contact Us For Availability
View on Model
*#
Harness, wiring, timer
Harness, wiring, timer WCI 318224810 Contact Us For Availability
View on Model
*#
Harness, wiring, infinite switch
Harness, wiring, infinite switch WCI 318224815 Contact Us For Availability
View on Model
3

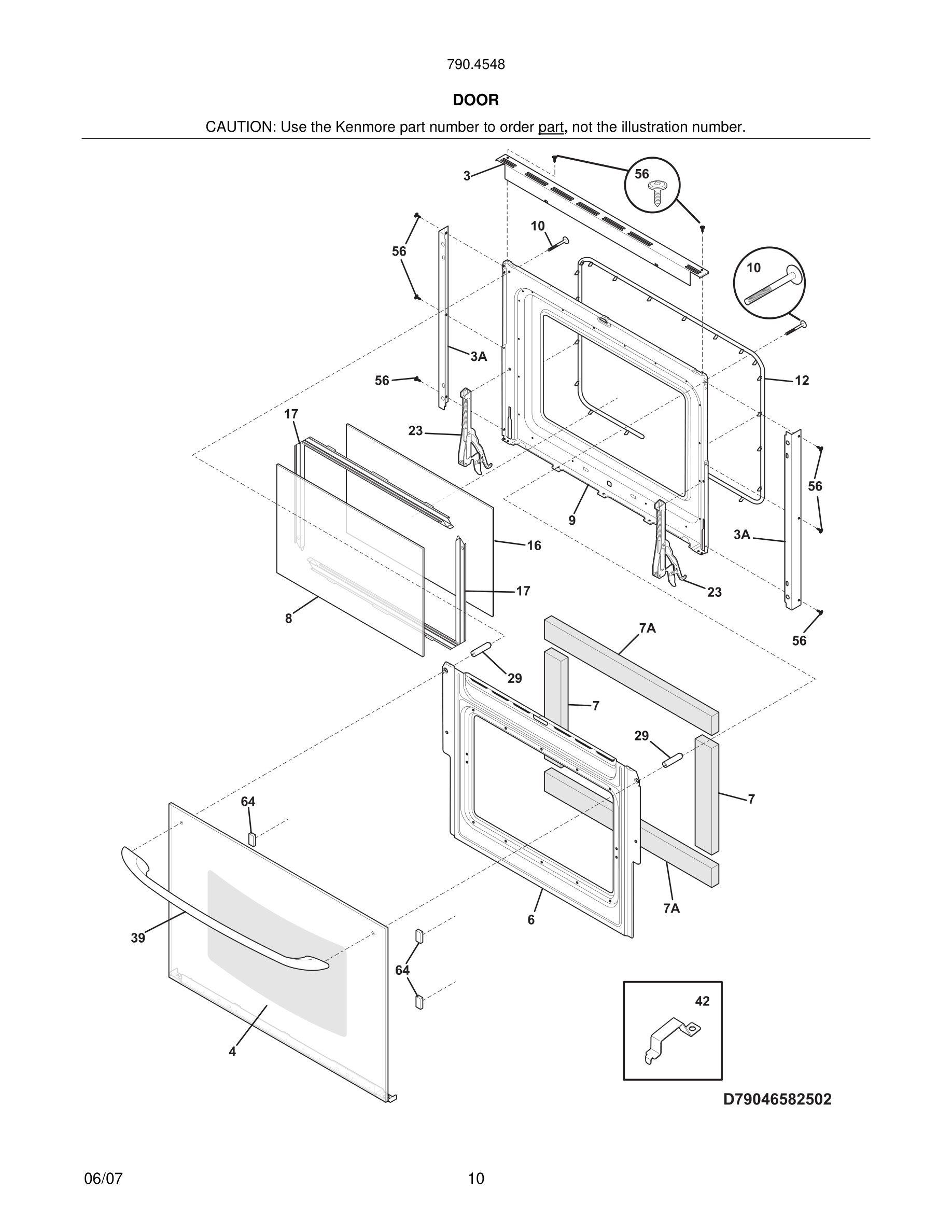

Trim, oven door, black, upper
Trim, oven door, black, upper WCI 318260201 Contact Us For Availability
View on Model
3A
Trim, oven door, side, (2)
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
View on Model
4
Glass Assy., oven door, white, outer, w/trim
Glass Assy., oven door, white, outer, w/trim WCI 318261356 Contact Us For Availability
View on Model
6
Rack, oven
Rack, oven WCI 318262504 Contact Us For Availability
View on Model
9
Pan, broilerOPTIONAL ACCESS0RY
Pan, broilerOPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
View on Model
10
Insert, broiler panOPTIONAL ACCESS0RY
Insert, broiler panOPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
View on Model
14#
Light, indicator, 125v, (2)
Light, indicator, 125v, (2) WCI 318293901 Contact Us For Availability
View on Model
16
Glass, oven door, heat barrier
Glass, oven door, heat barrier WCI 318212210 Contact Us For Availability
View on Model
16
Console, assy., white
Console, assy., white WCI 318296600 Contact Us For Availability
View on Model
16*
Clip, console, (2)
Clip, console, (2) WCI 5304447071 Contact Us For Availability
View on Model
17
Retainer, light cover
Retainer, light cover WCI 5304400195 Contact Us For Availability
View on Model

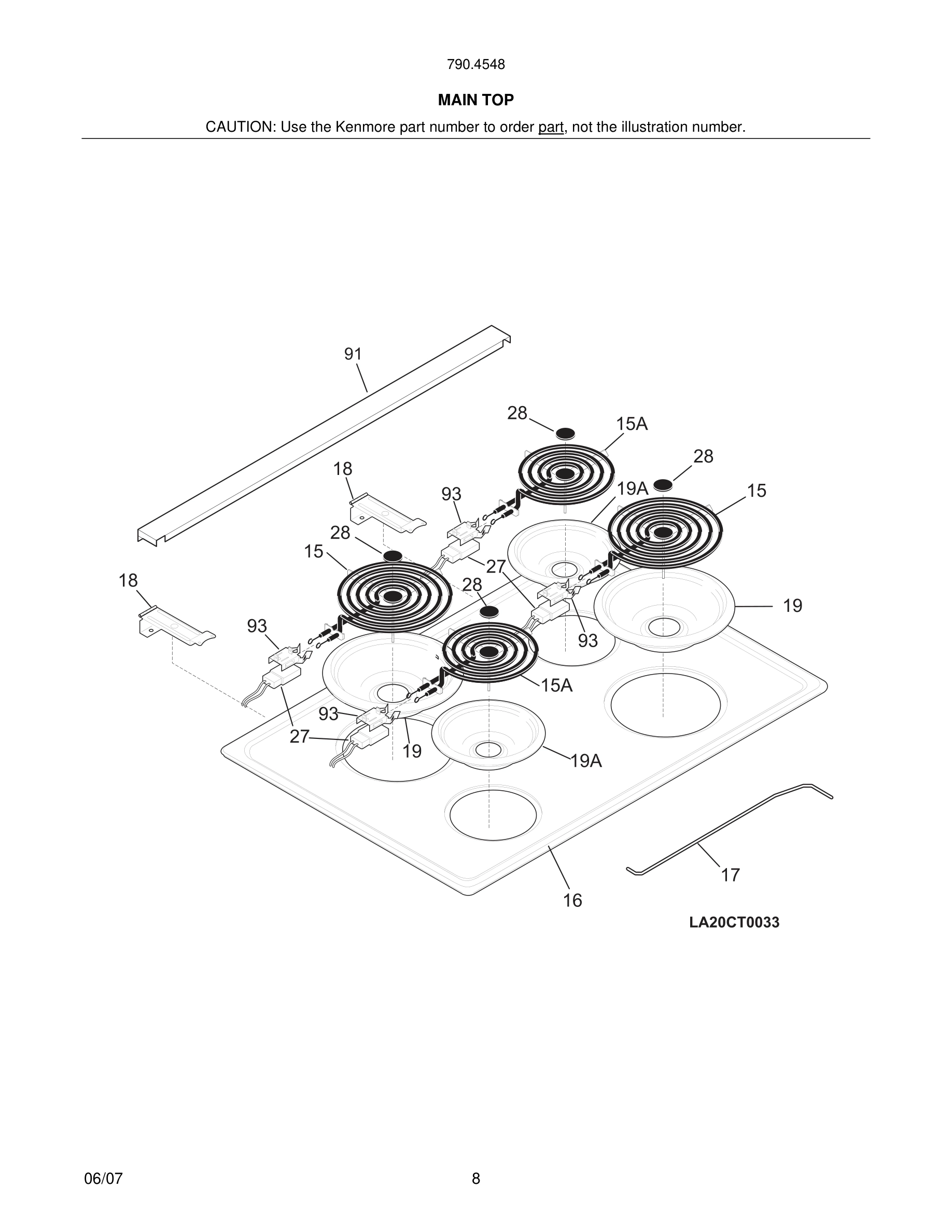

18
Hinge, maintop, (2)
Hinge, maintop, (2) WCI 318227710 Contact Us For Availability
View on Model
20#
Clock/Timer, electronic, ES335, black, w/over
Clock/Timer, electronic, ES335, black, w/over WCI 318296802 Contact Us For Availability
View on Model
20#
Clock/Timer, electronic, ES335, white, w/over
Clock/Timer, electronic, ES335, white, w/over WCI 318296800 Contact Us For Availability
View on Model
35
Support, glass, white, (4)
Support, glass, white, (4) WCI 318183101 Contact Us For Availability
View on Model
36
Knob, control, black
Knob, control, black WCI 316442416 Contact Us For Availability
View on Model
41
Cover, hinge cutout
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
View on Model
46
Lens, indicator light
Lens, indicator light WCI 318228301 Contact Us For Availability
View on Model
54
Housing, oven light
Housing, oven light WCI 318222400 Contact Us For Availability
View on Model
76
Front, oven
Front, oven WCI 318056217 Contact Us For Availability
View on Model
81
Spring, oven
Spring, oven WCI 318192400 Contact Us For Availability
View on Model
86
Receptacle, hinge
Receptacle, hinge WCI 318342400 Contact Us For Availability
View on Model
91
Trim, filler, white, rearOPTIONAL ACCESS0RY
Trim, filler, white, rearOPTIONAL ACCESS0RY WCI 318304301 Contact Us For Availability
View on Model
93
Support, terminal block, (4)
Support, terminal block, (4) WCI 318366410 Contact Us For Availability
View on Model
99A
Gasket, black
Gasket, black WCI 318313201 Contact Us For Availability
View on Model
99A
Gasket, grey
Gasket, grey WCI 318313200 Contact Us For Availability
View on Model
108A
Bracket, fan support
Bracket, fan support WCI 318251300 Contact Us For Availability
View on Model
200
Trim, door opening, white, bottom
Trim, door opening, white, bottom WCI 318330001 Contact Us For Availability
View on Model
200
Trim, door opening, black, bottom
Trim, door opening, black, bottom WCI 318330003 Contact Us For Availability
View on Model
219#
Thermostat, safety, .945" mtg., 140/170
Thermostat, safety, .945" mtg., 140/170 WCI 318003606 Contact Us For Availability
