Model Kenmore 790.45482501 RANGE – Common Parts & Diagrams

*
Wiring Harness, backguard
Wiring Harness, backguard WCI 318301100 Contact Us For Availability
View on Model
*
Label, anti-tip
Label, anti-tip WCI 316221000 Contact Us For Availability
View on Model
*#
Harness, wiring, main
Harness, wiring, main WCI 318224926 Contact Us For Availability
View on Model
*#
Harness, wiring, timer
Harness, wiring, timer WCI 318224810 Contact Us For Availability
View on Model
*#
Harness, wiring, infinite switch
Harness, wiring, infinite switch WCI 318224815 Contact Us For Availability
View on Model
3

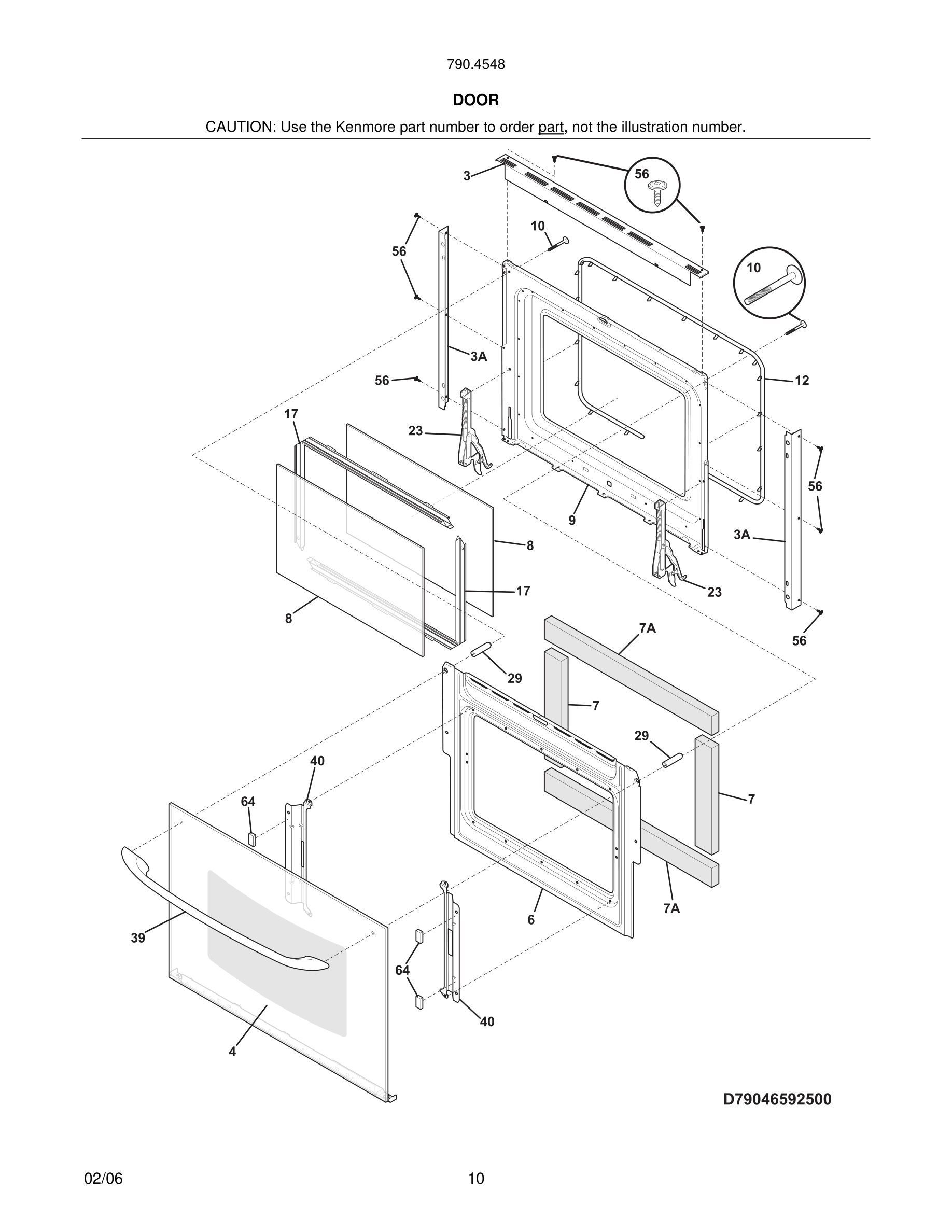

Trim, oven door, black, upper
Trim, oven door, black, upper WCI 318260201 Contact Us For Availability
View on Model
3A
Trim, oven door, side, (2)
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
View on Model
4
Glass Assy., oven door, white, outer, w/trim
Glass Assy., oven door, white, outer, w/trim WCI 318261356 Contact Us For Availability
View on Model
6
Rack, oven
Rack, oven WCI 318262504 Contact Us For Availability
View on Model
6
Baffle, door
Baffle, door WCI 318260500 Contact Us For Availability
View on Model
9
Liner, oven door
Liner, oven door WCI 318259601 Contact Us For Availability
View on Model
16

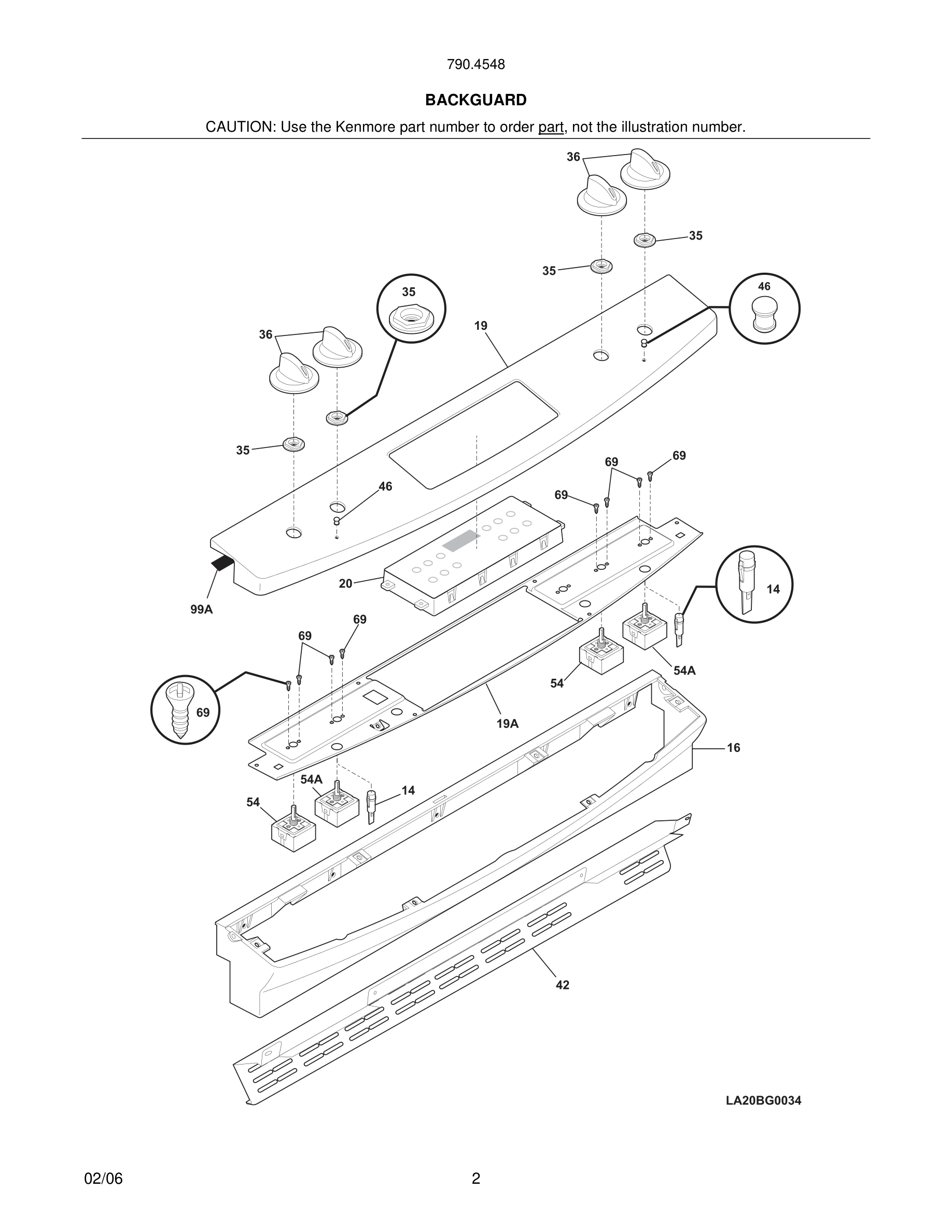

Console, assy., white
Console, assy., white WCI 318296600 Contact Us For Availability
View on Model
16*
Clip, console, (2)
Clip, console, (2) WCI 5304447071 Contact Us For Availability
View on Model
17
Retainer, light cover
Retainer, light cover WCI 5304400195 Contact Us For Availability
View on Model
18
Hinge, maintop, (2)
Hinge, maintop, (2) WCI 318227710 Contact Us For Availability
View on Model
20#
Clock/Timer, electronic, ES335, black, w/over
Clock/Timer, electronic, ES335, black, w/over WCI 318296802 Contact Us For Availability
View on Model
20#
Clock/Timer, electronic, ES335, white, w/over
Clock/Timer, electronic, ES335, white, w/over WCI 318296800 Contact Us For Availability
View on Model
23
Hinge, door, (2)
Hinge, door, (2) WCI 318024722 Contact Us For Availability
View on Model
28
Medallion, stainless steel, surf elem
Medallion, stainless steel, surf elem WCI 3017801 Contact Us For Availability
View on Model
29
Spacer, door
Spacer, door WCI 318014402 Contact Us For Availability
View on Model
35
Support, glass, white, (4)
Support, glass, white, (4) WCI 318183101 Contact Us For Availability
View on Model
36
Knob, control, black
Knob, control, black WCI 316442416 Contact Us For Availability
View on Model
41
Cover, hinge cutout
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
View on Model
54
Housing, oven light
Housing, oven light WCI 318222400 Contact Us For Availability
View on Model
76
Front, oven
Front, oven WCI 318056217 Contact Us For Availability
View on Model
81
Spring, oven
Spring, oven WCI 318192400 Contact Us For Availability
View on Model
91
Trim, filler, white, rear
Trim, filler, white, rear WCI 318304301 Contact Us For Availability
View on Model
93
Support, terminal block, (4)
Support, terminal block, (4) WCI 318122500 Contact Us For Availability
View on Model
99A
Gasket, black
Gasket, black WCI 318313201 Contact Us For Availability
View on Model
99A
Gasket, grey
Gasket, grey WCI 318313200 Contact Us For Availability
View on Model
108A
Bracket, fan support
Bracket, fan support WCI 318251300 Contact Us For Availability
View on Model
200
Trim, door opening, white, bottom
Trim, door opening, white, bottom WCI 318330001 Contact Us For Availability
View on Model
200
Trim, door opening, black, bottom
Trim, door opening, black, bottom WCI 318330003 Contact Us For Availability
View on Model
219#
Thermostat, safety
Thermostat, safety WCI 318003606 Contact Us For Availability
View on Model
