Model Kenmore 790.45262501 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

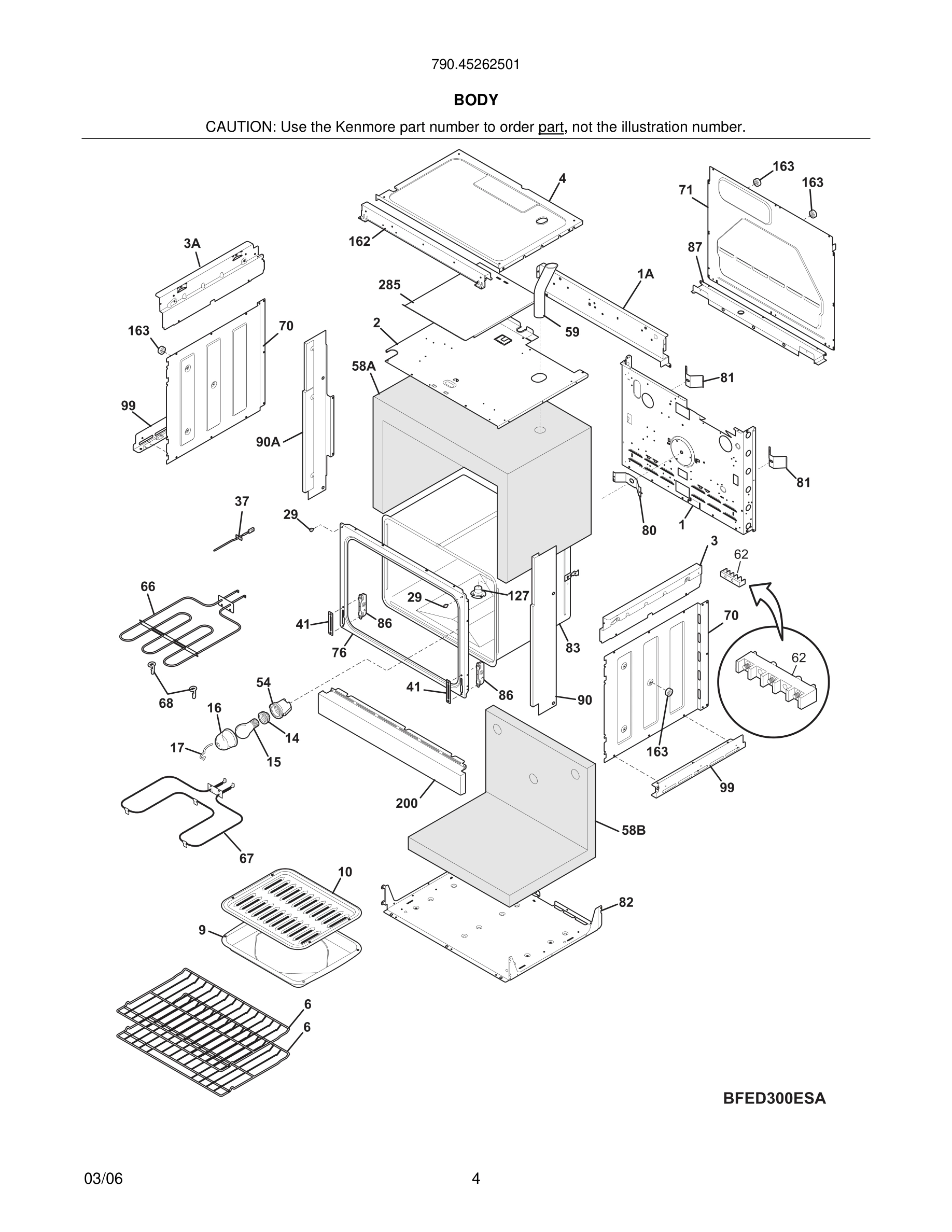

05 - BODY

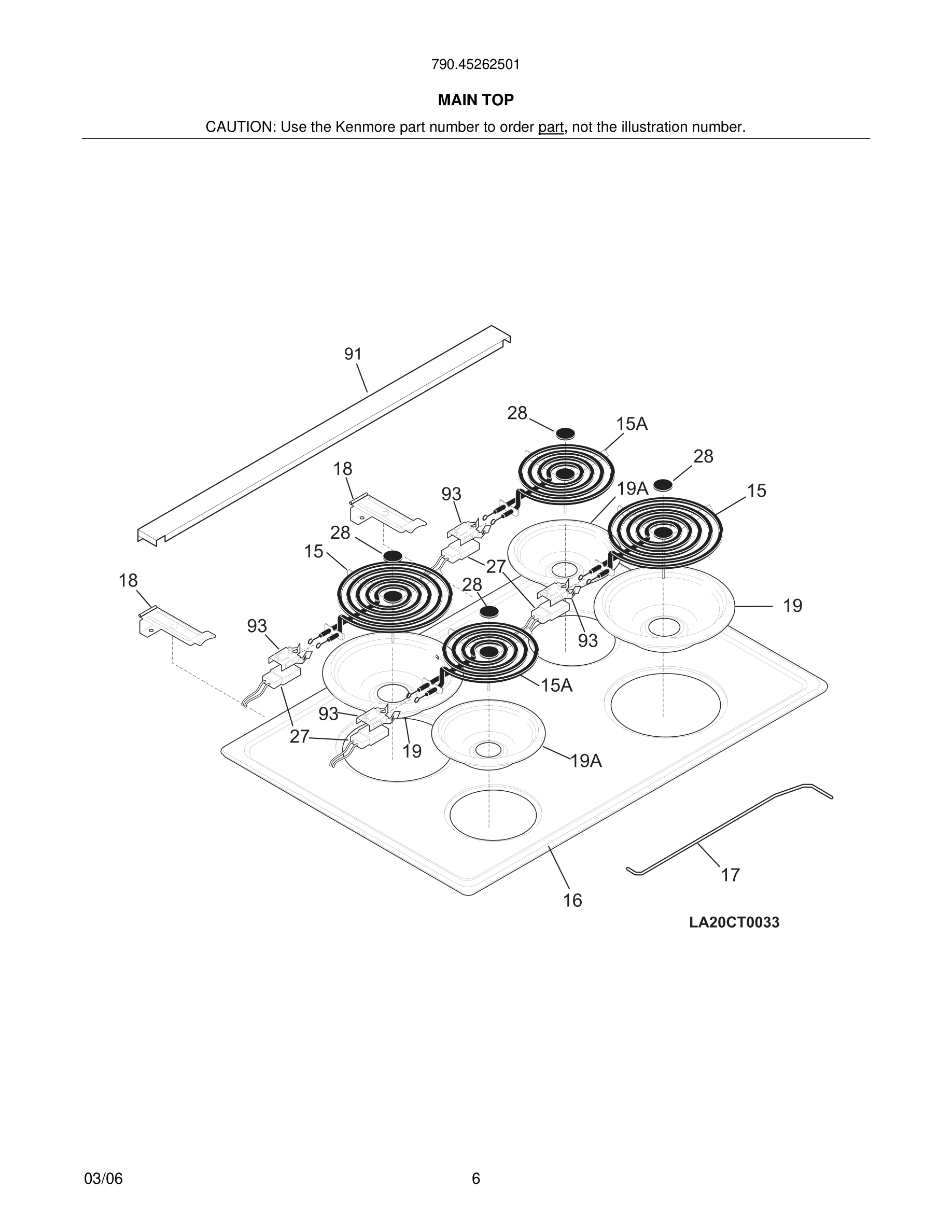

07 - MAIN TOP

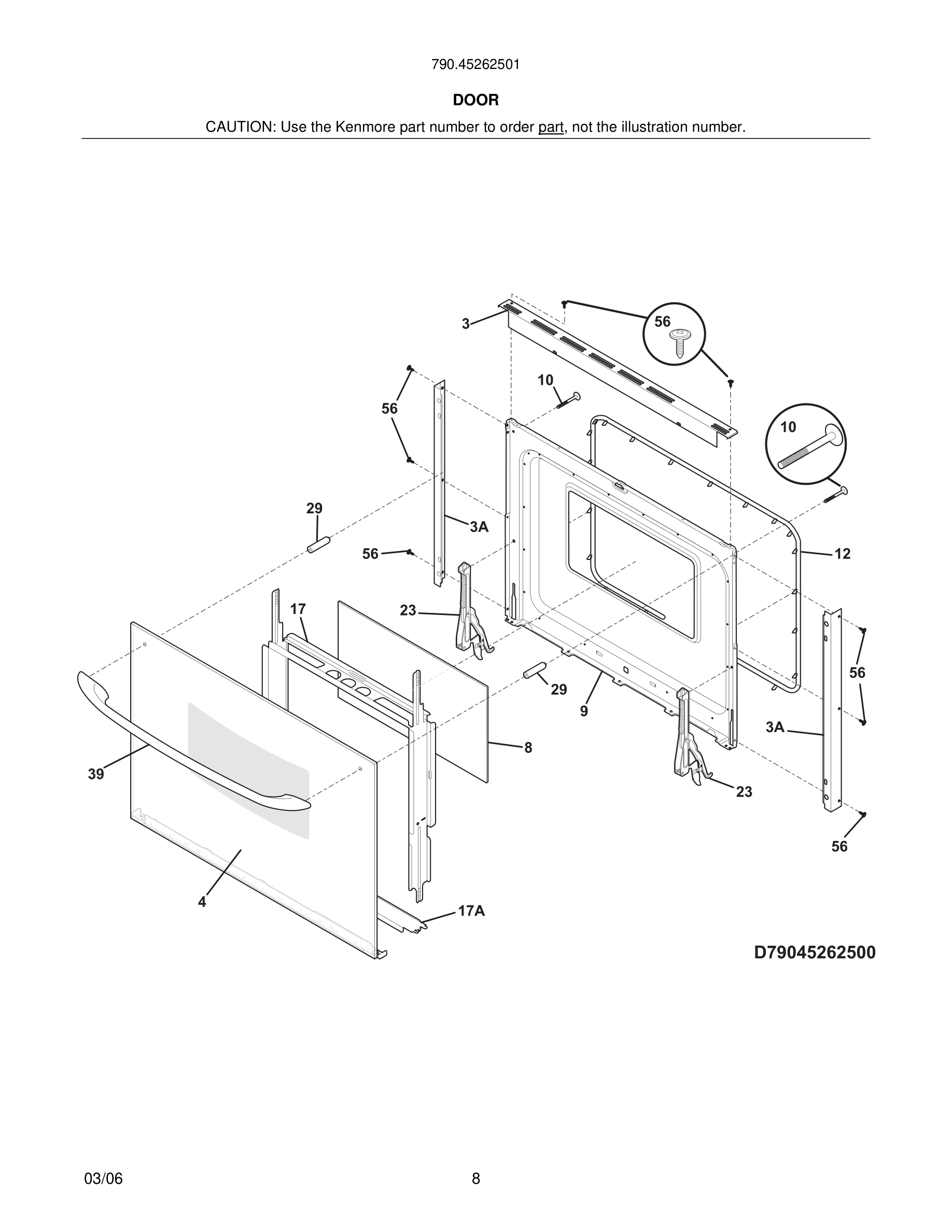

09 - DOOR

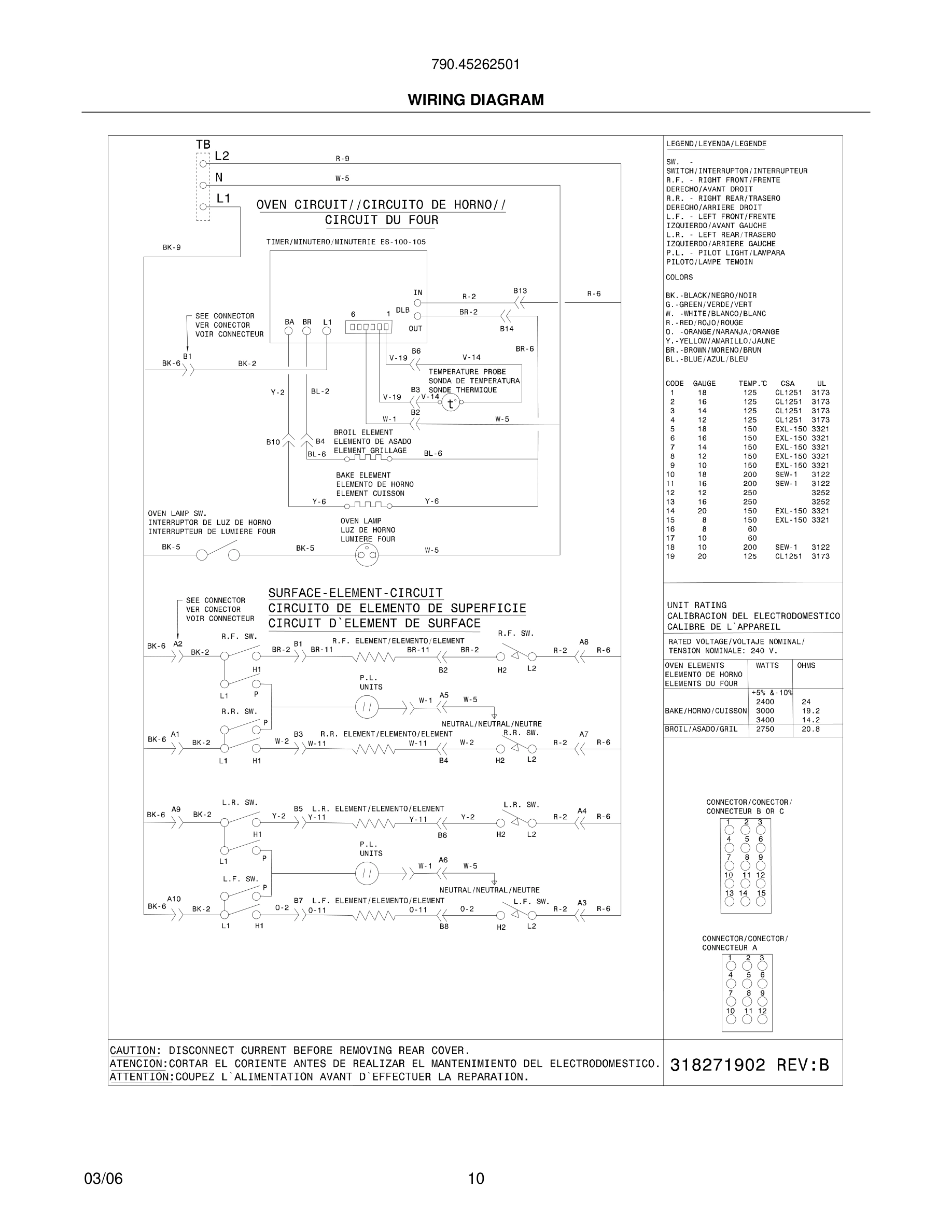

10 - WIRING DIAGRAM
Common parts from model Kenmore 790.45262501 RANGE
*
Wiring Harness, backguard WCI 318301100 Contact Us For Availability
*
retainer wire WCI 5304400192 Contact Us For Availability
*
Label, anti-tip WCI 316221000 Contact Us For Availability
*#
Harness, wiring, timer WCI 318224817 Contact Us For Availability
*#
Harness, wiring, infinite switch WCI 318224815 Contact Us For Availability
*#
Harness, wiring, main WCI 318224920 Contact Us For Availability
*#
Wiring Harness, surface units WCI 318301000 Contact Us For Availability
3
Trim, oven door, black, upper WCI 318260201 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Glass Assy., oven door, white, outer, w/trim WCI 318261309 Contact Us For Availability
8
Glass, oven door, inner WCI 316427700 Contact Us For Availability
9
Liner, oven door WCI 318259625 Contact Us For Availability
12
Seal, door, lower oven WCI 318053325 Contact Us For Availability
16
Console, assy., white WCI 318296600 Contact Us For Availability
16
Main Top, white WCI 318225602 Contact Us For Availability
16*
Clip, console, (2) WCI 5304447071 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Rod, support, main top panel WCI 3051554 Contact Us For Availability
17
Bracket, glass WCI 318300503 Contact Us For Availability
17A
Bracket, glass, lower WCI 318300601 Contact Us For Availability
18
Hinge, maintop, (2) WCI 318227710 Contact Us For Availability
19
Panel, control, white WCI 318297508 Contact Us For Availability
23
Hinge, oven door WCI 5303320452 Contact Us For Availability
29
Spacer, door WCI 318014402 Contact Us For Availability
35
Support, glass, white, (4) WCI 318183101 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
82
Shield, insulation, lower WCI 318258707 Contact Us For Availability
83
Liner, oven assy WCI 318261403 Contact Us For Availability
86
Receptacle, hinge WCI 5303310524 Contact Us For Availability
87
Bracket, cable mtg. WCI 318260600 Contact Us For Availability
90
Panel, filler, white, RH WCI 318296922 Contact Us For Availability
90A
Panel, filler, white, LH WCI 318296923 Contact Us For Availability
91
Trim, filler, white, rear WCI 318304301 Contact Us For Availability
93
Support, terminal block, (4) WCI 318122500 Contact Us For Availability
99A
Gasket, grey WCI 318313200 Contact Us For Availability
127
Adapter, vent tube WCI 318317000 Contact Us For Availability
162
Box, extension WCI 318225810 Contact Us For Availability
200
Trim, door opening, white, bottom WCI 318330001 Contact Us For Availability
× ![]()
