Model Kenmore 790.45202410 COOKTOP – Common Parts & Diagrams

*
Screw, (4)
Screw, (4) WCI 305376102 Contact Us For Availability
View on Model
*
Insulation, rear
Insulation, rear WCI 305561401 Contact Us For Availability
View on Model
*#

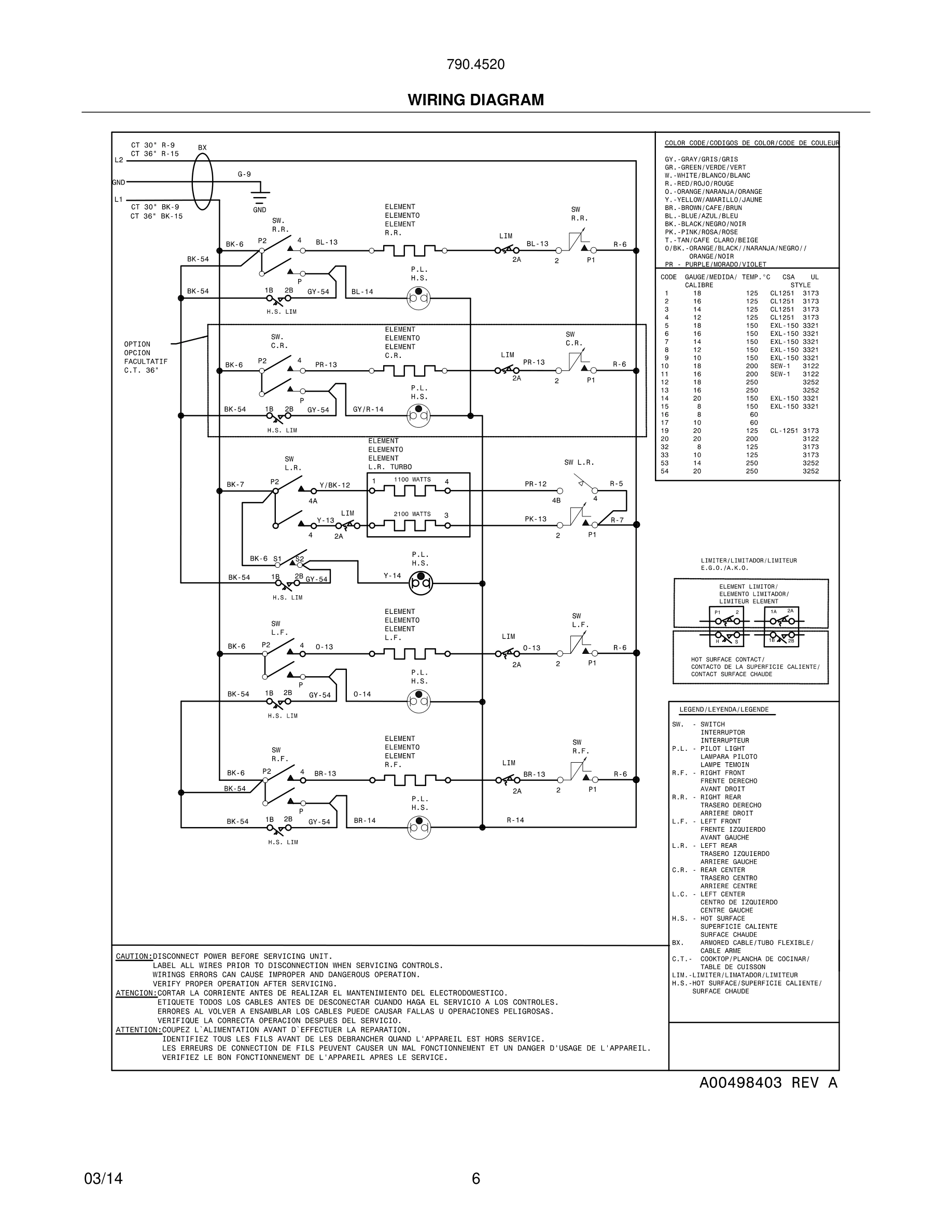

Harness, wiring, main
Harness, wiring, main WCI 808114811 Contact Us For Availability
View on Model
1

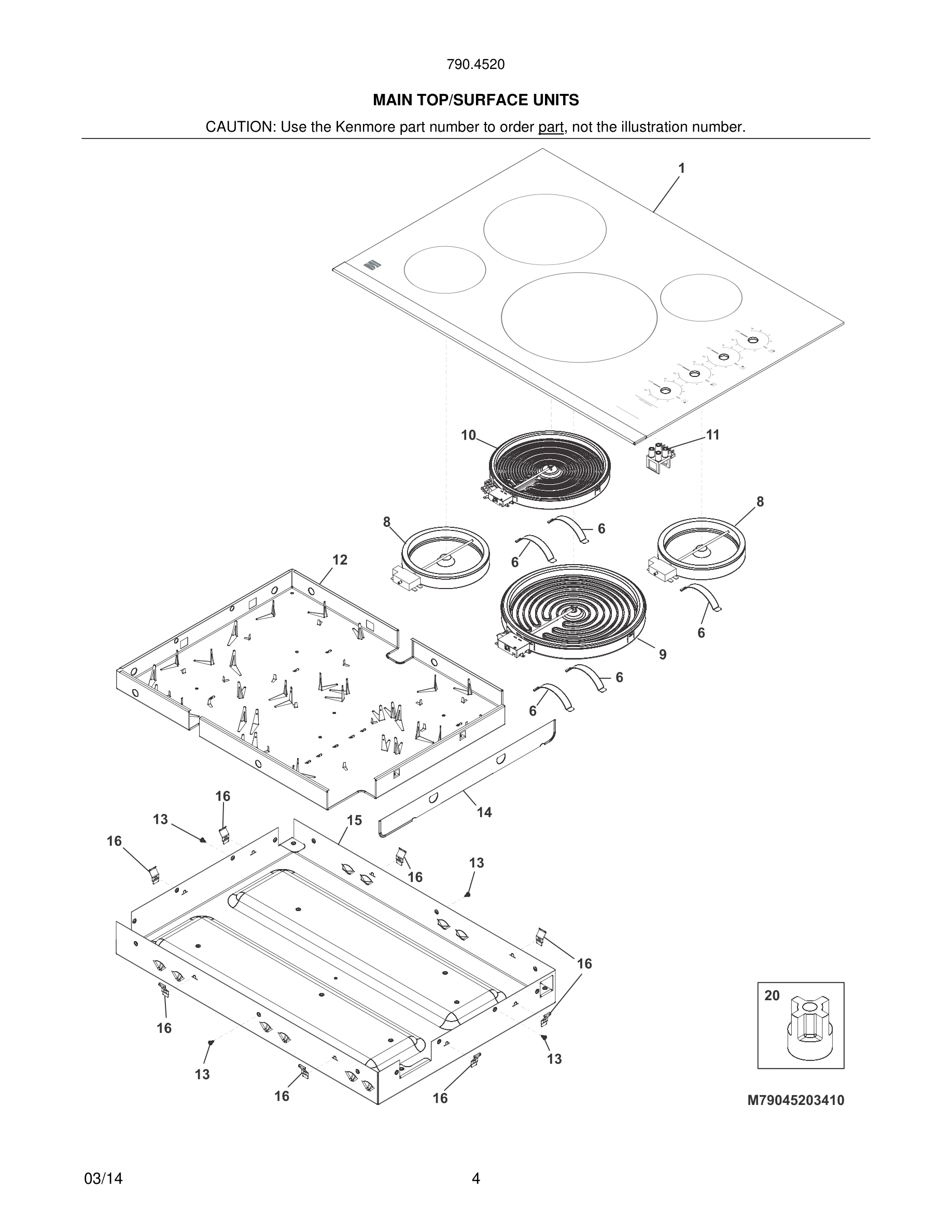

Maintop Assembly, glass, white
Maintop Assembly, glass, white WCI 305543542 Contact Us For Availability
View on Model
1
Maintop Assembly, glass, black/stainless
Maintop Assembly, glass, black/stainless WCI 305543543 Contact Us For Availability
View on Model
1
Maintop Assembly, glass, black
Maintop Assembly, glass, black WCI 305543541 Contact Us For Availability
View on Model
2
Knob, control, black
Knob, control, black WCI 5304494715 Contact Us For Availability
View on Model
6
Bushing, switch
Bushing, switch WCI 318146010 Contact Us For Availability
View on Model
12
Box, inner, 30"
Box, inner, 30" WCI 808081001 Contact Us For Availability
View on Model
14
Shield
Shield WCI 808786701 Contact Us For Availability
View on Model
15
Box, outer, 30"
Box, outer, 30" WCI 808081201 Contact Us For Availability
View on Model
20*
Screw, plastic spacer, (10)
Screw, plastic spacer, (10) WCI 305338900 Contact Us For Availability
View on Model
