Model Kenmore 790.45122510 OVEN – Common Parts & Diagrams
01 - COVER
03 - CONTROL PANEL
05 - BODY

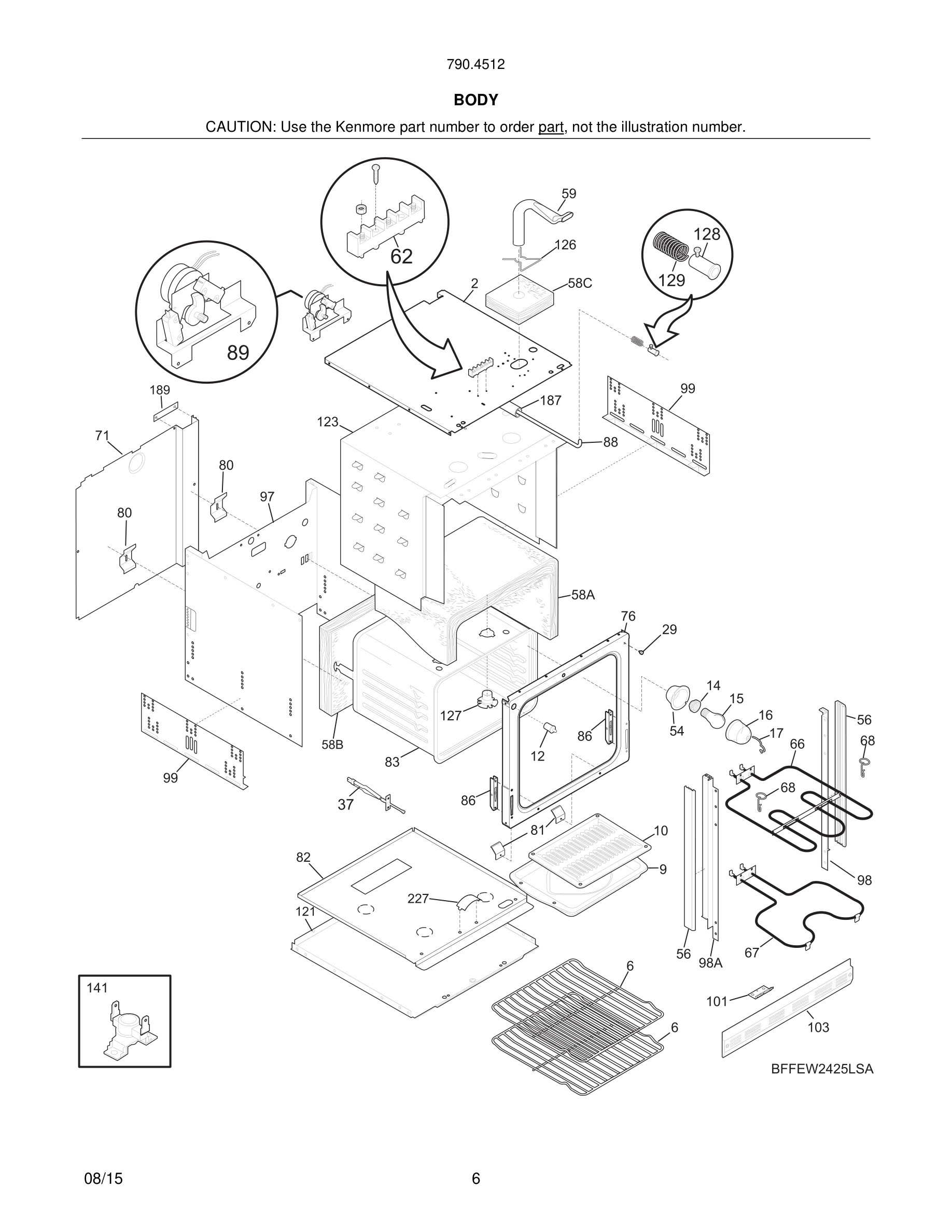

07 - BODY

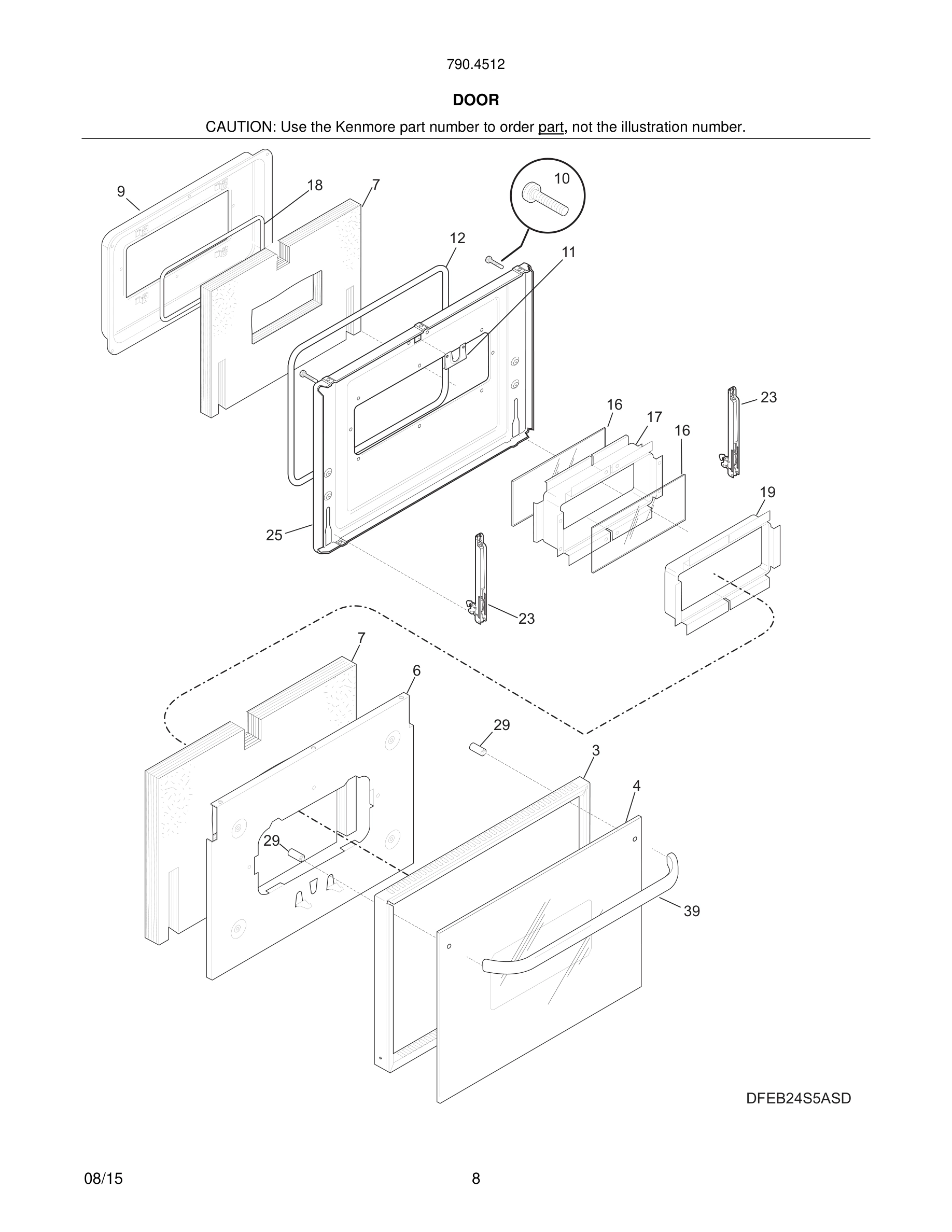

09 - DOOR

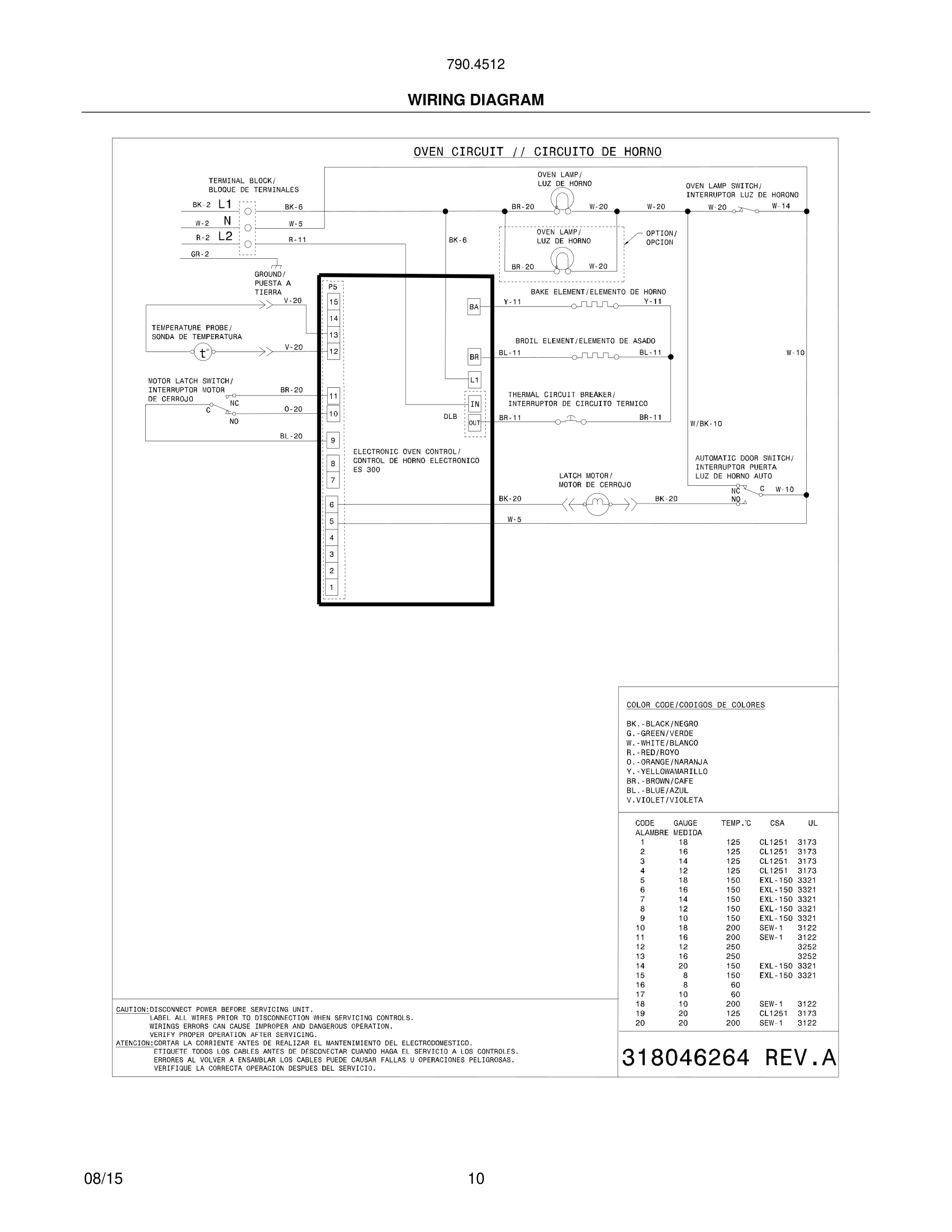

10 - WIRING DIAGRAM
Common parts from model Kenmore 790.45122510 OVEN
*
Screw, 10-24 x 0.500, probe, thrm brkt, shiel WCI 08002868 Contact Us For Availability
*
Screw, oval hd sq dr, 6-20AB x 0.625, black WCI 5303311528 Contact Us For Availability
*
Screw, 10-16X1-1/4, square drive WCI 5303302745 Contact Us For Availability
*
Plug, button WCI 3202113 Contact Us For Availability
*
Foam seal, (2) WCI 5303316982 Contact Us For Availability
*
Screw, truss head, 8-18 x 3/8", (7) WCI 08016432 Contact Us For Availability
*#
Box & wires assy WCI 318078563 Contact Us For Availability
*#
Wiring Harness, main WCI 318199786 Contact Us For Availability
3
Trim, oven door, white WCI 318026105 Contact Us For Availability
3
Trim, oven door, black WCI 318026522 Contact Us For Availability
4
Glass, oven door, black, outer WCI 318051516 Contact Us For Availability
4
Glass, oven door, white, outer WCI 318051553 Contact Us For Availability
6
Rack, oven, (2) WCI 318345204 Contact Us For Availability
6
Shield, air wash WCI 318073600 Contact Us For Availability
7
Insulation, oven door WCI 807107901 Contact Us For Availability
9
Pan, broilerOPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
9
Liner, oven door WCI 318038600 Contact Us For Availability
10
Insert, broiler panOPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
10
Screw, 10-24 x 2 3/16 WCI 5303311217 Contact Us For Availability
11
Latch, door WCI 318065102 Contact Us For Availability
12
Seal, oven door, upper oven WCI 318178801 Contact Us For Availability
16
Glass, door, 13 1/2 x 6 1/2 WCI 5303324250 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Spacer, glass, upper oven WCI 318139100 Contact Us For Availability
18
Gasket, door glass seal WCI 318293510 Contact Us For Availability
19
Collar, glass mtg WCI 318139201 Contact Us For Availability
21
Trim, top, black WCI 5303300408 Contact Us For Availability
23
Hinge, oven door WCI 318567110 Contact Us For Availability
25
Liner, oven door WCI 318048319 Contact Us For Availability
29
Spacer, door WCI 318014410 Contact Us For Availability
39
Handle Assembly, door, white, w/spacer WCI 318362820 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
78
Cover, oven vent, white WCI 318037122 Contact Us For Availability
78
Cover, oven vent, black WCI 318037121 Contact Us For Availability
80
Spring, oven WCI 318192400 Contact Us For Availability
98A
Trim, side, inner, LH WCI 318029385 Contact Us For Availability
101
Bracket, trim, white WCI 318039512 Contact Us For Availability
101
Bracket, trim, black WCI 318039511 Contact Us For Availability
103
Trim, base, white WCI 318028711 Contact Us For Availability
103
Trim, base, black WCI 318028710 Contact Us For Availability
121
Wrapper, base WCI 318145005 Contact Us For Availability
123
Shield, insulation, top & sides WCI 318071444 Contact Us For Availability
126
Clip, insulator WCI 3016303 Contact Us For Availability
128
Bushing, latch rod WCI 318563000 Contact Us For Availability
187
Tube, latch rod WCI 318013503 Contact Us For Availability
189
Plate, retainer WCI 318042500 Contact Us For Availability
227
Clip, retainer WCI 318370900 Contact Us For Availability
× ![]()
