Model Kenmore 790.45092510 OVEN – Common Parts & Diagrams

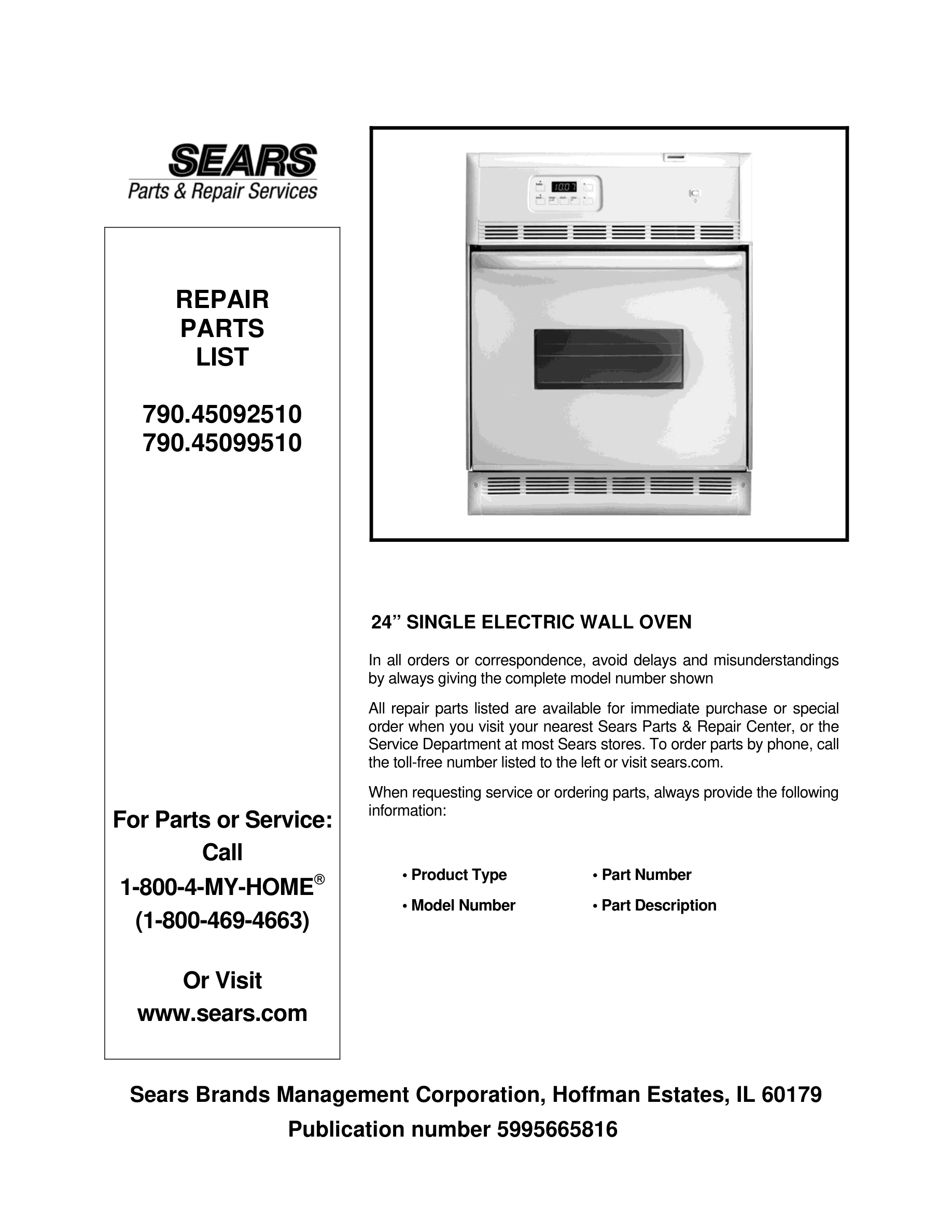

01 - COVER

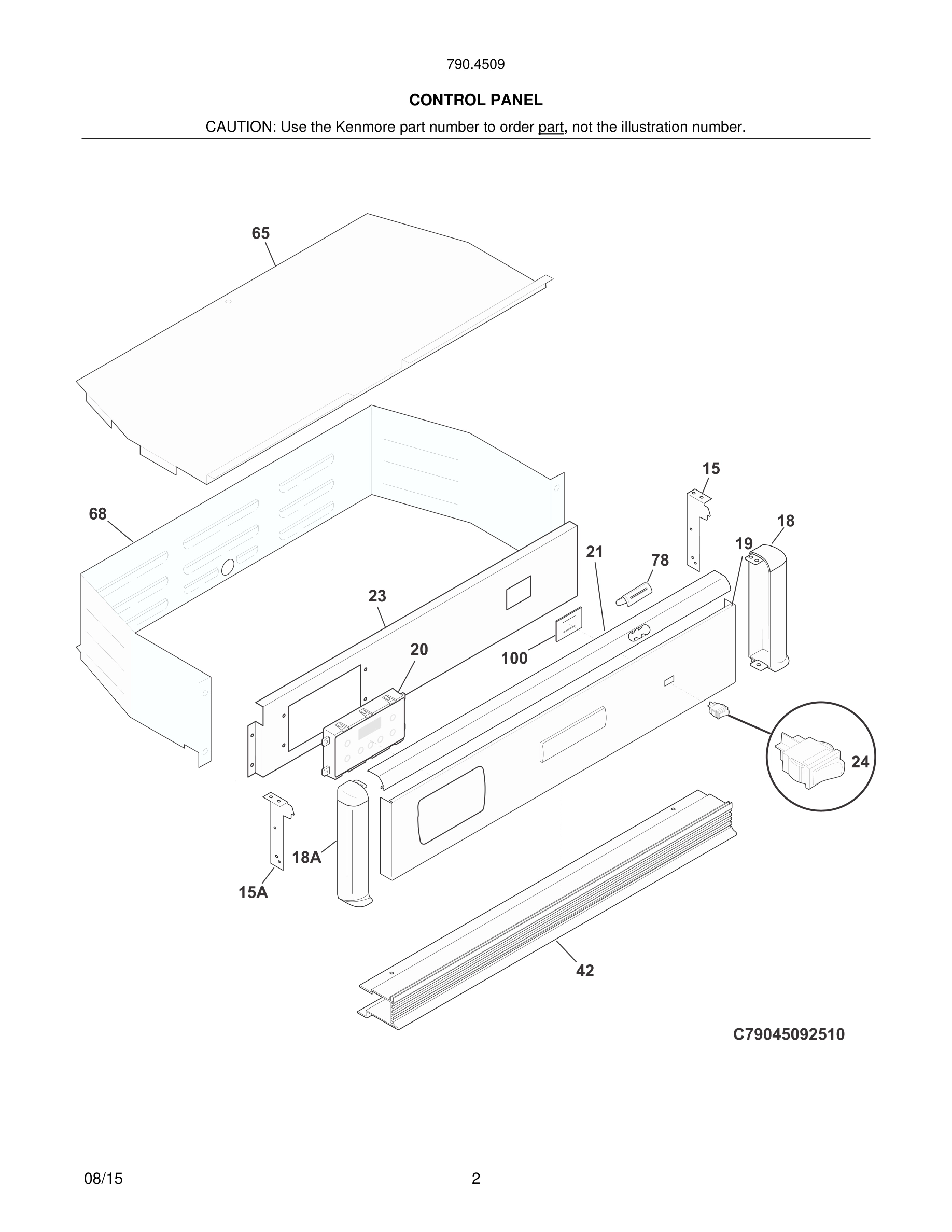

03 - CONTROL PANEL

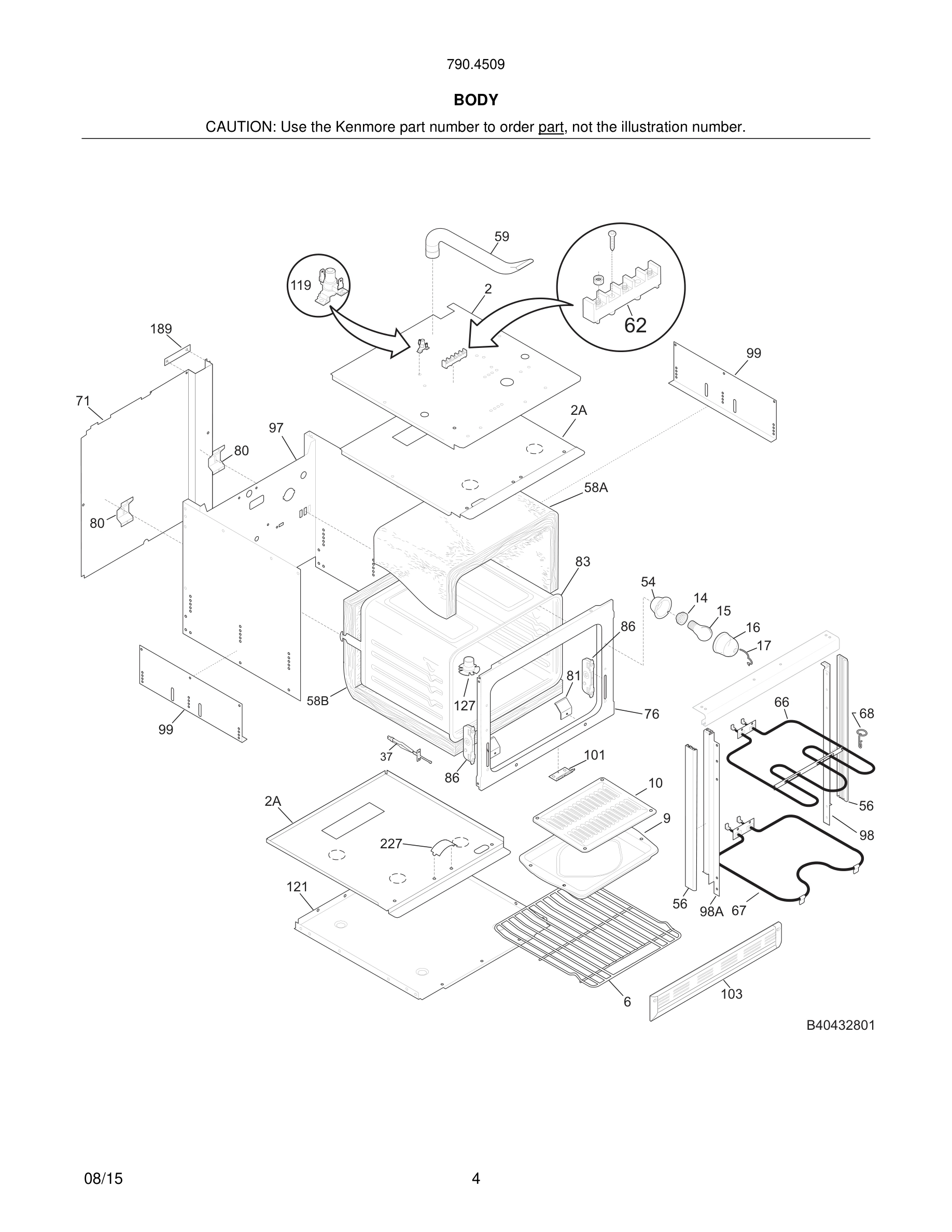

05 - BODY

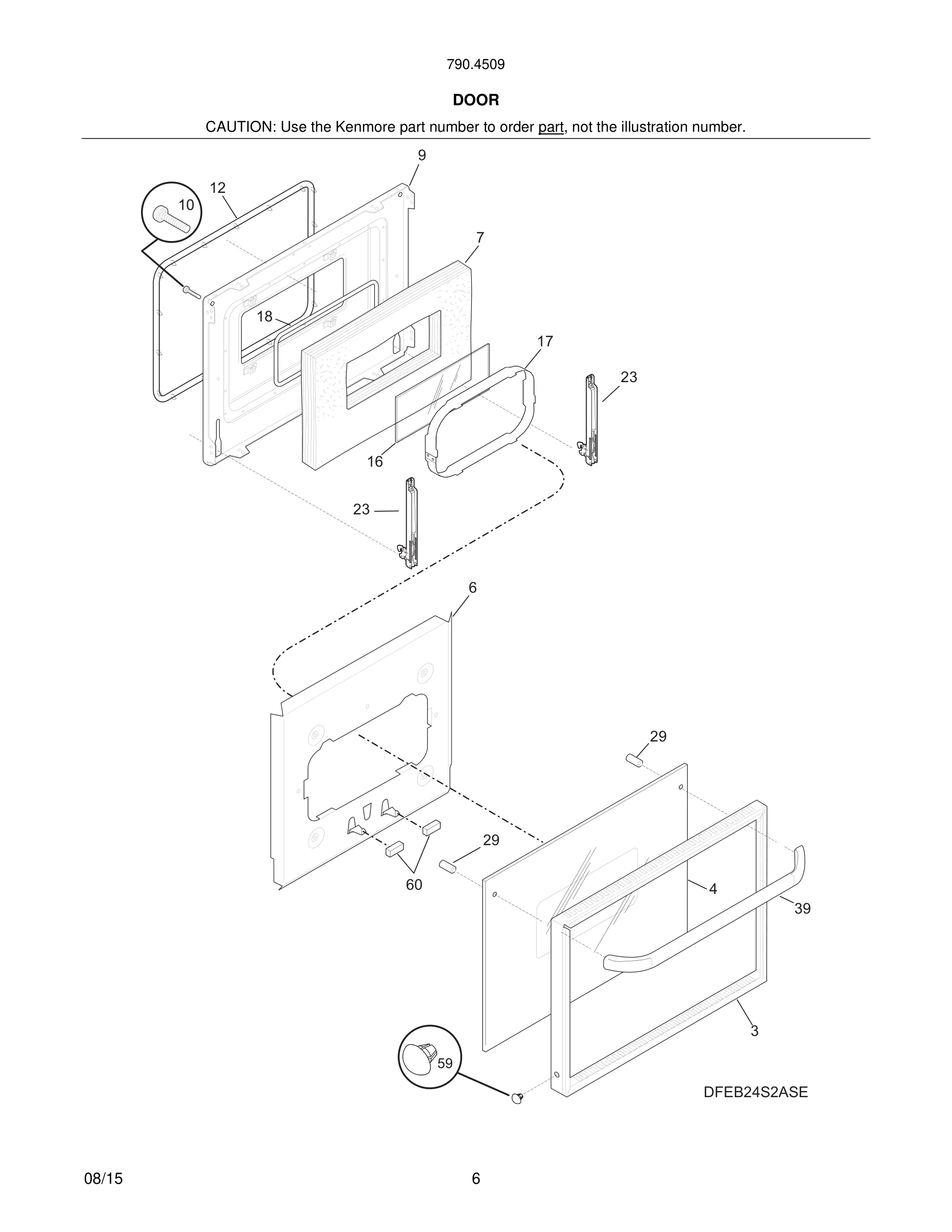

07 - DOOR

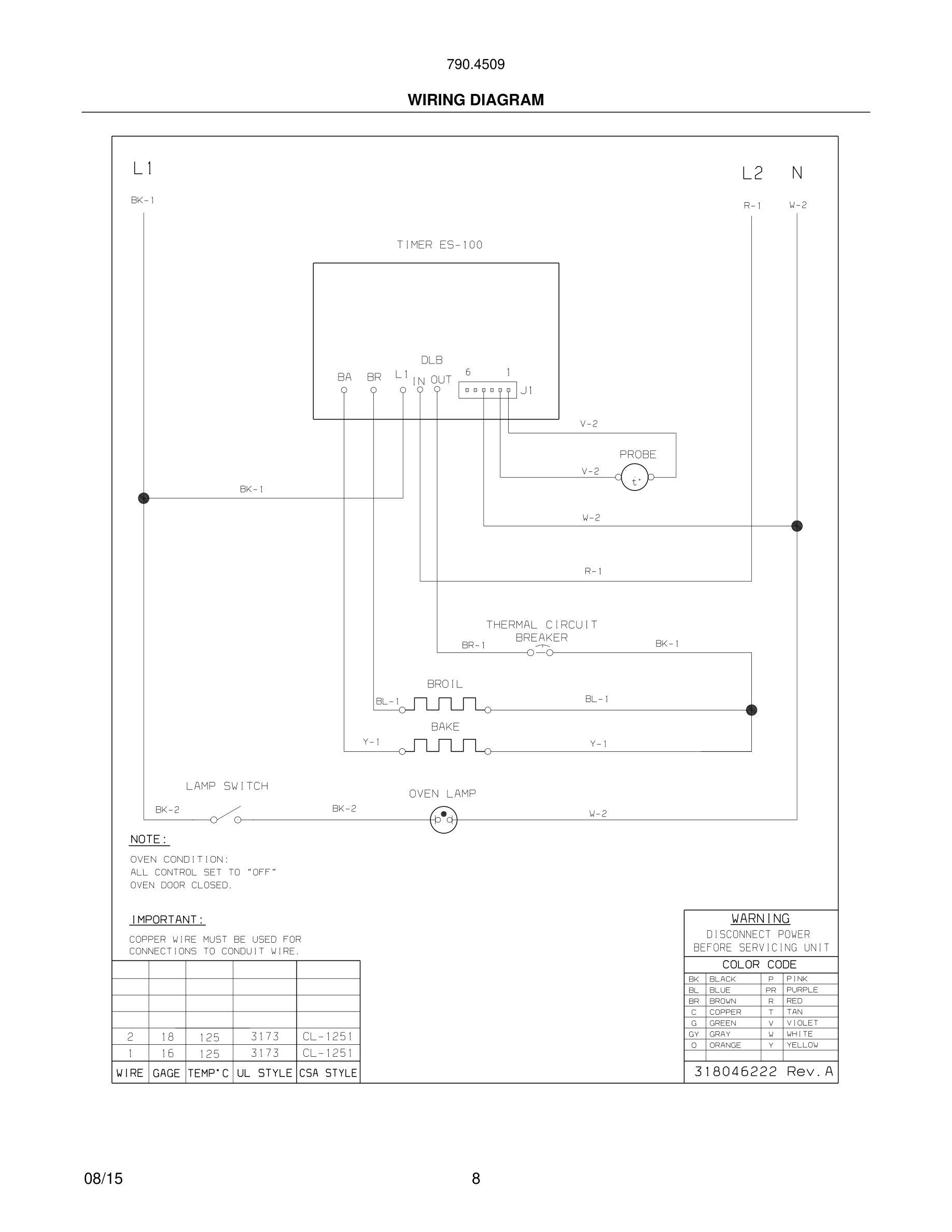

08 - WIRING DIAGRAM
Common parts from model Kenmore 790.45092510 OVEN
*
Screw, 10-24 x 0.500, probe, thrm brkt, shiel WCI 08002868 Contact Us For Availability
*#
Wiring Harness, main WCI 318199750 Contact Us For Availability
3
Trim, oven door, white WCI 318026105 Contact Us For Availability
3
Trim, oven door, black WCI 318026522 Contact Us For Availability
4
Glass, oven door, black, outer WCI 318051516 Contact Us For Availability
4
Glass, oven door, white, outer WCI 318051553 Contact Us For Availability
6
Shield, air wash WCI 318073600 Contact Us For Availability
7
Insulation, oven door WCI 807107901 Contact Us For Availability
9
Pan, broilerOPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
9
Liner, oven door WCI 318156615 Contact Us For Availability
10
Insert, broiler panOPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
10
Screw, 10-24 x 2 3/16 WCI 5303311217 Contact Us For Availability
12#
Seal, oven door, lower oven WCI 5303316768 Contact Us For Availability
16
Glass-oven door, heat barrier WCI 318381403 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Support, glass WCI 318162601 Contact Us For Availability
18
Seal, rope, lower oven WCI 318053204 Contact Us For Availability
21
Trim, top, black WCI 5303300408 Contact Us For Availability
23
Hinge, oven door WCI 318567109 Contact Us For Availability
29
Spacer, door WCI 318014410 Contact Us For Availability
39
Handle Assembly, door, white, w/spacer WCI 318362820 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
59
Plug, button WCI 3202113 Contact Us For Availability
60
Foam seal, (2) WCI 5303316982 Contact Us For Availability
78
Cover, oven vent, white WCI 318037122 Contact Us For Availability
78
Cover, oven vent, black WCI 318037121 Contact Us For Availability
80
Spring, oven WCI 318192400 Contact Us For Availability
83
Liner, oven WCI 318089520 Contact Us For Availability
97
Wrapper, back & sides WCI 318066602 Contact Us For Availability
98
Trim, side, inner, RH WCI 318029384 Contact Us For Availability
98A
Trim, side, inner, LH WCI 318029385 Contact Us For Availability
101
Bracket, trim, white WCI 318039512 Contact Us For Availability
101
Bracket, trim, black WCI 318039511 Contact Us For Availability
103
Trim, base, white WCI 318028711 Contact Us For Availability
103
Trim, base, black WCI 318028710 Contact Us For Availability
121
Wrapper, base WCI 318145005 Contact Us For Availability
127
Adapter, vent tube WCI 318317000 Contact Us For Availability
189
Plate, retainer WCI 318042500 Contact Us For Availability
227
Clip, retainer WCI 318370900 Contact Us For Availability
× ![]()
