Model Kenmore 790.45082510 OVEN – Common Parts & Diagrams
01 - COVER

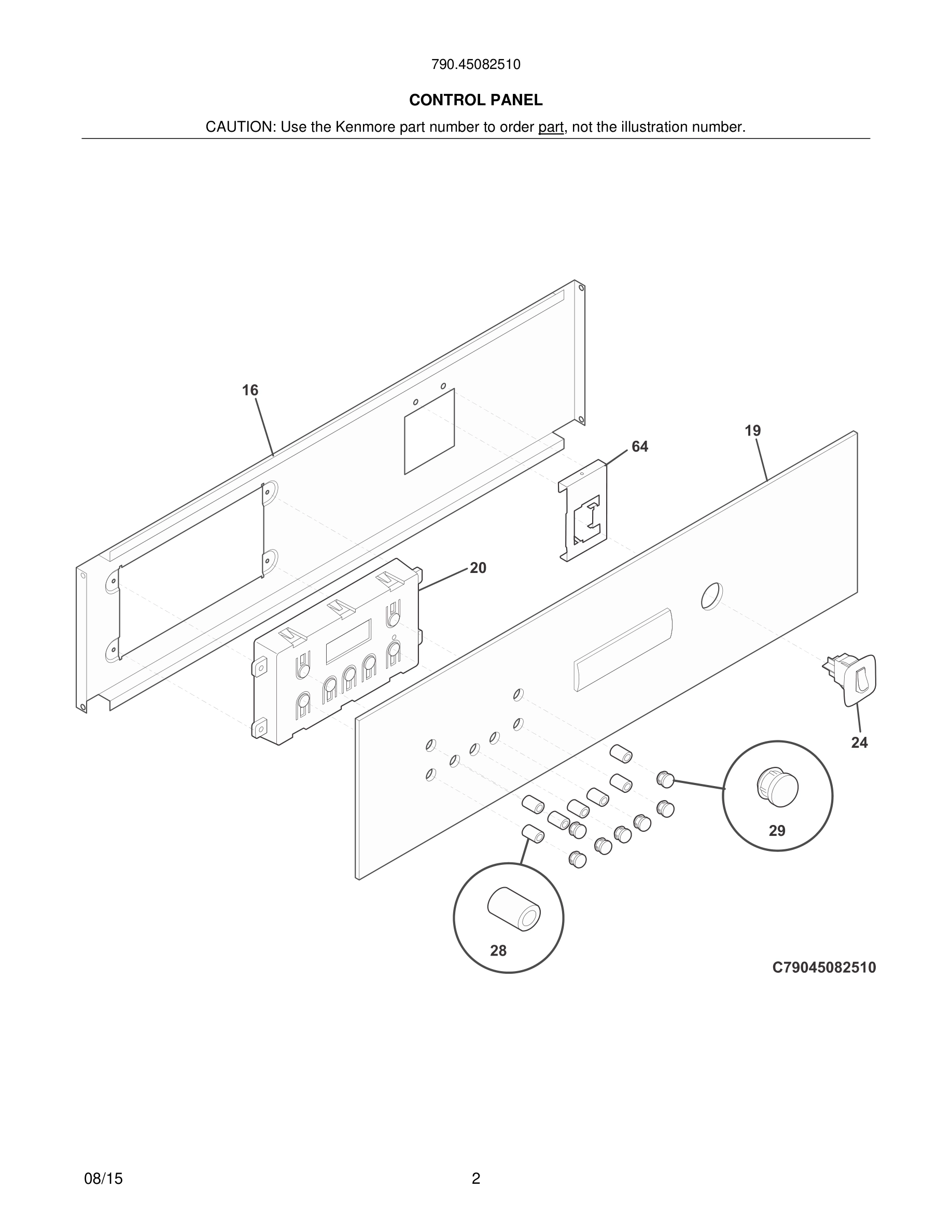

03 - CONTROL PANEL
05 - BURNER
07 - BODY
09 - DOOR
10 - WIRING DIAGRAM
Common parts from model Kenmore 790.45082510 OVEN
*
Screw, 10-24 x 1 7/8, upper door, (2) WCI 5304459529 Contact Us For Availability
*
Screw, truss head, 8-18 x 3/8", (7) WCI 08016432 Contact Us For Availability
3
Trim, oven door, white WCI 318026501 Contact Us For Availability
4
Glass, door, white, outer WCI 318178516 Contact Us For Availability
6
Rack, oven, upper & lower, (3) WCI 318345800 Contact Us For Availability
6
Shield, wool WCI 318574300 Contact Us For Availability
7
Insulation, oven door WCI 807646001 Contact Us For Availability
9
Pan, broilerOPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
9
Liner, oven door WCI 318048902 Contact Us For Availability
10
Insert, broiler panOPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
14#
Regulator, pressure WCI 5303210167 Contact Us For Availability
16
Glass, door, heat barrier WCI 318042310 Contact Us For Availability
18#
Burner, oven WCI 5303207603 Contact Us For Availability
20
Spacer, handle, white WCI 5303300173 Contact Us For Availability
23
Hinge, oven door WCI 318567104 Contact Us For Availability
24#
Switch, oven light, white WCI 316090901 Contact Us For Availability
28
Tube, timer knob WCI 5304410865 Contact Us For Availability
29
Knob, clock/timer, white WCI 318017710 Contact Us For Availability
29
Spacer, door WCI 318014412 Contact Us For Availability
36
Flue WCI 5303298341 Contact Us For Availability
39
Handle, door, white WCI 318186100 Contact Us For Availability
41
Spacer, receptacle, hinge, (2) WCI 318569100 Contact Us For Availability
56
Trim, oven top WCI 318028201 Contact Us For Availability
58A
Insulation, oven back WCI 807602601 Contact Us For Availability
58D
Insulation, oven wrapper WCI 807610701 Contact Us For Availability
83
Liner, oven assy WCI 318109512 Contact Us For Availability
97
Wrapper, top, outer WCI 5303317130 Contact Us For Availability
98
Trim, bodyside, white, RH WCI 318029003 Contact Us For Availability
98A
Trim, bodyside, white, LH WCI 318029002 Contact Us For Availability
103
Trim, base, white, lower WCI 5303316734 Contact Us For Availability
121
Wrapper, back WCI 5303317131 Contact Us For Availability
124
Box, horizontal flue WCI 318076801 Contact Us For Availability
130
Cap, end top, white, (2) WCI 318034601 Contact Us For Availability
136
Angle, rack guide WCI 5303317129 Contact Us For Availability
158
Seal, door, black, top broiler WCI 5303207644 Contact Us For Availability
158A
Seal, side, bake oven WCI 5303295311 Contact Us For Availability
216
Cap, end bottom, white, RH WCI 318034502 Contact Us For Availability
216A
Cap, end bottom, white, LH WCI 318034503 Contact Us For Availability
242
Trim, center, satin WCI 318027201 Contact Us For Availability
246
Panel, oven bottom WCI 318133600 Contact Us For Availability
247
Glide, oven rack, (2) WCI 318355200 Contact Us For Availability
248
Cap, flue WCI 5303317121 Contact Us For Availability
249
Wrapper, top, inner WCI 5304400385 Contact Us For Availability
250
Insulation, 3" X 2" X 17.5", (2) WCI 318285042 Contact Us For Availability
251
Insulation, 2"x2.5"x21.5" WCI 807655701 Contact Us For Availability
× ![]()
