Model Electrolux 790.45079401 Electric Range (Kenmore 79045079401) – Common Parts & Diagrams

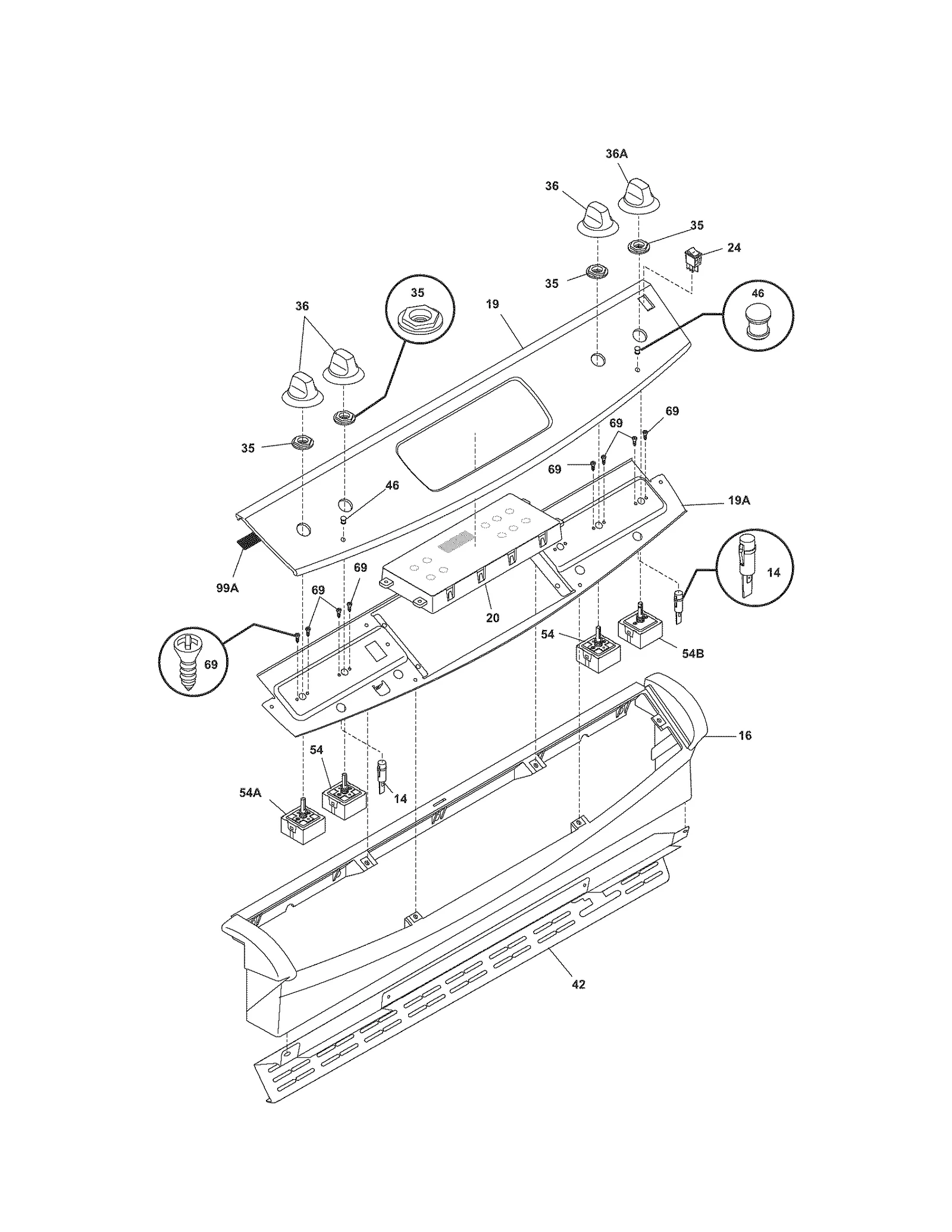

BACKGUARD

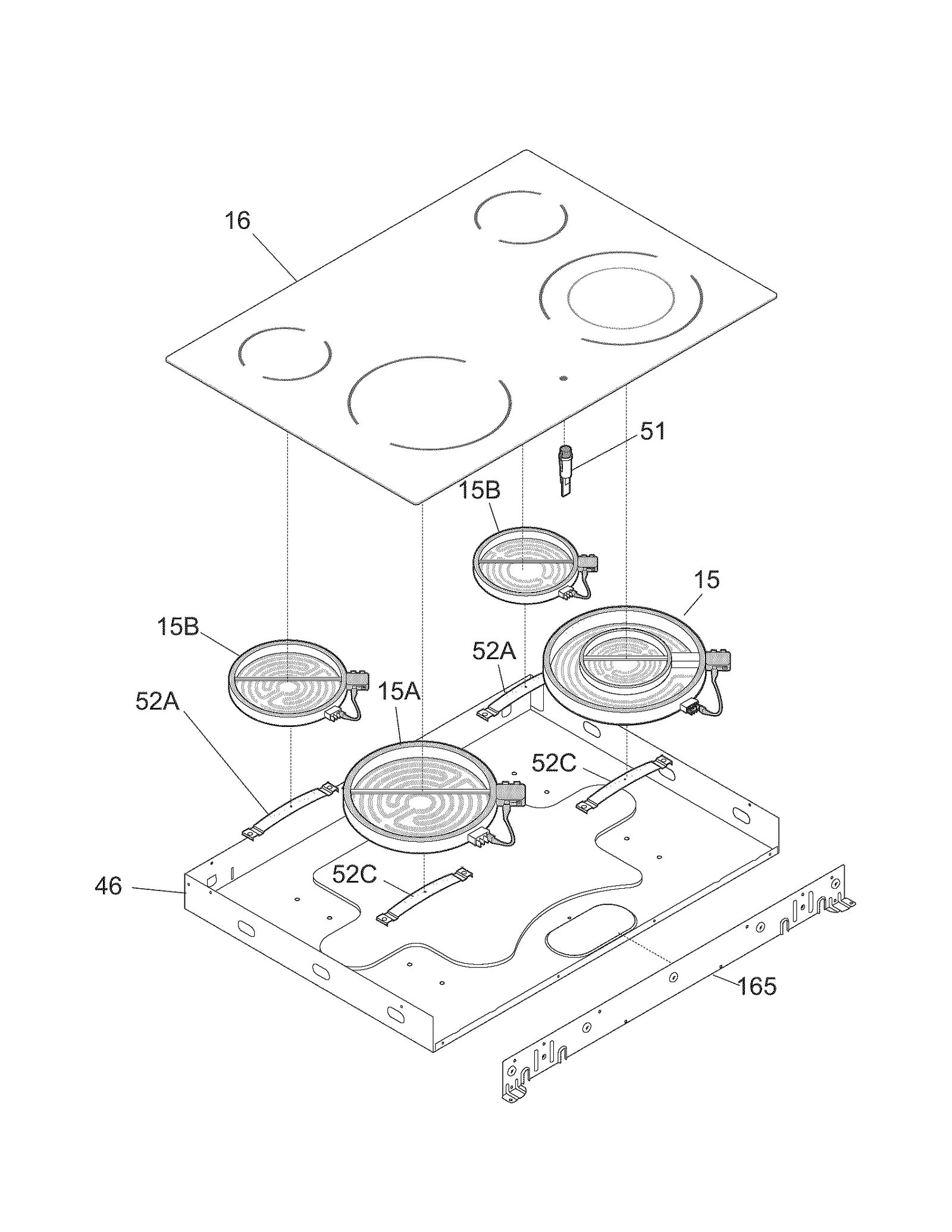

MAINTOP

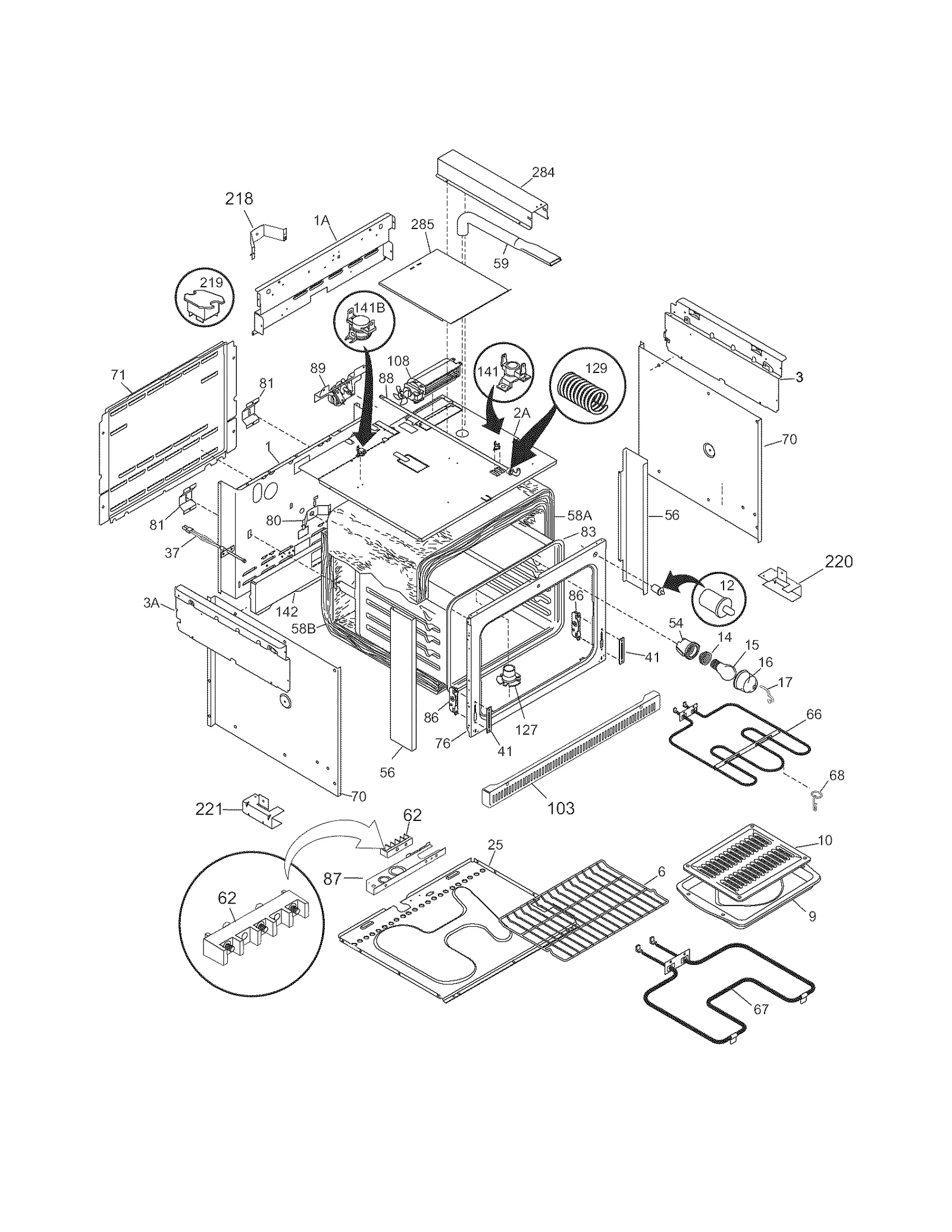

BODY

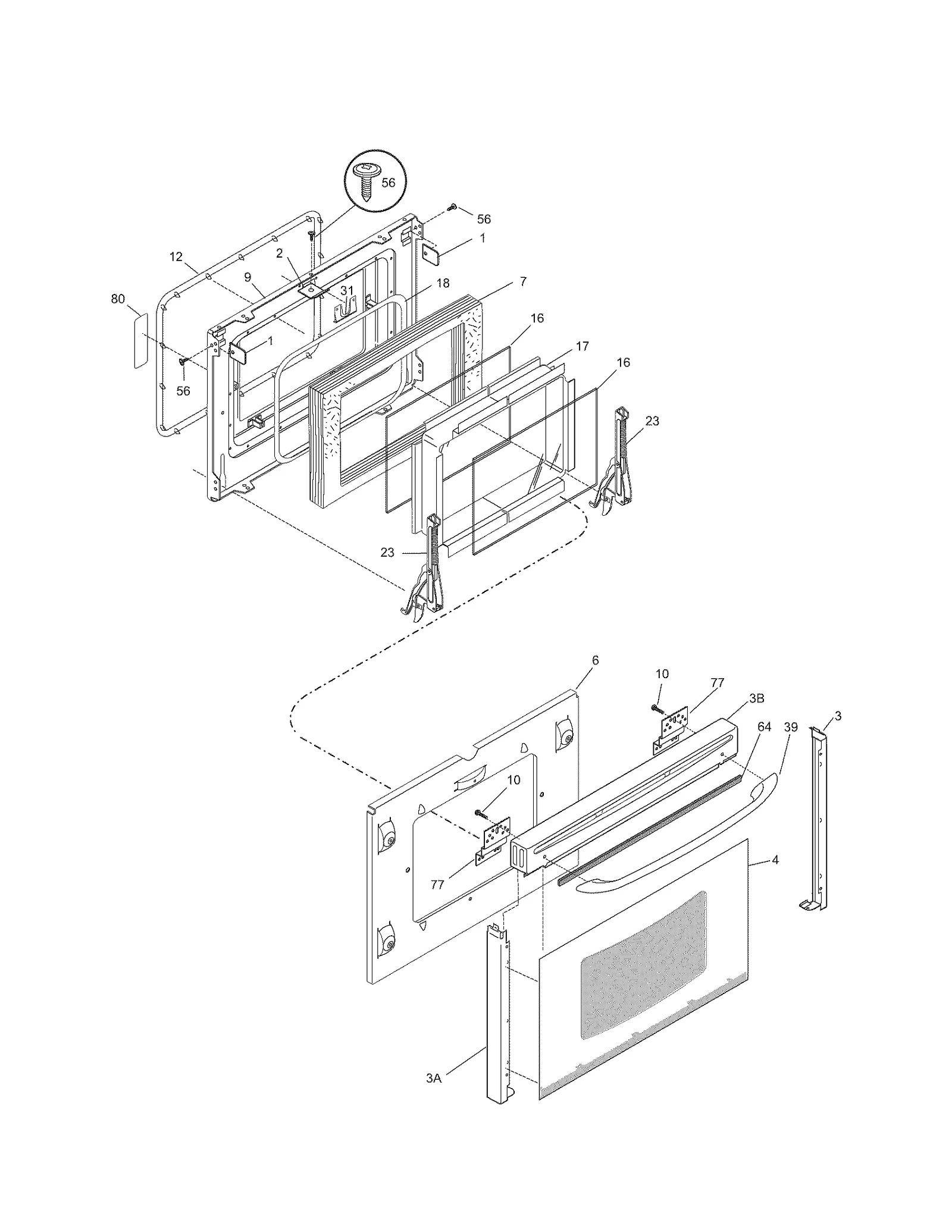

DOOR
Common parts from model Electrolux 790.45079401 Electric Range (Kenmore 79045079401)
1
Bracket WCI 318180310 Contact Us For Availability
2
Bracket WCI 318180312 Contact Us For Availability
3
Oven Trim WCI 318187810 Contact Us For Availability
3
Trim WCI 318187812 Contact Us For Availability
3
Range Trim WCI 318187814 Contact Us For Availability
3A
Oven Trim WCI 318187811 Contact Us For Availability
3A
Lh Door Trim WCI 318187813 Contact Us For Availability
3A
Trim, Left WCI 318187815 Contact Us For Availability
3B
Door Trim To WCI 318176646 Contact Us For Availability
3B
Trim WCI 318176647 Contact Us For Availability
3B
Trim WCI 318176648 Contact Us For Availability
4
Panel WCI 318187721 Contact Us For Availability
4
Range Front Door Panel Lower Trim (Bisque) WCI 318187722 Contact Us For Availability
4
Range Oven Door Outer Panel (Black) WCI 318187723 Contact Us For Availability
6
Deflector WCI 318056815 Contact Us For Availability
7
Oven Insulation WCI 318285051 Contact Us For Availability
9
Panel WCI 318157011 Contact Us For Availability
15A
Range Radiant Surface Element, 9-in WCI 318198819 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 318041603 Contact Us For Availability
16
Range Control Panel WCI 318235021 Contact Us For Availability
16
Range Main Top (Black) WCI 318223606 Contact Us For Availability
16
Range Main Top WCI 318223604 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
17
Spacer WCI 318042102 Contact Us For Availability
18
Oven Seal WCI 318053001 Contact Us For Availability
19A
Range Control Panel Support WCI 318224401 Contact Us For Availability
20
Range Oven Control Board and Clock WCI 318185477 Contact Us For Availability
20
Range Oven Control Board WCI 318185476 Contact Us For Availability
23
Hinge WCI 318024721 Contact Us For Availability
31
Range Oven Door Latch WCI 5303310536 Contact Us For Availability
35
Range Surface Burner Knob Support WCI 318183101 Contact Us For Availability
35
Range Surface Burner Knob Support (Bisque) WCI 318183102 Contact Us For Availability
36
Range Surface Burner Knob WCI 316208112 Contact Us For Availability
36
Range Surface Burner Knob WCI 316208113 Contact Us For Availability
36
Range Surface Burner Knob WCI 316208114 Contact Us For Availability
36A
Range Burner Control Knob WCI 316208115 Contact Us For Availability
36A
Range Surface Burner Knob WCI 316208116 Contact Us For Availability
36A
Range Surface Burner Knob WCI 316208117 Contact Us For Availability
39
Oven Handle WCI 316209701 Contact Us For Availability
39
Oven Door Handle WCI 316209702 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
64
Tape WCI 5304417120 Contact Us For Availability
77
Range Oven Door Handle Mounting Bracket WCI 318043100 Contact Us For Availability
80
Range Anti-Tip Decal WCI 316221000 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
88
Rod WCI 318250210 Contact Us For Availability
103
Trim WCI 318169302 Contact Us For Availability
103
Trim (White) WCI 5303300213 Contact Us For Availability
103
Trim WCI 5303300217 Contact Us For Availability
141
Range Thermal Cut-Off WCI 318005201 Contact Us For Availability
141
Range High-Limit Thermostat WCI 318003615 Contact Us For Availability
142
Air Deflector WCI 318123901 Contact Us For Availability
165
Plate WCI 318227502 Contact Us For Availability
218
Bracket WCI 318054700 Contact Us For Availability
219
Range Cooling Fan Relay WCI 318112701 Contact Us For Availability
220
Bracket WCI 5304401475 Contact Us For Availability
221
Bracket WCI 5304401476 Contact Us For Availability
284
Box WCI 318226600 Contact Us For Availability
285
Shield WCI 318236200 Contact Us For Availability
NI
Range Oven Door Lock Switch WCI 318120711 Contact Us For Availability
NI
Screw WCI 08016432 Contact Us For Availability
NI
Spacer WCI 318014110 Contact Us For Availability
NI
Box Wire WCI 318078526 Contact Us For Availability
× ![]()
