Model Kenmore 790.45071400 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

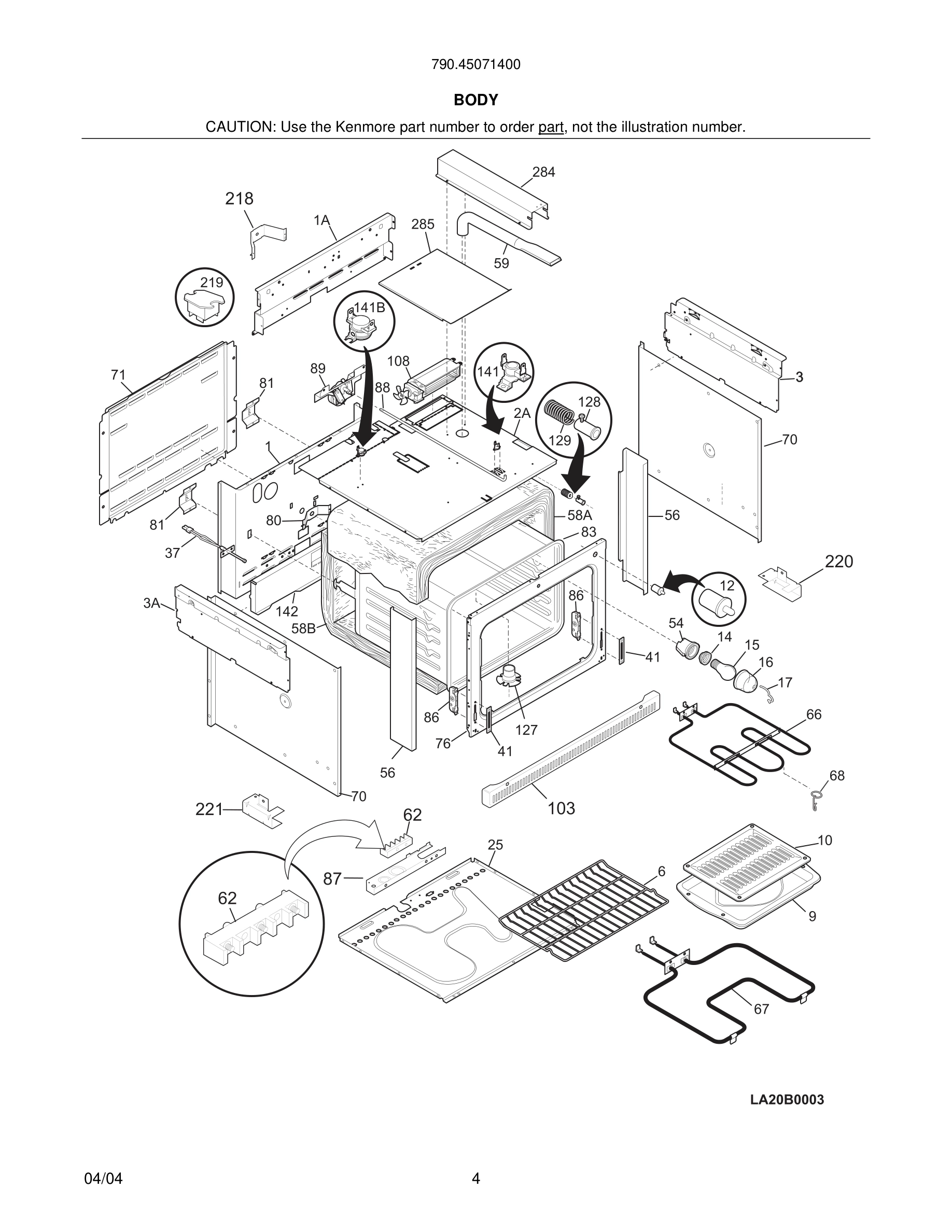

05 - BODY

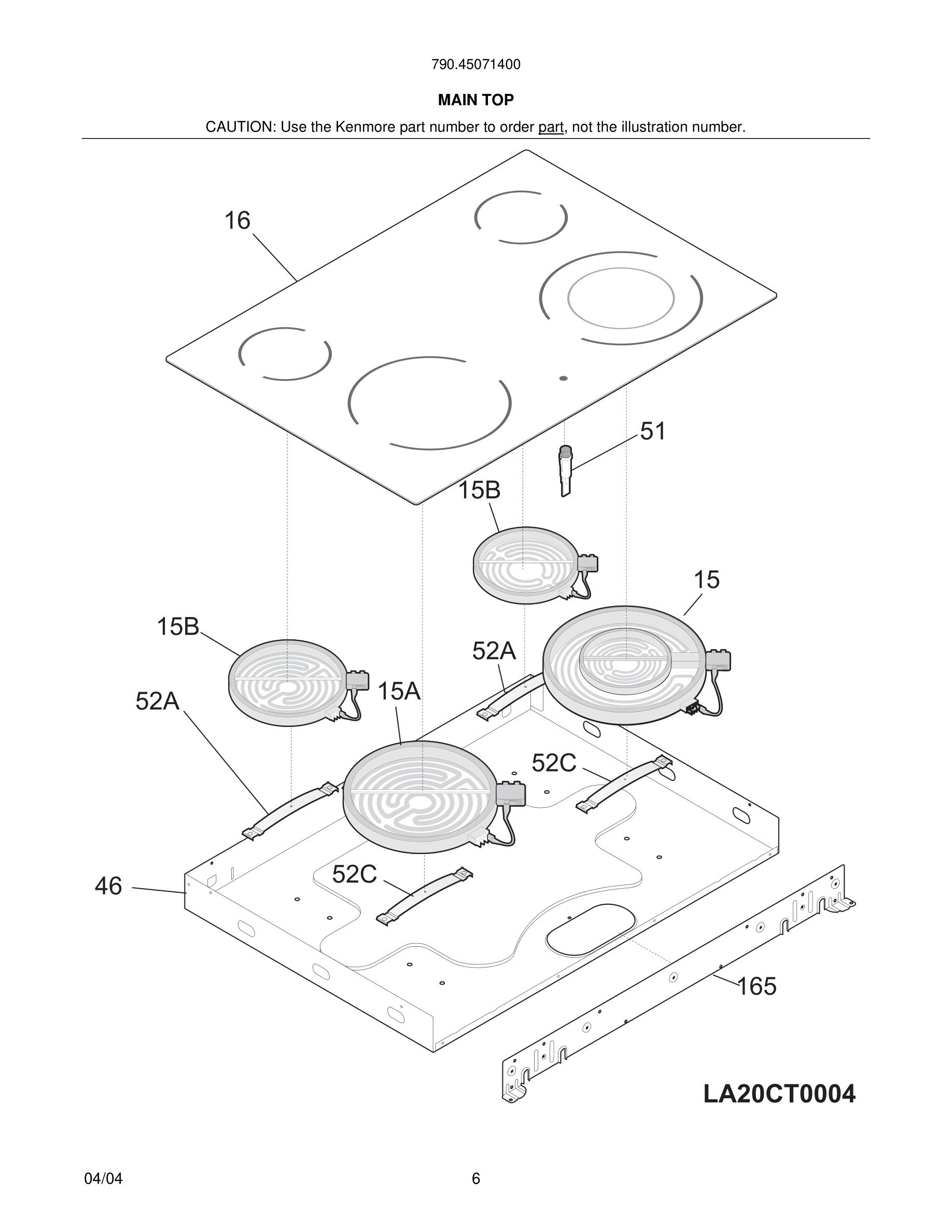

07 - MAIN TOP

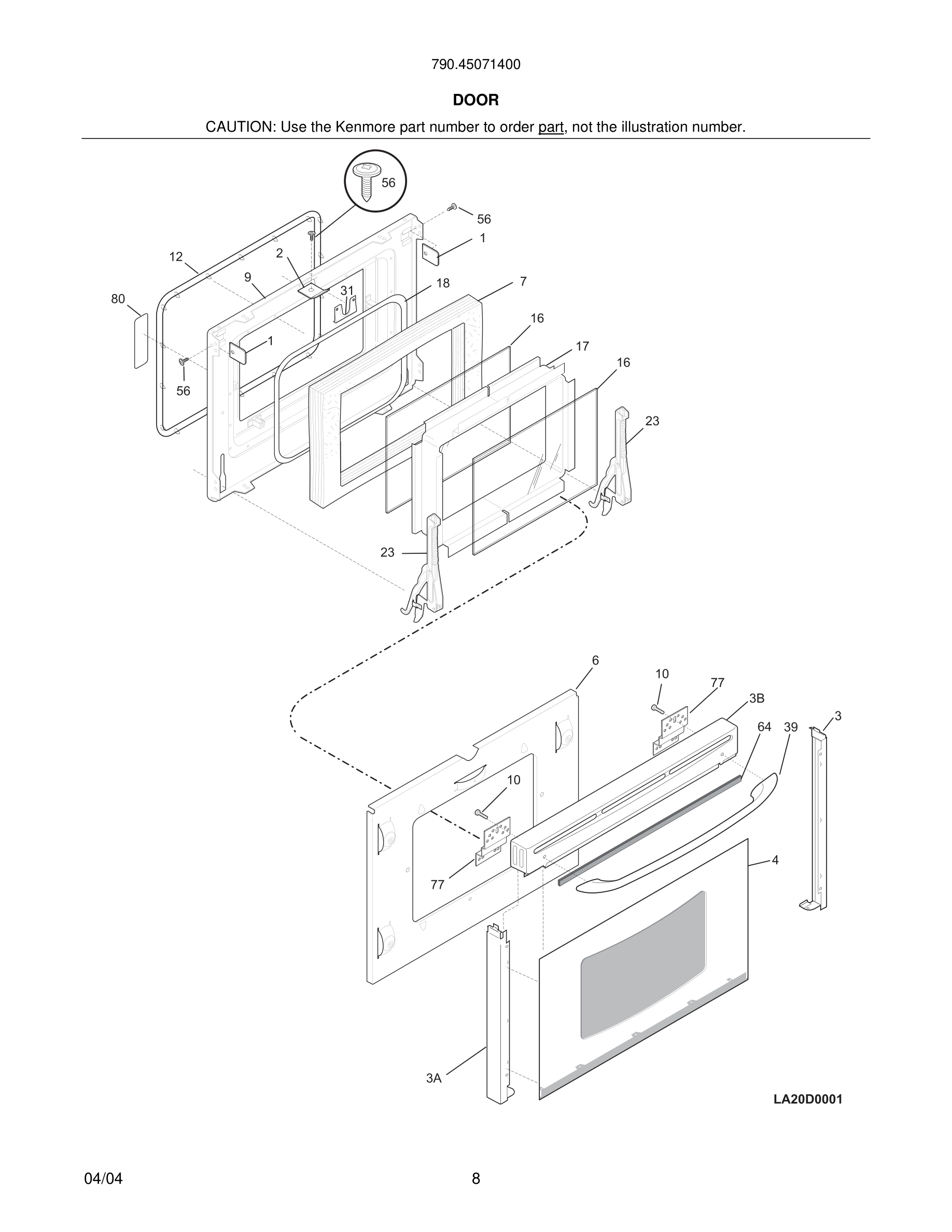

09 - DOOR

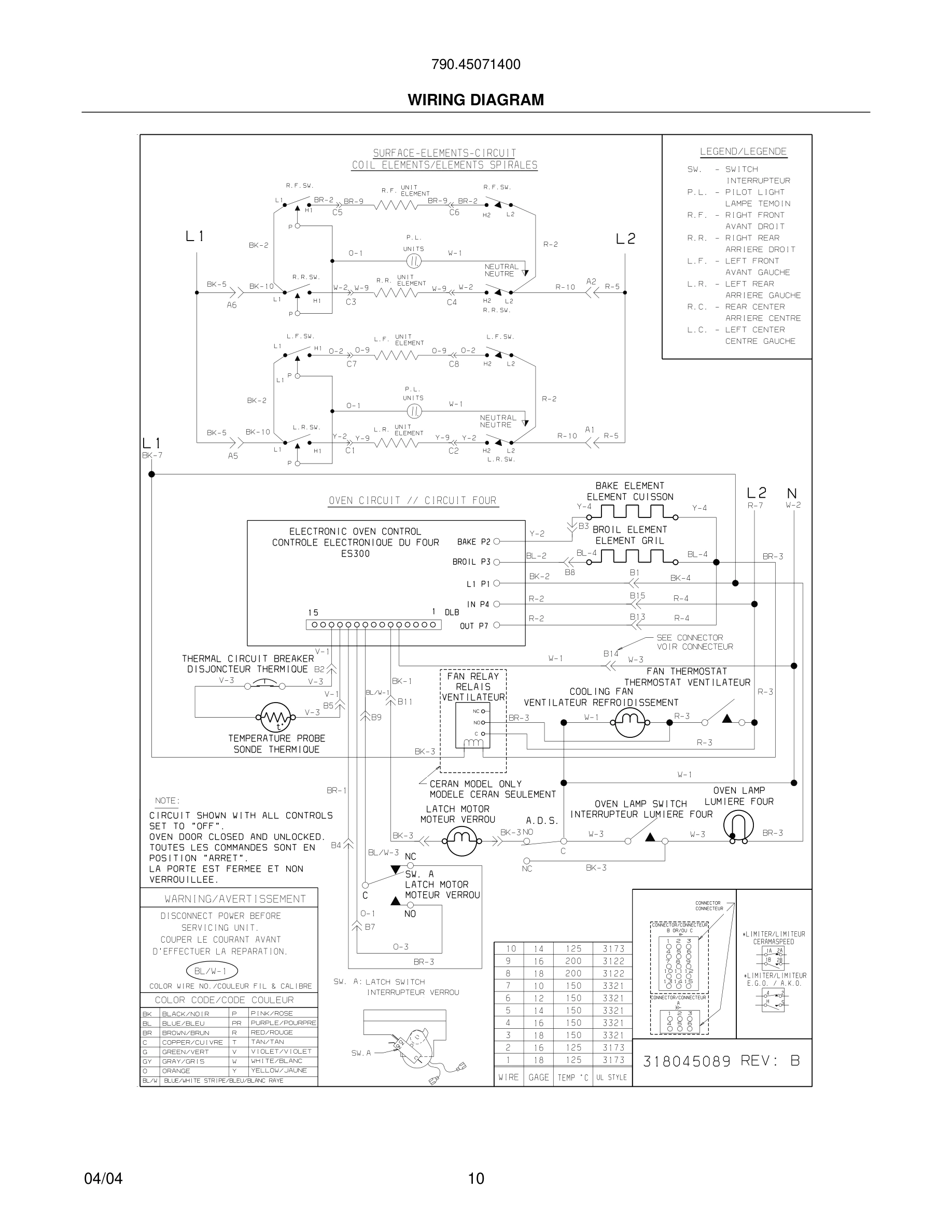

10 - WIRING DIAGRAM
Common parts from model Kenmore 790.45071400 RANGE
*
Cleaner, cooktop WCI 316112100 Contact Us For Availability
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
1
Bracket, trim mtg WCI 318180310 Contact Us For Availability
2
Bracket, upper trim mtg WCI 318180312 Contact Us For Availability
3
Trim, door, white, RH side WCI 318187810 Contact Us For Availability
3A
Trim, door, white, LH side WCI 318187811 Contact Us For Availability
3B
Trim, door, white, top WCI 318176646 Contact Us For Availability
4
Panel, door front assy, glass, white, with lo WCI 318187721 Contact Us For Availability
6
Shield, insulation WCI 318056802 Contact Us For Availability
7
Insulation, oven door WCI 318133781 Contact Us For Availability
9
Liner, door WCI 318157011 Contact Us For Availability
16
Panel, glass, inner oven door WCI 318041603 Contact Us For Availability
16
Main Top, glass assy., white WCI 318223603 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Spacer, glass WCI 318042102 Contact Us For Availability
18
Seal, window WCI 318053001 Contact Us For Availability
19A
Panel, control mtg. WCI 318224401 Contact Us For Availability
23
Hinge, oven door WCI 318024700 Contact Us For Availability
31
Latch, oven door WCI 5303310536 Contact Us For Availability
35
Support, glass, white, (4) WCI 318183101 Contact Us For Availability
36
Knob, control, white WCI 316208112 Contact Us For Availability
36A
Knob, dual control, white WCI 316208115 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
46
Box, burner WCI 318225401 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
58B
Insulation, oven back WCI 318133785 Contact Us For Availability
64
Tape, 0.762 m, Neoprene WCI 5304417120 Contact Us For Availability
76
Front, oven WCI 318225302 Contact Us For Availability
77
Bracket, trim, handle, (2) WCI 318043100 Contact Us For Availability
80
Label, anti-tip WCI 316221000 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
83
Liner, oven WCI 318089613 Contact Us For Availability
86
Receptacle, hinge WCI 5303310524 Contact Us For Availability
87
Plate, cord set mtg WCI 318111800 Contact Us For Availability
88
Rod, latch WCI 318118904 Contact Us For Availability
89*
Switch WCI 318120711 Contact Us For Availability
103
Trim, base, white WCI 5303300213 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
141#
Switch, thermal cutout WCI 318005201 Contact Us For Availability
141B
Thermostat, safety WCI 318003607 Contact Us For Availability
142
Deflector WCI 318123901 Contact Us For Availability
165
Plate, mounting WCI 318227500 Contact Us For Availability
218
Plate, anti-tip WCI 318054700 Contact Us For Availability
219#
Relay WCI 318112701 Contact Us For Availability
220
Bracket WCI 5304401475 Contact Us For Availability
221
Bracket WCI 5304401476 Contact Us For Availability
284
Box, vent tube WCI 318226600 Contact Us For Availability
× ![]()
