Model Kenmore 790.45062401 RANGE – Common Parts & Diagrams

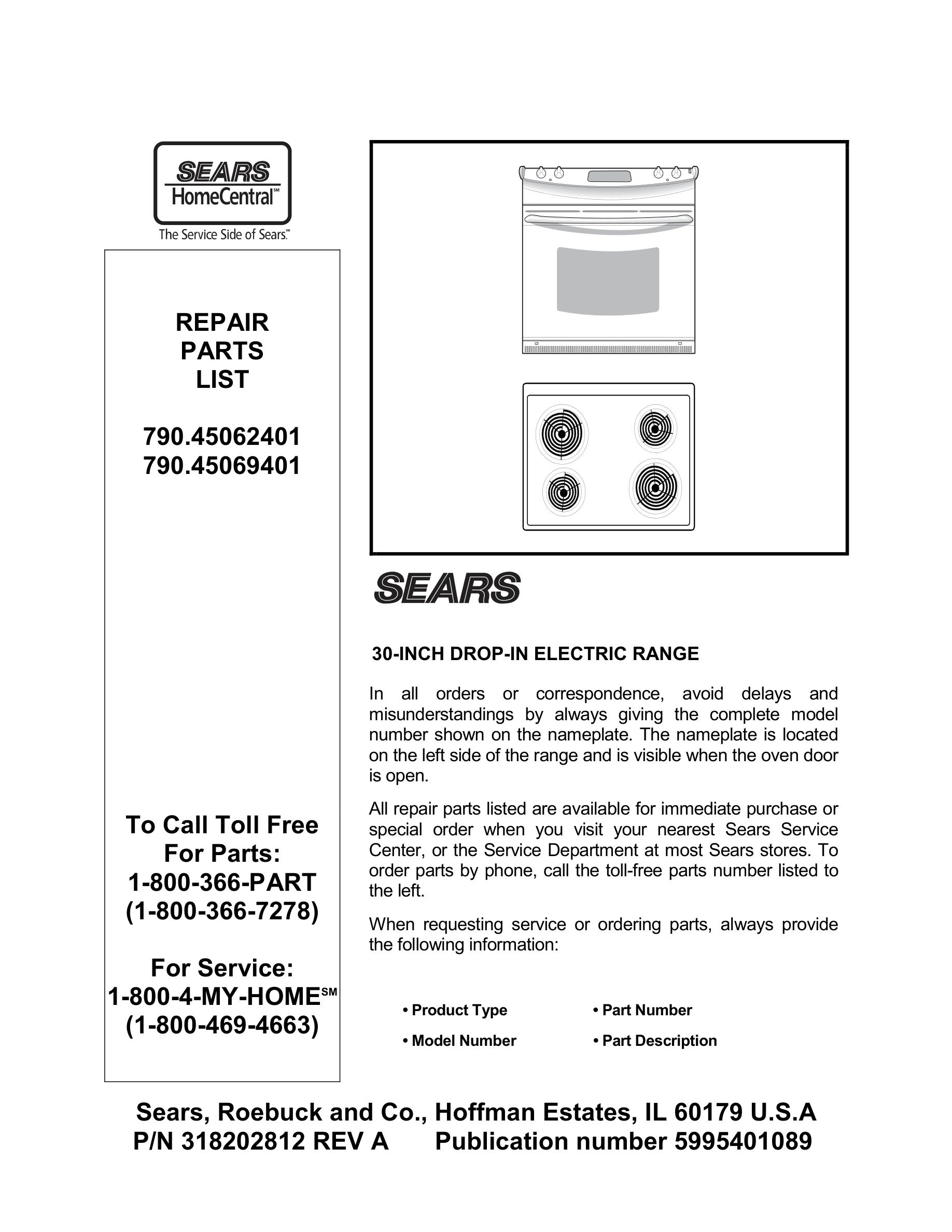

01 - COVER

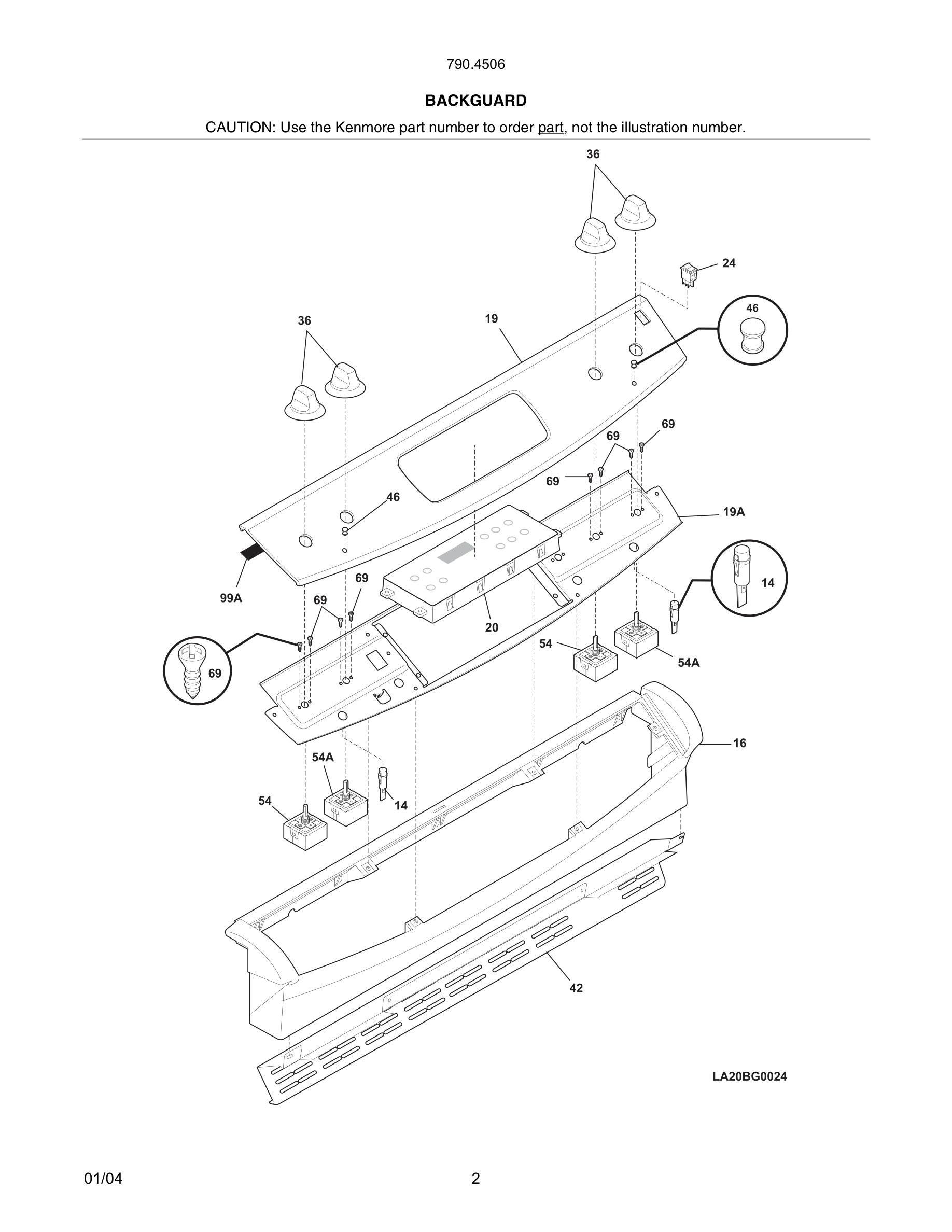

03 - BACKGUARD

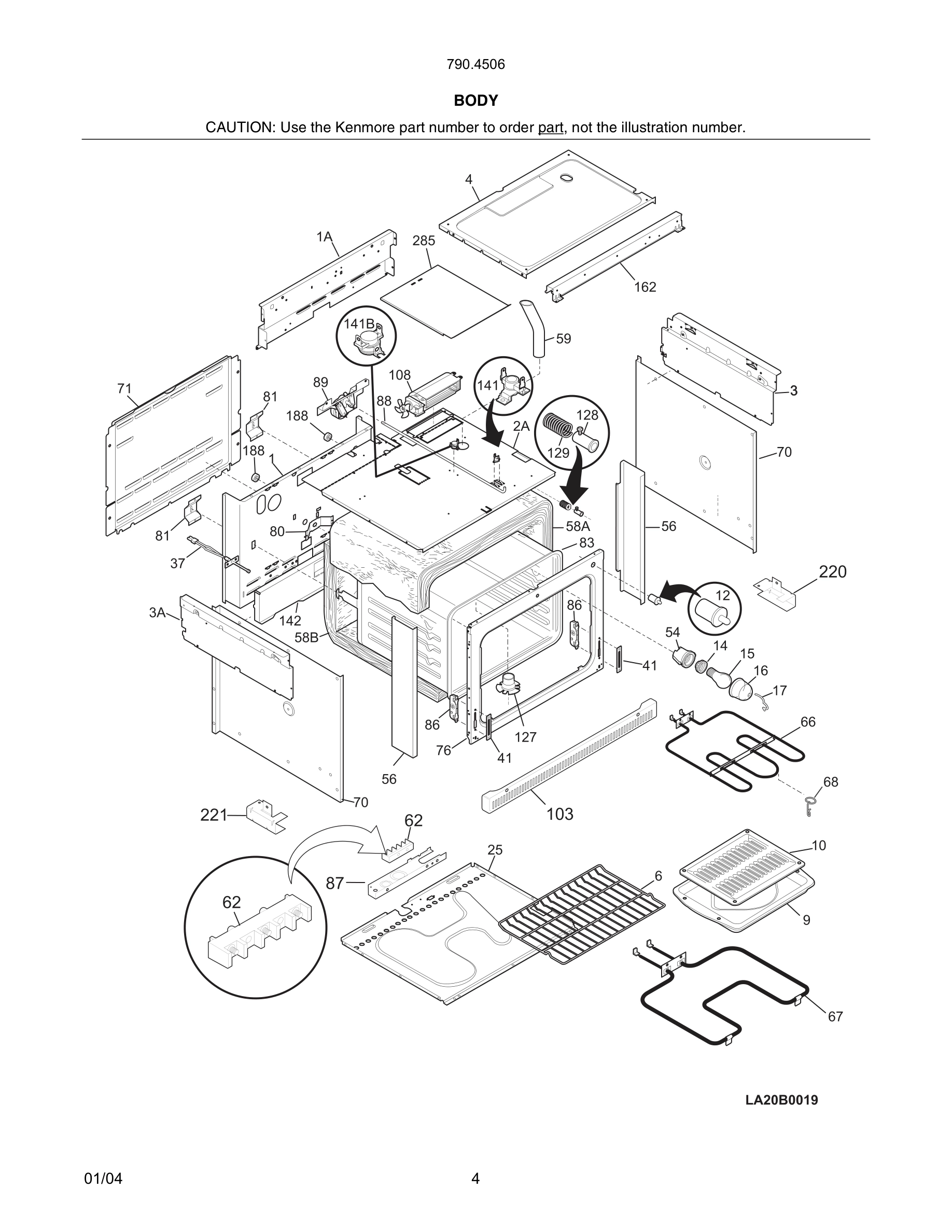

05 - BODY
07 - BODY

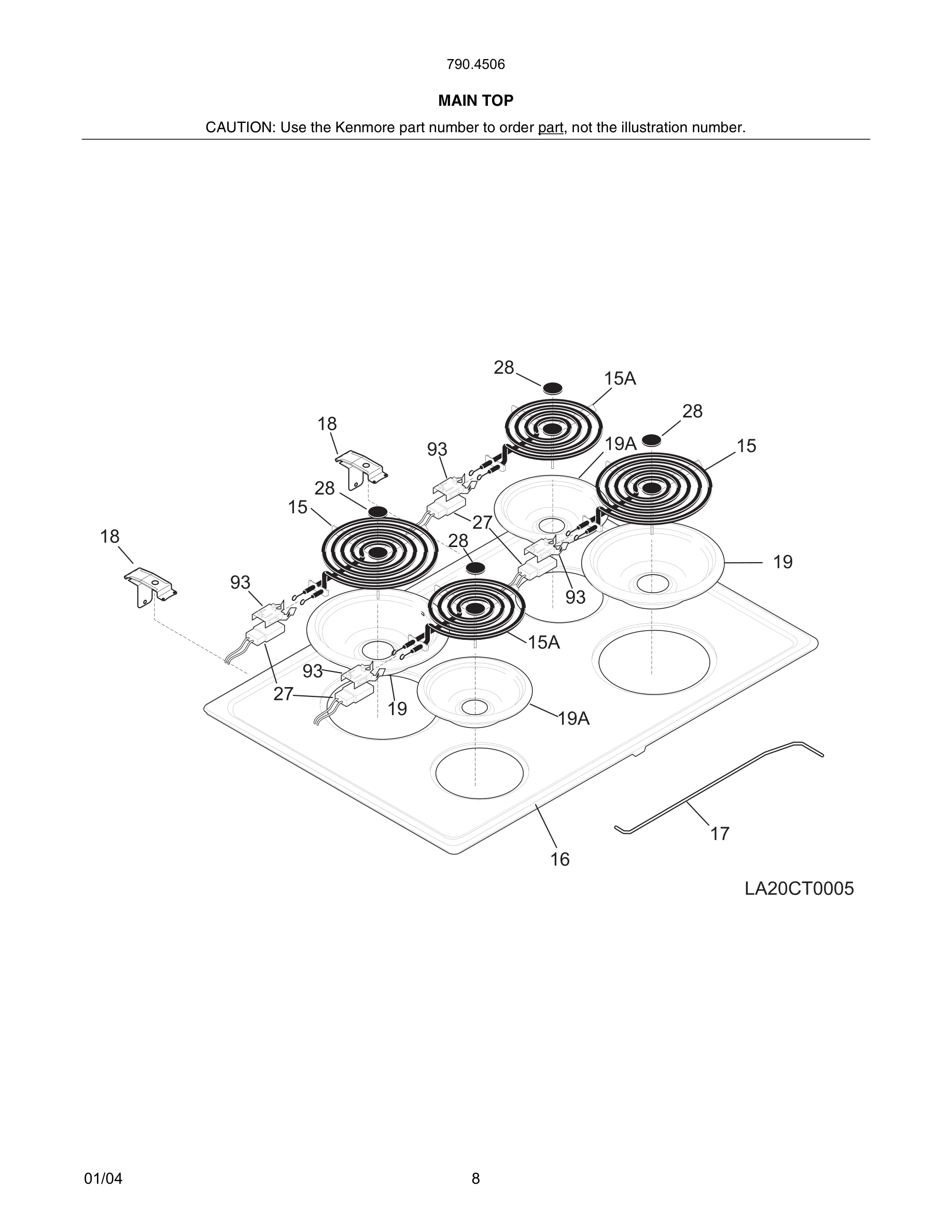

09 - MAIN TOP

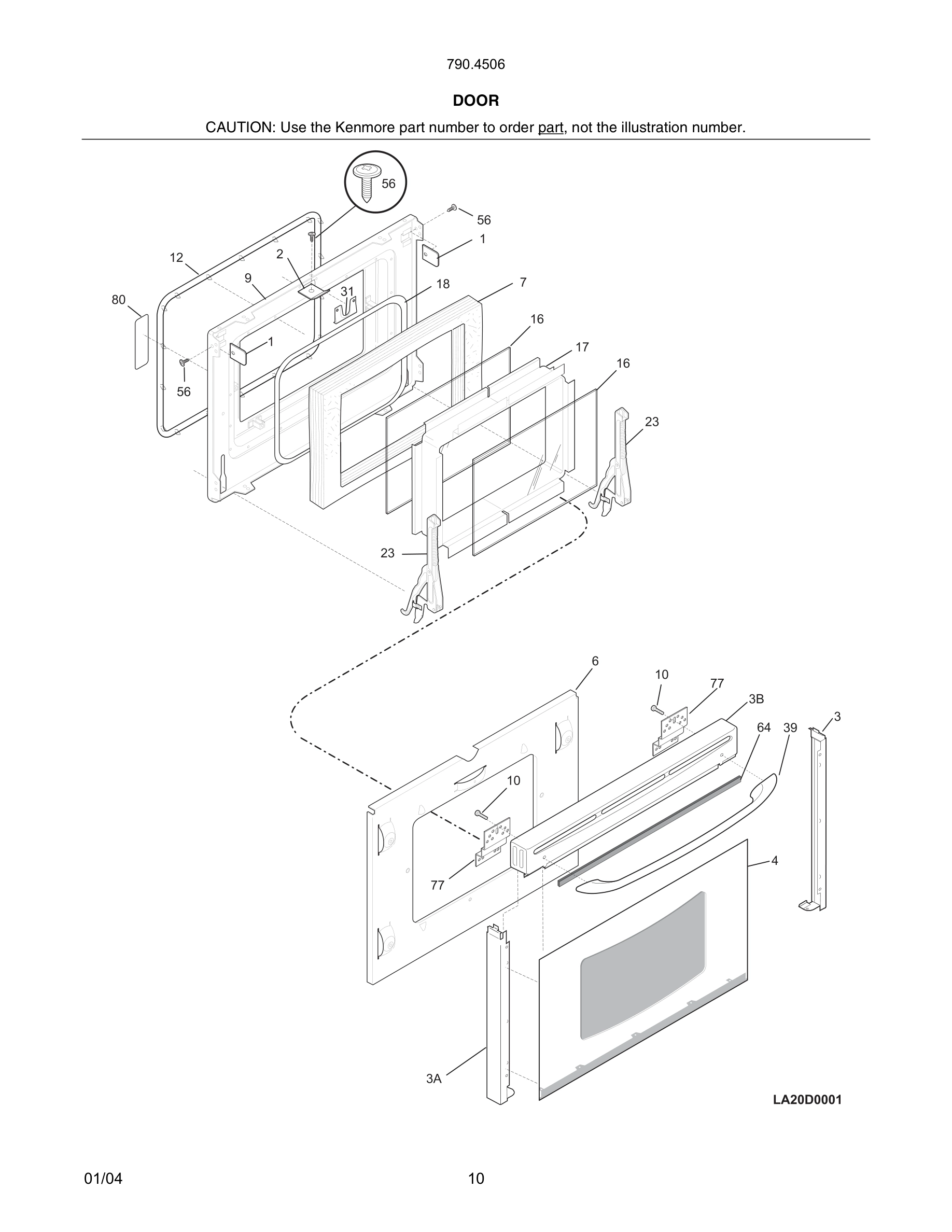

11 - DOOR

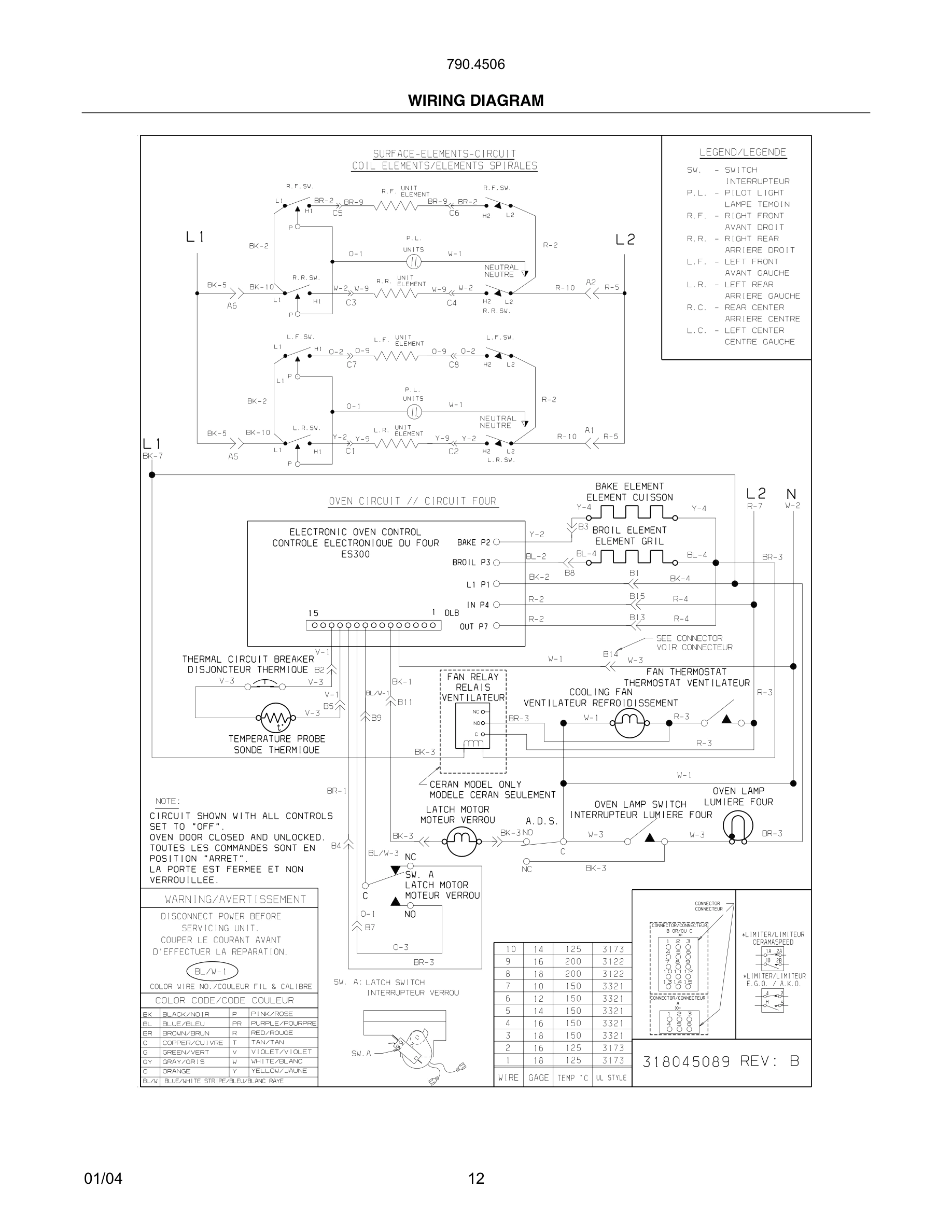

12 - WIRING DIAGRAM
Common parts from model Kenmore 790.45062401 RANGE
*
Support, glass, white, (4) WCI 318183101 Contact Us For Availability
*
Screw, 6-32 x 0.375, top trim WCI 5303131766 Contact Us For Availability
*
Kit, anti-tip WCI 5303325856 Contact Us For Availability
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
*#
Box & wires assy WCI 318078526 Contact Us For Availability
1
Bracket, trim mtg WCI 318180310 Contact Us For Availability
2
Bracket, upper trim mtg WCI 318180312 Contact Us For Availability
3
Trim, door, white, RH side WCI 318187810 Contact Us For Availability
3
Trim, door, black, RH side WCI 318187814 Contact Us For Availability
3A
Trim, door, white, LH side WCI 318187811 Contact Us For Availability
3A
Trim, door, black, LH side WCI 318187815 Contact Us For Availability
3B
Trim, door, white, top WCI 318176646 Contact Us For Availability
3B
Trim, door, black, top WCI 318176647 Contact Us For Availability
4
Panel, door front assy, glass, white, with lo WCI 318187721 Contact Us For Availability
4
Panel, door front assy, glass, black, with lo WCI 318187723 Contact Us For Availability
6
Shield, insulation WCI 318056802 Contact Us For Availability
7
Insulation, oven door WCI 318133781 Contact Us For Availability
9
Liner, door WCI 318157011 Contact Us For Availability
16
Panel, glass, inner oven door WCI 318041603 Contact Us For Availability
16
Main Top, white WCI 318225602 Contact Us For Availability
16
Main Top, black WCI 318225601 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Rod, support, main top panel WCI 3051554 Contact Us For Availability
17
Spacer, glass WCI 318042102 Contact Us For Availability
18
Hinge, maintop, (2) WCI 318227700 Contact Us For Availability
18
Seal, window WCI 318053001 Contact Us For Availability
19A
Panel, control mtg. WCI 318224401 Contact Us For Availability
20#
Clock/Timer, electronic, black, ES300 WCI 318185477 Contact Us For Availability
23
Hinge, oven door WCI 318024700 Contact Us For Availability
27#
Terminal Block, surface element, 36", white l WCI 318223414 Contact Us For Availability
27#
Terminal Block, surface element, 48", orange WCI 318223413 Contact Us For Availability
27#
Terminal Block, surface element, 36", yellow WCI 318223415 Contact Us For Availability
27#
Terminal Block, surface element, 42", brown l WCI 318223418 Contact Us For Availability
31
Latch, oven door WCI 5303310536 Contact Us For Availability
36
Knob, control, white WCI 316208112 Contact Us For Availability
36
Knob, control, black WCI 316208113 Contact Us For Availability
39
Handle, door, black WCI 316209701 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
58B
Insulation, oven back WCI 318133785 Contact Us For Availability
64
Tape, 0.762 m, Neoprene WCI 5304417120 Contact Us For Availability
70
Shield, insulation WCI 318194400 Contact Us For Availability
71
Panel, wiring cover, rear WCI 5303310515 Contact Us For Availability
76
Front, oven WCI 318225302 Contact Us For Availability
77
Bracket, trim, handle, (2) WCI 318043100 Contact Us For Availability
80
Label, anti-tip WCI 316221000 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
83
Liner, oven WCI 318089613 Contact Us For Availability
86
Receptacle, hinge WCI 5303310524 Contact Us For Availability
87
Plate, cord set mtg WCI 318111800 Contact Us For Availability
88
Rod, latch WCI 318118904 Contact Us For Availability
89*
Switch WCI 318120711 Contact Us For Availability
93
Support, terminal block, (4) WCI 318122500 Contact Us For Availability
103
Trim, base, white WCI 5303300213 Contact Us For Availability
103
Trim, base, black WCI 5303300217 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
141#
Switch, thermal cutout WCI 318005201 Contact Us For Availability
141B
Thermostat, safety WCI 318003606 Contact Us For Availability
142
Deflector WCI 318123901 Contact Us For Availability
162
Box, extension WCI 318225800 Contact Us For Availability
220
Bracket WCI 5304401475 Contact Us For Availability
221
Bracket WCI 5304401476 Contact Us For Availability
× ![]()
