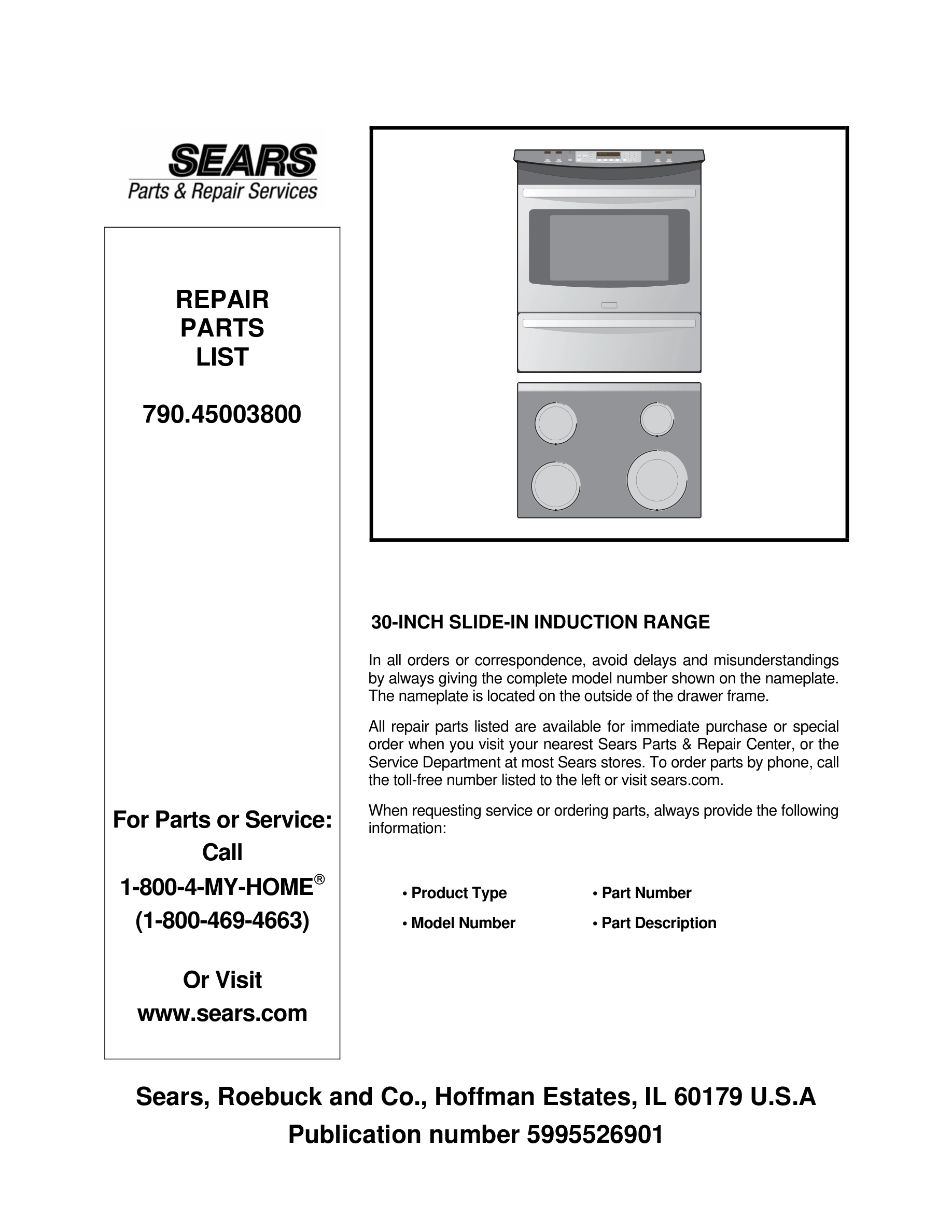

Model Kenmore 790.45003800 RANGE – Common Parts & Diagrams
01 - COVER

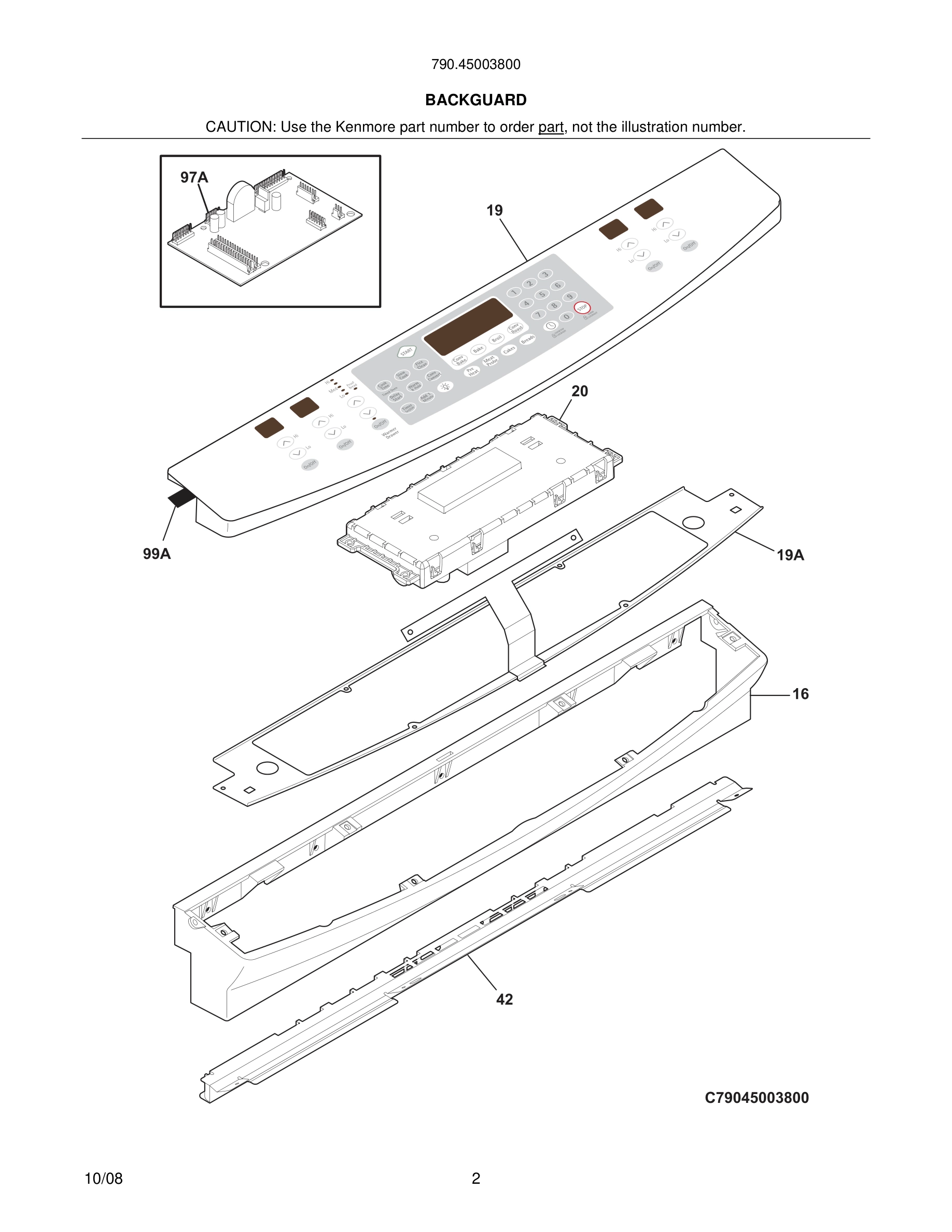

03 - BACKGUARD
05 - INDUCTION CONTROL
07 - BODY
09 - BODY
11 - TOP/DRAWER
13 - DOOR
14 - WIRING DIAGRAM
15 - WIRING DIAGRAM
Common parts from model Kenmore 790.45003800 RANGE
*
Pad, cleaning WCI 316459400 Contact Us For Availability
*
Screw, shoulder WCI 3051050 Contact Us For Availability
*
Cleaner, cooktop WCI 316112100 Contact Us For Availability
*
Frying Pan, stainless steel WCI 318343701 Contact Us For Availability
*
Label, anti-tip WCI 316221000 Contact Us For Availability
1
Drawer, body assembly WCI 318304401 Contact Us For Availability
1C
Panel, warmer drawer, rear WCI 318300301 Contact Us For Availability
2
Panel, drawer, black, inner WCI 318303901 Contact Us For Availability
3
Insulation, carrier panel WCI 318330520 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Panel, drawer, stainless, front WCI 318298824 Contact Us For Availability
5
Panel, mounting WCI 318405101 Contact Us For Availability
6
Baffle, door WCI 318260522 Contact Us For Availability
6A
Rack, broiler pan WCI 318365800 Contact Us For Availability
9
Liner, oven door WCI 318411605 Contact Us For Availability
10
Panel, coil support, 145MM WCI 318330405 Contact Us For Availability
10A
Panel, coil support, 180MM WCI 318330406 Contact Us For Availability
10B
Panel, coil support, 210MM WCI 318330407 Contact Us For Availability
10C
Panel, coil support, 260MM WCI 318330408 Contact Us For Availability
13
Door Assembly, outer, stainless/black, w/namp WCI 318919102 Contact Us For Availability
15#
Element, induction coil, 145MM, RH rear WCI 318329210 Contact Us For Availability
15A#
Element, induction coil, 180MM, LH rear WCI 318329201 Contact Us For Availability
15B#
Element, induction coil, 210MM, LH front WCI 318329202 Contact Us For Availability
15C#
Element, induction coil, 260MM, RH front WCI 318329203 Contact Us For Availability
16
Glass, oven door, heat barrier WCI 318212210 Contact Us For Availability
16
Main Top Assembly, w/glass, black WCI 318342649 Contact Us For Availability
20
Plate, retainer WCI 318389400 Contact Us For Availability
23
Hinge, door, (2) WCI 318024747 Contact Us For Availability
37*
Bracket, receptacle, temp probe WCI 318373001 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
46
Box, burner WCI 318225427 Contact Us For Availability
55
Insulation WCI 318407300 Contact Us For Availability
57
Baffle, air WCI 318411800 Contact Us For Availability
58
Cover, air baffle WCI 318411700 Contact Us For Availability
76
Front, oven WCI 318056217 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
86
Receptacle, hinge WCI 318328010 Contact Us For Availability
86
Clip, hold down, warmer element WCI 316095800 Contact Us For Availability
90
Channel, glass protector, (2) WCI 318368001 Contact Us For Availability
95
Shield, wire WCI 318303800 Contact Us For Availability
97#
Board, relay, convection WCI 316519204 Contact Us For Availability
97A#
Board, power, UIB WCI 316442056 Contact Us For Availability
107
Cover, fan WCI 318219405 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
127
Adapter Assembly, w/vent tube, and catalyst WCI 318357001 Contact Us For Availability
165
Plate, mounting WCI 318227511 Contact Us For Availability
169
Nut, acorn, 10-32 x 3/8, (2) WCI 5304446440 Contact Us For Availability
170
Anti-tip & accessories WCI 318335700 Contact Us For Availability
192
Grill, searing WCI 318398000 Contact Us For Availability
200
Frame, drawer, front WCI 318298221 Contact Us For Availability
201
Frame, drawer WCI 318298210 Contact Us For Availability
272
Tube, protector WCI 318249403 Contact Us For Availability
× ![]()
