Model Kenmore 790.44382700 COOKTOP – Common Parts & Diagrams

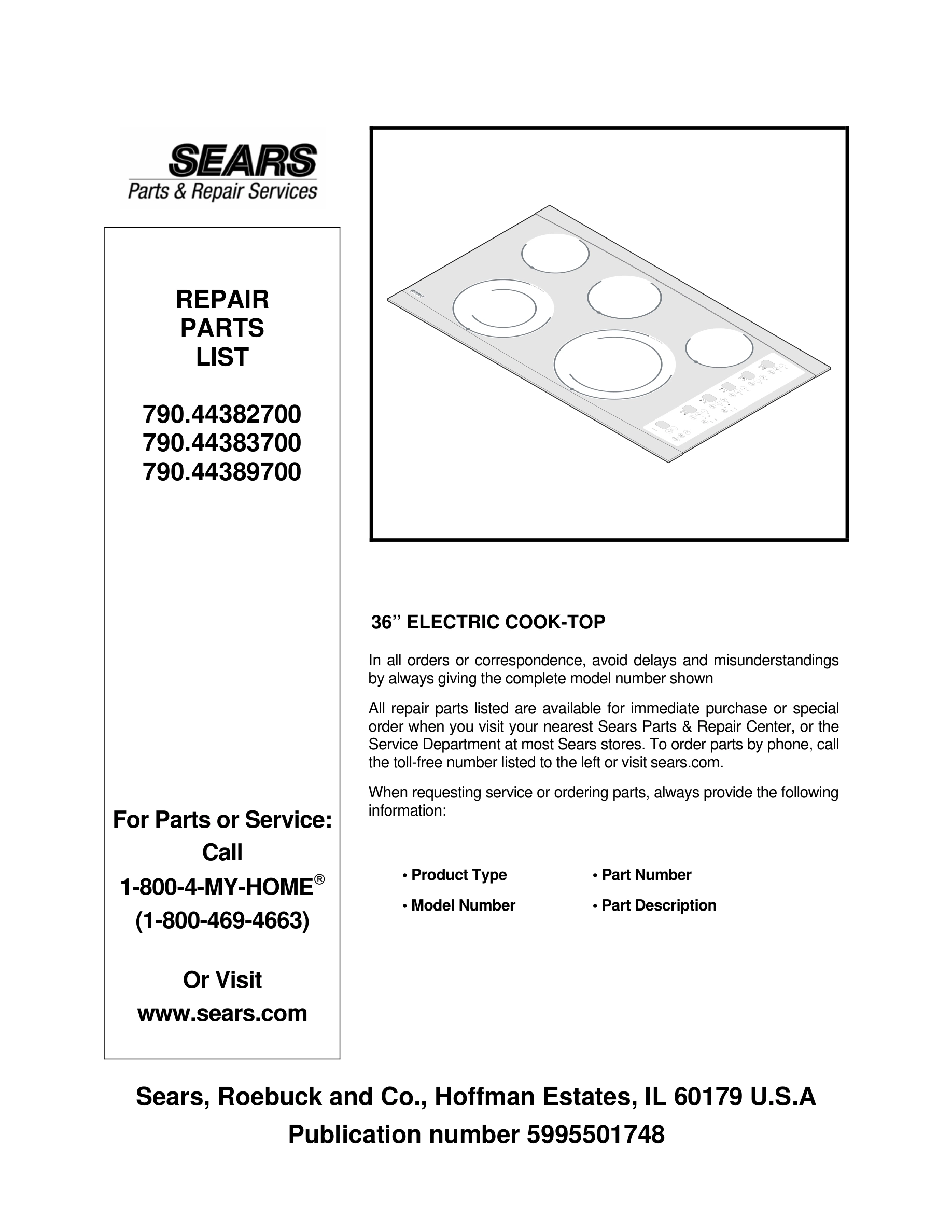

01 - COVER

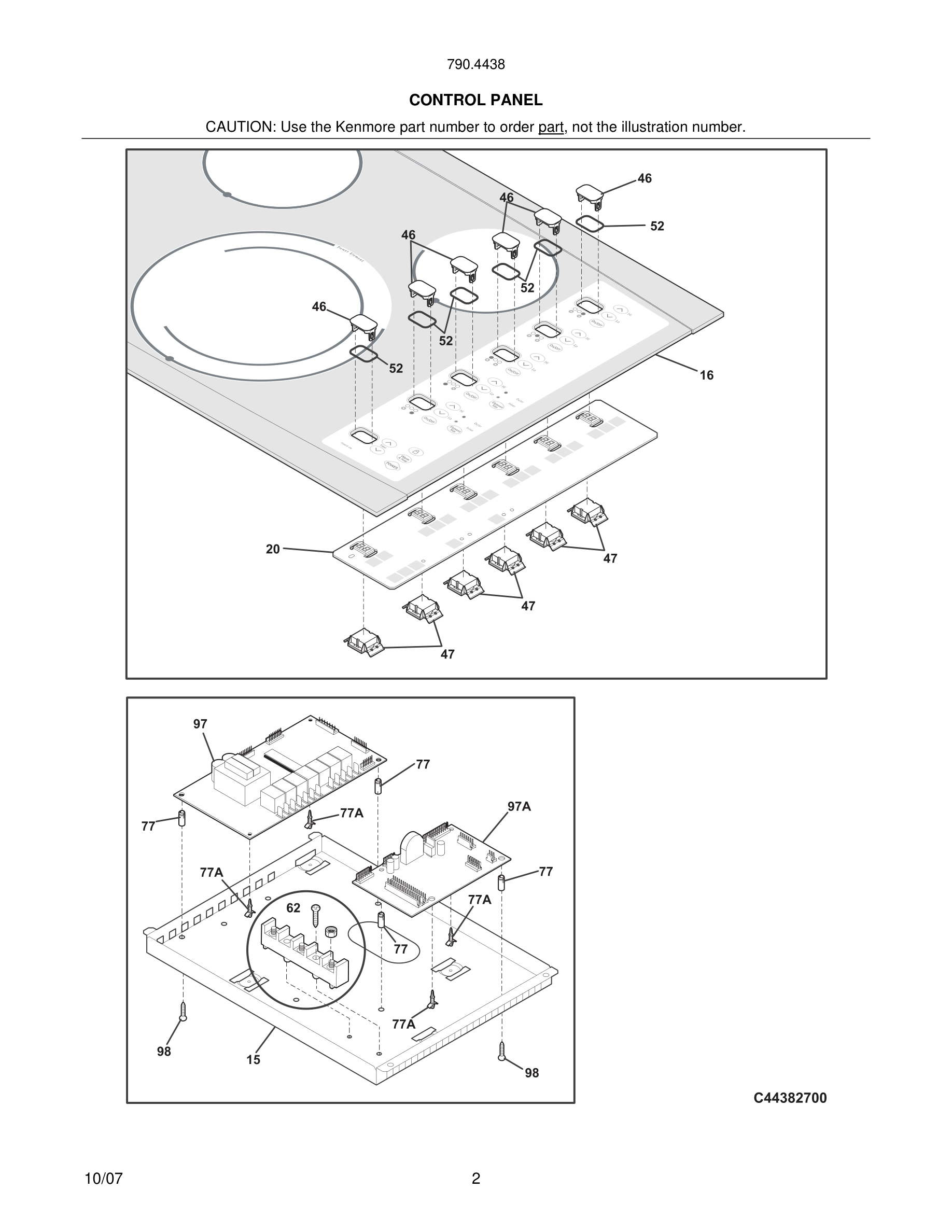

03 - CONTROL PANEL
05 - MAIN TOP/SURFACE UNITS
06 - WIRING DIAGRAM
Common parts from model Kenmore 790.44382700 COOKTOP
*
Pad, cleaning WCI 316459400 Contact Us For Availability
*
retainer wire WCI 5304400192 Contact Us For Availability
*
Cleaner, cooktop WCI 316112100 Contact Us For Availability
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
*#
Box & wires assy WCI 318078579 Contact Us For Availability
*#
Harness, wiring, main WCI 318199499 Contact Us For Availability
1
Shield, heat WCI 318354121 Contact Us For Availability
15B#
Element, surface, 7", 1800W, radiant WCI 318198945 Contact Us For Availability
16
Main Top Assy, glass/steel, white WCI 318282561 Contact Us For Availability
16
Main Top Assy, glass/steel, black/stainless WCI 318282563 Contact Us For Availability
16
Main Top Assy, glass/steel, black WCI 318282562 Contact Us For Availability
20
Bracket, retainer, (2) WCI 318121912 Contact Us For Availability
46
Lens, indicator light, (6) WCI 318319010 Contact Us For Availability
46
Box, burner WCI 318354022 Contact Us For Availability
47
Clamp, lens, (6) WCI 318367101 Contact Us For Availability
52
Gasket, o'ring, (6) WCI 318337101 Contact Us For Availability
57
Box, service WCI 318374401 Contact Us For Availability
58
Panel, service WCI 318374700 Contact Us For Availability
59
Plate, service WCI 318375001 Contact Us For Availability
108#
Motor, fan WCI 318073027 Contact Us For Availability
141#
Switch, thermal cutout, (5) WCI 318005217 Contact Us For Availability
141*
Harness, wiring, thermostat WCI 318231854 Contact Us For Availability
159
Deflector, air, exterior, (2) WCI 318374610 Contact Us For Availability
162
Deflector, air, interior, (2) WCI 318374510 Contact Us For Availability
188
Spacer, (2) WCI 318014111 Contact Us For Availability
× ![]()
