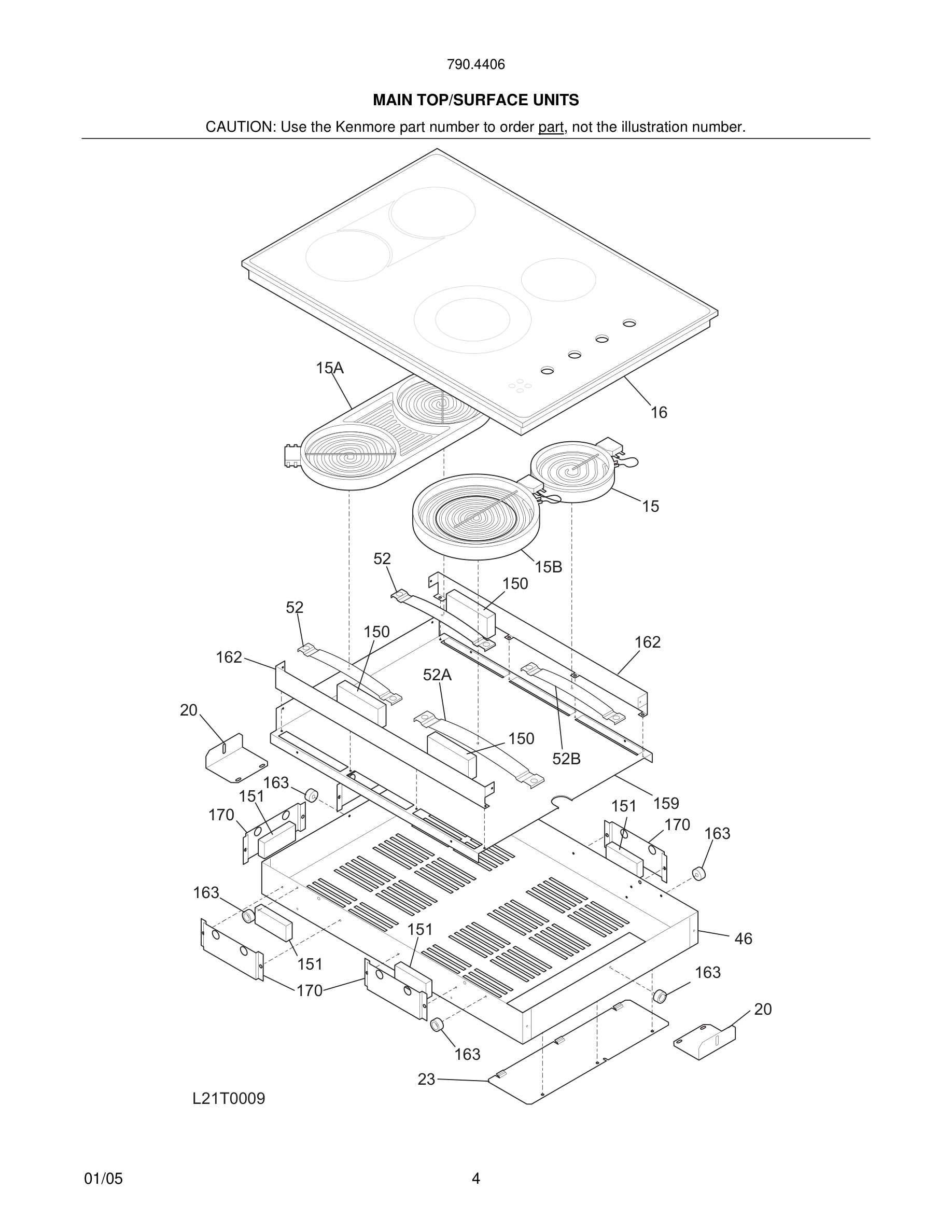

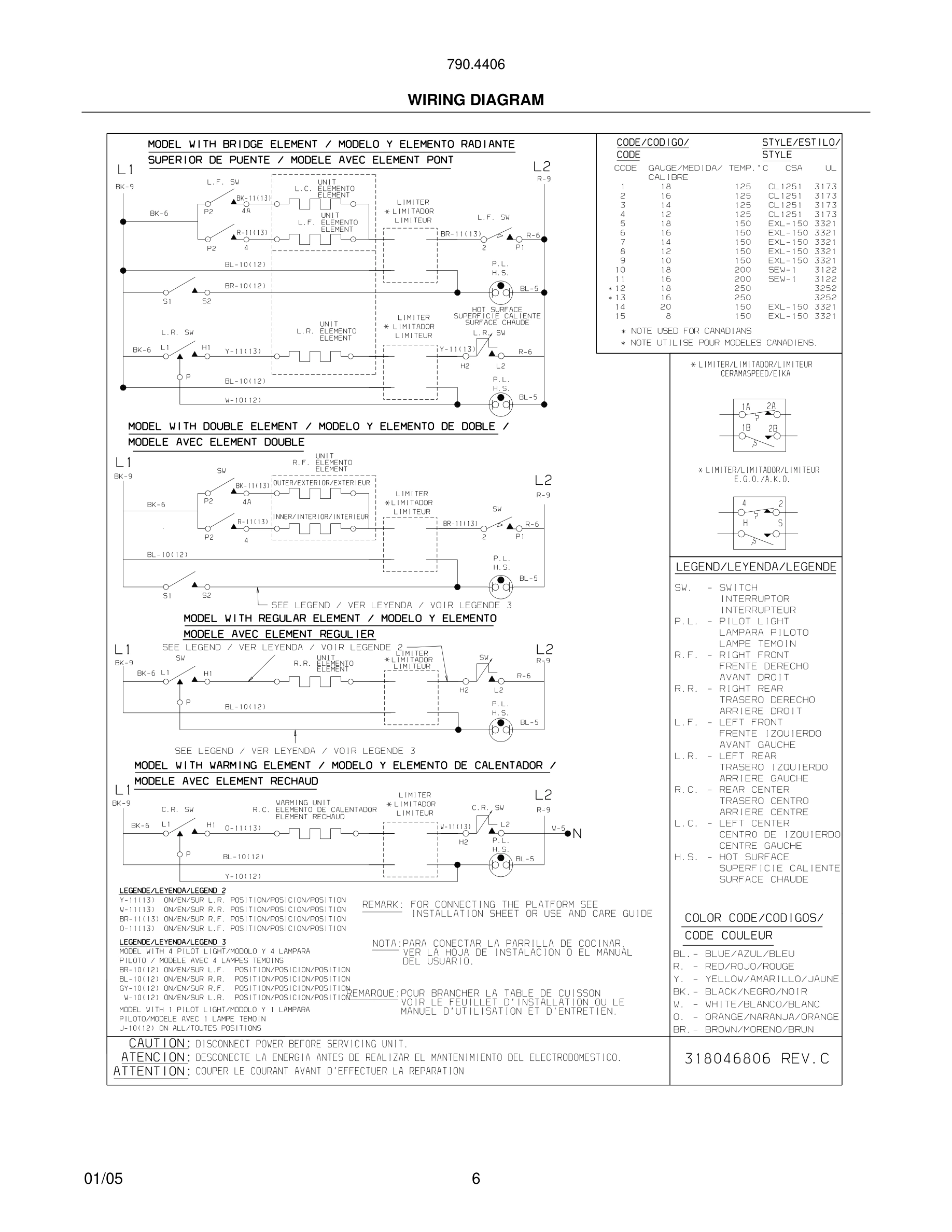

Model Kenmore 790.44062402 COOKTOP – Common Parts & Diagrams
Common parts from model Kenmore 790.44062402 COOKTOP
*
Cleaner, cooktop WCI 316112100 Contact Us For Availability
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
*#
Box & wires assy WCI 318078529 Contact Us For Availability
16
Main Top Assy, glass/steel, enamel, white WCI 318079387 Contact Us For Availability
16
Main Top Assy, glass/steel, enamel, black WCI 318079390 Contact Us For Availability
16
Main Top Assy, glass/steel, enamel, bisque WCI 318079388 Contact Us For Availability
16
Main Top Assy, glass/steel, enamel, black WCI 318079389 Contact Us For Availability
23
Panel, service, black WCI 318194705 Contact Us For Availability
46
Burner Box WCI 318077235 Contact Us For Availability
74
Bushing, switch WCI 318148900 Contact Us For Availability
150
Insulation, 2 x 8, (6) WCI 318106035 Contact Us For Availability
151
Insulation, 2 x 5.75, (5) WCI 318106036 Contact Us For Availability
159
Deflector WCI 318125123 Contact Us For Availability
162
Deflector WCI 318161402 Contact Us For Availability
170
Screen, thermal WCI 318124911 Contact Us For Availability
× ![]()
