Model Kenmore 790.43999404 COOKTOP – Common Parts & Diagrams
01 - COVER
03 - CONTROL PANEL

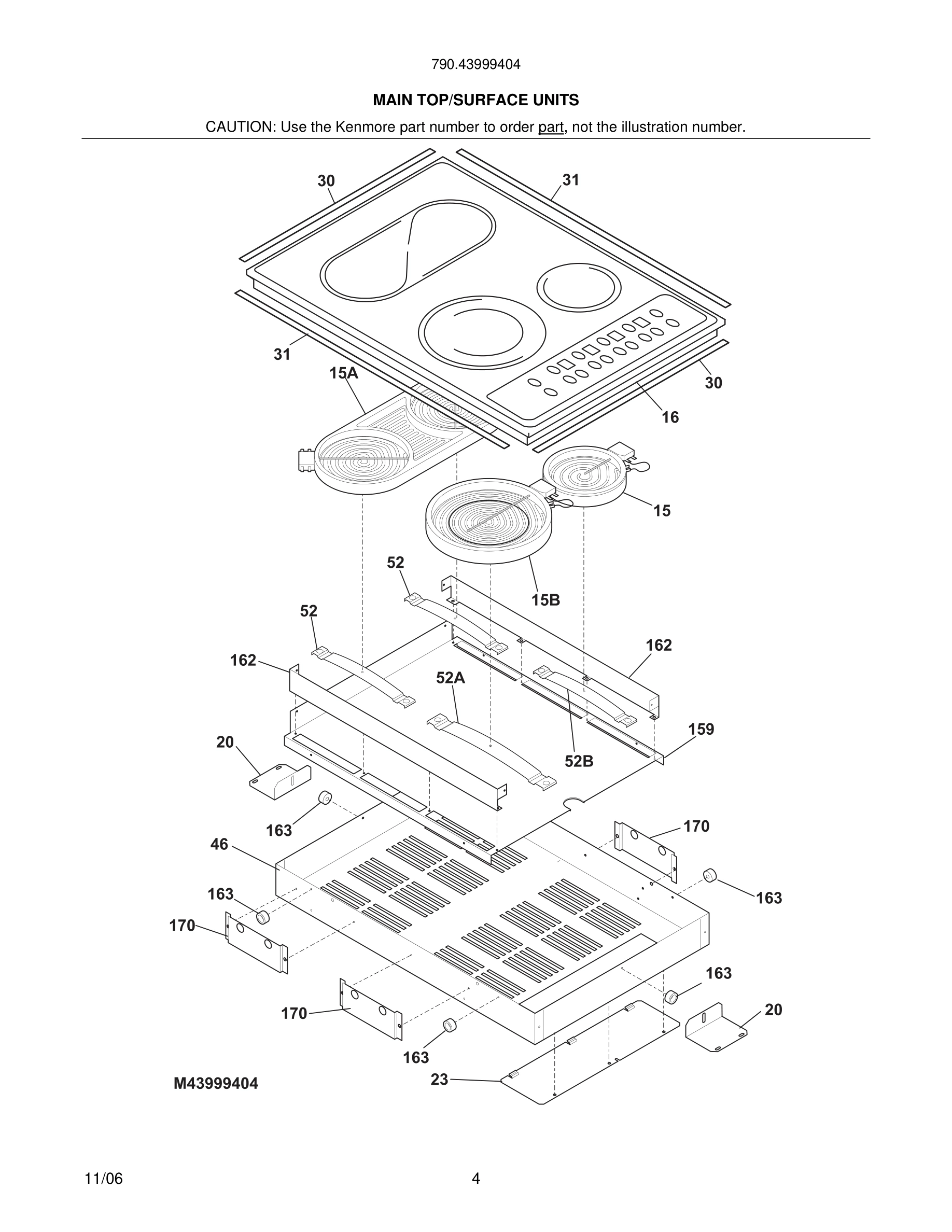

05 - MAIN TOP/SURFACE UNITS

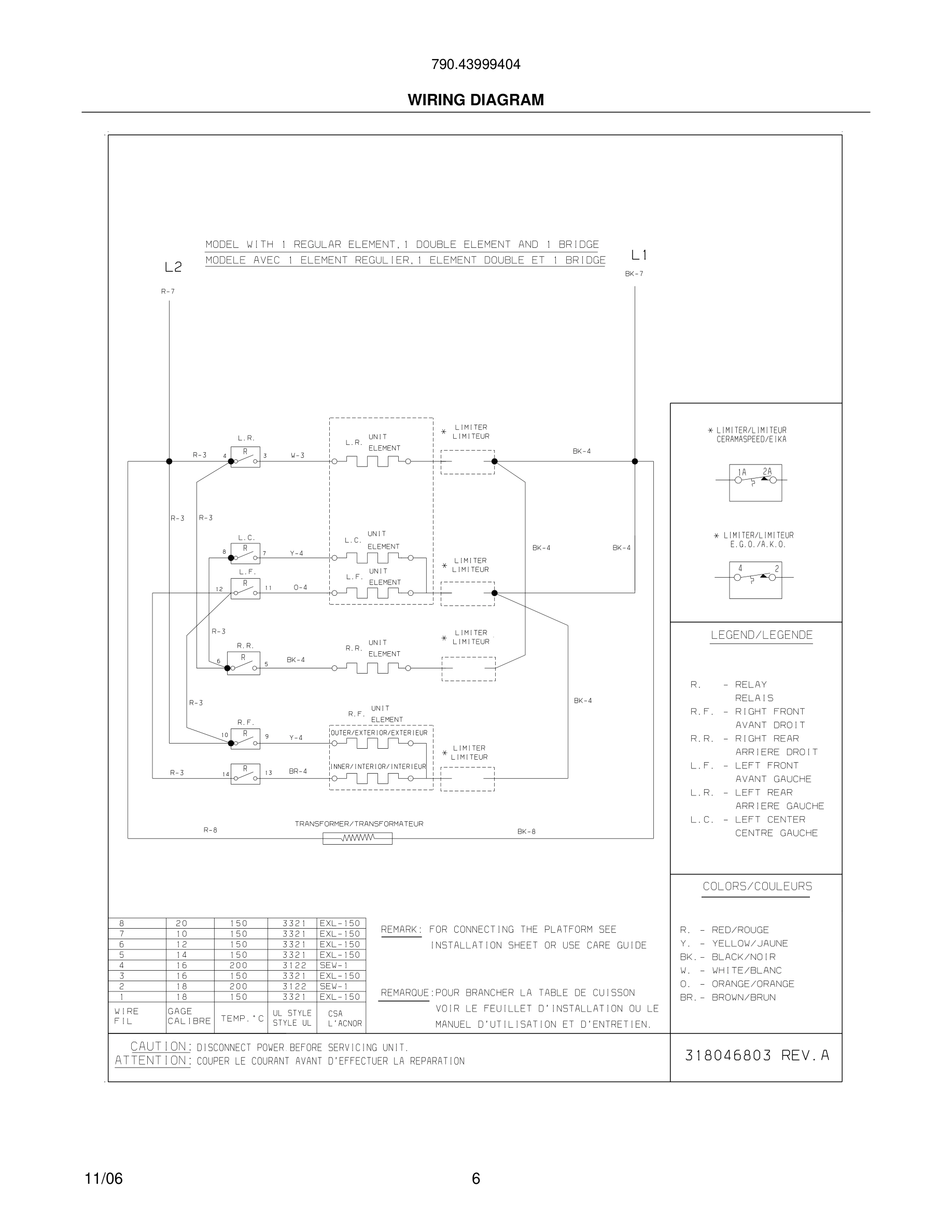

06 - WIRING DIAGRAM
Common parts from model Kenmore 790.43999404 COOKTOP
*
Pad, cleaning WCI 316459400 Contact Us For Availability
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
*
Harness, wiring, limiter WCI 318231819 Contact Us For Availability
*
Cleaner, cooktop WCI 316112100 Contact Us For Availability
*#
Box & wires assy WCI 318078549 Contact Us For Availability
1
Control, electronic, infrared WCI 318233000 Contact Us For Availability
2
Foil, aluminum WCI 318235700 Contact Us For Availability
3
Shield, heat WCI 318234700 Contact Us For Availability
4
Screw, controller WCI 318235500 Contact Us For Availability
5
Bracket, controller, (3) WCI 318234500 Contact Us For Availability
6
Spring, controller, (3) WCI 318235600 Contact Us For Availability
16
Panel, control WCI 318234400 Contact Us For Availability
16
Main Top Assy, glass/steel, black WCI 318079379 Contact Us For Availability
23
Panel, service, black WCI 318194703 Contact Us For Availability
30
Gasket, glass, 20.25", side, (2) WCI 318052604 Contact Us For Availability
31
Gasket, glass, 30.25", front/back, (2) WCI 318052605 Contact Us For Availability
46
Burner Box WCI 318077232 Contact Us For Availability
159
Deflector WCI 318125113 Contact Us For Availability
162
Deflector WCI 318161401 Contact Us For Availability
170
Screen, thermal WCI 318124911 Contact Us For Availability
× ![]()
