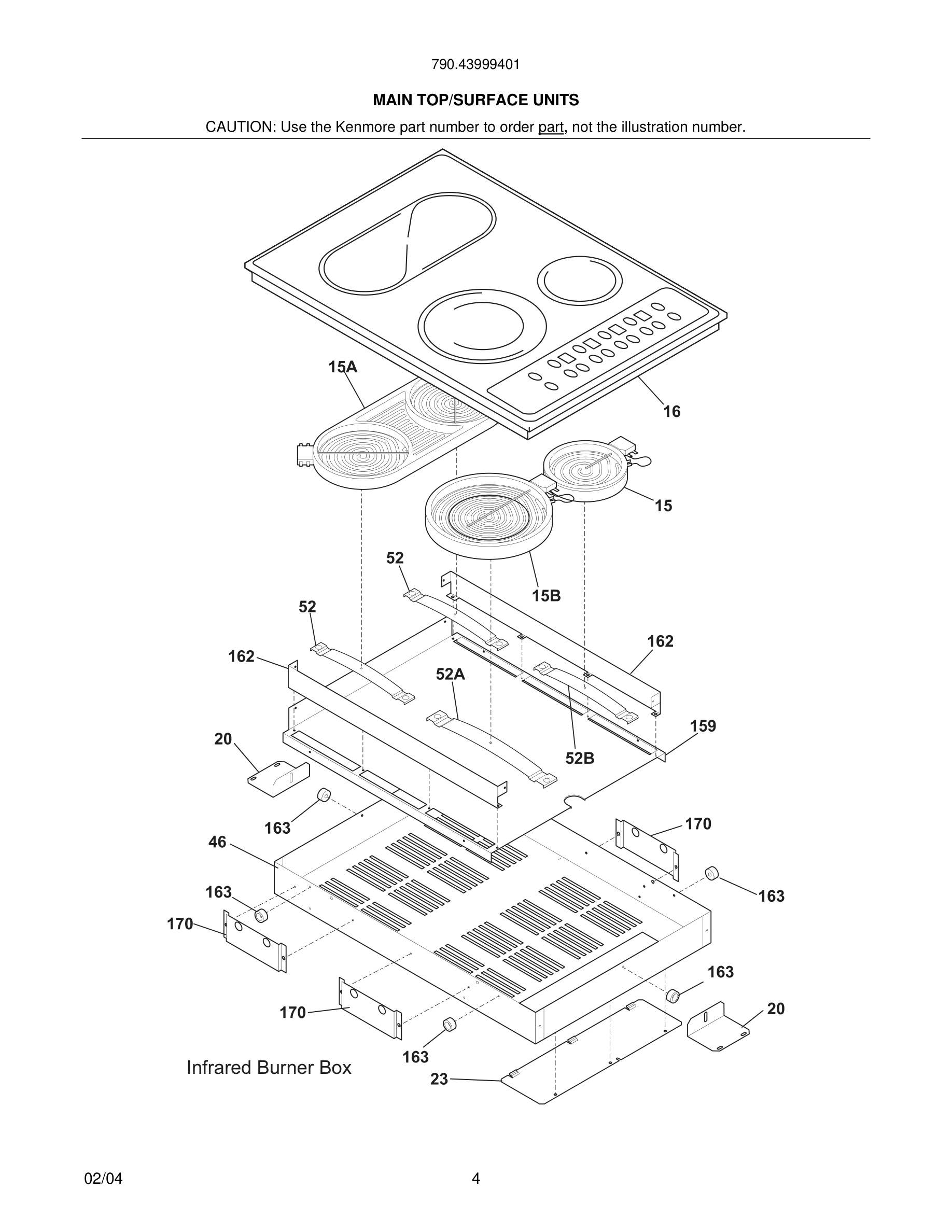

Model Kenmore 790.43999401 COOKTOP – Common Parts & Diagrams

*
Instructions, installation
Instructions, installation WCI 318201412 Contact Us For Availability
View on Model
*
Screw, truss head, 8-18 x 0.375
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
View on Model
*
Cleaner, cooktop
Cleaner, cooktop WCI 316112100 Contact Us For Availability
View on Model
*#
Box & wires assy
Box & wires assy WCI 318078538 Contact Us For Availability
View on Model
1
Control, electronic, infrared
Control, electronic, infrared WCI 318233000 Contact Us For Availability
View on Model
2
Foil, aluminum
Foil, aluminum WCI 318235700 Contact Us For Availability
View on Model
3
Shield, heat
Shield, heat WCI 318234700 Contact Us For Availability
View on Model
4
Screw, controller
Screw, controller WCI 318235500 Contact Us For Availability
View on Model
5
Bracket, controller, (3)
Bracket, controller, (3) WCI 318234500 Contact Us For Availability
View on Model
6
Spring, controller, (3)
Spring, controller, (3) WCI 318235600 Contact Us For Availability
View on Model
16
Panel, control
Panel, control WCI 318234400 Contact Us For Availability
View on Model
16
Main Top Assy, glass/steel, black
Main Top Assy, glass/steel, black WCI 318079379 Contact Us For Availability
View on Model
23
Panel, Service, black
Panel, Service, black WCI 318194703 Contact Us For Availability
View on Model
46
Burner Box
Burner Box WCI 318077232 Contact Us For Availability
View on Model
159
Deflector
Deflector WCI 318125113 Contact Us For Availability
View on Model
162
Deflector
Deflector WCI 318161401 Contact Us For Availability
View on Model
170
Screen, thermal
Screen, thermal WCI 318124911 Contact Us For Availability
View on Model
