Model Kenmore 790.42920800 COOKTOP – Common Parts & Diagrams

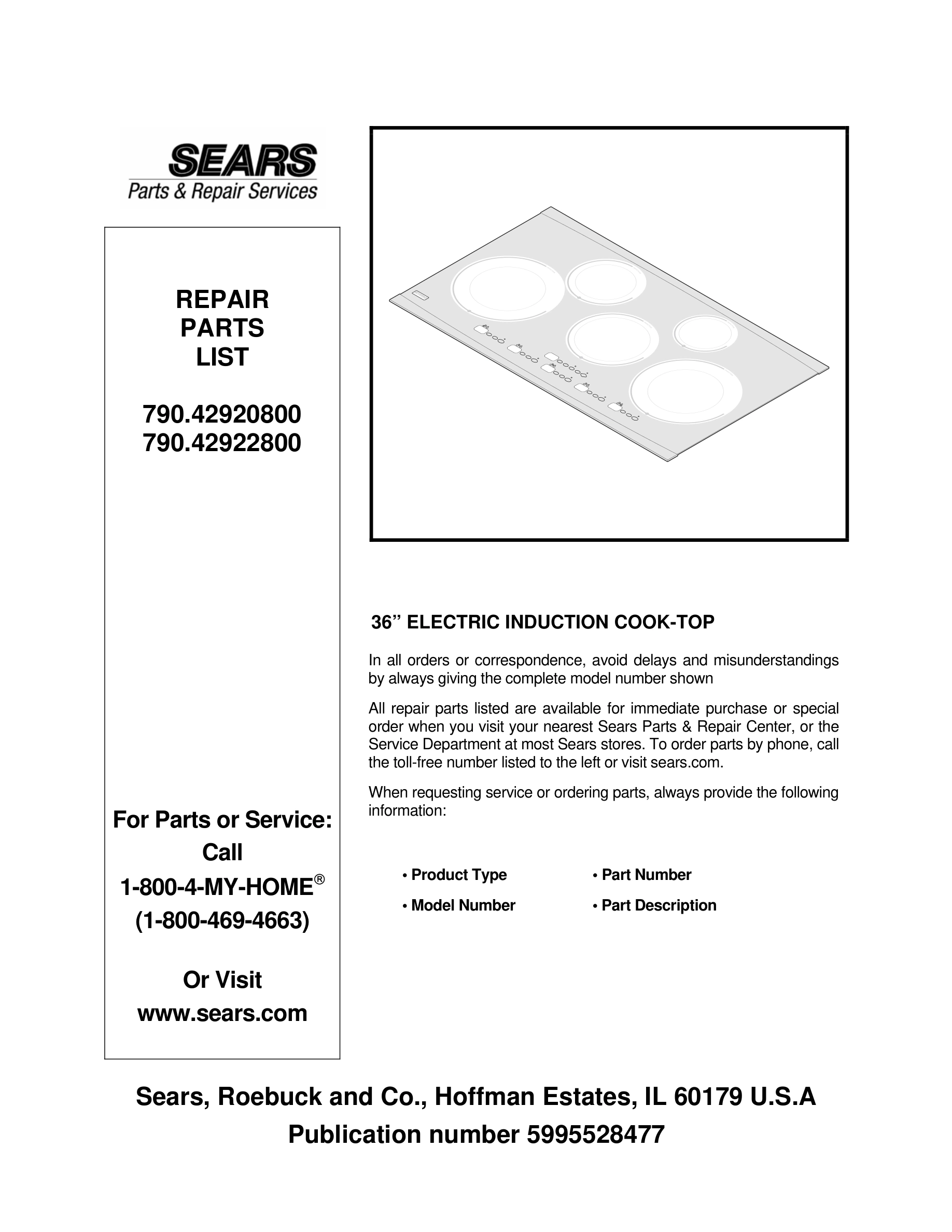

01 - COVER

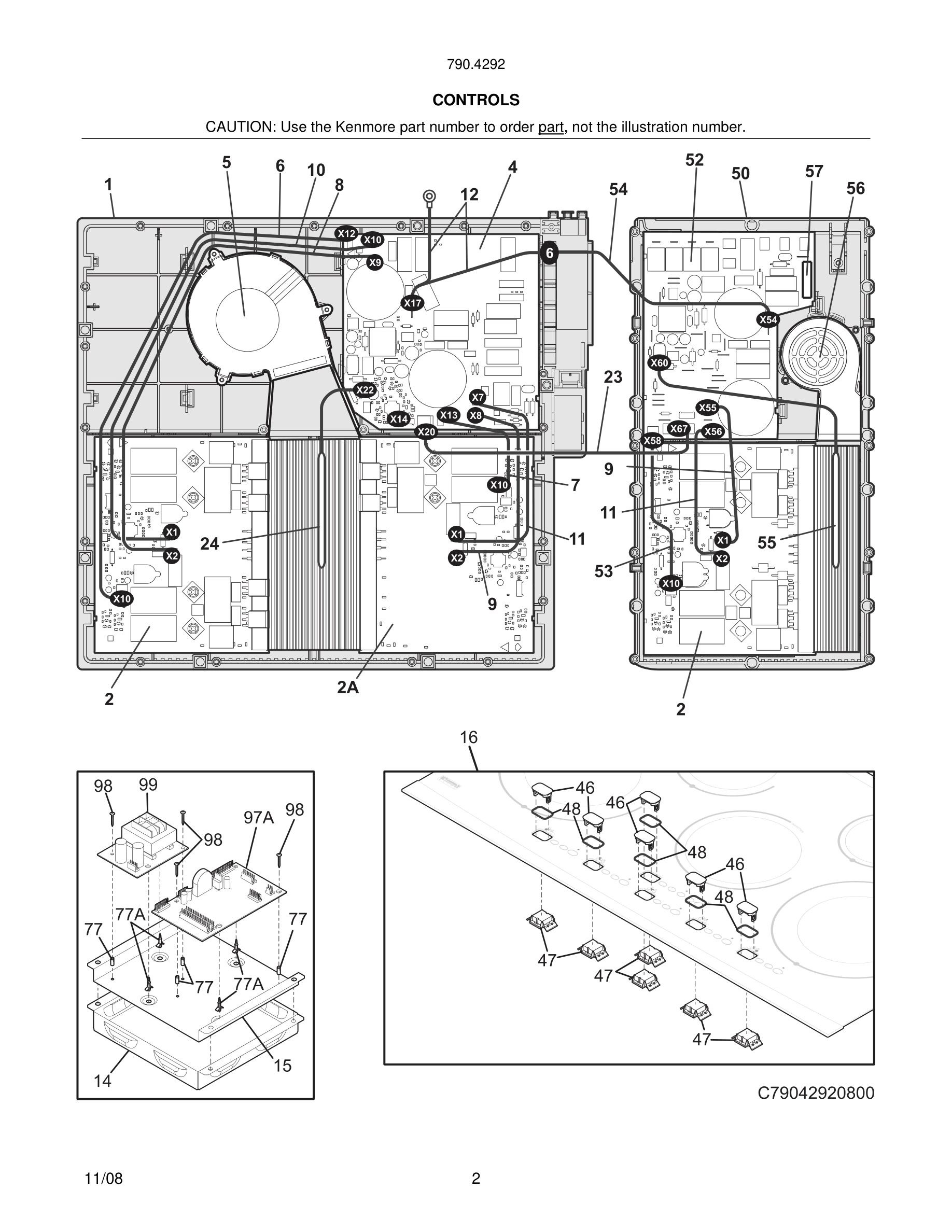

03 - CONTROLS
05 - MAIN TOP/SURFACE UNITS
06 - WIRING DIAGRAM
Common parts from model Kenmore 790.42920800 COOKTOP
*
Pad, cleaning WCI 316459400 Contact Us For Availability
*
Jumper, electronic, (2) WCI 318341200 Contact Us For Availability
*
Screw, 8 x 5/8 WCI 3131048 Contact Us For Availability
*
Cleaner, glass WCI 316112100 Contact Us For Availability
*
Frying Pan, stainless steel WCI 318343701 Contact Us For Availability
*
Clamp, power cord WCI 318341500 Contact Us For Availability
*
Screw, 7-19 x 1/2" WCI 5304450850 Contact Us For Availability
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
*#
Box & wires assy WCI 5304469855 Contact Us For Availability
1
Panel, mounting WCI 318533811 Contact Us For Availability
2
Insulation, carrier panel WCI 318330526 Contact Us For Availability
5#
Cooling Fan Assembly, large WCI 318346900 Contact Us For Availability
6#
Communication Cable, generator, 18", to filte WCI 318348001 Contact Us For Availability
7#
Communication Cable, generator, 6", to filter WCI 318348000 Contact Us For Availability
8#
Power Cable Set, filter, 18", black, to gener WCI 318052581 Contact Us For Availability
9#
Power Cable Set, generator, 6", blue, to filt WCI 318052580 Contact Us For Availability
10
Panel, coil support, 145MM WCI 318330405 Contact Us For Availability
10#
Power Cable Set, filter, 18", blue, to genera WCI 318052582 Contact Us For Availability
10A
Panel, coil support, 180MM WCI 318330406 Contact Us For Availability
10B
Panel, coil support, 210MM WCI 318330407 Contact Us For Availability
10C
Panel, coil support, 260MM WCI 318330408 Contact Us For Availability
11#
Power Cable Set, generator, 6", black, to fil WCI 318052579 Contact Us For Availability
12#
Groung Wire, X54/6 WCI 318052596 Contact Us For Availability
14
Plenum, louvered WCI 318412100 Contact Us For Availability
15
Panel, mounting, boards WCI 318537300 Contact Us For Availability
15#
Element, induction coil, 145MM, RH rear WCI 318329210 Contact Us For Availability
15A#
Element, induction coil, 180MM, LH rear WCI 318329201 Contact Us For Availability
15B#
Element, induction coil, 210MM, LH front WCI 318329202 Contact Us For Availability
15C#
Element, induction coil, 260MM, RH front WCI 318329203 Contact Us For Availability
16#
Main Top Assy, glass/steel, white, complete, WCI 318282529 Contact Us For Availability
16#
Main Top Assy, glass/steel, black, complete, WCI 318282533 Contact Us For Availability
20
Bracket, retainer, (2) WCI 318121913 Contact Us For Availability
23#
Harness, wiring WCI 318402337 Contact Us For Availability
24#
Thermal Cut-Out, short WCI 318349900 Contact Us For Availability
46
Lens, indicator light, (6) WCI 318319010 Contact Us For Availability
46
Box, burner WCI 318225426 Contact Us For Availability
47
Clamp, lens, (5) WCI 318367102 Contact Us For Availability
48
Gasket, O'ring, (6) WCI 318337101 Contact Us For Availability
50#
Housing Assembly, induction, small, w/electro WCI 318329620 No Longer Available
52#
Filter, circuit board, small WCI 318347010 Contact Us For Availability
53#
Communication Cable, generator, 8", to filter WCI 318348002 Contact Us For Availability
54#
Ground wire, X54/6 WCI 318052578 Contact Us For Availability
55#
Thermal Cut-Out, long WCI 318349910 Contact Us For Availability
56#
Cooling Fan Assembly, small WCI 318346910 Contact Us For Availability
57#
Fuse, fast blow, 20A WCI 318373300 Contact Us For Availability
58
Insulation, service panel WCI 318330527 Contact Us For Availability
60
Plenum, Plain WCI 318537200 Contact Us For Availability
97A#
Board, power, UIB WCI 316442058 Contact Us For Availability
× ![]()
