Model Kenmore 790.42900601 COOKTOP – Common Parts & Diagrams
01 - COVER

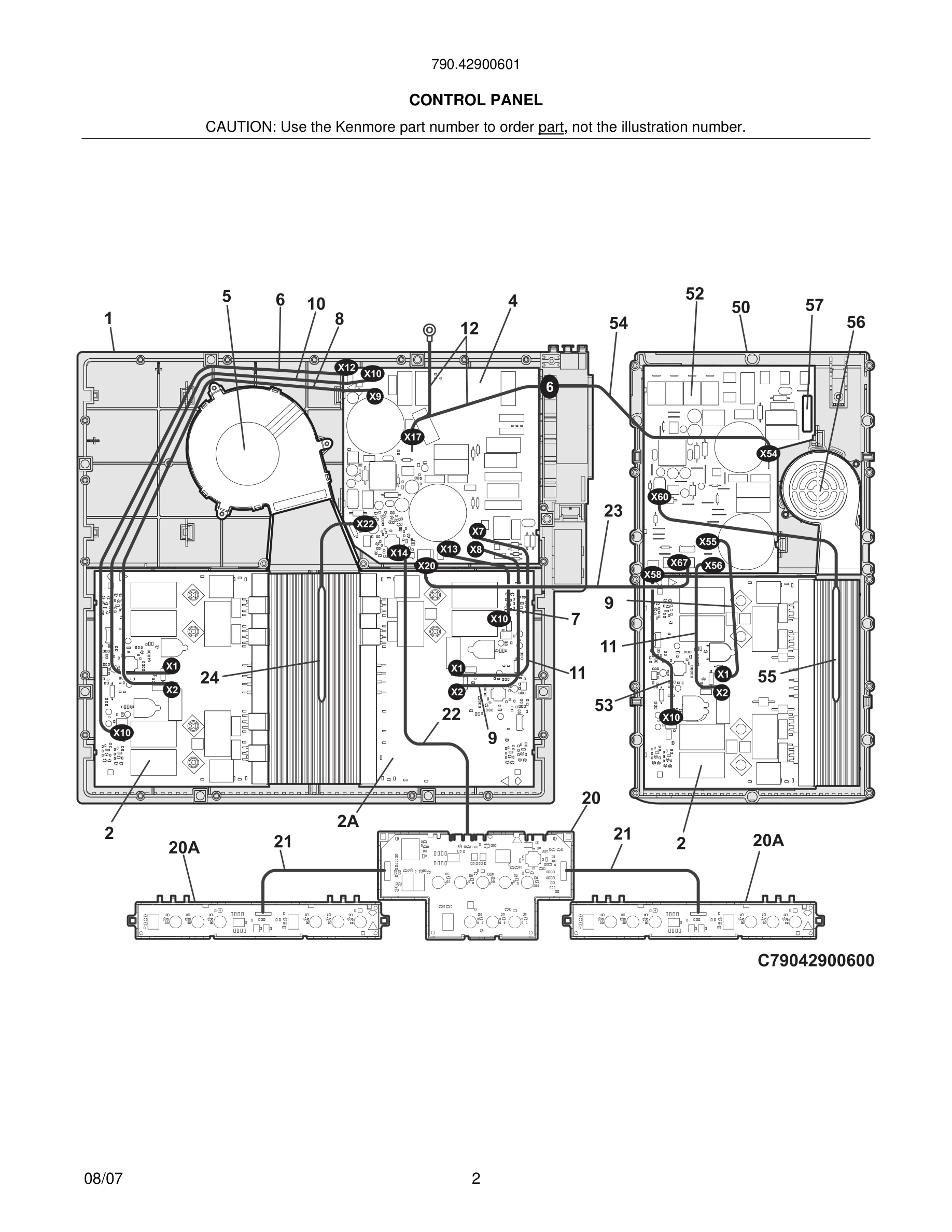

03 - CONTROL PANEL
05 - MAIN TOP/SURFACE UNITS
06 - WIRING DIAGRAM
Common parts from model Kenmore 790.42900601 COOKTOP
*
Pad, cleaning WCI 316459400 Contact Us For Availability
*
Clamp, power cord WCI 318341500 Contact Us For Availability
*
Frying Pan, stainless steel WCI 318343701 Contact Us For Availability
*
Cleaner, cooktop WCI 316112100 Contact Us For Availability
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
*#
Harness, wiring, L1, L2 & ground WCI 318052587 Contact Us For Availability
*#
Box & wires assy WCI 318078581 Contact Us For Availability
1
Panel, CARRIER WCI 318329032 Contact Us For Availability
2
Insulation, Elements WCI 318344511 Contact Us For Availability
3
Insulation, carrier panel WCI 318330500 Contact Us For Availability
5#
Cooling Fan Assembly, large WCI 318346900 Contact Us For Availability
6#
Communication Cable, generator, 18", to filte WCI 318348001 Contact Us For Availability
7#
Communication Cable, generator, 6", to filter WCI 318348000 Contact Us For Availability
8#
Power Cable Set, generator, 18", black, to fi WCI 318052581 Contact Us For Availability
9#
Power Cable Set, generator, 6", blue, to filt WCI 318052580 Contact Us For Availability
10
Screw, 7-19 x 1/2", (11), housing ring WCI 5304450850 Contact Us For Availability
10#
Power Cable Set, generator, 18", blue, to fil WCI 318052582 Contact Us For Availability
11#
Power Cable Set, generator, 6", black, to fil WCI 318052579 Contact Us For Availability
12
Groung Wire, X54/6 WCI 318052596 Contact Us For Availability
15#
Element, induction coil, 145MM, right rear WCI 318329200 Contact Us For Availability
15A#
Element, induction coil, 180MM, left rear WCI 318329201 Contact Us For Availability
15B#
Element, induction coil, 210MM, left front WCI 318329202 Contact Us For Availability
15C#
Element, induction coil, 260MM, right front WCI 318329203 Contact Us For Availability
16
Main Top Assy, glass/steel, black, w/stnless WCI 318282525 Contact Us For Availability
17
Bracket, cable WCI 318367801 Contact Us For Availability
20
Bracket, retainer WCI 318121906 Contact Us For Availability
20#
Touch Control, electronic, center WCI 318330830 Contact Us For Availability
21#
Interface Cable, side control, to center WCI 318083044 Contact Us For Availability
22#
Communication Cable, center control, to filte WCI 318083045 Contact Us For Availability
23#
Communication Cable, filter, to filter, X20/X WCI 318083048 Contact Us For Availability
24#
Thermal Cut-Out, short WCI 318349900 Contact Us For Availability
46
Box, burner WCI 318328932 Contact Us For Availability
47
Deflector, air WCI 318345123 Contact Us For Availability
50
Housing Assembly, induction, small, w/electro WCI 318329620 Contact Us For Availability
50
Panel, spacer WCI 318356823 Contact Us For Availability
52#
Filter, circuit board, small WCI 318347010 Contact Us For Availability
53#
Communication Cable, generator, 8", to filter WCI 318348002 Contact Us For Availability
54#
Groung Wire, X54/6 WCI 318052578 Contact Us For Availability
55#
Thermal Cut-Out, long WCI 318349910 Contact Us For Availability
56#
Cooling Fan Assembly, small WCI 318346910 Contact Us For Availability
57
Panel, access WCI 318330911 Contact Us For Availability
57#
Fuse, fast blow, 20A WCI 318373300 Contact Us For Availability
58
Insulation, housing, RH WCI 318346010 Contact Us For Availability
58A
Insulation, housing, rear WCI 318346011 Contact Us For Availability
58B
Insulation, housing, center WCI 318346012 Contact Us For Availability
59
Insualtion, housing, lower WCI 318346210 Contact Us For Availability
60
Box, plenum, lower WCI 318329310 Contact Us For Availability
170
Screen, thermal, (2) WCI 318124914 Contact Us For Availability
172
Insulation, screen, (2) WCI 318344522 Contact Us For Availability
× ![]()
