Model Kenmore 790.42800502 COOKTOP – Common Parts & Diagrams

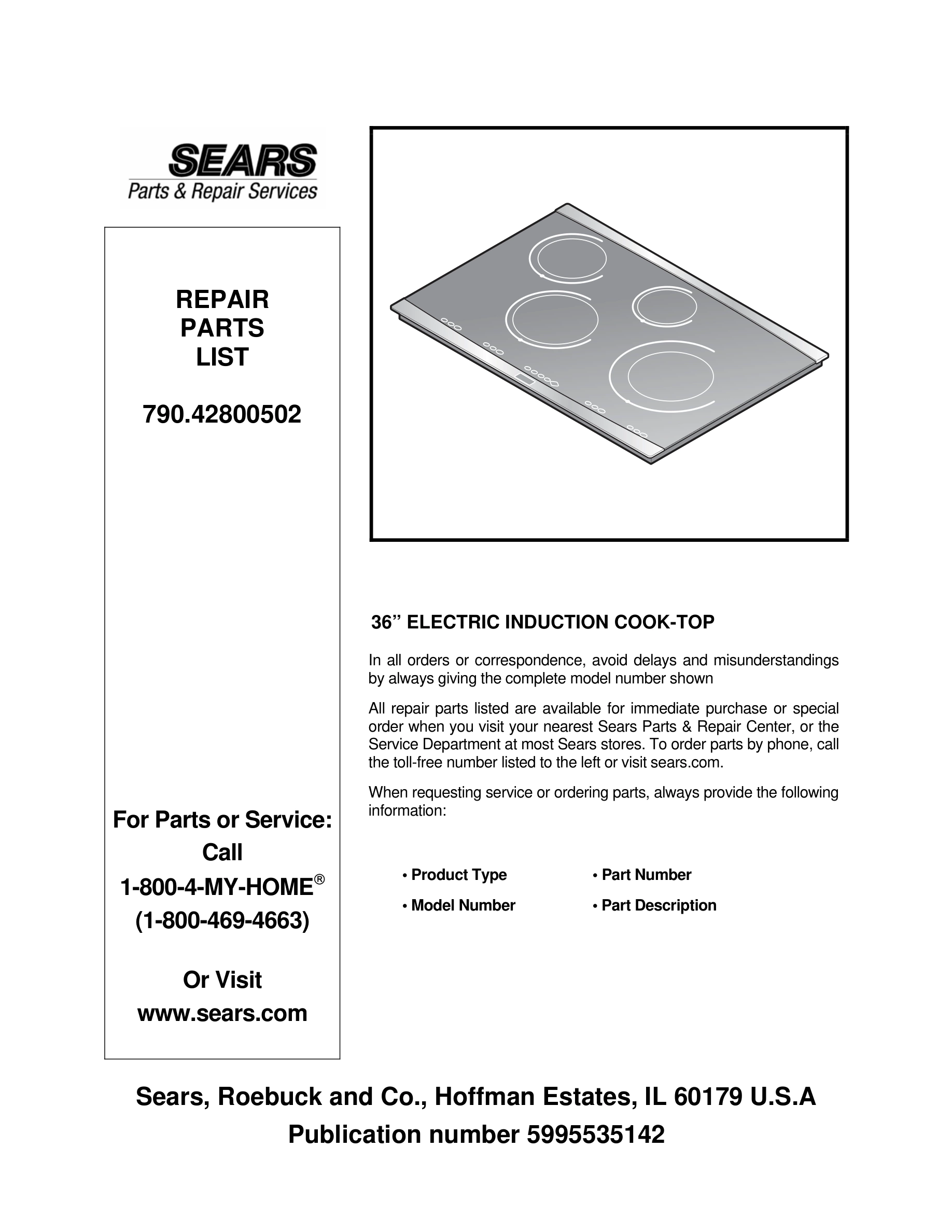

01 - COVER

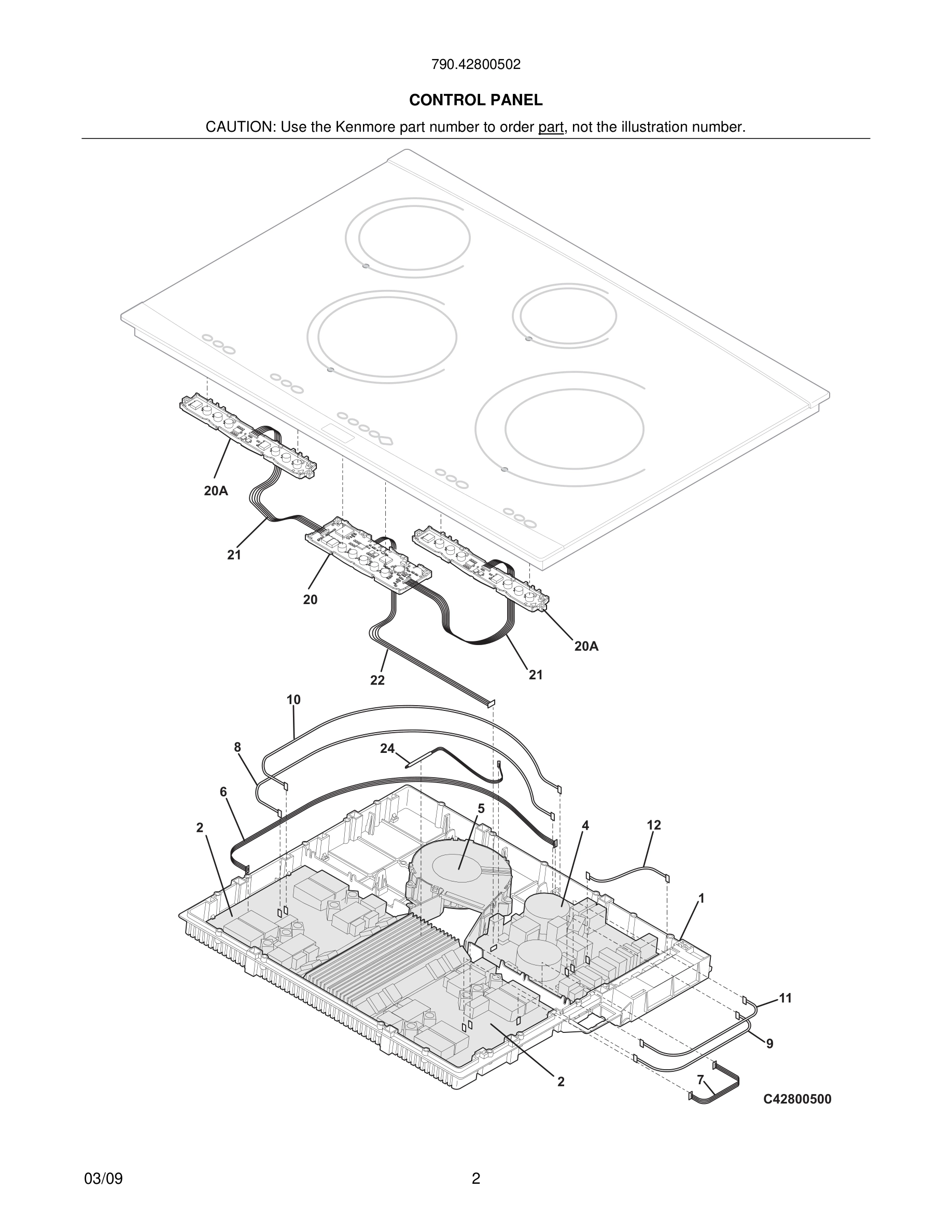

03 - CONTROL PANEL
05 - MAIN TOP/SURFACE UNITS
06 - WIRING DIAGRAM
Common parts from model Kenmore 790.42800502 COOKTOP
*
Pad, cleaning WCI 316459400 Contact Us For Availability
*
Cleaner, glass WCI 316112100 Contact Us For Availability
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
*
Frying Pan, stainless steel WCI 318343701 Contact Us For Availability
*#
Box & wires assy WCI 5304470730 Contact Us For Availability
*#
Wiring, power supply, w/flex housing WCI 318078576 Contact Us For Availability
1
Panel, carrier WCI 318329007 Contact Us For Availability
2
Insulation, Elements WCI 318344500 Contact Us For Availability
5
Cooling Fan Assembly, large WCI 318346900 Contact Us For Availability
6
Communication Cable, generator, 18", to filte WCI 318348001 Contact Us For Availability
7
Communication Cable, generator, 6", to filter WCI 318348000 Contact Us For Availability
8
Power Cable Set, filter, 18", black, to gener WCI 318052581 Contact Us For Availability
9
Power Cable Set, generator, 6", blue, to filt WCI 318052580 Contact Us For Availability
10
Power Cable Set, filter, 18", blue, to genera WCI 318052582 Contact Us For Availability
10
Screw, 7-19 x 1/2" WCI 5304450850 Contact Us For Availability
11
Power Cable Set, generator, 6", black, to fil WCI 318052579 Contact Us For Availability
12
Ground wire WCI 318052583 Contact Us For Availability
15#
Element, induction coil, 145MM, rear WCI 318329200 Contact Us For Availability
15A#
Element, induction coil, 180MM, LH rear WCI 318329201 Contact Us For Availability
15B#
Element, induction coil, 210MM, LH front WCI 318329202 Contact Us For Availability
15C#
Element, induction coil, 260MM, RH front WCI 318329203 Contact Us For Availability
16
Main Top Assy, glass/steel, black, w/stnless WCI 318282517 Contact Us For Availability
20
Bracket, retainer, (2) WCI 318121915 Contact Us For Availability
21#
Interface Cable, side control, to center WCI 318402404 Contact Us For Availability
22
Communication Cable, center control, to filte WCI 318532102 Contact Us For Availability
24
Thermal Cut-Out, short WCI 318349900 Contact Us For Availability
35
Clamp, power cord WCI 318341500 Contact Us For Availability
46
Box, burner WCI 318328918 Contact Us For Availability
47
Deflector, air WCI 318345115 Contact Us For Availability
50
Panel, spacer WCI 318356803 Contact Us For Availability
57
Panel, access WCI 318330912 Contact Us For Availability
58
Insulation, housing, RH WCI 318346000 Contact Us For Availability
58A
Insulation, housing, rear WCI 318346002 Contact Us For Availability
58B
Insulation, housing, LH WCI 318346001 Contact Us For Availability
59
Insualtion, housing, lower WCI 318346201 Contact Us For Availability
60
Box, plenum, lower WCI 318329300 Contact Us For Availability
× ![]()
