Model Kenmore 790.42741400 COOKTOP – Common Parts & Diagrams
01 - COVER
03 - CONTROL PANEL

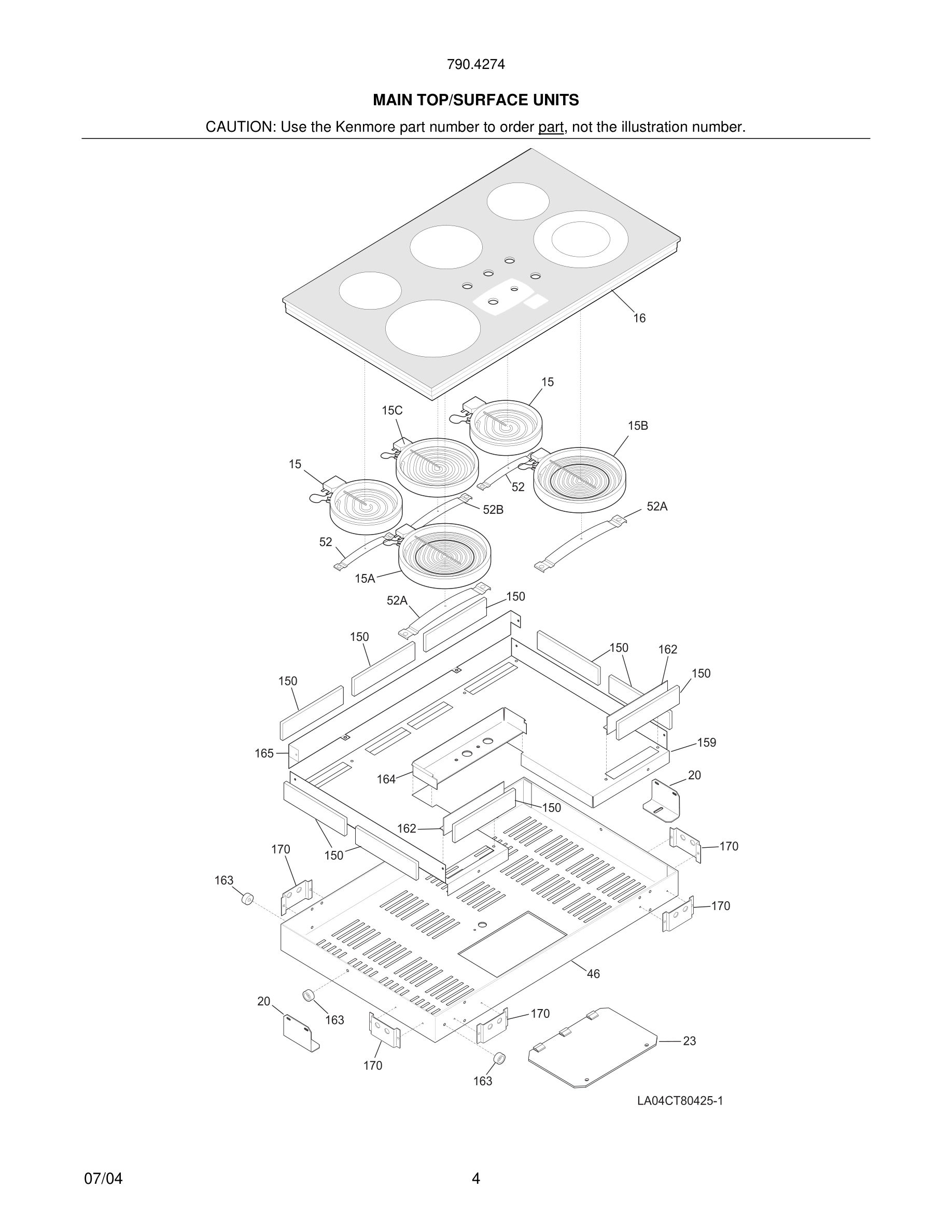

05 - MAIN TOP/SURFACE UNITS

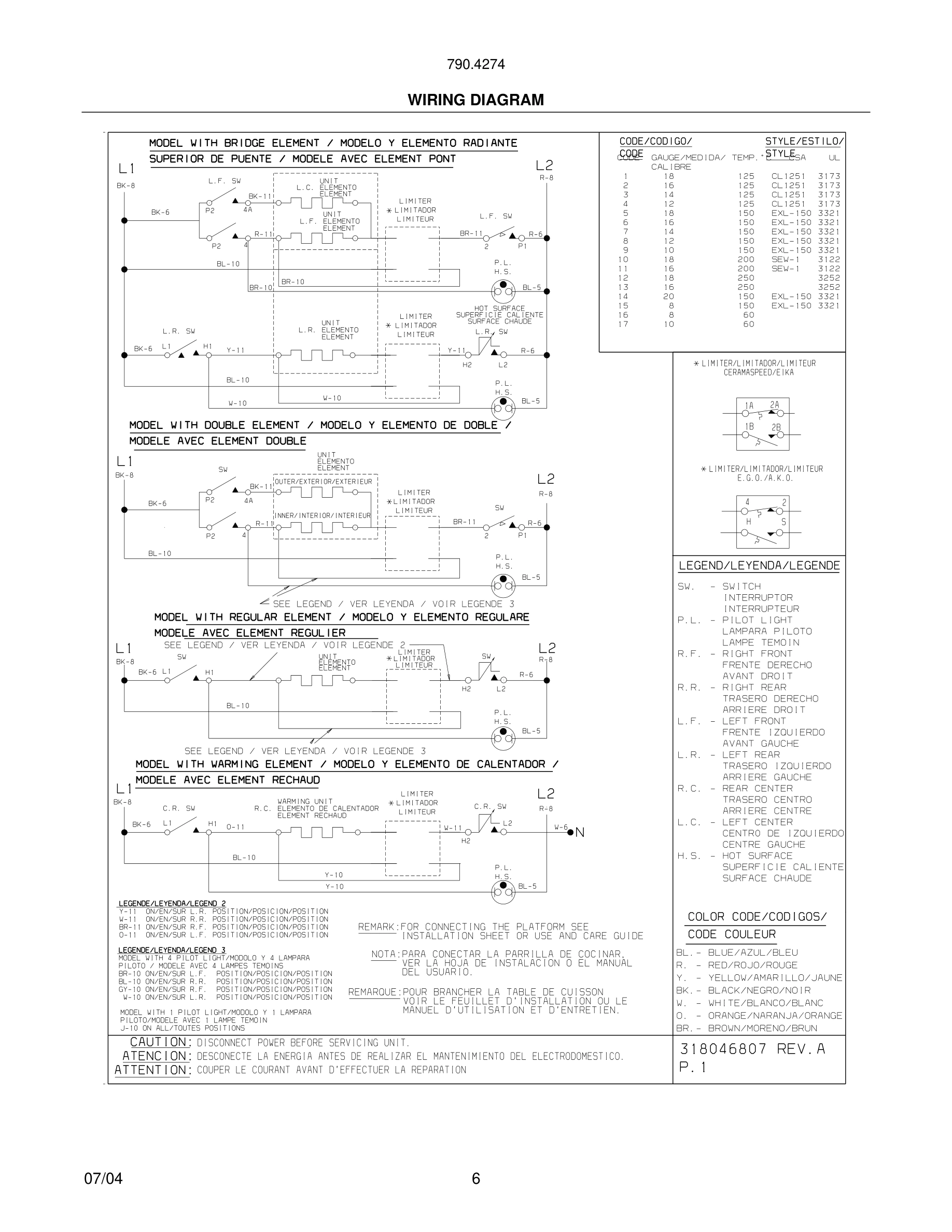

06 - WIRING DIAGRAM

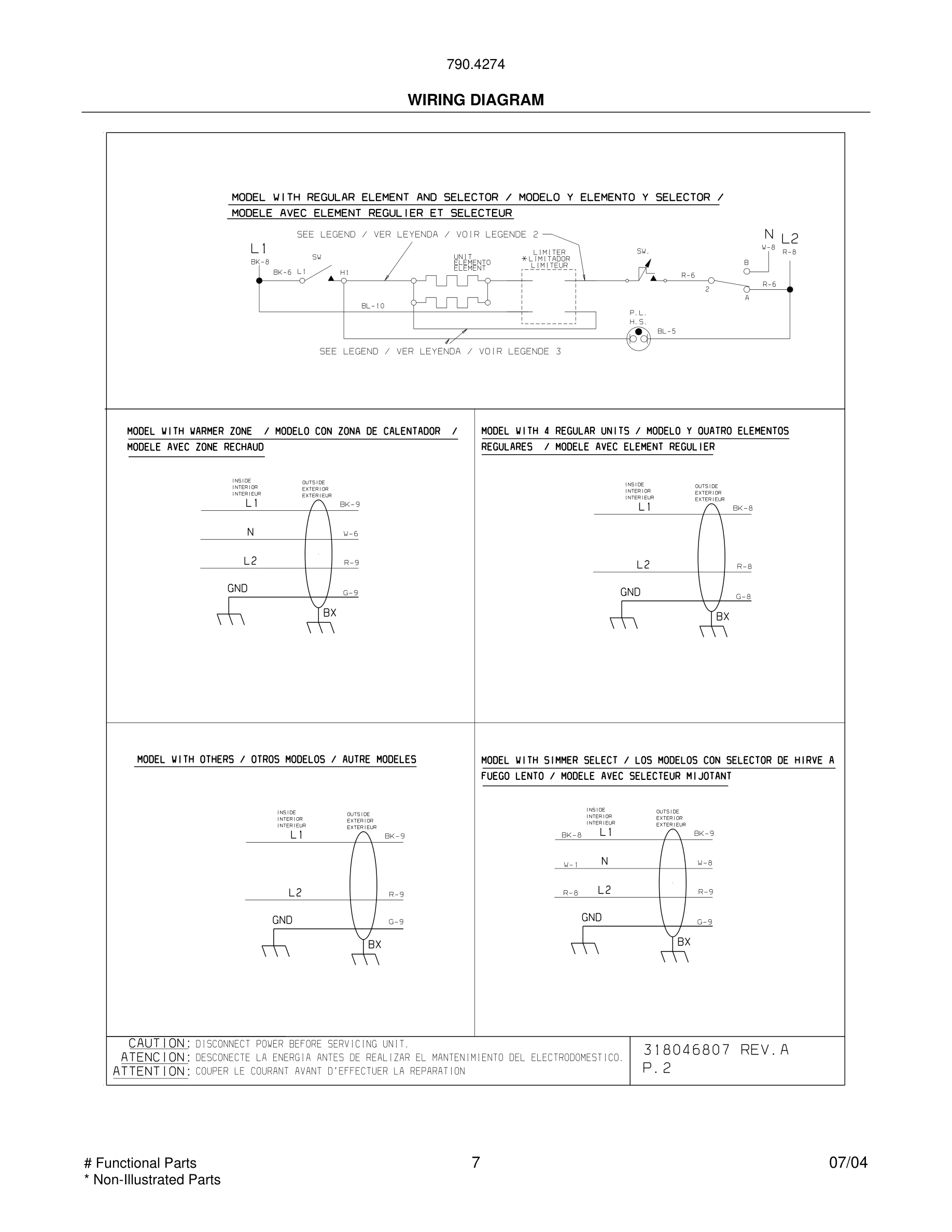

07 - WIRING DIAGRAM
Common parts from model Kenmore 790.42741400 COOKTOP
16
Main Top Assy, glass/steel, black WCI 318282502 Contact Us For Availability
23
Panel, Service WCI 318279703 Contact Us For Availability
36
Knob, control, white WCI 316208112 Contact Us For Availability
36
Knob, control, black WCI 316208113 Contact Us For Availability
36
Knob, control, bisque WCI 316208114 Contact Us For Availability
36A
Knob, dual control, white WCI 316208115 Contact Us For Availability
36A
Knob, dual control, black WCI 316208116 Contact Us For Availability
36A
Knob, dual control, bisque WCI 316208117 Contact Us For Availability
36B
Knob, control, white, w/simmer WCI 318285102 Contact Us For Availability
36B
Knob, control, black, w/simmer WCI 318285100 Contact Us For Availability
36C
Knob, warmer, white WCI 318229410 Contact Us For Availability
46
Burner Box WCI 318077239 Contact Us For Availability
52B
Spring, element mtg, 700W & 2100W WCI 318122004 Contact Us For Availability
54B#
Switch, surface unit, small/large WCI 318120505 Contact Us For Availability
54C#
Switch, selector WCI 318282400 Contact Us For Availability
74
Bushing, switch WCI 318148900 Contact Us For Availability
74A
Bushing, switch WCI 318146010 Contact Us For Availability
150
Insulation, (3) WCI 318106035 Contact Us For Availability
159
Deflector WCI 318125125 Contact Us For Availability
162
Deflector WCI 318125212 Contact Us For Availability
164
Plate, connection WCI 318125302 Contact Us For Availability
165
Deflector WCI 318161403 Contact Us For Availability
170
Screen, thermal WCI 318124911 Contact Us For Availability
× ![]()
