Model Kenmore 790.42731403 COOKTOP – Common Parts & Diagrams

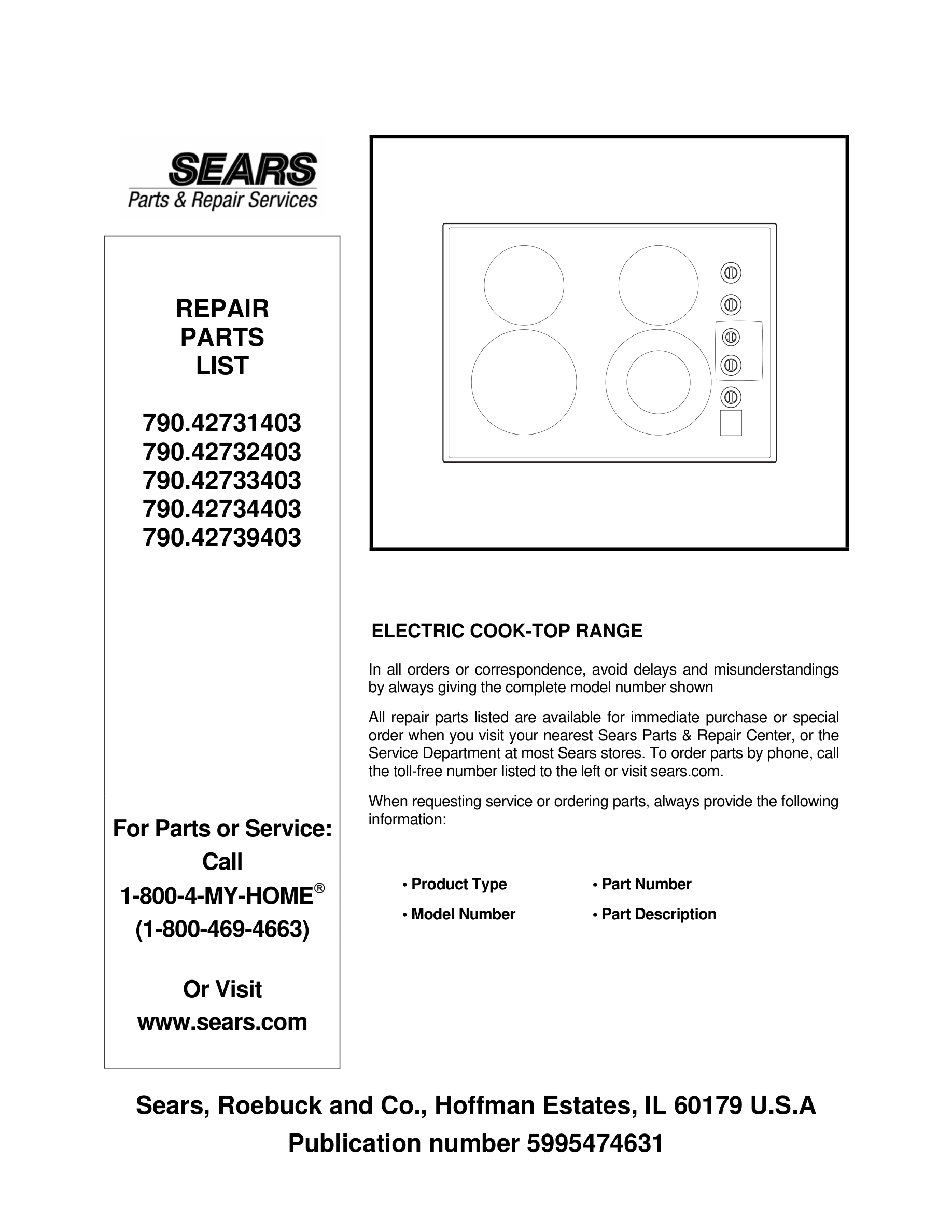

01 - COVER

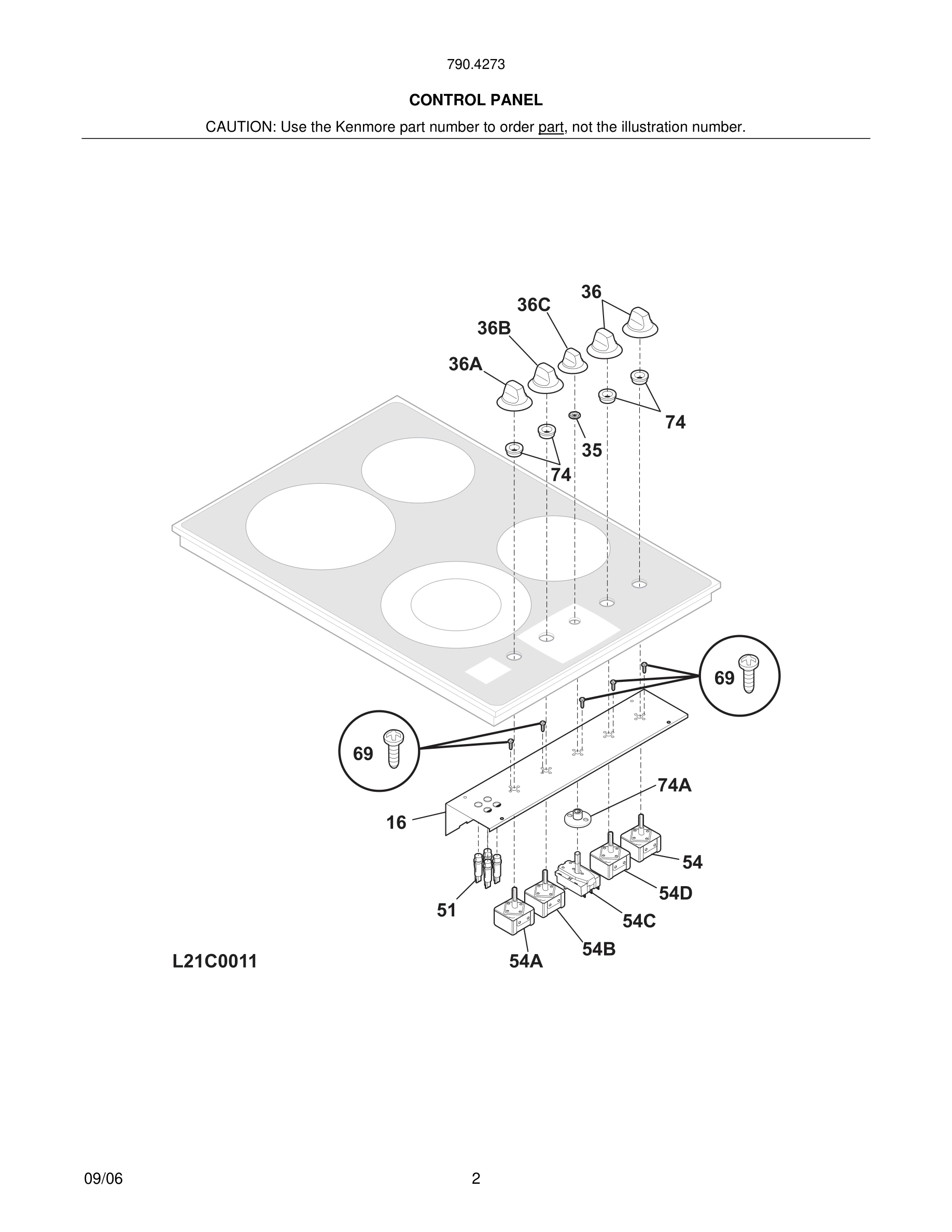

03 - CONTROL PANEL

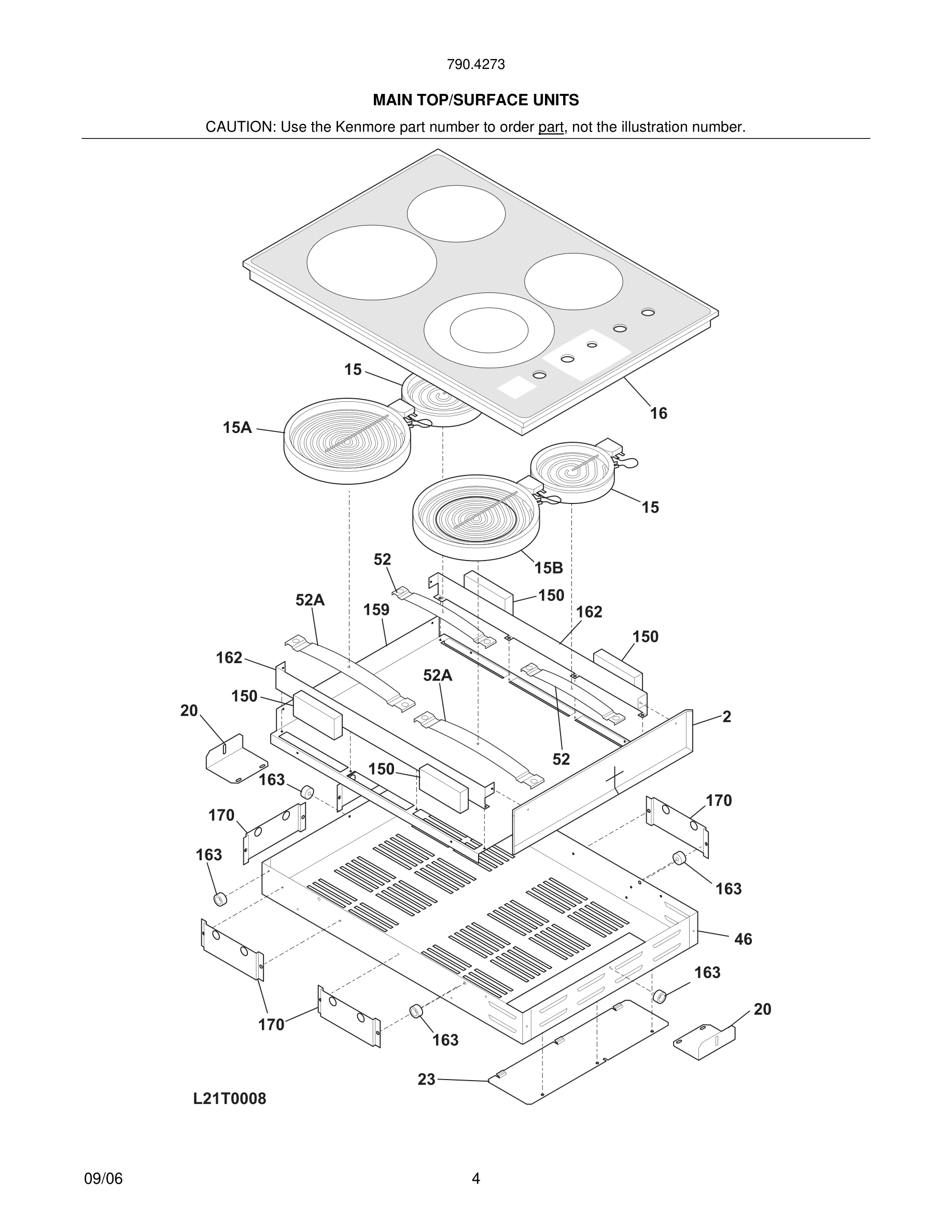

05 - MAIN TOP/SURFACE UNITS

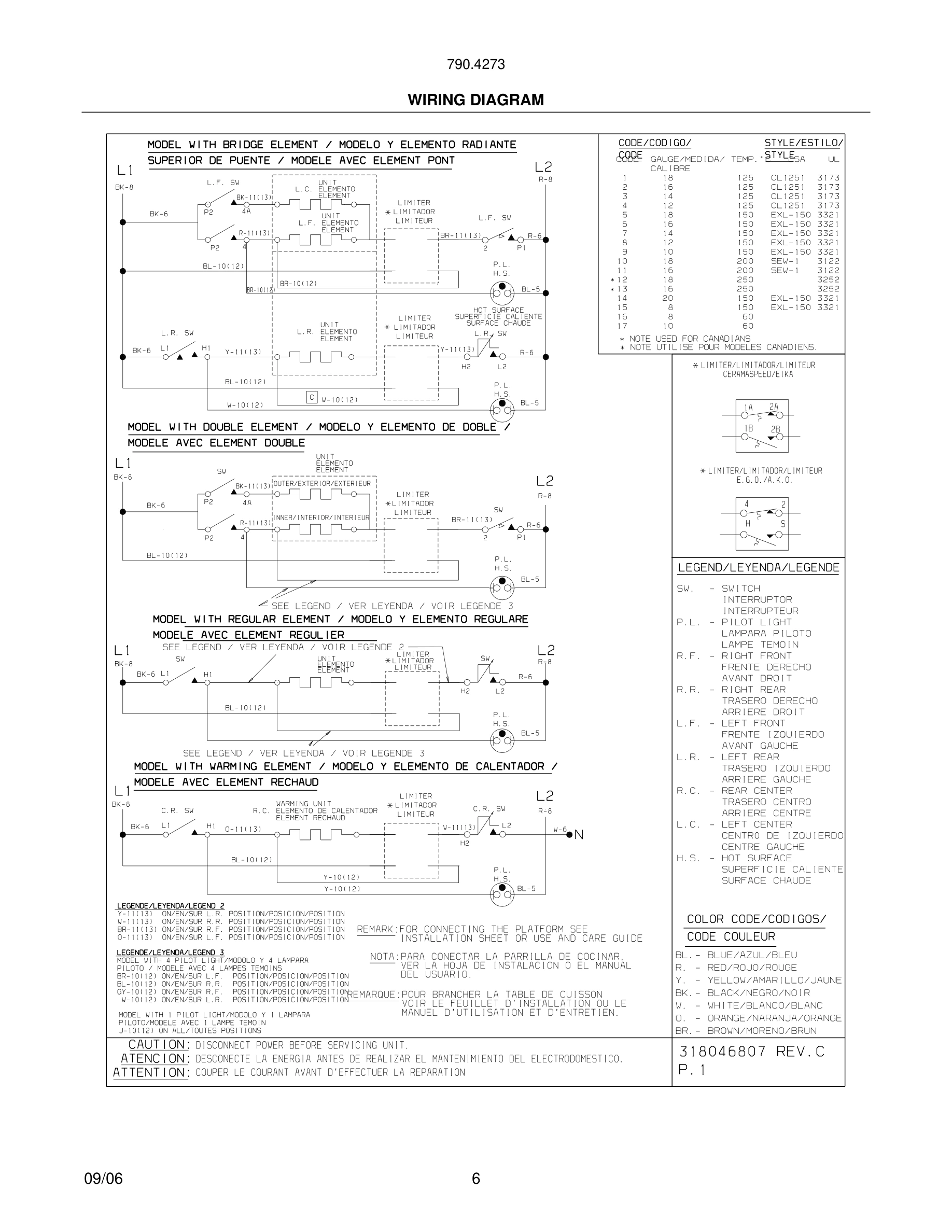

06 - WIRING DIAGRAM

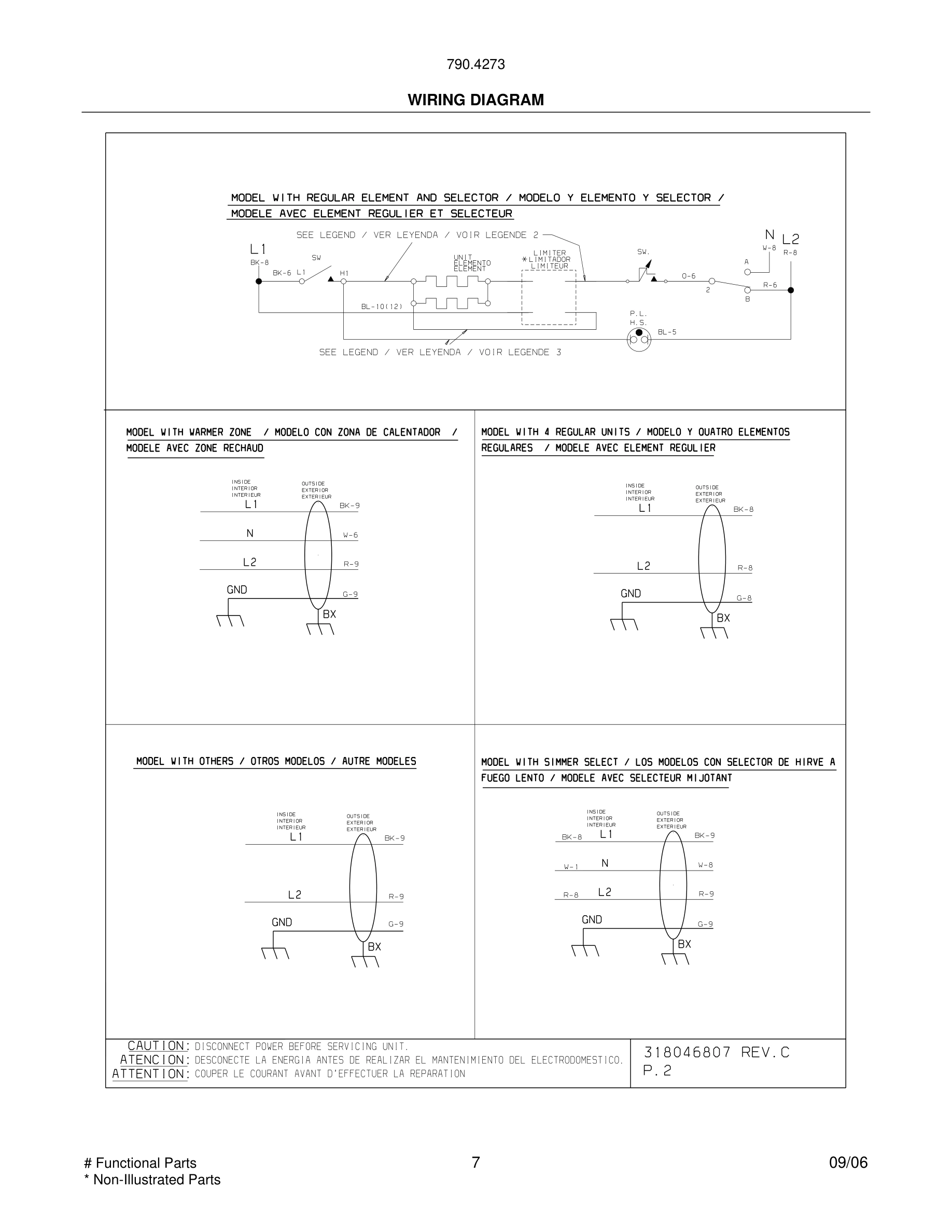

07 - WIRING DIAGRAM
Common parts from model Kenmore 790.42731403 COOKTOP
16
Main Top Assy, glass/steel, enamel, black WCI 318079398 Contact Us For Availability
16
Main Top Assy, glass/steel, enamel, white WCI 318079396 Contact Us For Availability
16
Main Top Assy, glass/steel, black WCI 318282505 Contact Us For Availability
16
Main Top Assy, glass/steel, black, w/stnless WCI 318282504 Contact Us For Availability
16
Main Top Assy, glass/steel, enamel, bisque WCI 318079397 Contact Us For Availability
23
Panel, service, black WCI 318194705 Contact Us For Availability
36
Knob, control, white WCI 316208112 Contact Us For Availability
36
Knob, control, black WCI 316208113 Contact Us For Availability
36
Knob, control, bisque WCI 316208114 Contact Us For Availability
36A
Knob, dual control, white WCI 316208115 Contact Us For Availability
36A
Knob, dual control, black WCI 316208116 Contact Us For Availability
36A
Knob, dual control, bisque WCI 316208117 Contact Us For Availability
36B
Knob, control, white, w/simmer WCI 318285102 Contact Us For Availability
36B
Knob, control, black, w/simmer WCI 318285100 Contact Us For Availability
36C
Knob, warmer, white WCI 318229410 Contact Us For Availability
46
Burner Box WCI 318077235 Contact Us For Availability
54B#
Switch, surface unit, small/large WCI 318120505 Contact Us For Availability
54C#
Switch, selector WCI 318282400 Contact Us For Availability
74
Bushing, switch WCI 318148900 Contact Us For Availability
74A
Bushing, switch WCI 318146010 Contact Us For Availability
150
Insulation, 2 x 8, (9) WCI 318106050 Contact Us For Availability
159
Deflector WCI 318125126 Contact Us For Availability
162
Deflector WCI 318161402 Contact Us For Availability
170
Screen, thermal WCI 318124911 Contact Us For Availability
× ![]()
