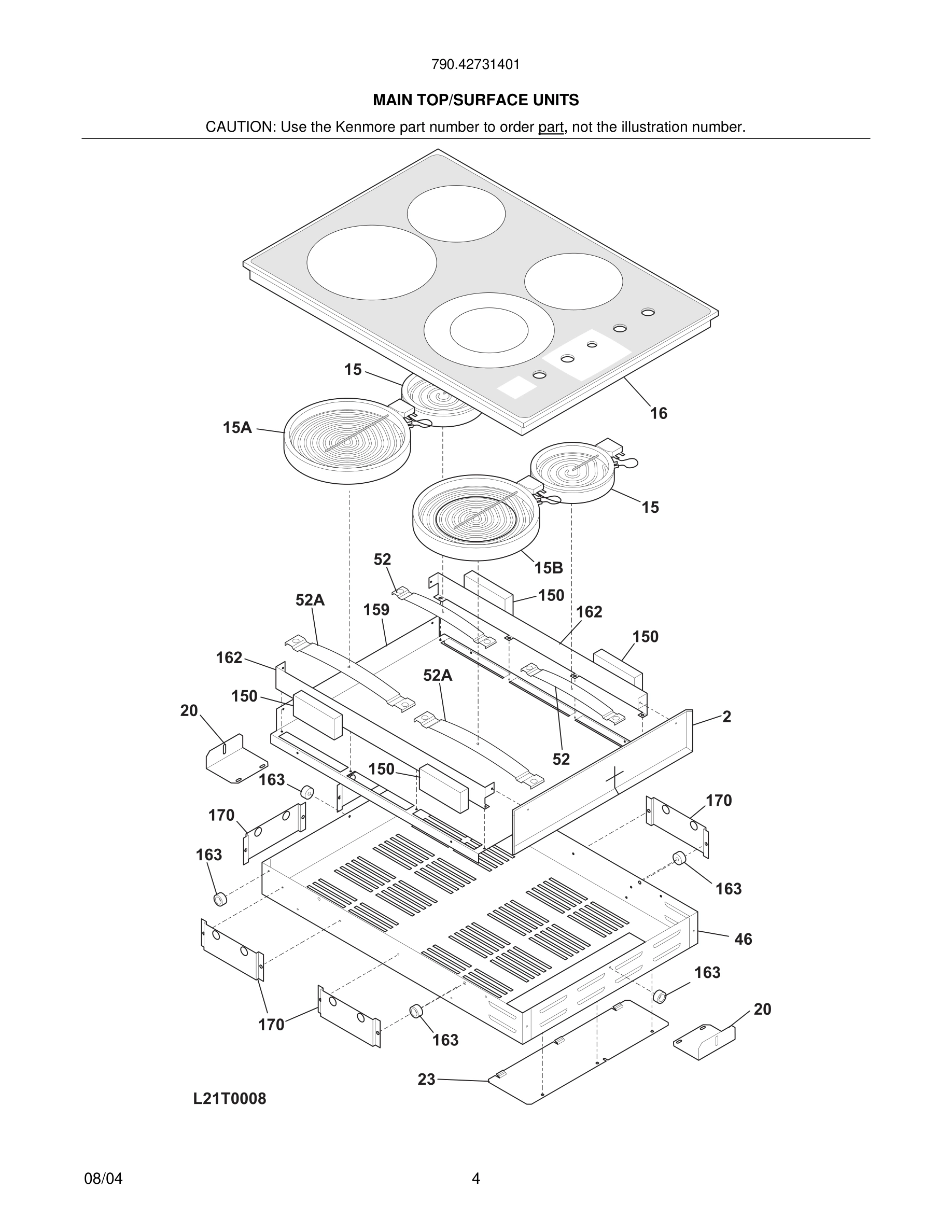

Model Kenmore 790.42731401 COOKTOP – Common Parts & Diagrams

16
Main Top Assy, glass/steel, black
Main Top Assy, glass/steel, black WCI 318282505 Contact Us For Availability
View on Model
23
Panel, Service, black
Panel, Service, black WCI 318194705 Contact Us For Availability
View on Model
36
Knob, control, white
Knob, control, white WCI 316208112 Contact Us For Availability
View on Model
36A
Knob, dual control, white
Knob, dual control, white WCI 316208115 Contact Us For Availability
View on Model
36B
Knob, control, white, w/simmer
Knob, control, white, w/simmer WCI 318285102 Contact Us For Availability
View on Model
36C
Knob, warmer, white
Knob, warmer, white WCI 318229410 Contact Us For Availability
View on Model
46
Burner Box
Burner Box WCI 318077235 Contact Us For Availability
View on Model
54B#
Switch, surface unit, small/large
Switch, surface unit, small/large WCI 318120505 Contact Us For Availability
View on Model
54C#
Switch, selector
Switch, selector WCI 318282400 Contact Us For Availability
View on Model
74
Bushing, switch
Bushing, switch WCI 318148900 Contact Us For Availability
View on Model
74A
Bushing, switch
Bushing, switch WCI 318146010 Contact Us For Availability
View on Model
150
Insulation, (4)
Insulation, (4) WCI 318106035 Contact Us For Availability
View on Model
159
Deflector
Deflector WCI 318125126 Contact Us For Availability
View on Model
162
Deflector
Deflector WCI 318161402 Contact Us For Availability
View on Model
170
Screen, thermal
Screen, thermal WCI 318124911 Contact Us For Availability
View on Model
