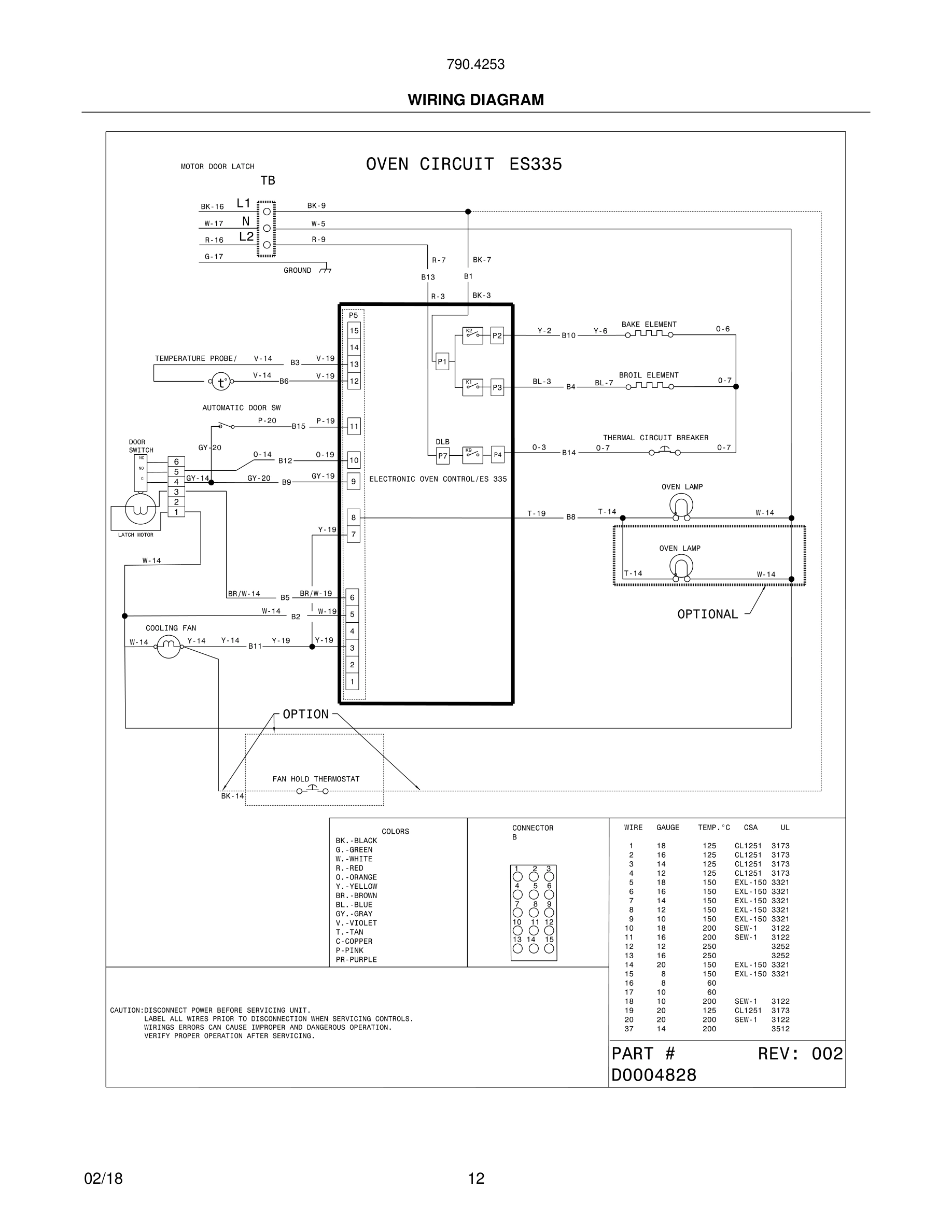

Model Kenmore 790.42531317 RANGE – Common Parts &amp; Diagrams

*

316021109 Frigidaire Oven Screw In Stock WCI 316021109 $9.06

*

318531701 Frigidaire Spacer Backorder WCI 318531701 $7.69

*

Pad, cleaning WCI 316459400 Contact Us For Availability

*#

5304517808 Frigidaire Harness Backorder WCI 5304517808 $27.62

*#

5304520774 Frigidaire Harness Backorder WCI 5304520774 $126.71

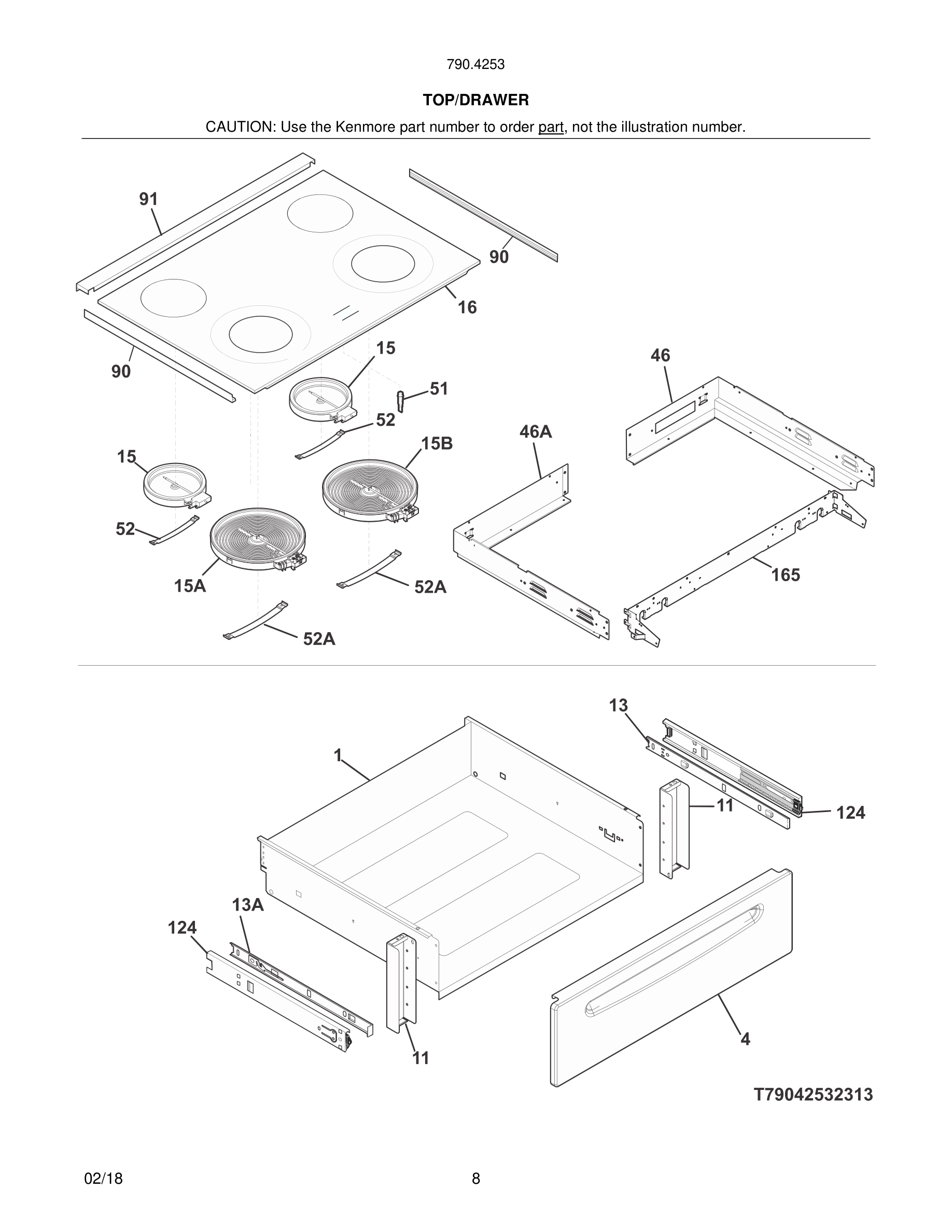

1

318107317 Frigidaire Oven Drawer Backorder WCI 318107317 $82.84

2

139028107 Frigidaire Shield Backorder WCI 139028107 $38.99

3

139023301 Frigidaire Oven Trim Backorder WCI 139023301 $32.60

3A

139014401 Frigidaire Oven Trim Backorder WCI 139014401 $19.47

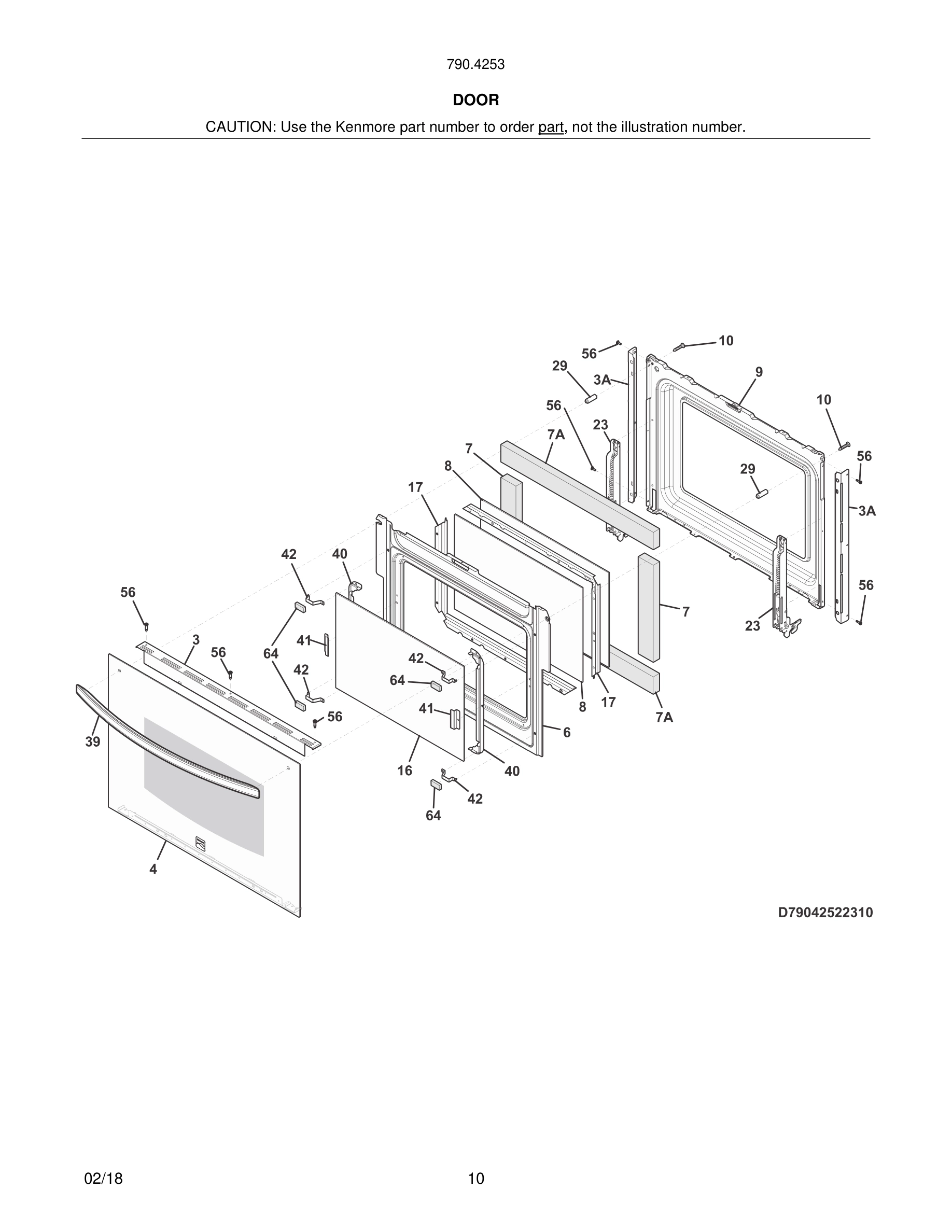

4

Door Assembly, outer, white, w/trim & badge WCI 808950013 Contact Us For Availability

4

Panel, drawer, white, front WCI 318298906 Contact Us For Availability

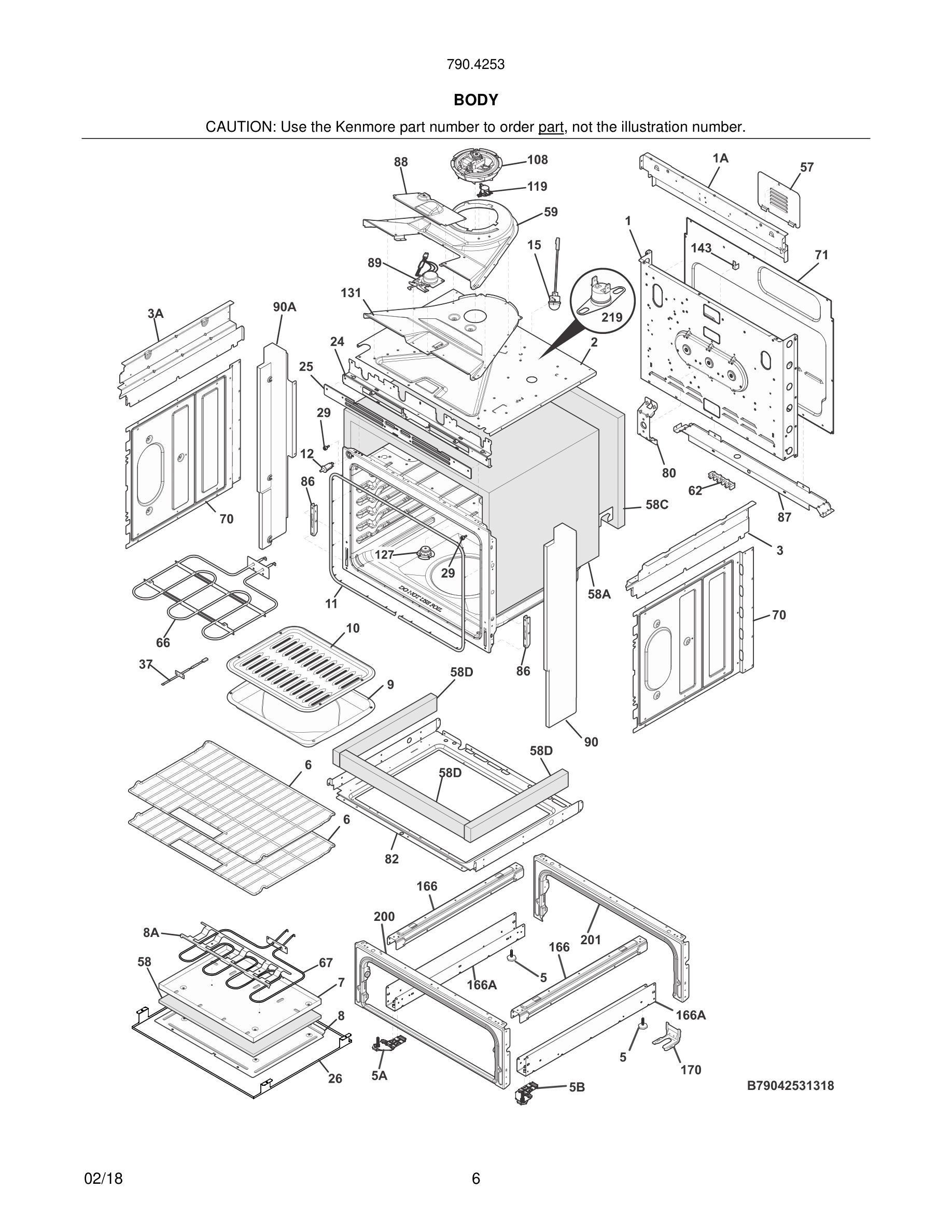

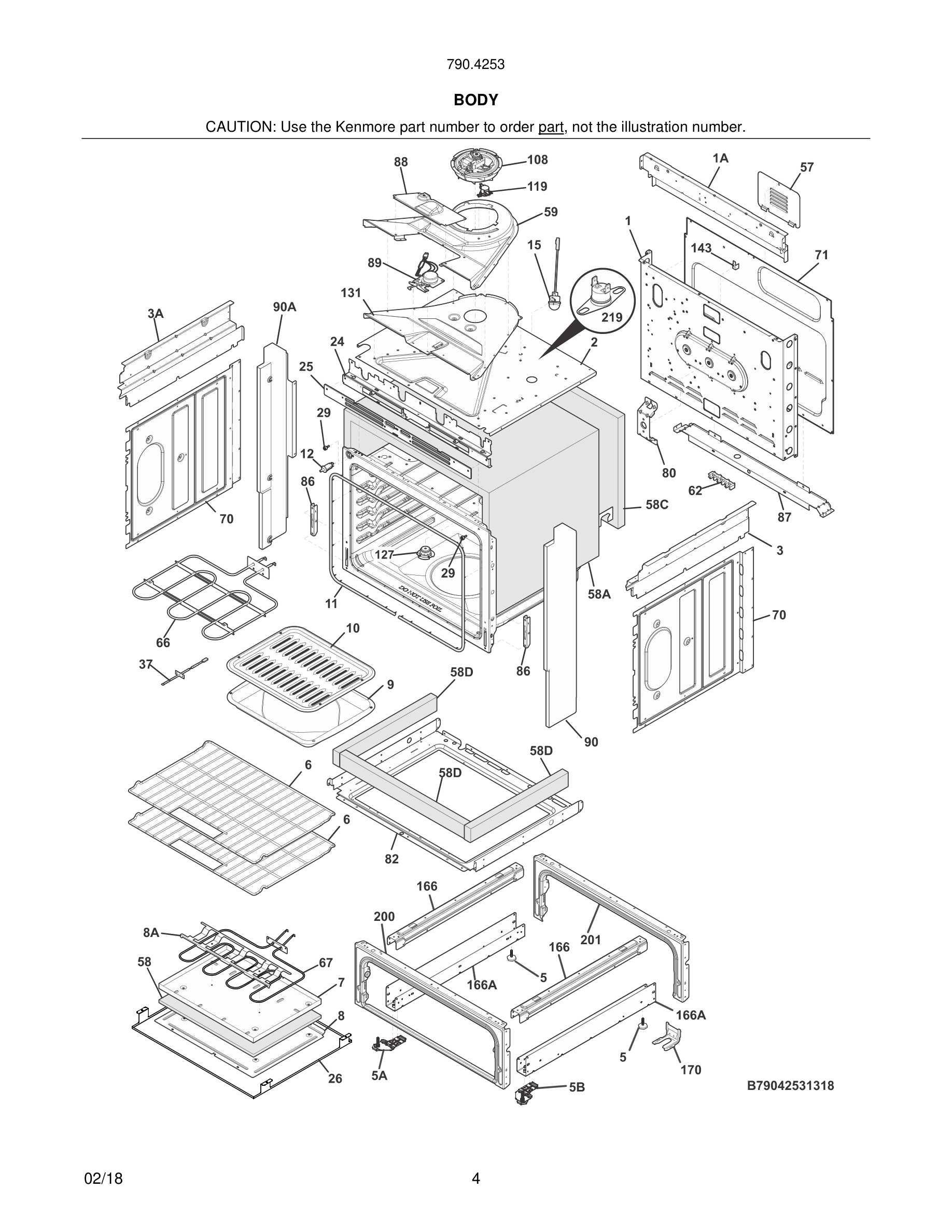

5

316498903 Frigidaire Leveling Leg Backorder WCI 316498903 $7.23

5A

5304511891 Frigidaire Leg Assembly Backorder WCI 5304511891 $12.67

5B

5304511892 Frigidaire Assembly-Leg Backorder WCI 5304511892 $12.67

6

139006905 Frigidaire Oven Baffle Backorder WCI 139006905 $71.70

6

Rack, oven, w/handle WCI 139011600 Contact Us For Availability

7

318297303 Frigidaire Oven Box Backorder WCI 318297303 $74.37

7

318372017 Frigidaire Insulation Backorder WCI 318372017 $10.39

7A

318372016 Frigidaire Insulation Backorder WCI 318372016 $11.32

8

318359500 Frigidaire Oven Panel Backorder WCI 318359500 $80.56

8

5304503232 Frigidaire Oven Inner Door Glass In Stock WCI 5304503232 $73.95

8A

Bracket, bake element WCI 318313601 Contact Us For Availability

9

139000405 Frigidaire Liner Backorder WCI 139000405 $68.11

9

318138801 Frigidaire Oven Pan Backorder WCI 318138801 $24.43

10

Screw, wafer head, 10-24 x 1.81, (2), handle WCI 316001002 No Longer Available

10

316082001 Frigidaire Oven Insert Backorder WCI 316082001 $31.01

11

807545502 Frigidaire Oven Seal Backorder WCI 807545502 $86.33

11

Bracket, drawer support, (2) WCI 318298600 Contact Us For Availability

13

Glide, warmer, inner RH WCI 318259504 Contact Us For Availability

13A

Glide, warmer, inner LH WCI 318259505 Contact Us For Availability

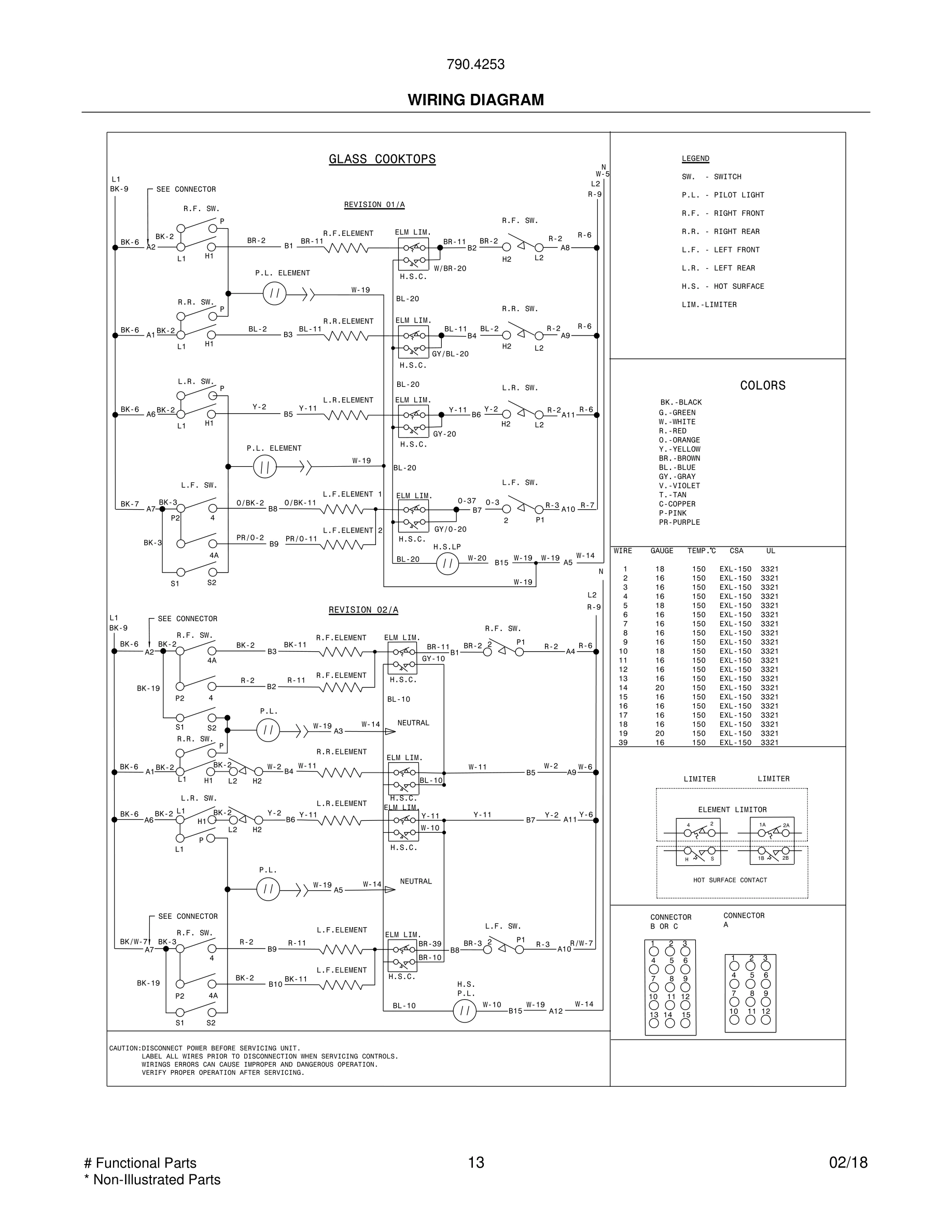

15#

318178110 Frigidaire Oven Range 6" Surface El In Stock WCI 318178110 $64.96

15#

5304528790 Frigidaire Lamp Assembly Appliance In Stock WCI 5304528790 $13.57

15*#

318946500 Frigidaire Oven Light Bulb Range/Wa Backorder WCI 318946500 $33.97

15A#

5304533520 Frigidaire Element In Stock WCI 5304533520 $55.76

15B#

316555800 Frigidaire Oven Dual Radiant Elemen In Stock WCI 316555800 $86.71

316446401 Frigidaire Oven Glass In Stock WCI 316446401 $73.97

5304511178 Frigidaire Range Smoothtop Assembl Backorder WCI 5304511178 $384.74

Console, assy., white WCI 318296600 Contact Us For Availability

Smoothtop Assembly, glass, white WCI 5304511179 Contact Us For Availability

Smoothtop Assembly, glass, white WCI 139033835 Contact Us For Availability

17

318264731 Frigidaire Oven Spacer Backorder WCI 318264731 $42.57

19

5304501687 Frigidaire Control Panel Backorder WCI 5304501687 $114.49

19A

Panel, control mtg. WCI 318289715 Contact Us For Availability

20#

5304515591 Frigidaire Controller Backorder WCI 5304515591 $196.60

20A

139091300 Frigidaire Oven Overlay In Stock WCI 139091300 $33.50

23

316575915 Frigidaire Oven Hinge Backorder WCI 316575915 $97.44

25

139075001 Frigidaire Range Cover Backorder WCI 139075001 $36.15

29

139023400 Frigidaire Oven Spacer Backorder WCI 139023400 $12.22

29

316517600 Frigidaire Oven Spacer Backorder WCI 316517600 $7.69

36

5304494686 Frigidaire Range Knob Backorder WCI 5304494686 $19.91

37#

5304504897 Frigidaire Oven Temperature Sensor In Stock WCI 5304504897 $27.16

39

Handle, door, white, w/spacer WCI 318372416 Contact Us For Availability

40

318242702 Frigidaire Oven Bracket Assembly Backorder WCI 318242702 $11.78

41

318370602 Frigidaire Oven Bracket Backorder WCI 318370602 $8.15

42

318382302 Frigidaire Bracket Backorder WCI 318382302 $30.36

46

Lens, indicator light WCI 318228301 Contact Us For Availability

51#

318044831 Frigidaire Oven Light Backorder WCI 318044831 $9.95

52

318122006 Frigidaire Small Element Mounting S Backorder WCI 318122006 $41.88

52A

318122010 Frigidaire Oven Spring Assembly Backorder WCI 318122010 $39.52

54#

318293830 Frigidaire Oven Switch In Stock WCI 318293830 $54.57

54A#

318191023 Frigidaire Oven Switch In Stock WCI 318191023 $39.20

55

318402901 Frigidaire Oven Bushing Backorder WCI 318402901 $11.32

56*

5303324184 Frigidaire Wall Oven Range Screw Backorder WCI 5303324184 $9.06

57

316283600 Frigidaire Range Cover In Stock WCI 316283600 $7.25

59

139027600 Frigidaire Oven Duct Backorder WCI 139027600 $54.23

316001017 Frigidaire Screw Backorder WCI 316001017 $1.83

316205500 Frigidaire Oven Nut In Stock WCI 316205500 $7.25

318264200 Frigidaire Oven Plate Backorder WCI 318264200 $14.03

5303289910 Frigidaire Oven Screw Backorder WCI 5303289910 $3.61

64

318165800 Frigidaire Oven Door Glass Spacer w Backorder WCI 318165800 $11.32

66#

5304521498 Frigidaire Element Backorder WCI 5304521498 $51.52

67#

5304521880 Frigidaire Element Backorder WCI 5304521880 $68.13

70

139000601 Frigidaire Oven Shield Backorder WCI 139000601 $42.55

86

318561100 Frigidaire Receptacle Backorder WCI 318561100 $12.67

86*

316418900 Frigidaire Oven Screw Backorder WCI 316418900 $9.06

88

5304506964 Frigidaire Oven Cover Backorder WCI 5304506964 $15.40

89#

5304533539 Frigidaire Motor Assembly Backorder WCI 5304533539 $24.28

90

Channel, glass protector, (2) WCI 318368001 Contact Us For Availability

91

Trim, filler, white, rear WCI 318304301 Contact Us For Availability

99A

318313231 Frigidaire Oven Gasket Backorder WCI 318313231 $48.39

108#

318575612 Frigidaire Oven Cooling Fan Motor In Stock WCI 318575612 $136.65

119#

807144901 Frigidaire Thermostat Backorder WCI 807144901 $34.87

124

Glide, drawer, outer/RH & LH, (2) WCI 318330600 No Longer Available

127

139042600 Frigidaire Tube Assembly Backorder WCI 139042600 $27.62

131

139027700 Frigidaire Oven Duct Backorder WCI 139027700 $46.16

166

318298410 Frigidaire Oven Bracket Backorder WCI 318298410 $44.82

166A

5304511884 Frigidaire Oven Bracket Assembly Backorder WCI 5304511884 $38.99

170

5304486410 Frigidaire Range Kit Backorder WCI 5304486410 $91.14

200

Frame, drawer, black, front WCI 318298232 Contact Us For Availability

201

318298233 Frigidaire Oven Frame Backorder WCI 318298233 $28.99

219#

318005229 Frigidaire Oven Switch Backorder WCI 318005229 $31.99
