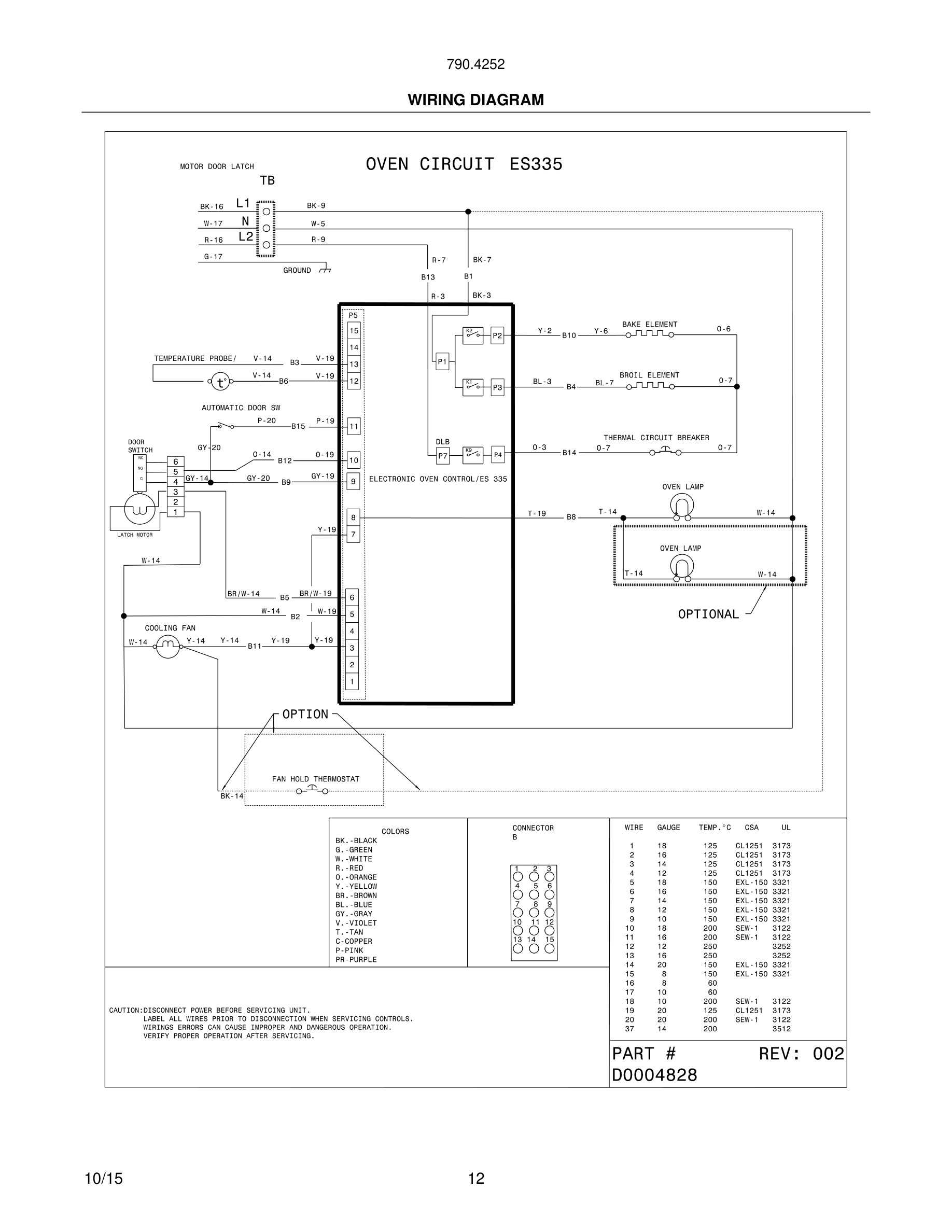

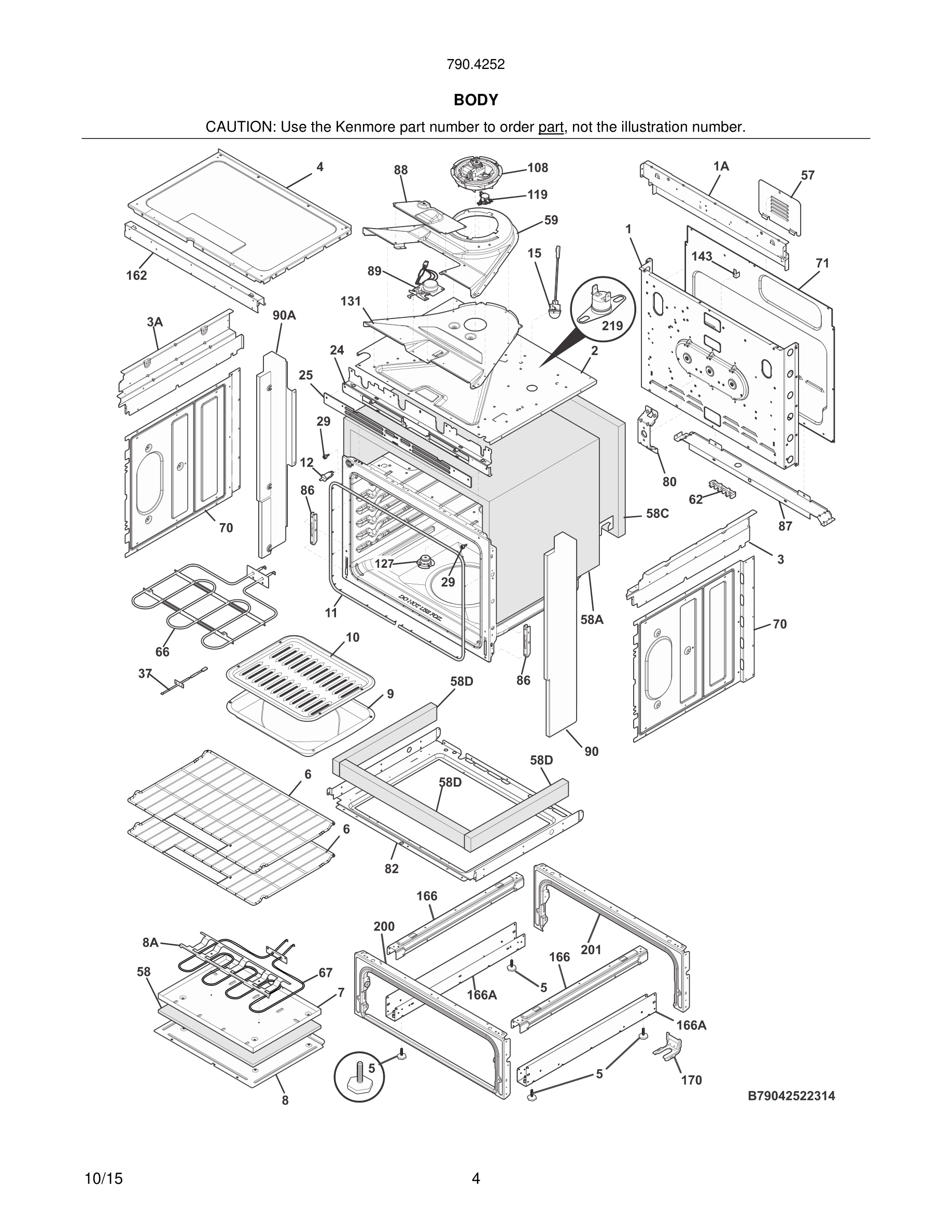

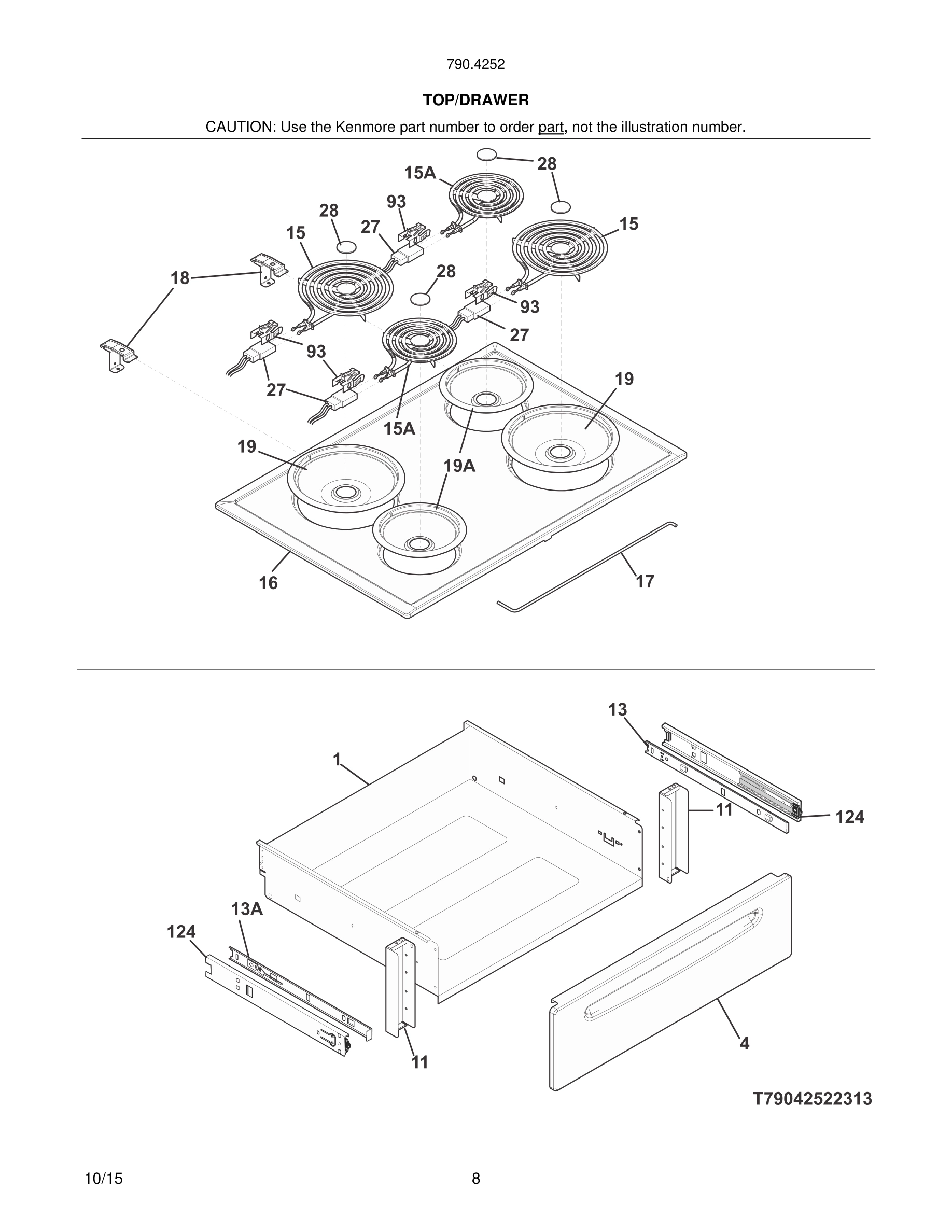

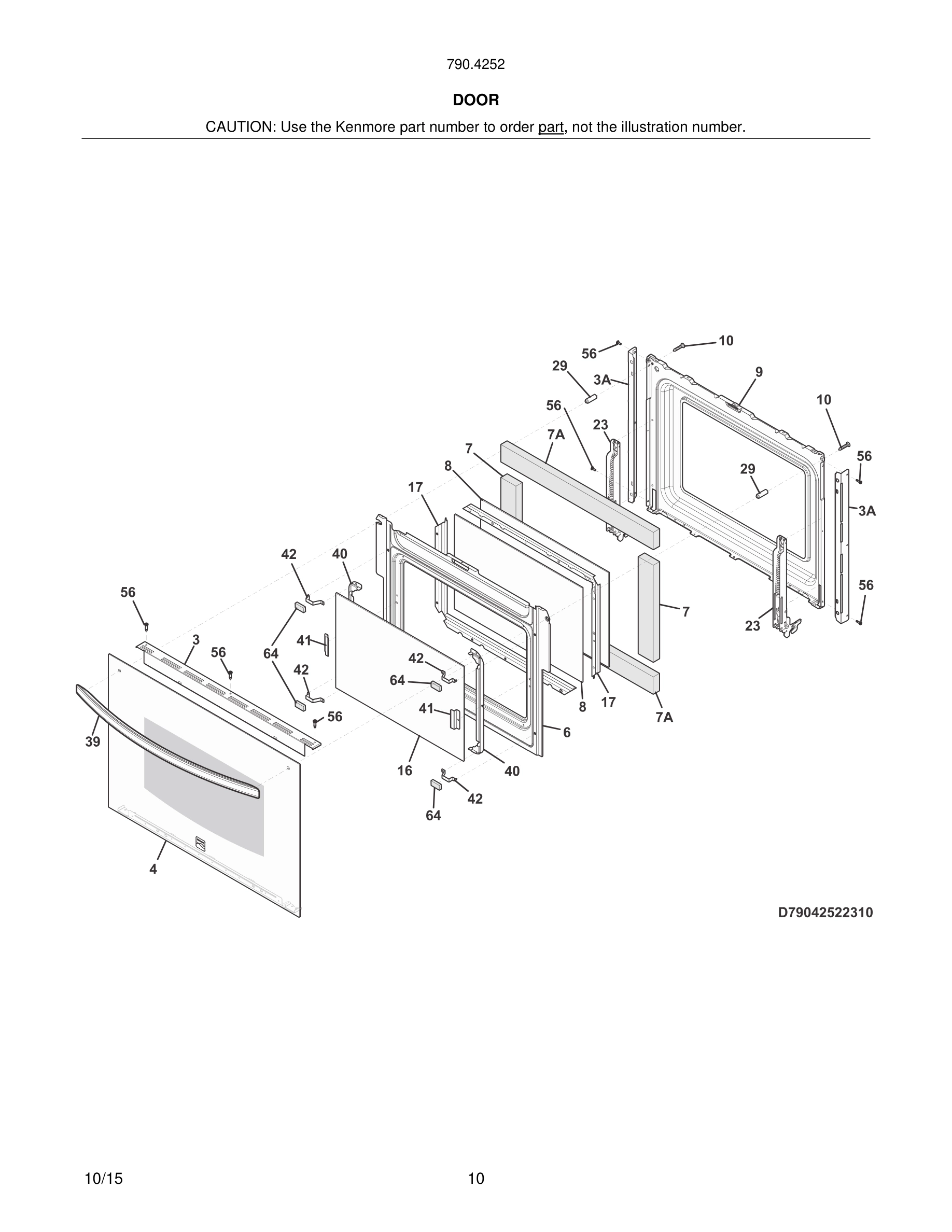

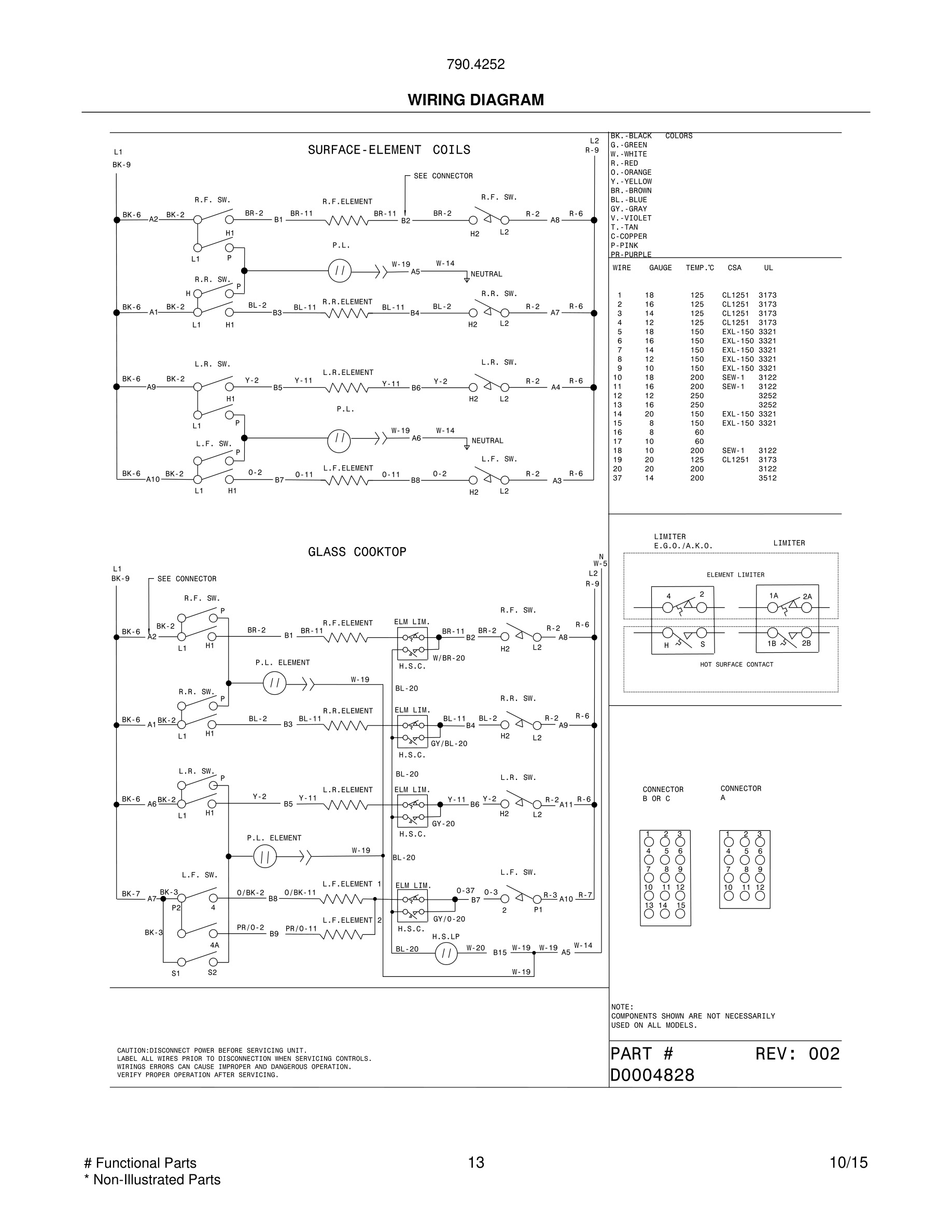

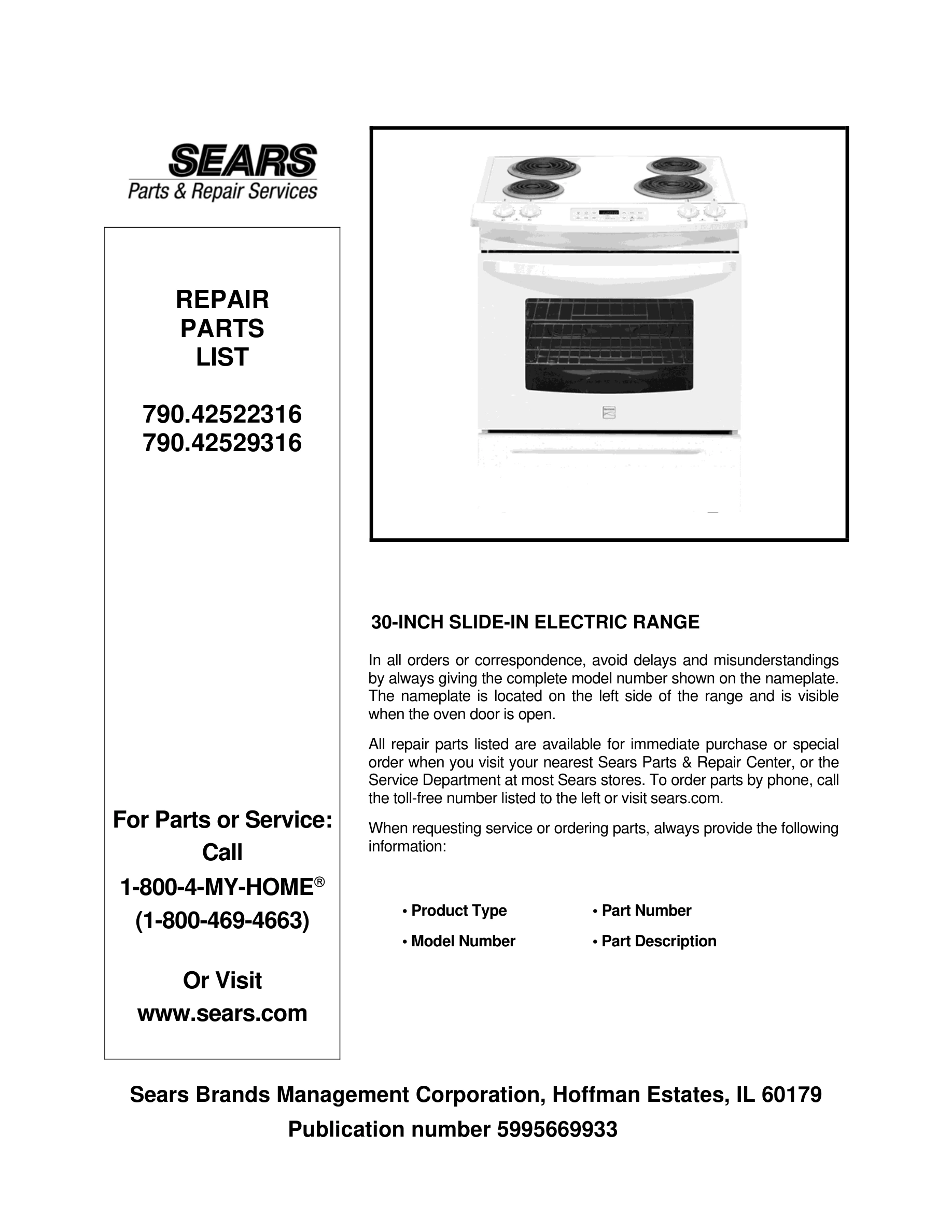

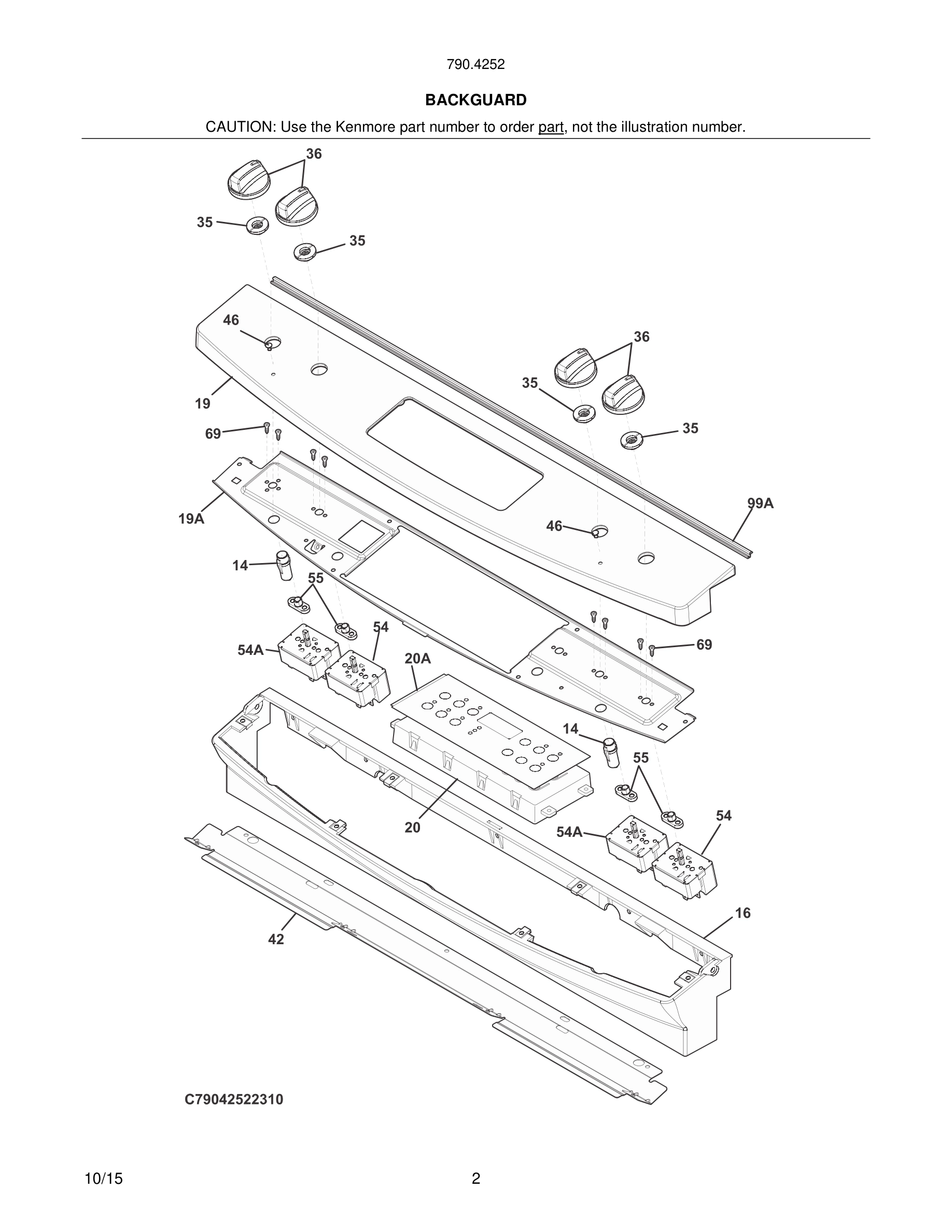

Model Kenmore 790.42522316 RANGE – Common Parts &amp; Diagrams

*

316021109 Frigidaire Oven Screw In Stock WCI 316021109 $9.06

*

318531701 Frigidaire Spacer Backorder WCI 318531701 $7.69

*#

5304517808 Frigidaire Harness Backorder WCI 5304517808 $27.62

*#

5304520774 Frigidaire Harness Backorder WCI 5304520774 $126.71

1

318107317 Frigidaire Oven Drawer Backorder WCI 318107317 $82.84

2

139028107 Frigidaire Shield Backorder WCI 139028107 $38.99

3

139023301 Frigidaire Oven Trim Backorder WCI 139023301 $32.60

3A

139014401 Frigidaire Oven Trim Backorder WCI 139014401 $19.47

4

Door Assembly, outer, black, w/trim & badge WCI 808950014 Contact Us For Availability

4

Door Assembly, outer, white, w/trim & badge WCI 808950013 Contact Us For Availability

4

Panel, drawer, white, front WCI 318298906 Contact Us For Availability

4

Panel, drawer, black, front WCI 318298908 Contact Us For Availability

5

Screw, leveling WCI 318175503 Contact Us For Availability

6

139006905 Frigidaire Oven Baffle Backorder WCI 139006905 $71.70

6

Rack, oven, w/handle WCI 139011800 Contact Us For Availability

7

318297303 Frigidaire Oven Box Backorder WCI 318297303 $74.37

7

318372017 Frigidaire Insulation Backorder WCI 318372017 $10.39

7A

318372016 Frigidaire Insulation Backorder WCI 318372016 $11.32

8

318359500 Frigidaire Oven Panel Backorder WCI 318359500 $80.56

8

5304503232 Frigidaire Oven Inner Door Glass In Stock WCI 5304503232 $73.95

8A

Bracket, bake element WCI 318313601 Contact Us For Availability

9

139000405 Frigidaire Liner Backorder WCI 139000405 $68.11

9

318138801 Frigidaire Oven Pan Backorder WCI 318138801 $24.43

10

316082001 Frigidaire Oven Insert Backorder WCI 316082001 $31.01

10

5304507924 Frigidaire Oven Screw In Stock WCI 5304507924 $4.53

11

807545502 Frigidaire Oven Seal Backorder WCI 807545502 $86.33

11

Bracket, drawer support, (2) WCI 318298600 Contact Us For Availability

13

Glide, warmer, inner RH WCI 318259504 Contact Us For Availability

13A

Glide, warmer, inner LH WCI 318259505 Contact Us For Availability

14#

318044831 Frigidaire Oven Light Backorder WCI 318044831 $9.95

15#

5304528790 Frigidaire Lamp Assembly Appliance In Stock WCI 5304528790 $13.57

15*#

318946500 Frigidaire Oven Light Bulb Range/Wa Backorder WCI 318946500 $33.97

15A#

318372211 Frigidaire Oven 6" Electric Range B In Stock WCI 318372211 $31.30

316446401 Frigidaire Oven Glass In Stock WCI 316446401 $73.97

318296602 Frigidaire Oven Console Backorder WCI 318296602 $174.64

Main Top, white WCI 318225607 Contact Us For Availability

Main Top, black WCI 318225606 Contact Us For Availability

Console, assy., white WCI 318296600 Contact Us For Availability

16*

Clip, console, (2) WCI 5304447071 Contact Us For Availability

18

Hinge, maintop, (2) WCI 318227710 Contact Us For Availability

5304501685 Frigidaire Control Panel Assembly Backorder WCI 5304501685 $147.57

A316222301 Frigidaire Oven 8" Porcelain Drip In Stock WCI A316222301 $13.29

L304458797 Frigidaire Range Universal Chrome In Stock WCI L304458797 $32.15

Control Panel Assembly, black WCI 5304501686 Contact Us For Availability

19A

318067080 Frigidaire Range Pan Backorder WCI 318067080 $45.54

19A

Panel, control mtg. WCI 318289715 Contact Us For Availability

20#

5304515591 Frigidaire Controller Backorder WCI 5304515591 $196.60

20A

139091300 Frigidaire Oven Overlay In Stock WCI 139091300 $33.50

20A

139091301 Frigidaire Range Overlay In Stock WCI 139091301 $23.11

23

316575915 Frigidaire Oven Hinge Backorder WCI 316575915 $97.44

25

139075001 Frigidaire Range Cover Backorder WCI 139075001 $36.15

27#

5304503375 Frigidaire Range Harness Assembly In Stock WCI 5304503375 $19.90

28

5303017715 Frigidaire Medallion Backorder WCI 5303017715 $38.09

29

139023400 Frigidaire Oven Spacer Backorder WCI 139023400 $12.22

29

316517600 Frigidaire Oven Spacer Backorder WCI 316517600 $7.69

35

Support, glass, black, (4) WCI 318183105 No Longer Available

36

5304494686 Frigidaire Range Knob Backorder WCI 5304494686 $19.91

36

Knob, control, black WCI 5304494687 Contact Us For Availability

37#

5304504897 Frigidaire Oven Temperature Sensor In Stock WCI 5304504897 $27.16

39

Handle, door, white, w/spacer WCI 318372416 Contact Us For Availability

39

Handle, door, black, w/spacer WCI 318372417 Contact Us For Availability

40

318242702 Frigidaire Oven Bracket Assembly Backorder WCI 318242702 $11.78

41

318370602 Frigidaire Oven Bracket Backorder WCI 318370602 $8.15

42

318382302 Frigidaire Bracket Backorder WCI 318382302 $30.36

46

Lens, indicator light WCI 318228301 Contact Us For Availability

54#

318293830 Frigidaire Oven Switch In Stock WCI 318293830 $54.57

54A#

318293831 Frigidaire Range Surface Element Sw In Stock WCI 318293831 $53.64

55

318402901 Frigidaire Oven Bushing Backorder WCI 318402901 $11.32

56*

5303324184 Frigidaire Wall Oven Range Screw Backorder WCI 5303324184 $9.06

57

316283600 Frigidaire Range Cover In Stock WCI 316283600 $7.25

59

139027600 Frigidaire Oven Duct Backorder WCI 139027600 $54.23

316001017 Frigidaire Screw Backorder WCI 316001017 $1.83

316205500 Frigidaire Oven Nut In Stock WCI 316205500 $7.25

318264200 Frigidaire Oven Plate Backorder WCI 318264200 $14.03

5303289910 Frigidaire Oven Screw Backorder WCI 5303289910 $3.61

64

318165800 Frigidaire Oven Door Glass Spacer w Backorder WCI 318165800 $11.32

66#

5304521498 Frigidaire Element Backorder WCI 5304521498 $51.52

67#

5304521880 Frigidaire Element Backorder WCI 5304521880 $68.13

70

139000601 Frigidaire Oven Shield Backorder WCI 139000601 $42.55

86

318561100 Frigidaire Receptacle Backorder WCI 318561100 $12.67

86*

316418900 Frigidaire Oven Screw Backorder WCI 316418900 $9.06

88

5304506964 Frigidaire Oven Cover Backorder WCI 5304506964 $15.40

89#

5304528836 Frigidaire Motor Backorder WCI 5304528836 $47.31

90

Panel, filler, black, RH WCI 318296904 Contact Us For Availability

90

Panel, filler, white, RH WCI 318296902 Contact Us For Availability

90A

5304511890 Frigidaire Oven Panel Backorder WCI 5304511890 $47.95

90A

Panel, filler, white, LH WCI 318296903 Contact Us For Availability

91

903113-9010 Frigidaire Filler Kit Assembly Backorder WCI 903113-9010 $41.69

91

Trim, filler, white, rear WCI 318304301 Contact Us For Availability

93

Support, terminal block, (4) WCI 318366410 Contact Us For Availability

99A

Gasket, black WCI 318313201 Contact Us For Availability

108#

318575612 Frigidaire Oven Cooling Fan Motor In Stock WCI 318575612 $136.65

119#

807144901 Frigidaire Thermostat Backorder WCI 807144901 $34.87

124

Glide, drawer, outer/RH & LH, (2) WCI 318330600 No Longer Available

127

139042600 Frigidaire Tube Assembly Backorder WCI 139042600 $27.62

131

139027700 Frigidaire Oven Duct Backorder WCI 139027700 $46.16

166

318298410 Frigidaire Oven Bracket Backorder WCI 318298410 $44.82

166A

5304511884 Frigidaire Oven Bracket Assembly Backorder WCI 5304511884 $38.99

170

5304486410 Frigidaire Range Kit Backorder WCI 5304486410 $91.14

200

Frame, drawer, black, front WCI 318298232 Contact Us For Availability

201

318298233 Frigidaire Oven Frame Backorder WCI 318298233 $28.99

219#

318005229 Frigidaire Oven Switch Backorder WCI 318005229 $31.99
