Model Electrolux 790.42499402 Cooktop (Kenmore 79042499402) – Common Parts & Diagrams

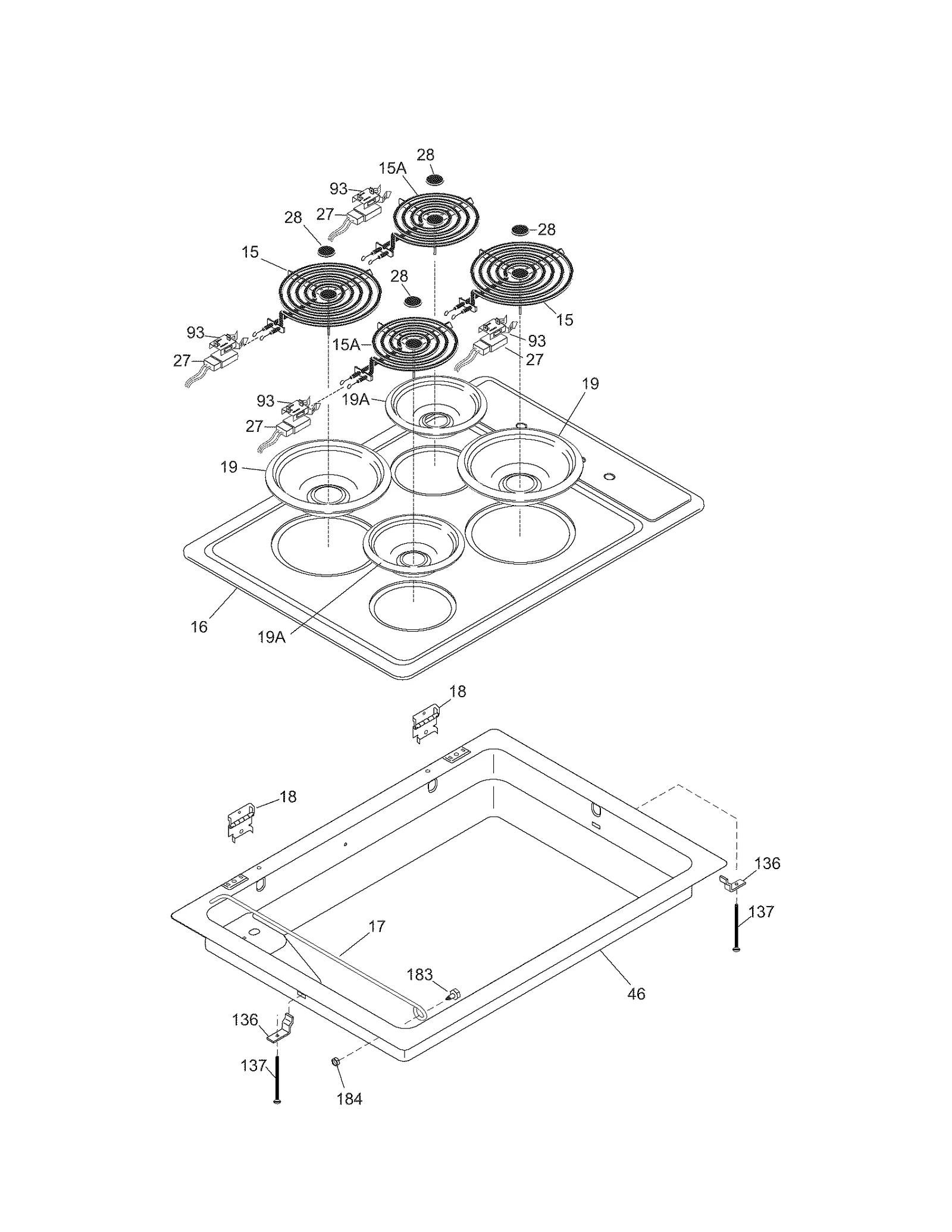

MAINTOP

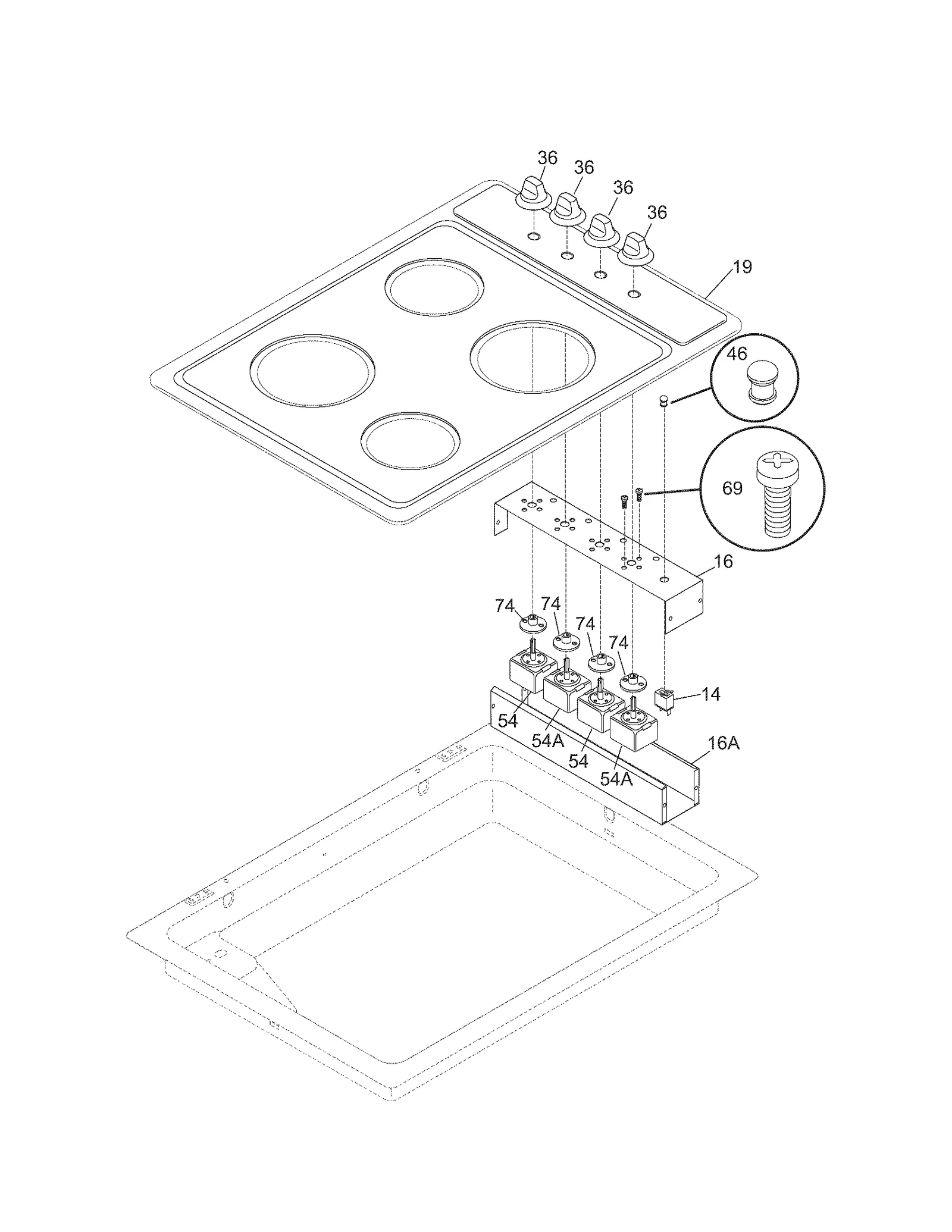

CONTROLS
CONTROLS
Common parts from model Electrolux 790.42499402 Cooktop (Kenmore 79042499402)
14
Light Lamp WCI 5303323991 Contact Us For Availability
16
Plate WCI 318286800 Contact Us For Availability
16A
Plate WCI 5303301457 Contact Us For Availability
18
Hinge Main WCI 318074310 Contact Us For Availability
19
Cooktop Main Top WCI 318287200 Contact Us For Availability
19
Main Top Assembly WCI 318287201 Contact Us For Availability
19
Main Top WCI 318287202 Contact Us For Availability
19
Cooktop Main Top WCI 318287203 Contact Us For Availability
27
Cooktop Element Receptacle WCI 318223407 Contact Us For Availability
27
Cooktop Element Terminal Block WCI 318223423 Contact Us For Availability
27
Terminal Block WCI 318223424 Contact Us For Availability
27
Cooktop Element Receptacle WCI 318223409 Contact Us For Availability
36
Range Surface Burner Knob WCI 316208112 Contact Us For Availability
36
Range Surface Burner Knob WCI 316208113 Contact Us For Availability
36
Range Surface Burner Knob WCI 316208114 Contact Us For Availability
74
Cooktop Element Control Knob Bushing WCI 318146010 Contact Us For Availability
184
Nut WCI 5303325982 Contact Us For Availability
NI
Box Wire WCI 318078525 Contact Us For Availability
NI
Washer WCI 5303324191 Contact Us For Availability
NI
Screw WCI 5304410665 Contact Us For Availability
NI
Wiring Diagram WCI 318046902 Contact Us For Availability
NI
Cooktop Use and Care Guide WCI 318200618 Contact Us For Availability
NI
Cooktop Instructions WCI 318201423 Contact Us For Availability
NI
Repair Parts List WCI 5995441325 Contact Us For Availability
× ![]()
