Model Kenmore 790.42492400 COOKTOP – Common Parts & Diagrams
Common parts from model Kenmore 790.42492400 COOKTOP
*
Fastener, clip cable WCI 08067961 Contact Us For Availability
*
Screw, 10-32 x 5/8 WCI 5304410665 Contact Us For Availability
*#
Box & wires assy WCI 318078525 Contact Us For Availability
16

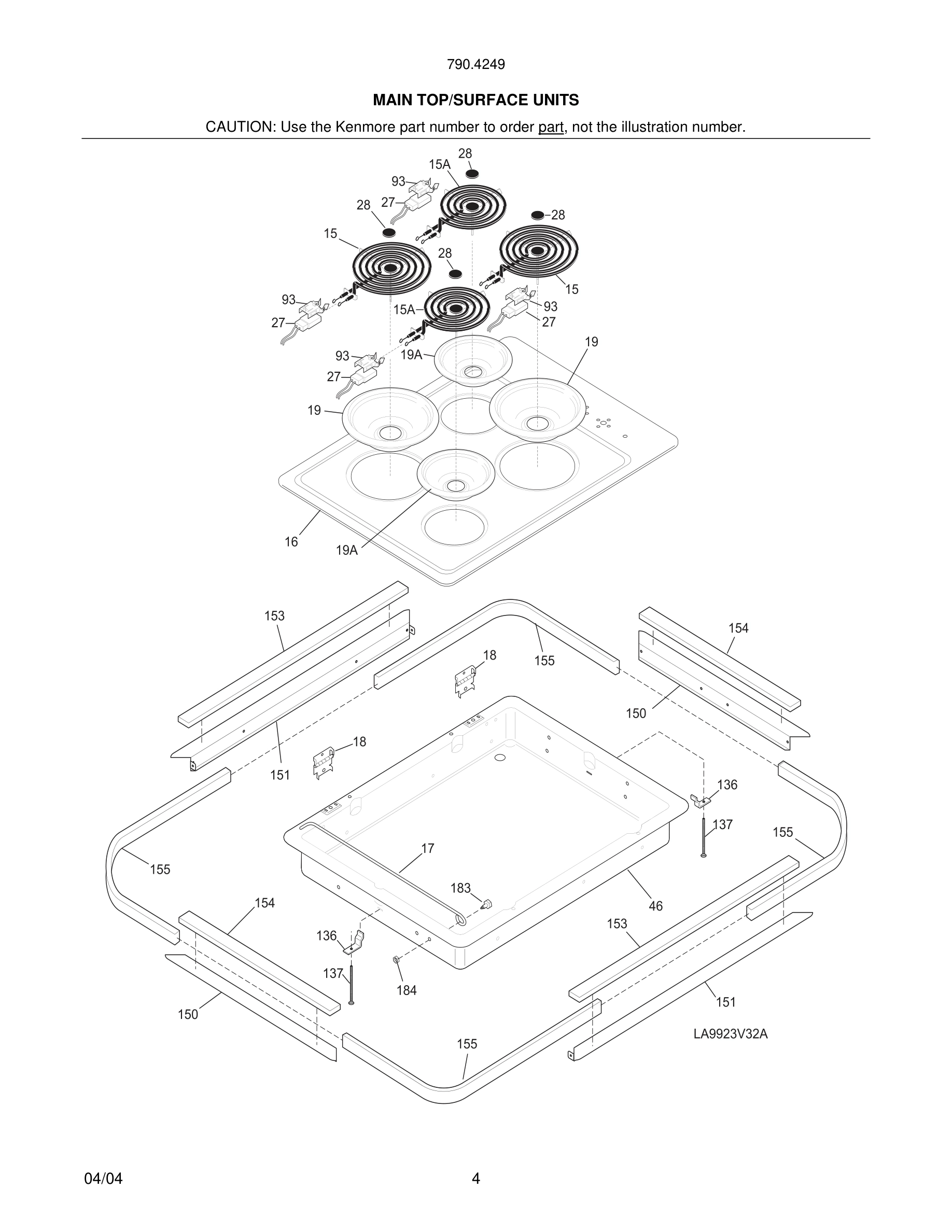

Main Top, white WCI 318159021 Contact Us For Availability
16
Main Top, stainless WCI 318159023 Contact Us For Availability
16
Main Top, bisque WCI 318159025 Contact Us For Availability
16
Main Top, black WCI 318159024 Contact Us For Availability
17
Rod, maintop support WCI 3016817 Contact Us For Availability
18
Hinge, maintop, (2) WCI 318074311 Contact Us For Availability
18*
Washer, flat WCI 5303324191 Contact Us For Availability
19

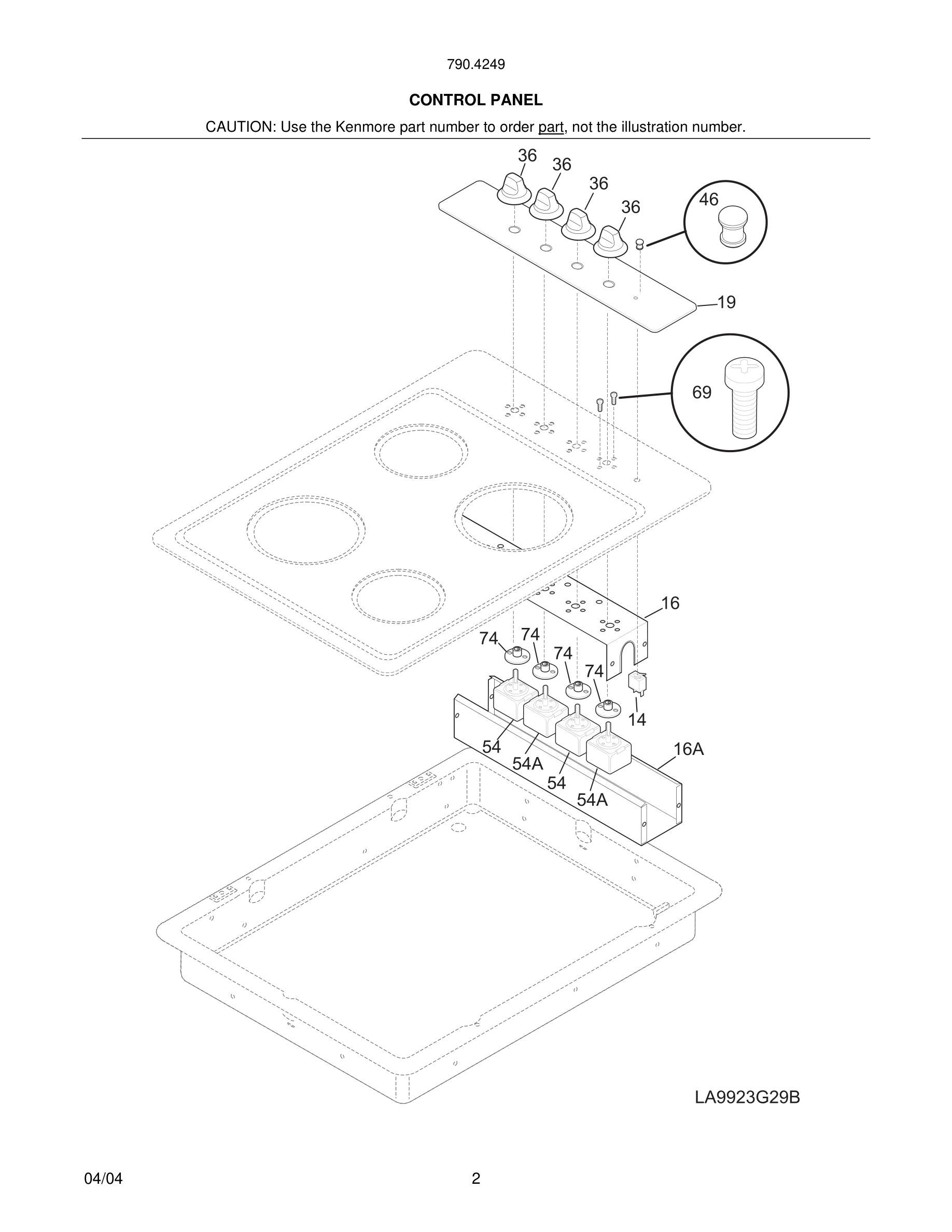

Panel, control, bisque WCI 318242307 Contact Us For Availability
27#
Terminal Block, surface element, 21", white l WCI 318223407 Contact Us For Availability
27#
Terminal Block, surface element, 36", brown l WCI 318223423 Contact Us For Availability
27#
Terminal Block, surface element, 36", orange WCI 318223424 Contact Us For Availability
27#
Terminal Block, surface element, 24", yellow WCI 318223409 Contact Us For Availability
36
Knob, control, white WCI 316208112 Contact Us For Availability
36
Knob, control, black WCI 316208113 Contact Us For Availability
36
Knob, control, bisque WCI 316208114 Contact Us For Availability
46
Lens, indicator light WCI 318250800 Contact Us For Availability
46
Burner Box WCI 318077461 Contact Us For Availability
74
Bushing, switch WCI 318146010 Contact Us For Availability
93
Support, terminal block, (4) WCI 318122500 Contact Us For Availability
137
Screw, 10-24 x 2 1/2 WCI 5303323138 Contact Us For Availability
150
Bracket, side, (2) WCI 318264900 Contact Us For Availability
151
Bracket, side, (2) WCI 318264902 Contact Us For Availability
153
Insulation, 29.43 x 1.200, w/aluminum foil WCI 318106034 Contact Us For Availability
154
Insulation, 18.36 x 1.655, w/aluminum foil WCI 318106032 Contact Us For Availability
155
Insulation, 21.90 x 1.140, w/aluminum foil WCI 318106033 Contact Us For Availability
184
Nut,Keps,10-32 WCI 5303325982 Contact Us For Availability
× ![]()
