Model Kenmore 790.41242800 COOKTOP – Common Parts & Diagrams

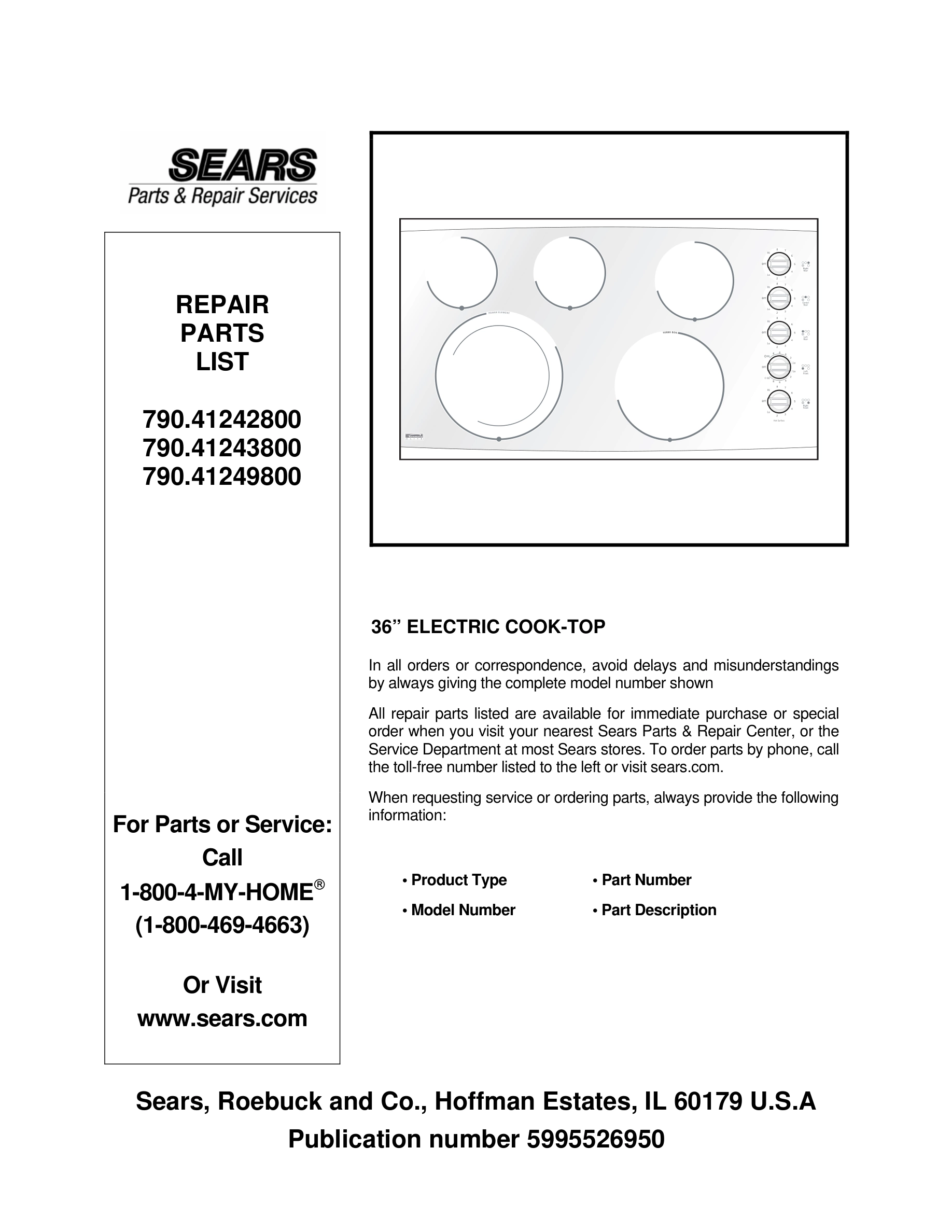

01 - COVER

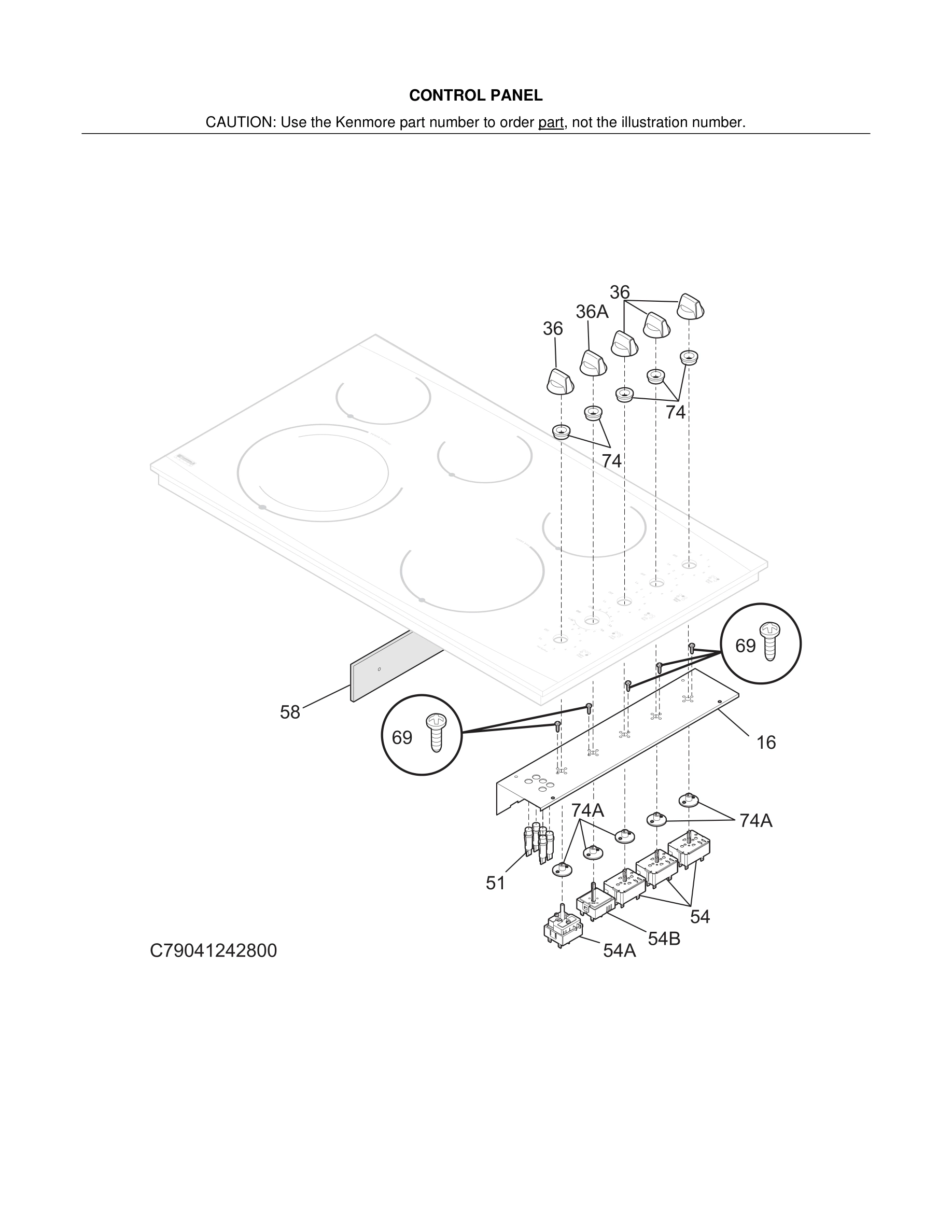

03 - CONTROL PANEL

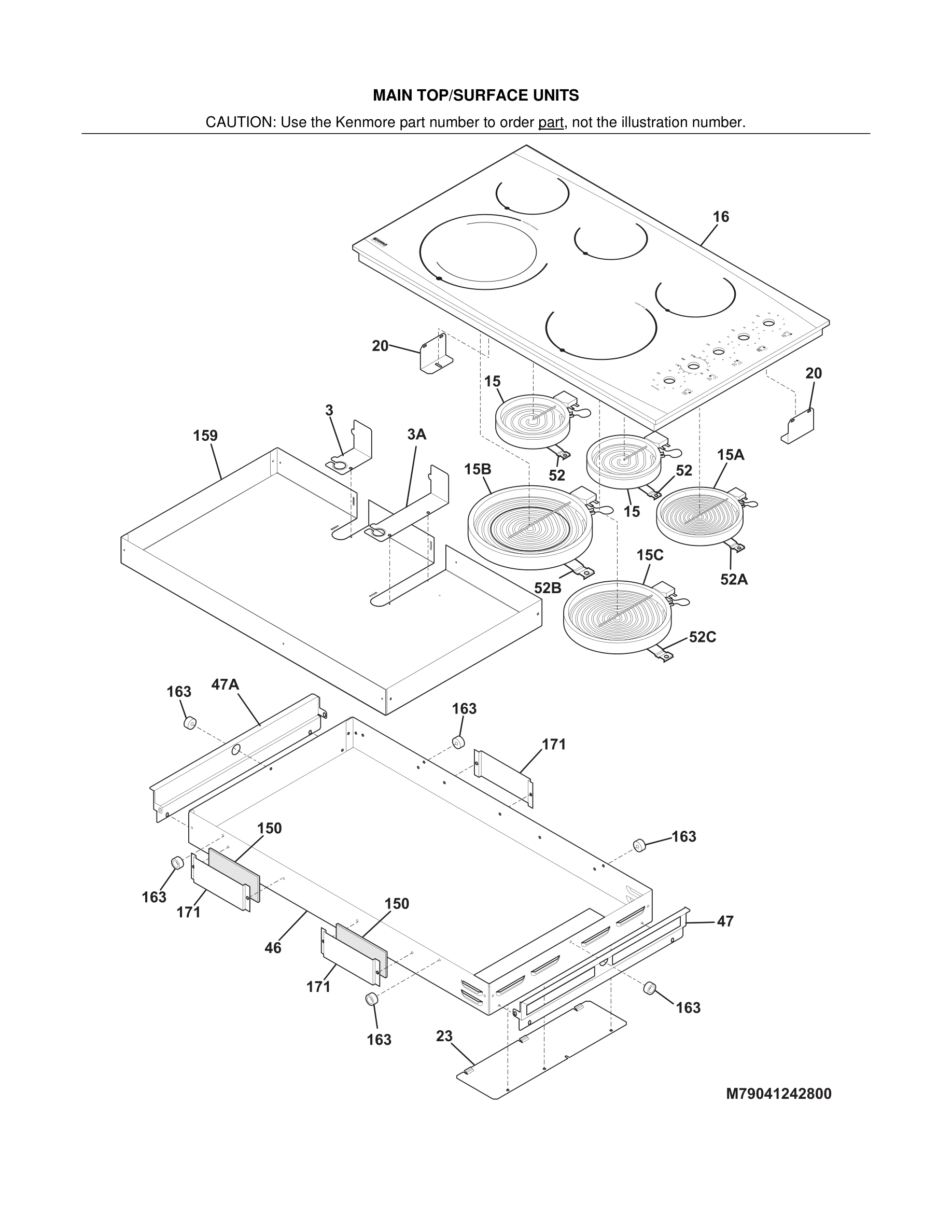

05 - MAIN TOP/SURFACE UNITS

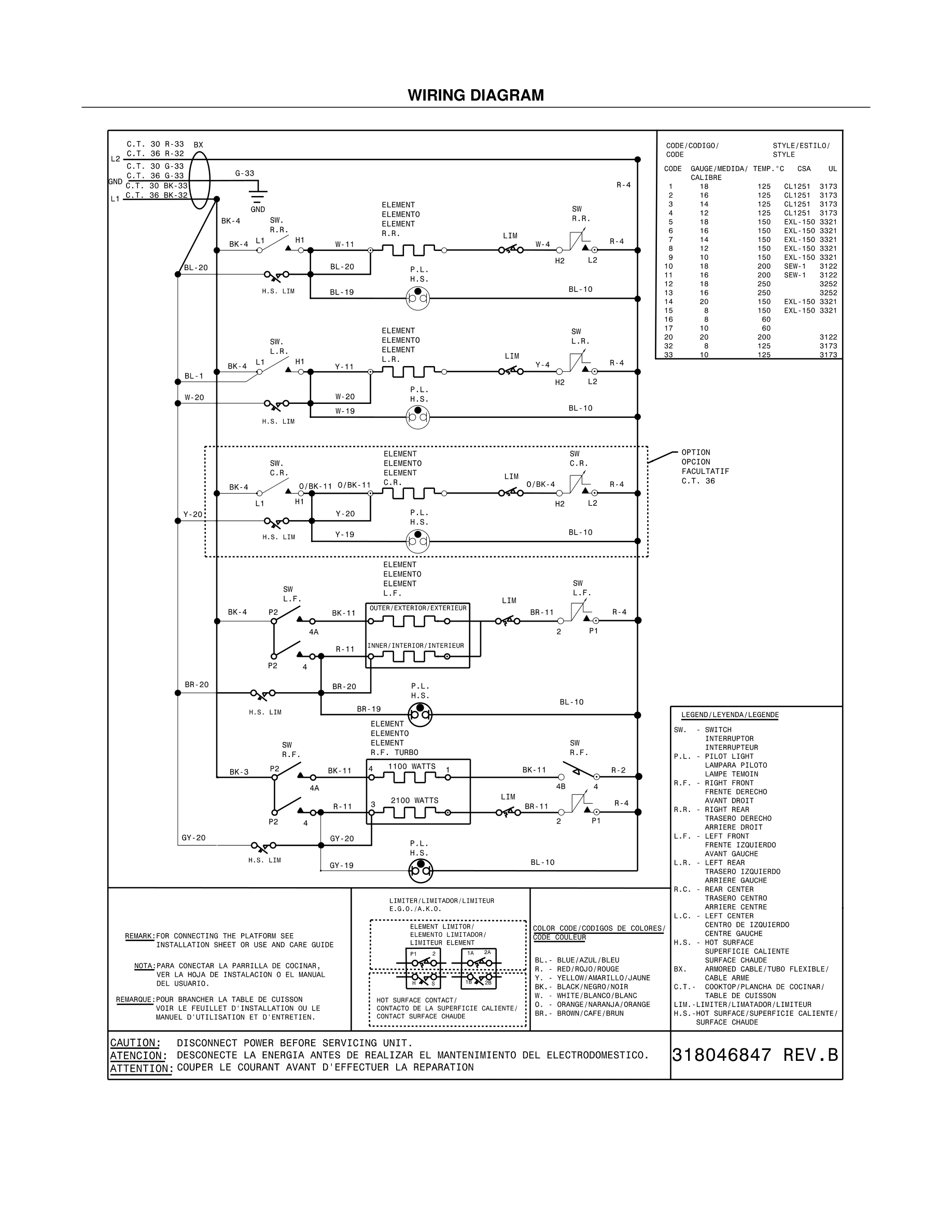

06 - WIRING DIAGRAM
Common parts from model Kenmore 790.41242800 COOKTOP
*
Pad, cleaning WCI 316459400 Contact Us For Availability
*#
Harness, wiring, main WCI 318402408 Contact Us For Availability
3
Cover, deflector, (2) WCI 318371401 Contact Us For Availability
3A
Cover, deflector WCI 318371402 Contact Us For Availability
16
Main Top Assy, glass/steel, white, w/trim WCI 318282582 Contact Us For Availability
16
Main Top Assy, glass/steel, black, w/stnless WCI 318282584 Contact Us For Availability
16
Main Top Assy, glass/steel, black, w/trim WCI 318282583 Contact Us For Availability
23
Panel, service WCI 318194727 Contact Us For Availability
36
Knob, control, stainless, (3) WCI 318921102 Contact Us For Availability
36
Knob, control, black, (3) WCI 318921101 Contact Us For Availability
46
Burner Box WCI 318077151 Contact Us For Availability
47
Deflector, air, white WCI 318345154 Contact Us For Availability
47
Deflector, air, black WCI 318345153 Contact Us For Availability
47A
Deflector, air, white WCI 318345155 Contact Us For Availability
47A
Deflector, air, black WCI 318345145 Contact Us For Availability
51#
Light, indicator, natural, (4) WCI 318044830 Contact Us For Availability
52A
Spring, element mtg, 700W & 2100W WCI 318122004 Contact Us For Availability
74
Bushing, switch WCI 318148900 Contact Us For Availability
74A
Bushing, switch WCI 318146010 Contact Us For Availability
150
Insulation, 2 x 5.75, (2) WCI 318106051 Contact Us For Availability
159
Shield, heat WCI 318354138 Contact Us For Availability
171
Screen, thermal WCI 318124912 Contact Us For Availability
× ![]()
