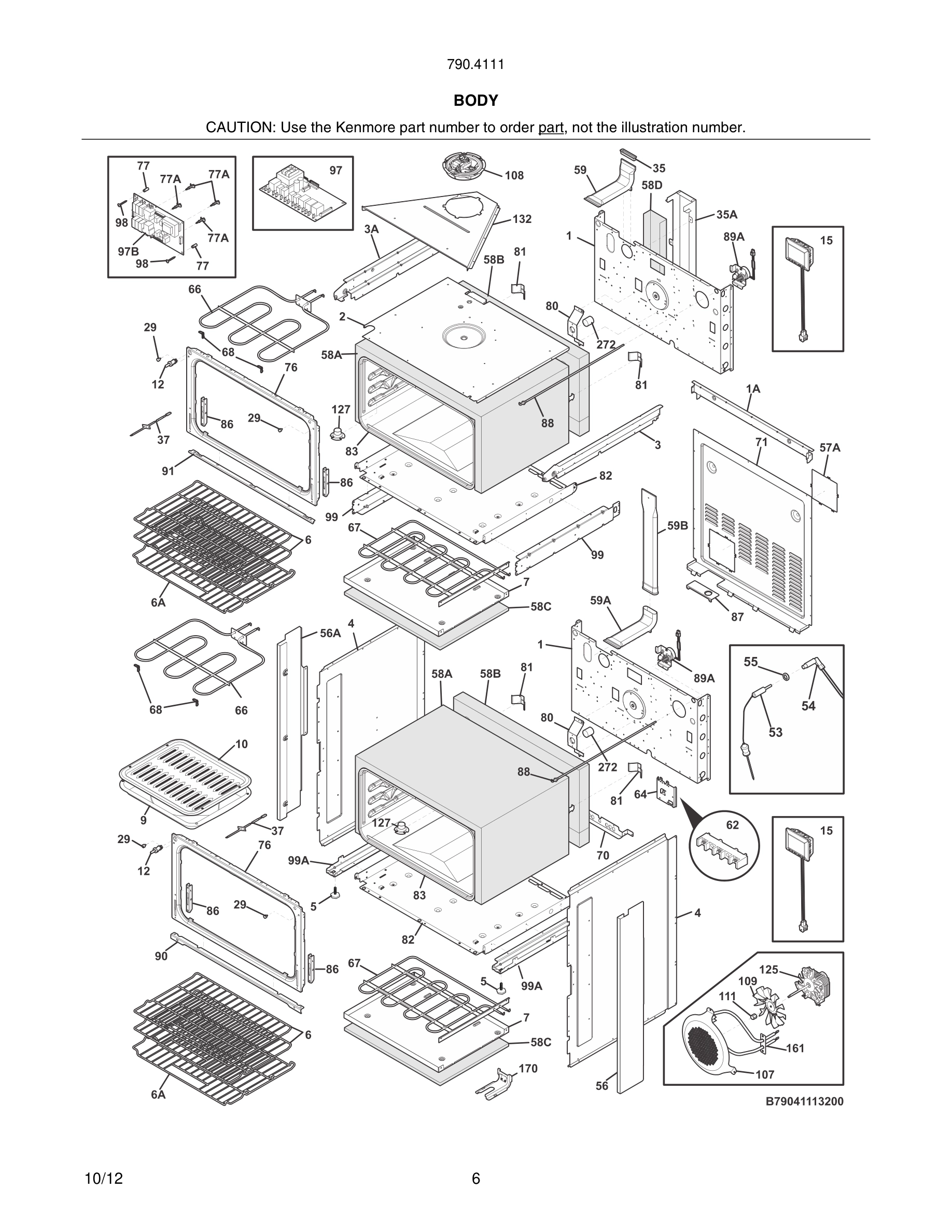

Model Kenmore 790.41112200 RANGE – Common Parts & Diagrams

*
Pad, cleaning
Pad, cleaning WCI 316459400 Contact Us For Availability
View on Model
*
Cleaner, glass
Cleaner, glass WCI 316112100 Contact Us For Availability
View on Model
*
Screw, #8-18 x 3/8, (10)
Screw, #8-18 x 3/8, (10) WCI 5304454881 Contact Us For Availability
View on Model
*
Washer, flat, upper
Washer, flat, upper WCI 5304440228 Contact Us For Availability
View on Model
*#

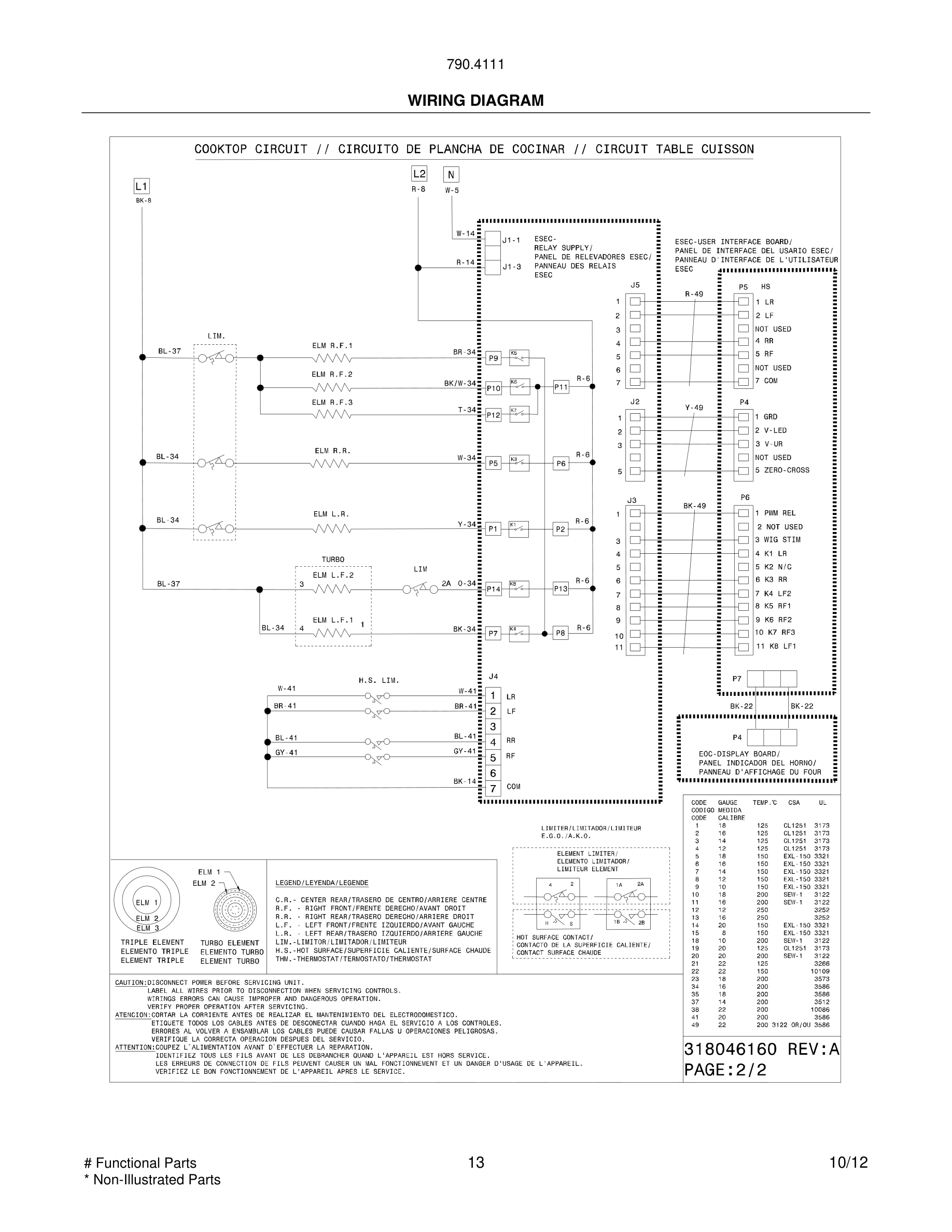

Harness, wiring, cooktop
Harness, wiring, cooktop WCI 318228994 Contact Us For Availability
View on Model

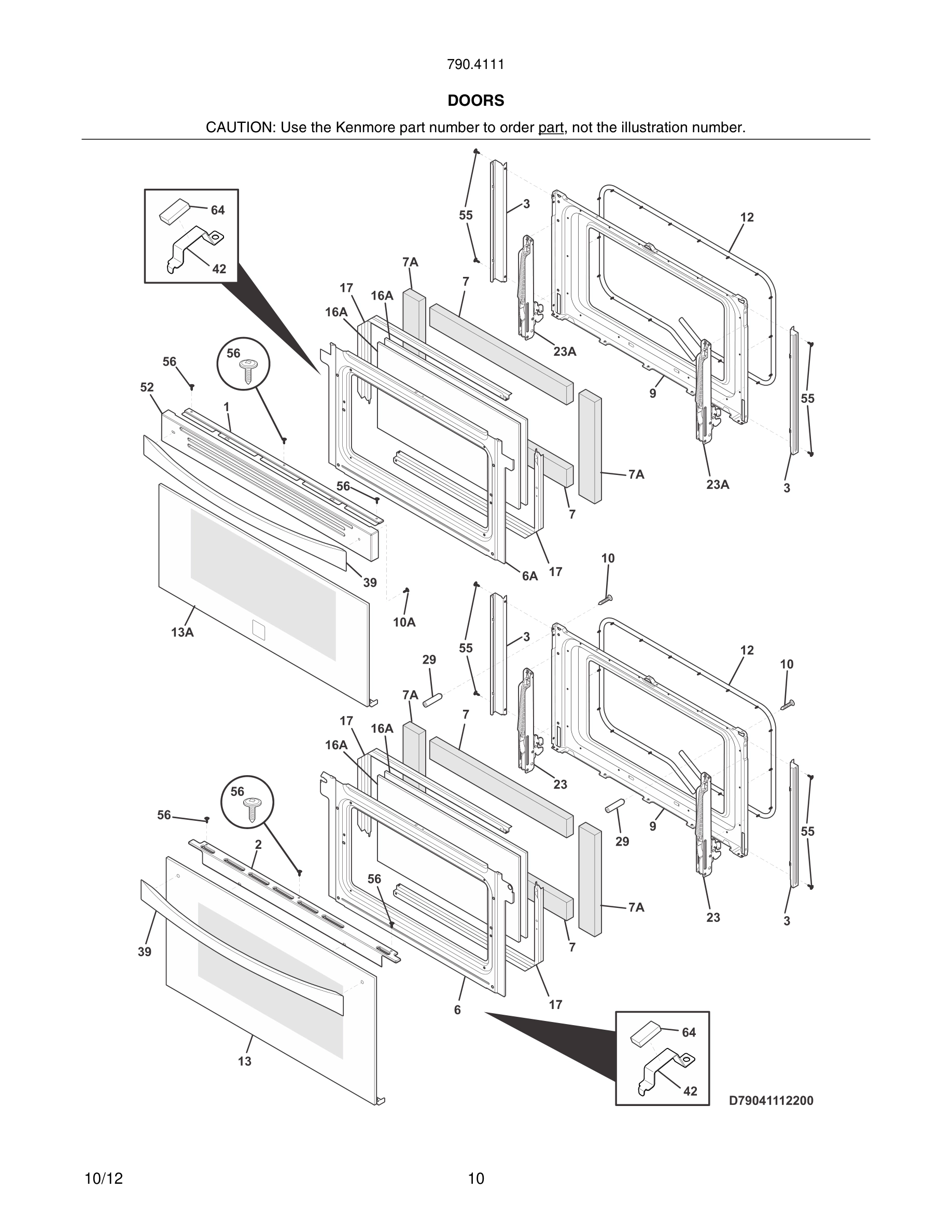

1
Trim, top, black, upper door
Trim, top, black, upper door WCI 318562703 Contact Us For Availability
View on Model
2
Trim, oven door, white, top, lower door
Trim, oven door, white, top, lower door WCI 318260229 Contact Us For Availability
View on Model
2
Trim, oven door, black, top, lower door
Trim, oven door, black, top, lower door WCI 318260230 Contact Us For Availability
View on Model
3
Trim, oven door, white, side
Trim, oven door, white, side WCI 318301431 Contact Us For Availability
View on Model
3
Trim, oven door, black, side
Trim, oven door, black, side WCI 318301432 Contact Us For Availability
View on Model
5
Screw, leveling
Screw, leveling WCI 318175503 Contact Us For Availability
View on Model
6
Baffle, door, lower
Baffle, door, lower WCI 318260525 Contact Us For Availability
View on Model
6A
Rack, oven
Rack, oven WCI 318262514 Contact Us For Availability
View on Model
6A
Baffle, door, upper
Baffle, door, upper WCI 318260528 Contact Us For Availability
View on Model
9
Pan, broilerOPTIONAL ACCESS0RY
Pan, broilerOPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
View on Model
9
Liner, door
Liner, door WCI 318594200 Contact Us For Availability
View on Model
10
Insert, broiler panOPTIONAL ACCESS0RY
Insert, broiler panOPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
View on Model
10
Screw, 10-24 x 1.79, upper door
Screw, 10-24 x 1.79, upper door WCI 5304462582 Contact Us For Availability
View on Model
10A
Screw, 10-24 x 1 7/8, lower door, (2)
Screw, 10-24 x 1 7/8, lower door, (2) WCI 5304459529 Contact Us For Availability
View on Model
12
Seal, oven door
Seal, oven door WCI 318053154 Contact Us For Availability
View on Model
13
Door Assembly, glass, white, lower oven
Door Assembly, glass, white, lower oven WCI 318304199 Contact Us For Availability
View on Model
13
Door Assembly, glass, black, lower oven
Door Assembly, glass, black, lower oven WCI 318646401 Contact Us For Availability
View on Model
13A
Door Assembly, glass, white, upper oven, w/ba
Door Assembly, glass, white, upper oven, w/ba WCI 318646402 Contact Us For Availability
View on Model
13A
Door Assembly, glass, black, upper oven, w/ba
Door Assembly, glass, black, upper oven, w/ba WCI 318646400 Contact Us For Availability
View on Model

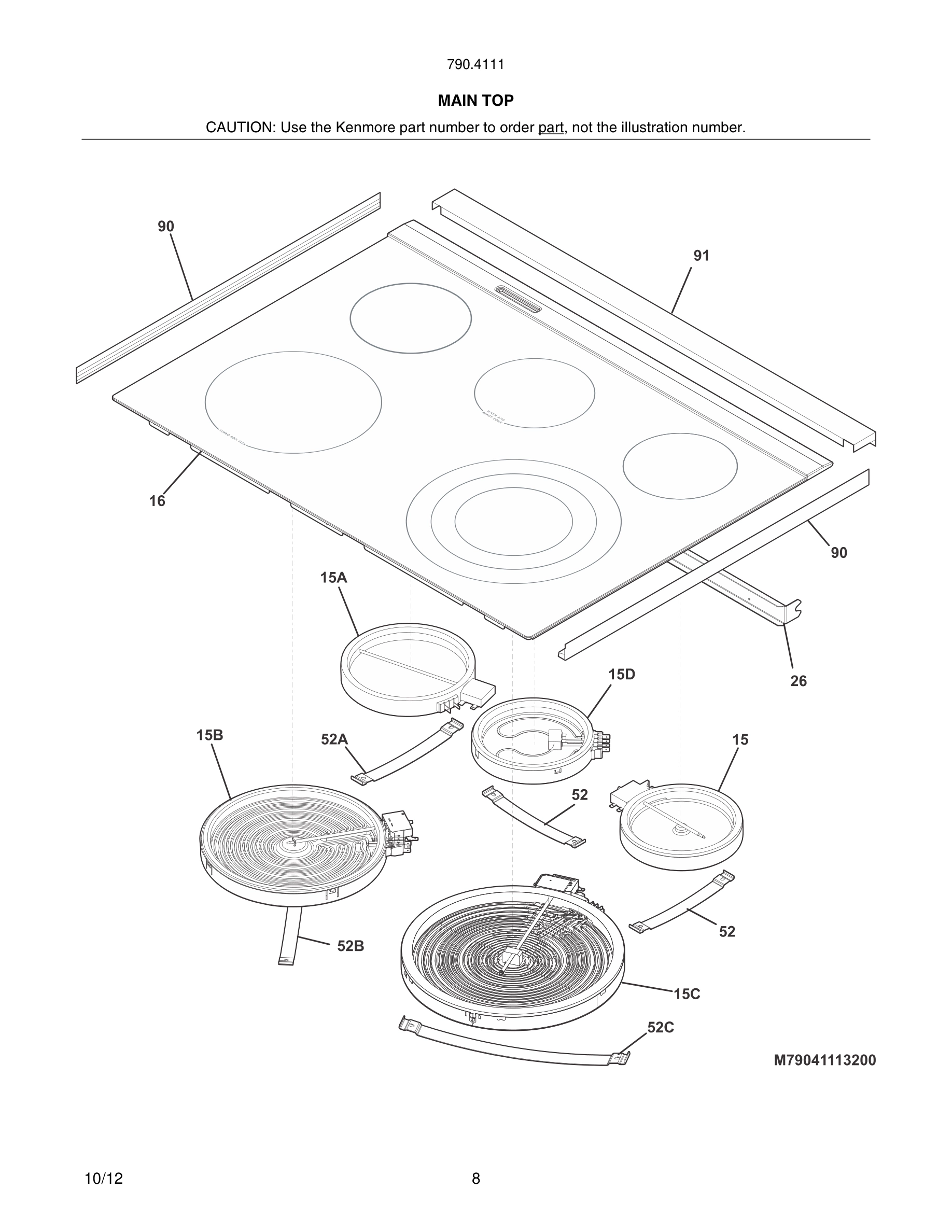

16
Smooth Top Assy, complete, white, w/trim & pl
Smooth Top Assy, complete, white, w/trim & pl WCI 318596202 Contact Us For Availability
View on Model
16
Smooth Top Assy, complete, black, w/trim & pl
Smooth Top Assy, complete, black, w/trim & pl WCI 318596201 Contact Us For Availability
View on Model
16A
Glass, oven door, heat barrier, HBII
Glass, oven door, heat barrier, HBII WCI 318212216 Contact Us For Availability
View on Model
17
Reatiner, glass, inner, (2)
Reatiner, glass, inner, (2) WCI 318640200 Contact Us For Availability
View on Model
19#
Control Assembly, glass, black
Control Assembly, glass, black WCI 318586731 Contact Us For Availability
View on Model
20#
Controller, electronic, ES615
Controller, electronic, ES615 WCI 316576312 Contact Us For Availability
View on Model
23
Hinge, door, lower oven, (2)
Hinge, door, lower oven, (2) WCI 318567122 Contact Us For Availability
View on Model
23A
Hinge, door, upper oven, (2)
Hinge, door, upper oven, (2) WCI 318567120 Contact Us For Availability
View on Model
26
Brace, cooktop, rear
Brace, cooktop, rear WCI 318644600 Contact Us For Availability
View on Model
29
Spacer, door
Spacer, door WCI 318014405 Contact Us For Availability
View on Model
39
Handle, door/drawer, white, w/spacer
Handle, door/drawer, white, w/spacer WCI 316353900 Contact Us For Availability
View on Model
39
Handle, door/drawer, black, w/spacer
Handle, door/drawer, black, w/spacer WCI 316353901 Contact Us For Availability
View on Model
39A
Handle, door, black
Handle, door, black WCI 316264501 Contact Us For Availability
View on Model
52
Trim, door, white, upper
Trim, door, white, upper WCI 318580000 Contact Us For Availability
View on Model
52
Trim, door, black, upper
Trim, door, black, upper WCI 318580001 Contact Us For Availability
View on Model
52A
Spring, element mtg, 700W & 2100W
Spring, element mtg, 700W & 2100W WCI 318122004 Contact Us For Availability
View on Model
54*
Bracket, receptacle, temp probe
Bracket, receptacle, temp probe WCI 318373001 Contact Us For Availability
View on Model
56
Screw, 8-18 x 3/8
Screw, 8-18 x 3/8 WCI 5304476599 Contact Us For Availability
View on Model
70
Bracket, bottom, rear
Bracket, bottom, rear WCI 318643600 Contact Us For Availability
View on Model
71
Panel, rear, lower
Panel, rear, lower WCI 318946100 Contact Us For Availability
View on Model
76
Front, oven
Front, oven WCI 318056255 Contact Us For Availability
View on Model
77
Spacer, control
Spacer, control WCI 318293702 Contact Us For Availability
View on Model
80
Plate, oven mtg
Plate, oven mtg WCI 5303320846 Contact Us For Availability
View on Model
81
Spring, oven
Spring, oven WCI 318192400 Contact Us For Availability
View on Model
82
Shield, insulation, lower, (2)
Shield, insulation, lower, (2) WCI 318258778 Contact Us For Availability
View on Model
83
Liner, oven
Liner, oven WCI 318327048 Contact Us For Availability
View on Model
87
Plate, mounting
Plate, mounting WCI 318645000 Contact Us For Availability
View on Model
88
Rod, latch, w/bushing
Rod, latch, w/bushing WCI 318250207 Contact Us For Availability
View on Model
90
Channel, glass protector, (2)
Channel, glass protector, (2) WCI 318368001 Contact Us For Availability
View on Model
90
Gasket, silicone, black
Gasket, silicone, black WCI 318930115 Contact Us For Availability
View on Model
90
Trim, oven bottom, black
Trim, oven bottom, black WCI 318593700 Contact Us For Availability
View on Model
91
Trim, filler, white, rear
Trim, filler, white, rear WCI 318304301 Contact Us For Availability
View on Model
91
Trim, oven, center
Trim, oven, center WCI 318945500 Contact Us For Availability
View on Model

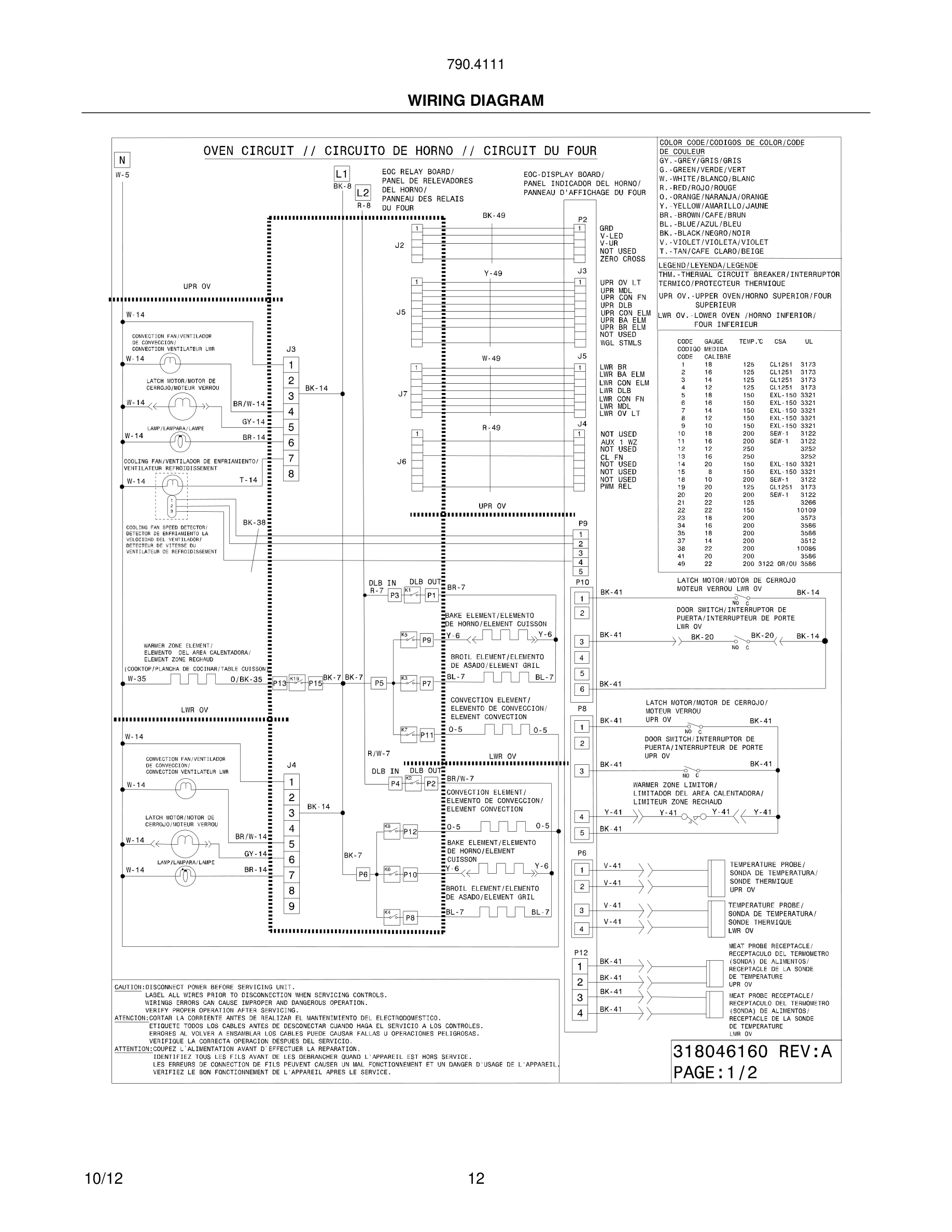

97A#
Board, power, UIB
Board, power, UIB WCI 316575435 Contact Us For Availability
View on Model
97B#
Board, relay, dual oven
Board, relay, dual oven WCI 316443952 Contact Us For Availability
View on Model
99
Bracket, spacer, (2)
Bracket, spacer, (2) WCI 318592900 Contact Us For Availability
View on Model
99A
Bracket, side, bottom
Bracket, side, bottom WCI 318643400 Contact Us For Availability
View on Model
107
Cover, fan
Cover, fan WCI 318219405 Contact Us For Availability
View on Model
108#
Motor, cooling fan
Motor, cooling fan WCI 318575610 Contact Us For Availability
View on Model
127
Adapter Assembly, vent tube, w/converter
Adapter Assembly, vent tube, w/converter WCI 318317105 Contact Us For Availability
View on Model
132
Duct, cooling fan
Duct, cooling fan WCI 318644300 Contact Us For Availability
View on Model
161#
Element, convection, 350 W
Element, convection, 350 W WCI 318255513 Contact Us For Availability
View on Model
170
Anti Tip Kit, assembly, w/template
Anti Tip Kit, assembly, w/template WCI 318584501 Contact Us For Availability
View on Model
272
Tube, protector
Tube, protector WCI 318249409 Contact Us For Availability
View on Model
