Model Kenmore 790.41043800 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

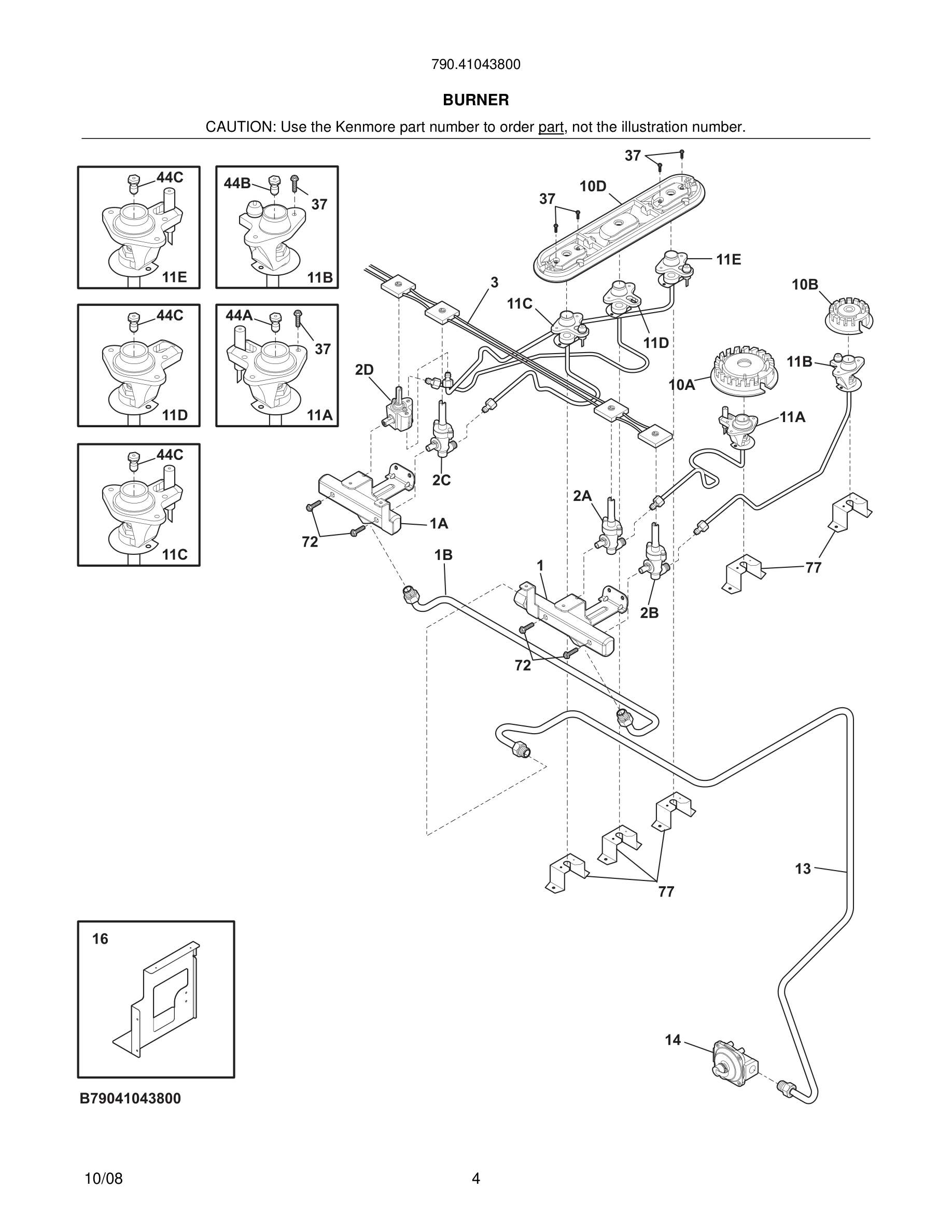

05 - BURNER

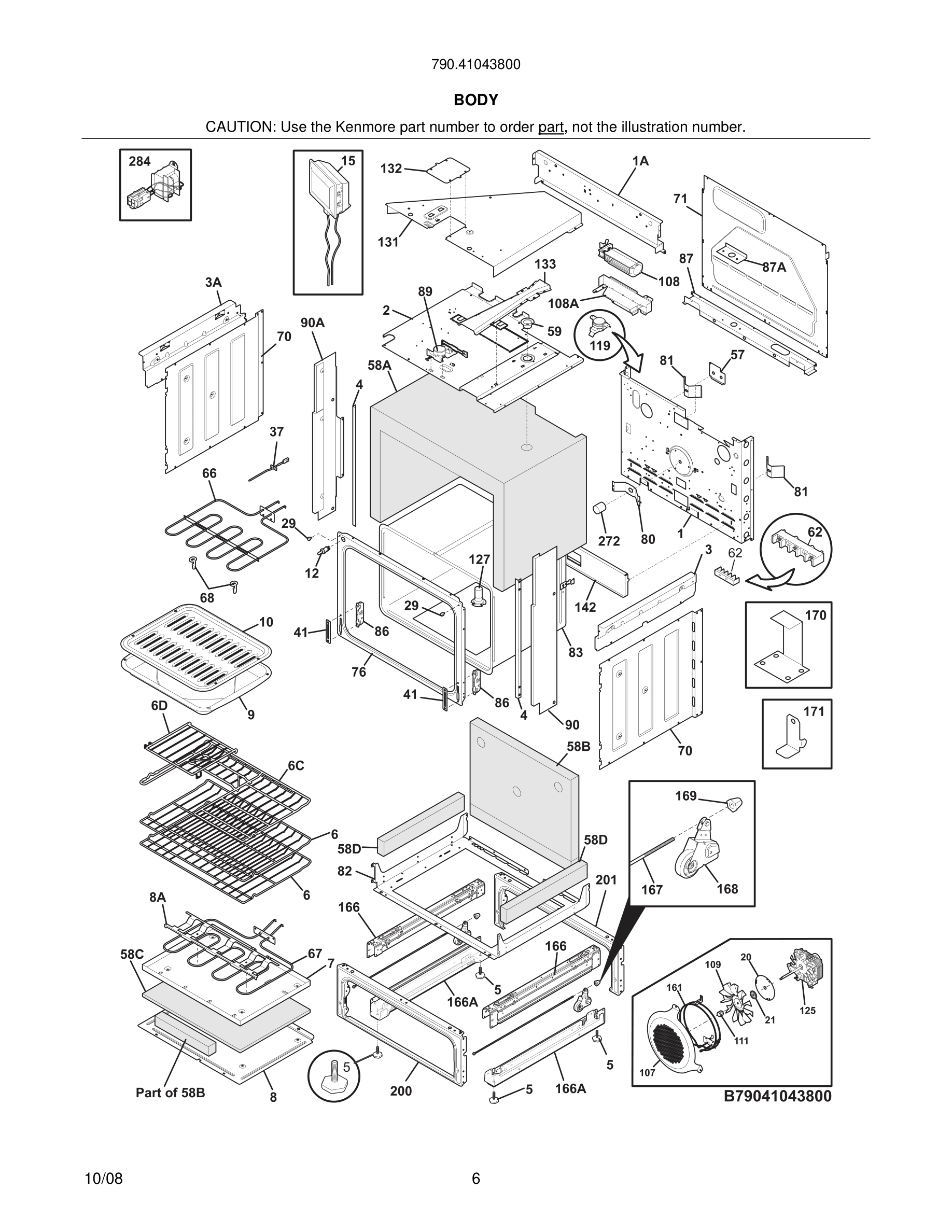

07 - BODY
09 - BODY

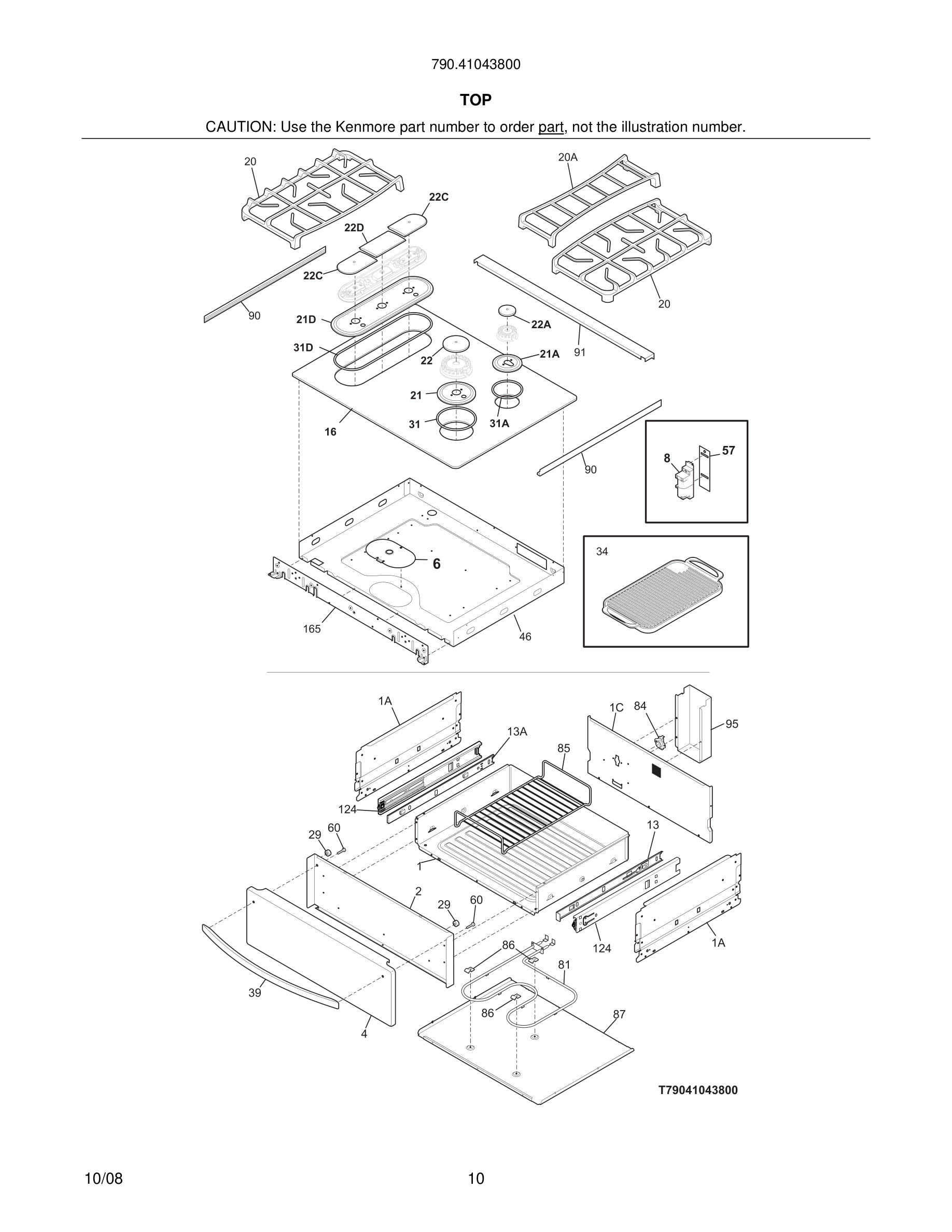

11 - TOP

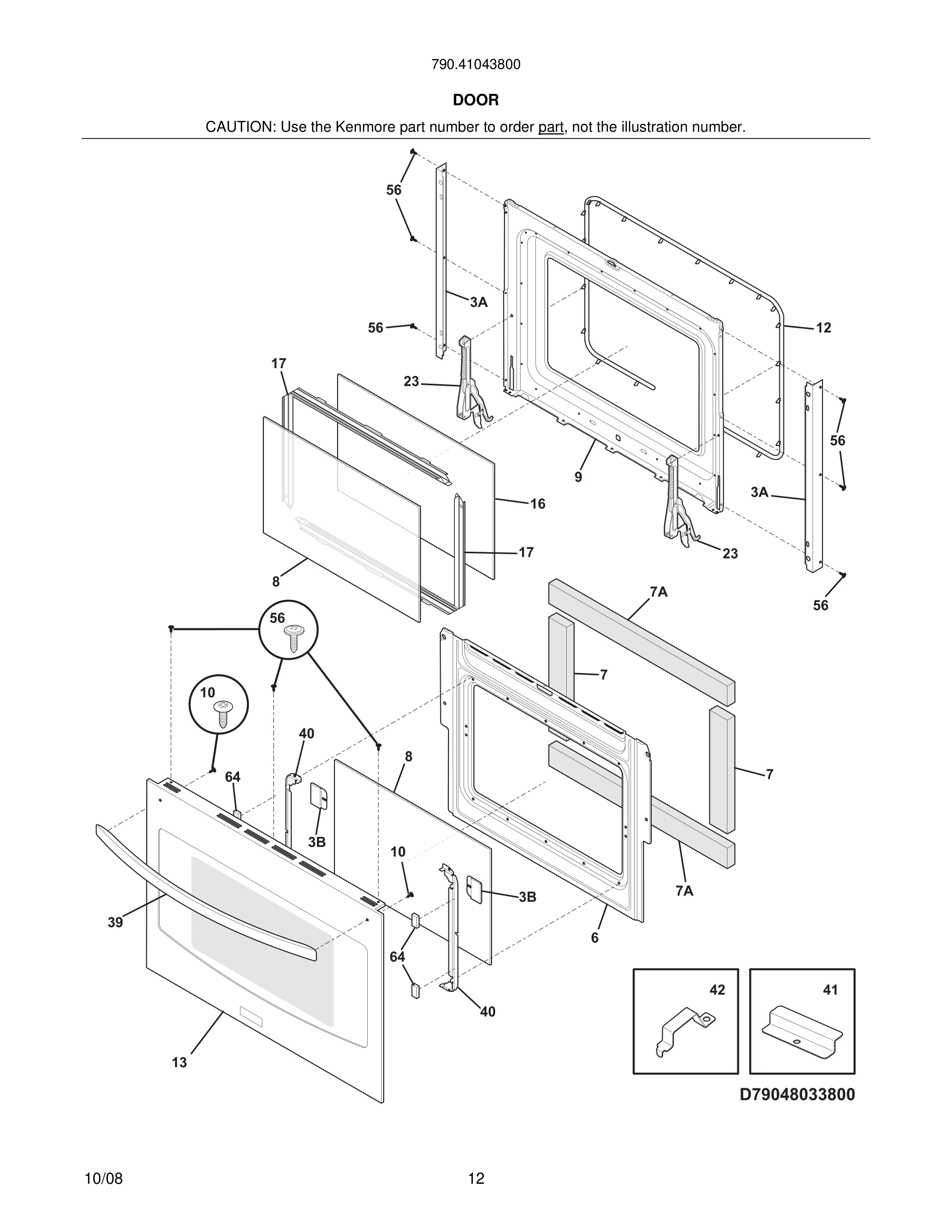

13 - DOOR

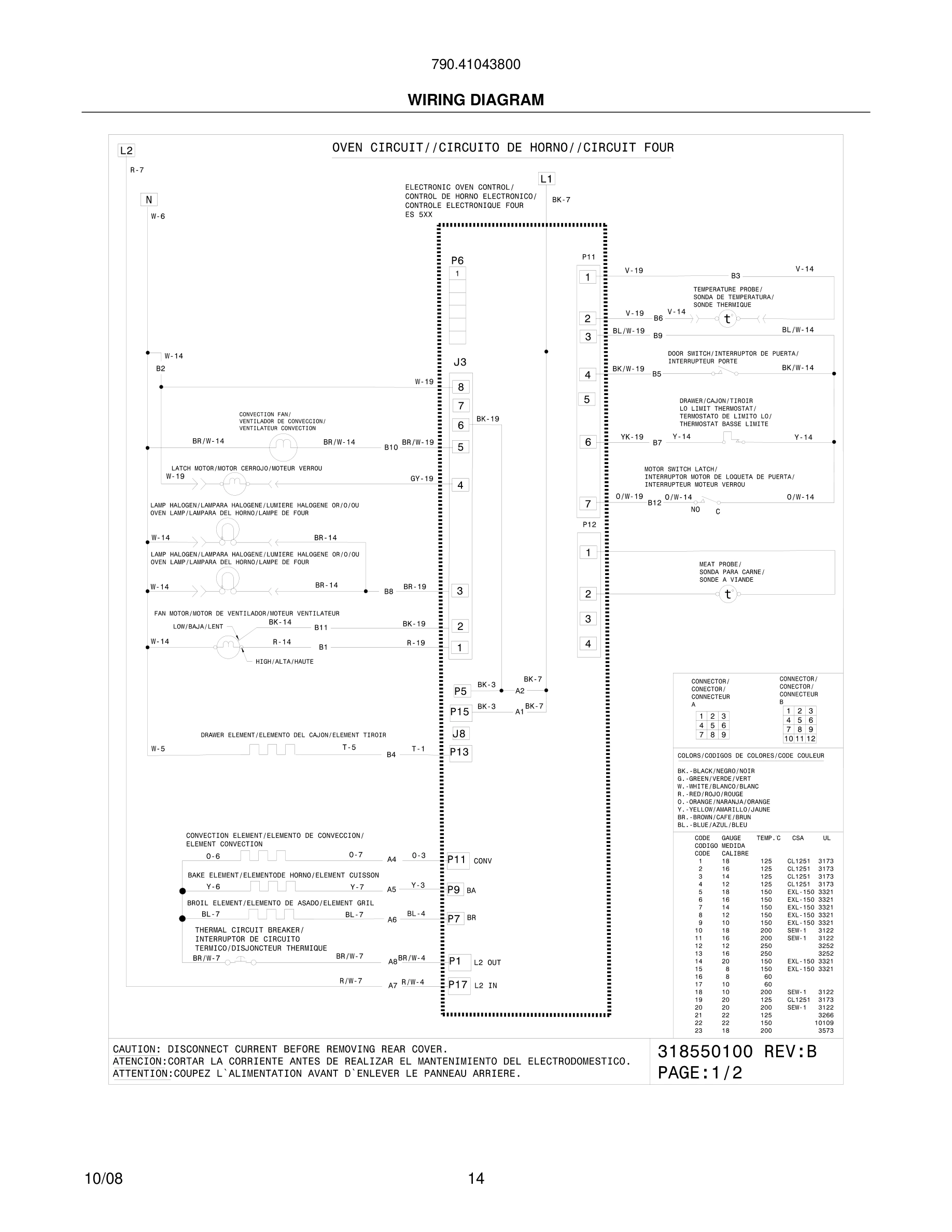

14 - WIRING DIAGRAM

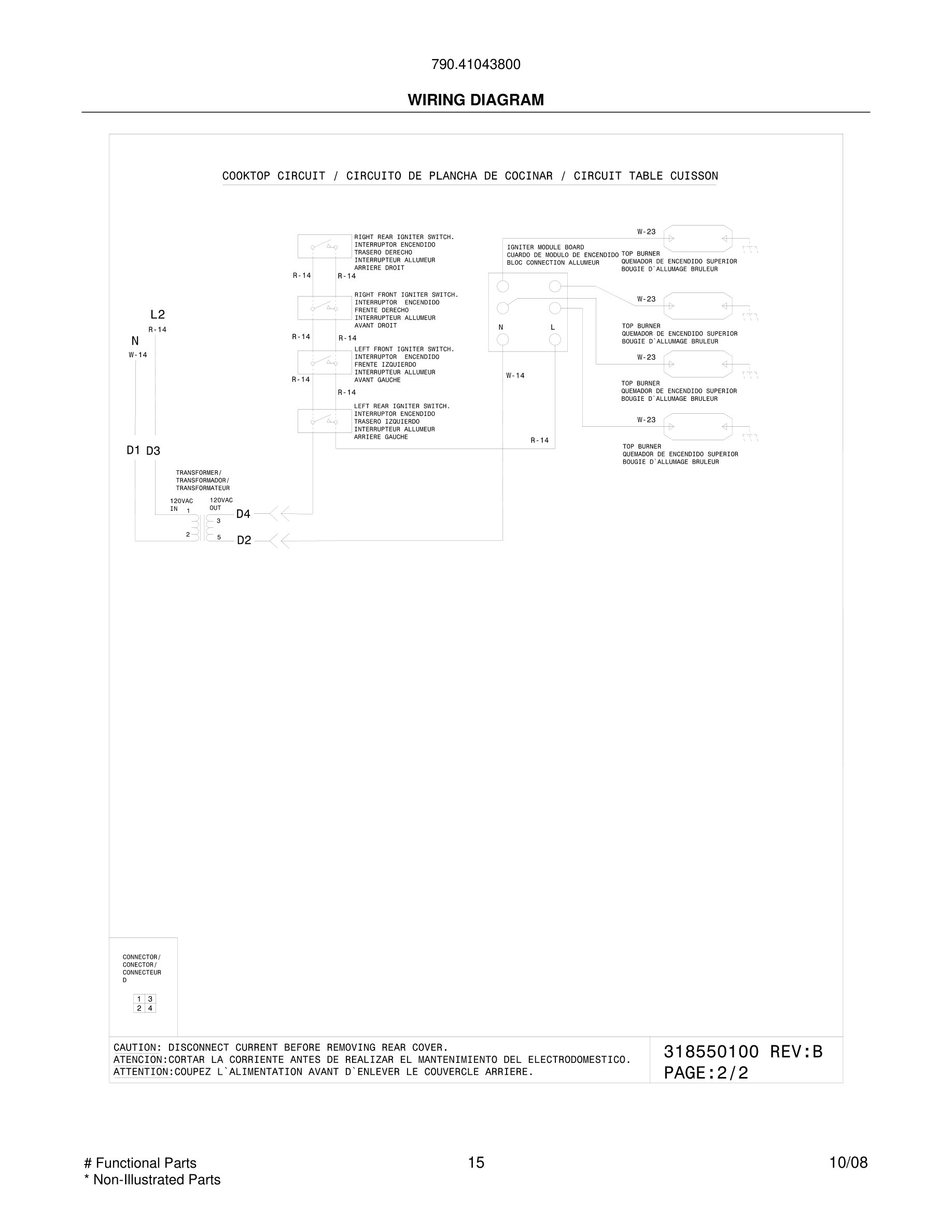

15 - WIRING DIAGRAM
Common parts from model Kenmore 790.41043800 RANGE
*
Pad, cleaning WCI 316459400 Contact Us For Availability
*
LP Conversion Kit WCI 318186910 Contact Us For Availability
*
Screw, shoulder, 8-18 X 1/2, (4) WCI 5304417153 Contact Us For Availability
*
Label, anti-tip WCI 316221000 Contact Us For Availability
2A#
Valve, top burner, 16/17K WCI 318233940 Contact Us For Availability
2C#
Valve, top burner, 9500 BTU WCI 318233910 Contact Us For Availability
2D#
Valve, top burner, dual port, 9K WCI 316412502 Contact Us For Availability
3#
Wiring Harness, w/igntr switch WCI 318232618 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
6
Baffle, door WCI 318260522 Contact Us For Availability
8A
Bracket, bake element WCI 318313601 Contact Us For Availability
9
Liner, oven door WCI 318411605 Contact Us For Availability
10A#
Burner, sealed, 16/17K WCI 316223300 Contact Us For Availability
11A
Ignitor Assembly, 17K, right front, w/tube & WCI 318306213 Contact Us For Availability
11E
Ignitor Assembly, 9K, left rear, w/tube & hol WCI 318306212 Contact Us For Availability
13
Door Assembly, outer, stainless/black, w/namp WCI 318919101 Contact Us For Availability
14#
Regulator-pressure WCI 316082904 Contact Us For Availability
16
Glass, oven door, heat barrier WCI 318212210 Contact Us For Availability
16
Main Top, assy., glass, black WCI 318223722 Contact Us For Availability
20
Plate, retainer WCI 318389400 Contact Us For Availability
21
Skirt, 16/17K burner, black WCI 316264803 Contact Us For Availability
21A
Skirt, 5K burner, black WCI 316241904 Contact Us For Availability
21D
Skirt, bridge burner, black WCI 316411703 Contact Us For Availability
22A
Cap, 5K burner, black WCI 316206505 Contact Us For Availability
22D
Cap, 9.5K burner, black, black, center WCI 316462103 Contact Us For Availability
23
Hinge, door, (2) WCI 318024747 Contact Us For Availability
31D
Seal, bridge burner WCI 316428300 Contact Us For Availability
35
Retainer, control panel, black WCI 318233720 Contact Us For Availability
36
Knob, top valve, stainless WCI 318921121 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
44B
Orifice, top burner, 5K WCI 316237903 Contact Us For Availability
44C
Orifice, top burner, 9K WCI 316237911 Contact Us For Availability
76
Front, oven WCI 318056217 Contact Us For Availability
77
Bracket, burner mtg, (4) WCI 318192606 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
86
Receptacle, hinge WCI 318328010 Contact Us For Availability
90
Channel, glass protector, (2) WCI 318368001 Contact Us For Availability
90
Panel, filler, black, RH WCI 318296904 Contact Us For Availability
101
Bushing, retainer WCI 318233401 Contact Us For Availability
107
Cover, fan WCI 318219405 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
127
Adapter Assembly, w/vent tube, and catalyst WCI 318357001 Contact Us For Availability
170
Anti-tip & accessories WCI 318335700 Contact Us For Availability
201
Frame, drawer WCI 318298210 Contact Us For Availability
× ![]()
