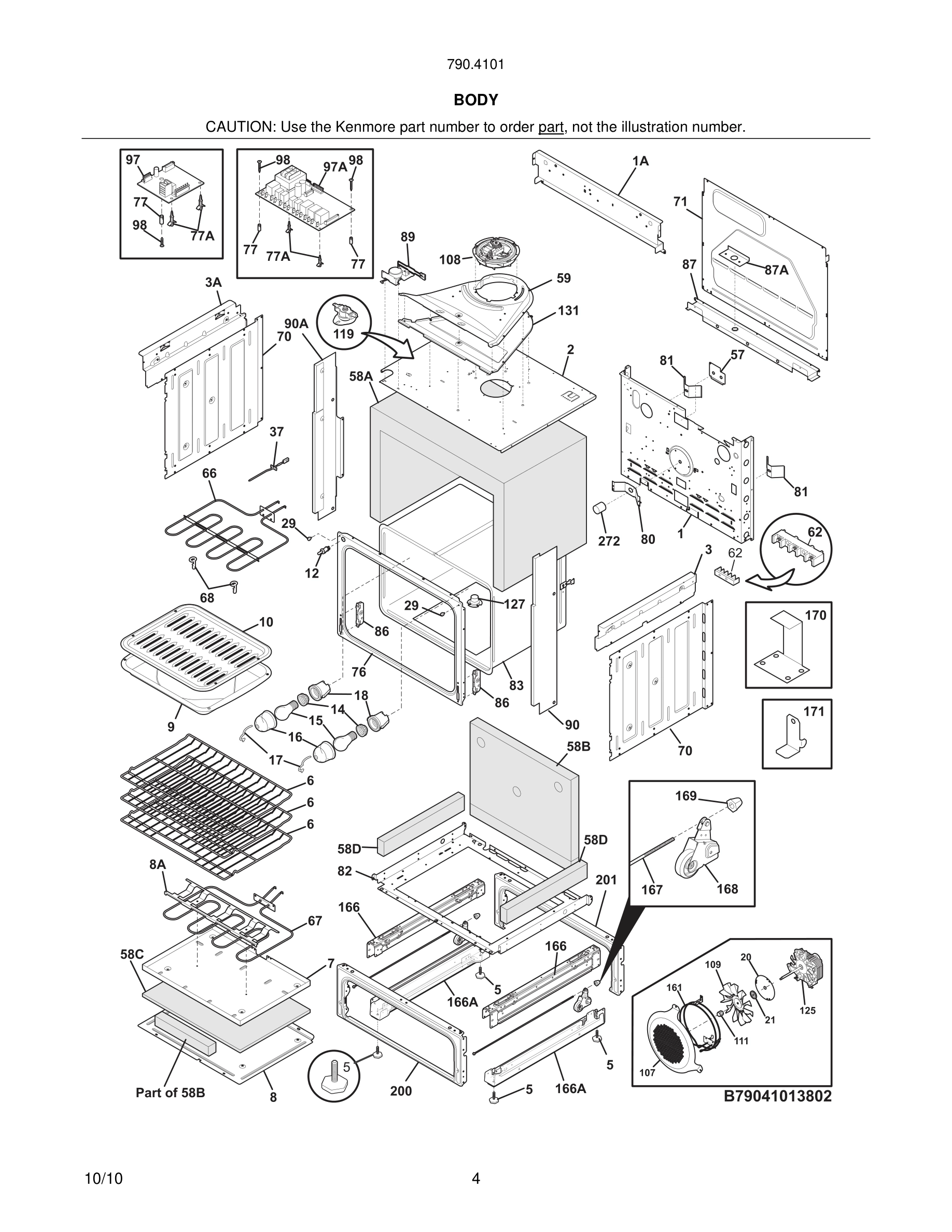

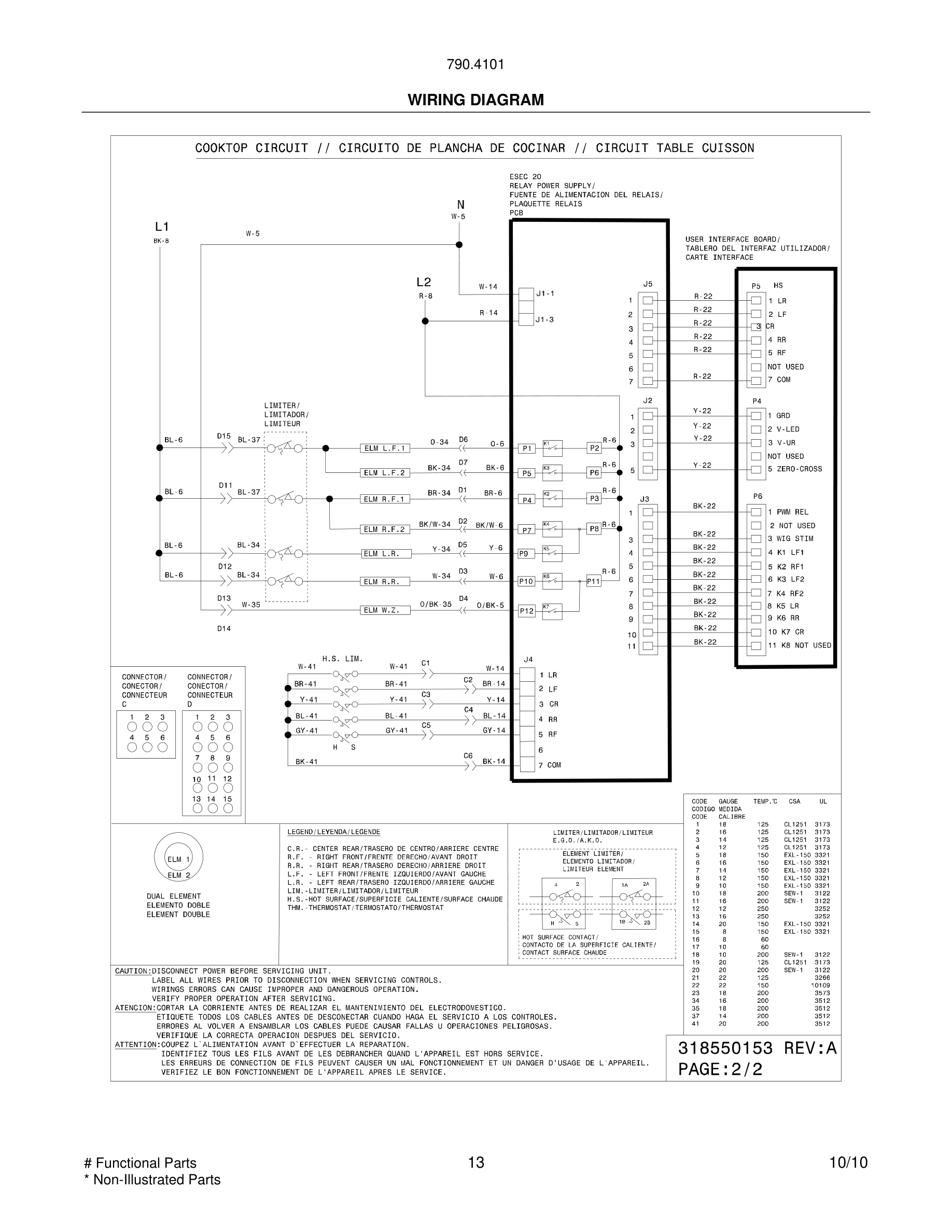

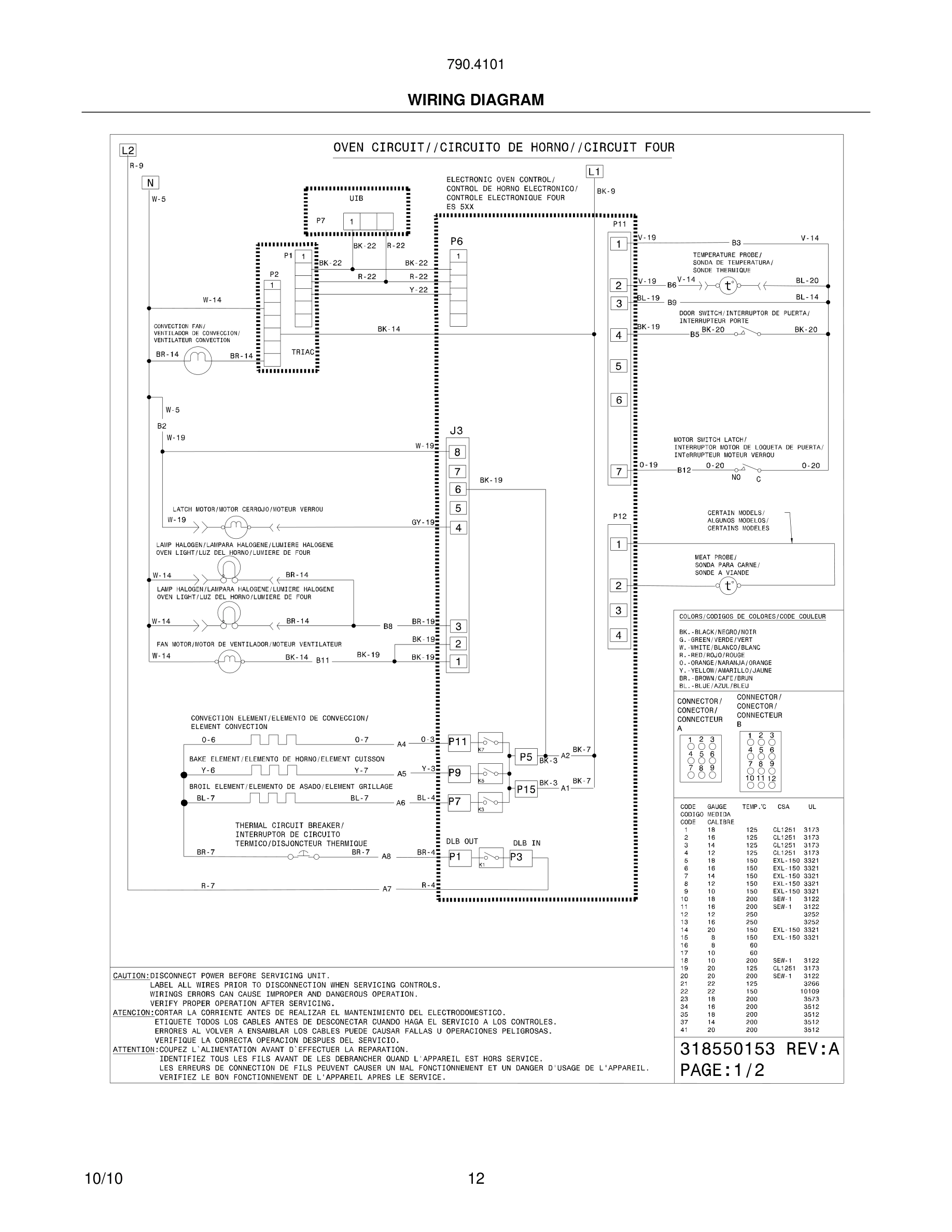

Model Kenmore 790.41012802 RANGE – Common Parts & Diagrams

*
Pad, cleaning
Pad, cleaning WCI 316459400 Contact Us For Availability
View on Model
*
Screw, 10-24 x 0.500, probe, thrm brkt, shiel
Screw, 10-24 x 0.500, probe, thrm brkt, shiel WCI 08002868 Contact Us For Availability
View on Model
3

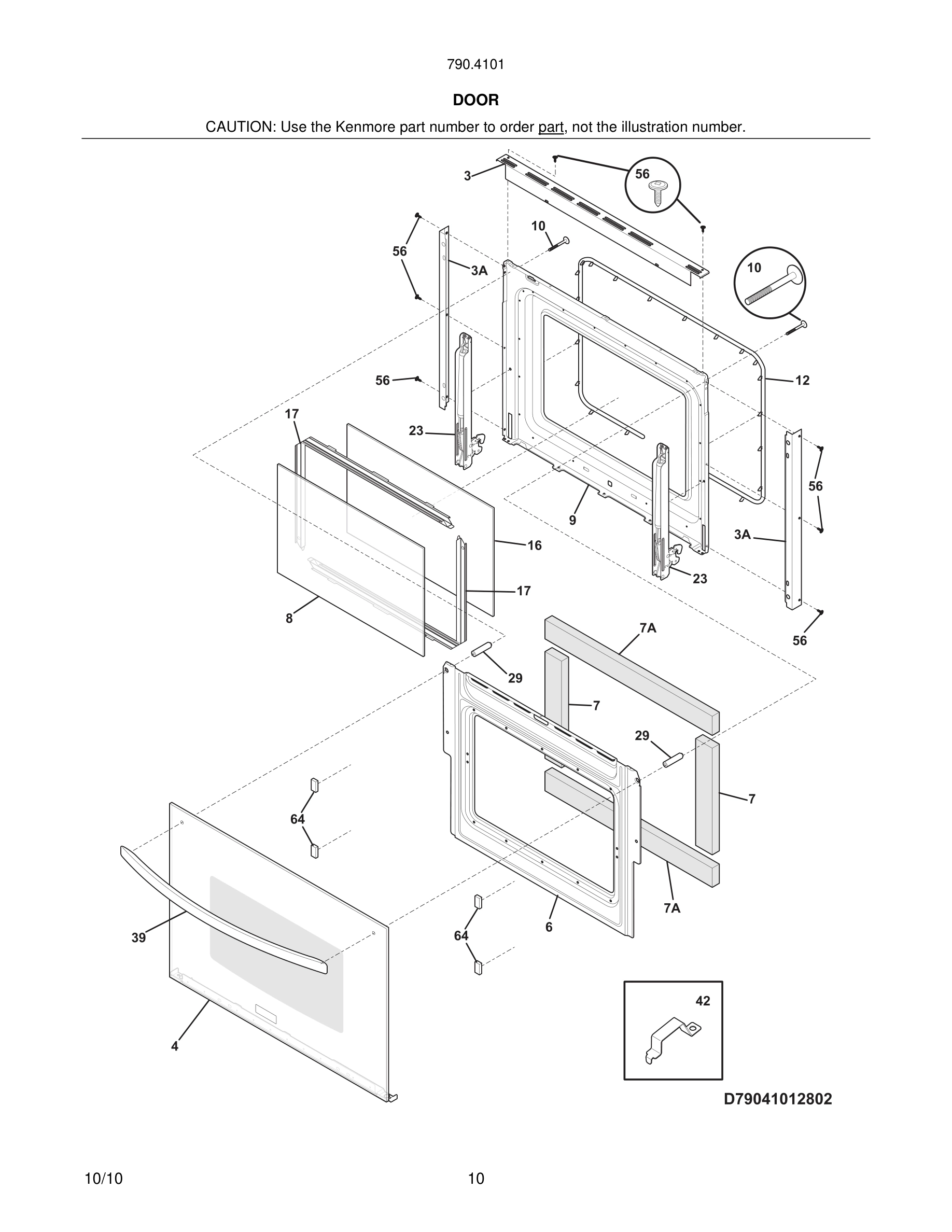

Trim, oven door, black, upper
Trim, oven door, black, upper WCI 318260201 Contact Us For Availability
View on Model
3A
Trim, oven door, side, (2)
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
View on Model
4
Glass Assy., oven door, white, outer, w/namep
Glass Assy., oven door, white, outer, w/namep WCI 318261311 Contact Us For Availability
View on Model
4
Glass Assy., oven door, black, outer, w/namep
Glass Assy., oven door, black, outer, w/namep WCI 318261312 Contact Us For Availability
View on Model
5
Screw, leveling
Screw, leveling WCI 318175503 Contact Us For Availability
View on Model
8A
Bracket, bake element
Bracket, bake element WCI 318313601 Contact Us For Availability
View on Model
9
Pan, broiler OPTIONAL ACCESS0RY
Pan, broiler OPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
View on Model
9
Liner, oven door
Liner, oven door WCI 318411650 Contact Us For Availability
View on Model
10
Insert, broiler pan OPTIONAL ACCESS0RY
Insert, broiler pan OPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
View on Model
13
Glide, warmer, inner RH
Glide, warmer, inner RH WCI 318259504 Contact Us For Availability
View on Model
13A
Glide, warmer, inner LH
Glide, warmer, inner LH WCI 318259505 Contact Us For Availability
View on Model
16
Glass, oven door, heat barrier, lower door
Glass, oven door, heat barrier, lower door WCI 318212210 Contact Us For Availability
View on Model
16

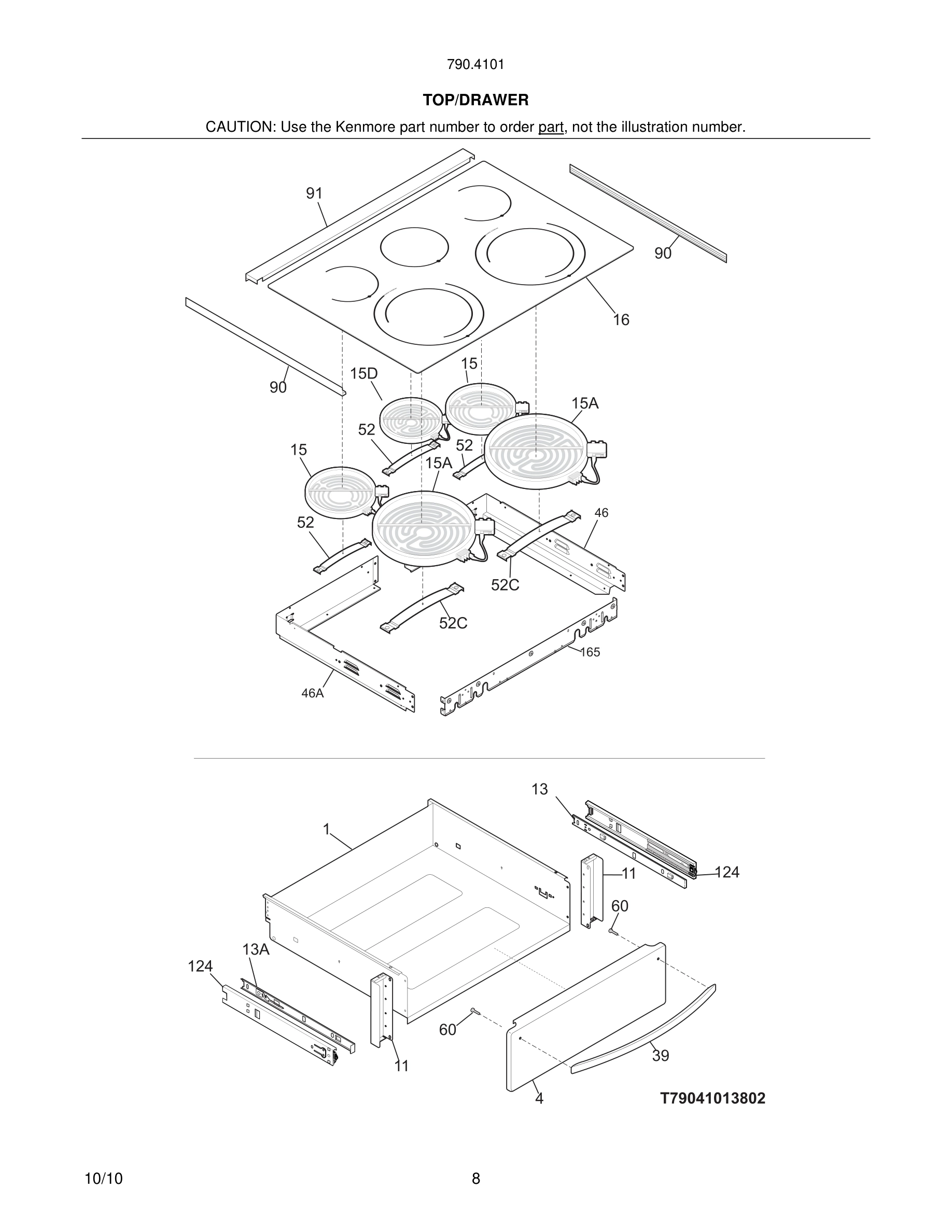

Main Top, glass assy., black
Main Top, glass assy., black WCI 318223675 Contact Us For Availability
View on Model
16
Console, assy., white
Console, assy., white WCI 318296600 Contact Us For Availability
View on Model
16
Main Top, glass assy., white
Main Top, glass assy., white WCI 318223670 Contact Us For Availability
View on Model
17
Retainer, light cover
Retainer, light cover WCI 5304400195 Contact Us For Availability
View on Model
18
Housing, oven light
Housing, oven light WCI 318222400 Contact Us For Availability
View on Model
19#
Control Panel, assembly, blk/stnls
Control Panel, assembly, blk/stnls WCI 318918001 Contact Us For Availability
View on Model
20
Plate, retainer
Plate, retainer WCI 318389400 Contact Us For Availability
View on Model
20#
Controller, electronic, ES585
Controller, electronic, ES585 WCI 316577016 Contact Us For Availability
View on Model
23
Hinge, oven door, (2)
Hinge, oven door, (2) WCI 318567101 Contact Us For Availability
View on Model
39
Handle, door, white, w/spacer
Handle, door, white, w/spacer WCI 318372416 Contact Us For Availability
View on Model
39
Handle, door, black, w/spacer
Handle, door, black, w/spacer WCI 318372417 Contact Us For Availability
View on Model
81
Spring, oven
Spring, oven WCI 318192400 Contact Us For Availability
View on Model
90
Channel, glass protector, (2)
Channel, glass protector, (2) WCI 318368001 Contact Us For Availability
View on Model
90
Panel, filler, black, RH
Panel, filler, black, RH WCI 318296904 Contact Us For Availability
View on Model
90
Panel, filler, white, RH
Panel, filler, white, RH WCI 318296902 Contact Us For Availability
View on Model
90A
Panel, filler, white, LH
Panel, filler, white, LH WCI 318296903 Contact Us For Availability
View on Model
91
Trim, filler, white, rear
Trim, filler, white, rear WCI 318304301 Contact Us For Availability
View on Model
97#
Board, relay, convection
Board, relay, convection WCI 316519204 Contact Us For Availability
View on Model
97A#
Board, power, UIB
Board, power, UIB WCI 316575431 Contact Us For Availability
View on Model
107
Cover, fan
Cover, fan WCI 318219405 Contact Us For Availability
View on Model
124
Glide, drawer, outer/RH & LH, (2)
Glide, drawer, outer/RH & LH, (2) WCI 318330600 No Longer Available
View on Model
127
Adapter Assembly, vent tube, w/converter
Adapter Assembly, vent tube, w/converter WCI 318317105 Contact Us For Availability
View on Model
170
Anti-tip & accessories
Anti-tip & accessories WCI 318335700 Contact Us For Availability
View on Model
