Model Kenmore 790.40613800 OVEN – Common Parts & Diagrams
01 - COVER

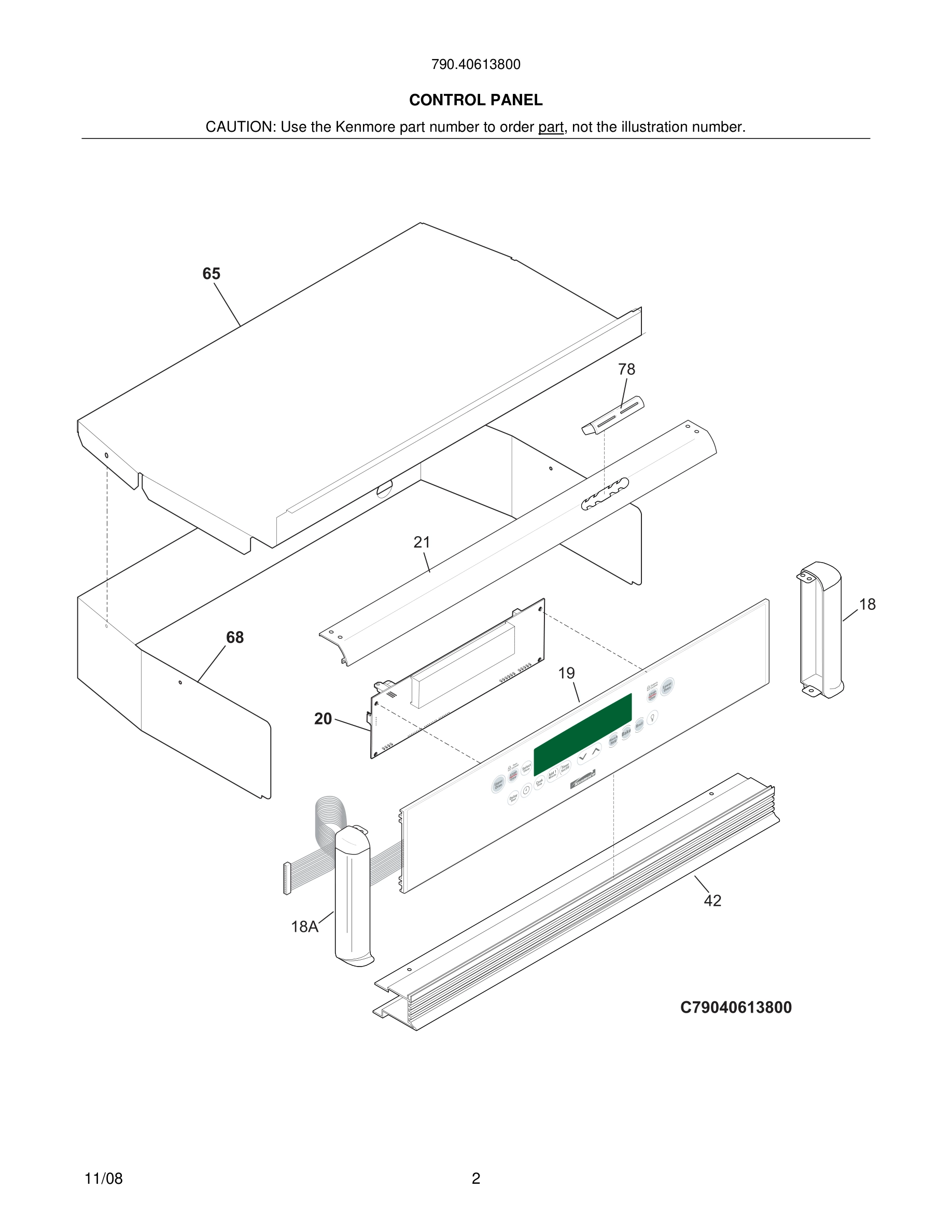

03 - CONTROL PANEL
05 - UPPER OVEN
07 - LOWER OVEN
09 - DOORS
10 - WIRING DIAGRAM
Common parts from model Kenmore 790.40613800 OVEN
*
Screw, 10-24 x 0.500, probe, thrm brkt, shiel WCI 08002868 Contact Us For Availability
*
Clip, insulator WCI 3016303 Contact Us For Availability
*
Screw, 10-16x1-1/8, square drive WCI 5303302745 Contact Us For Availability
*
Plug, button WCI 5304445498 Contact Us For Availability
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
*
Screw, 10-16 x 1 1/2 WCI 5303325981 Contact Us For Availability
*#
Wiring Harness, door switch WCI 318370377 Contact Us For Availability
*#
Wiring Harness, main WCI 318370300 Contact Us For Availability
2A
Shield, insulation WCI 5303305035 Contact Us For Availability
3
Glass, oven door, black, outer WCI 318051527 Contact Us For Availability
4
Panel, exterior door, stainless WCI 318280006 Contact Us For Availability
5
Glass, door, inner, (2) WCI 318212410 Contact Us For Availability
6
Rack, oven, (2) WCI 318345304 Contact Us For Availability
6
Shield, air wash WCI 318073610 Contact Us For Availability
7
Insulation, oven door WCI 318285086 Contact Us For Availability
9
Liner, oven door, lower oven WCI 318156611 Contact Us For Availability
9A
Deflector, upper oven WCI 318160503 Contact Us For Availability
11
Latch, door WCI 318065102 Contact Us For Availability
12
Seal, oven door, lower oven WCI 5303316768 Contact Us For Availability
12A
Seal, oven door, upper oven WCI 318178801 Contact Us For Availability
14*
Insulation, oven light WCI 318268099 Contact Us For Availability
15
Bracket, glass, (3) WCI 318091102 Contact Us For Availability
16
Glass, door, inner WCI 318212400 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Support, glass, lower oven WCI 318162614 Contact Us For Availability
17A
Spacer, glass, upper oven WCI 318139102 Contact Us For Availability
18
Gasket, door glass seal, inner, lower oven WCI 318053206 Contact Us For Availability
18A
Seal, window, upper oven WCI 318293400 Contact Us For Availability
19
Collar, glass mtg WCI 318139207 Contact Us For Availability
23
Hinge, door, lower door, (2) WCI 318024746 Contact Us For Availability
23A
Hinge, door, upper door, (2) WCI 318024744 Contact Us For Availability
25
Liner, oven door WCI 318048311 Contact Us For Availability
39
Handle, door, black, oven WCI 318264410 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
56
Trim, bodyside, black WCI 318176932 Contact Us For Availability
58A
Insulation, oven wrapper WCI 318285044 Contact Us For Availability
58B
Insulation, oven back WCI 318285036 Contact Us For Availability
59
Tube, oven vent, upper WCI 318072545 Contact Us For Availability
59
Plug, button WCI 3202113 Contact Us For Availability
60
Foam seal, (2) WCI 5303316982 Contact Us For Availability
71
Shield, rear wall WCI 318071141 Contact Us For Availability
76
Front-oven WCI 318056122 Contact Us For Availability
80
Spring, oven WCI 318192400 Contact Us For Availability
81
Bracket, oven WCI 5303323710 Contact Us For Availability
83
Liner, oven WCI 318089522 Contact Us For Availability
86
Receptacle, hinge WCI 318328010 Contact Us For Availability
89#
Motor, latch assy, w/brkt & switch WCI 318095955 Contact Us For Availability
96
Duct, oven vent WCI 318294600 Contact Us For Availability
96A
Duct, oven vent WCI 318072571 Contact Us For Availability
96B
Duct, oven pipe WCI 318072570 Contact Us For Availability
97
Wrapper, back & sides WCI 318066602 Contact Us For Availability
98
Trim, side, inner, RH WCI 318029390 Contact Us For Availability
98A
Trim, side, inner, LH WCI 318029391 Contact Us For Availability
101
Bracket, trim, black WCI 318039511 Contact Us For Availability
102
Cap, top panel, RH WCI 318070700 Contact Us For Availability
102A
Cap, top panel, LH WCI 318070701 Contact Us For Availability
103
Trim, base, black WCI 318028710 Contact Us For Availability
121
Wrapper, base WCI 318145005 Contact Us For Availability
123
Shield, insulation, top & sides WCI 318071444 Contact Us For Availability
128
Bushing, latch rod WCI 318563000 Contact Us For Availability
156
Bracket, oven vent WCI 5303317198 Contact Us For Availability
189
Plate, retainer WCI 318042500 Contact Us For Availability
219#
Thermostat, safety WCI 318003616 Contact Us For Availability
227
Clip, retainer WCI 318370900 Contact Us For Availability
× ![]()
