Model Kenmore 790.40612803 OVEN – Common Parts & Diagrams
01 - COVER
03 - CONTROL PANEL
05 - UPPER OVEN

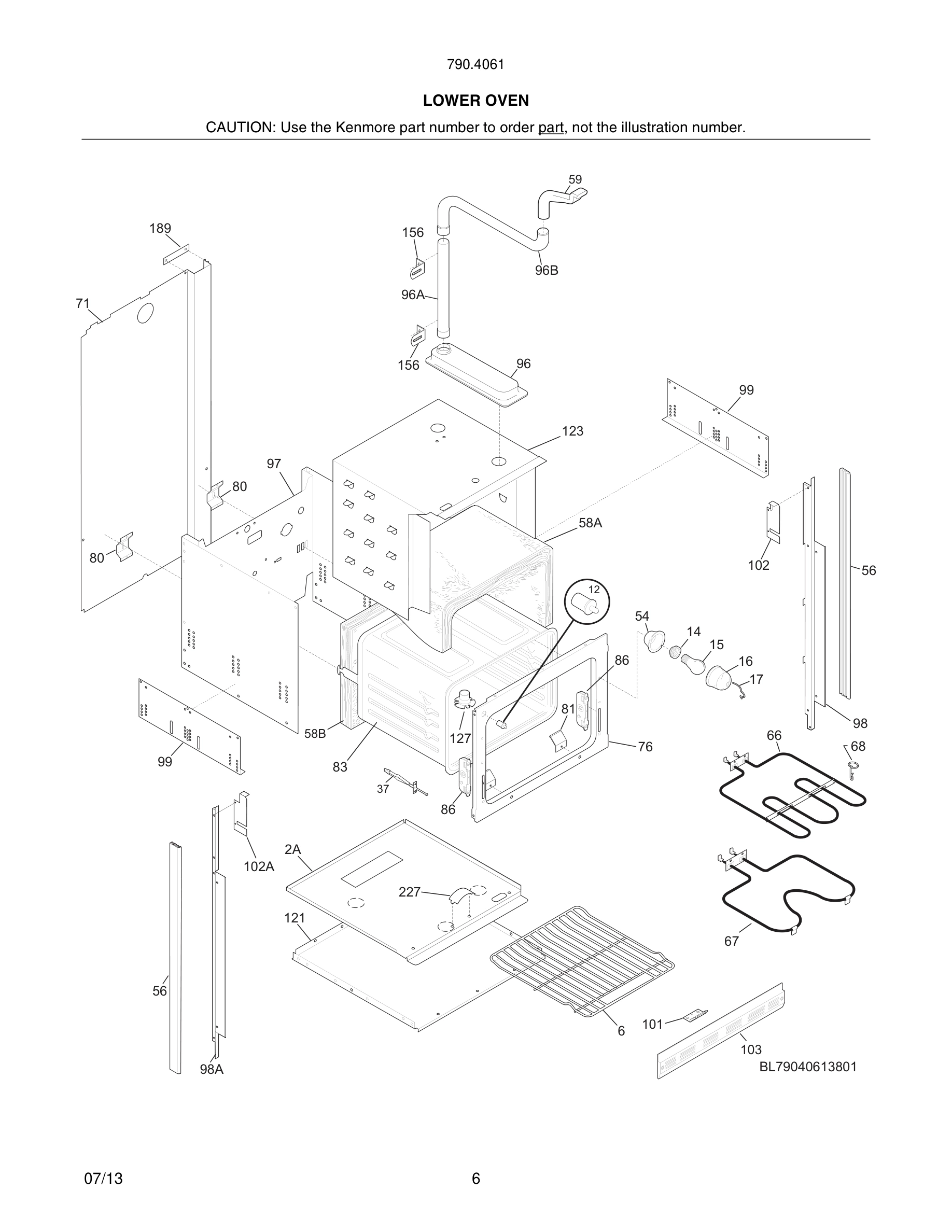

07 - LOWER OVEN

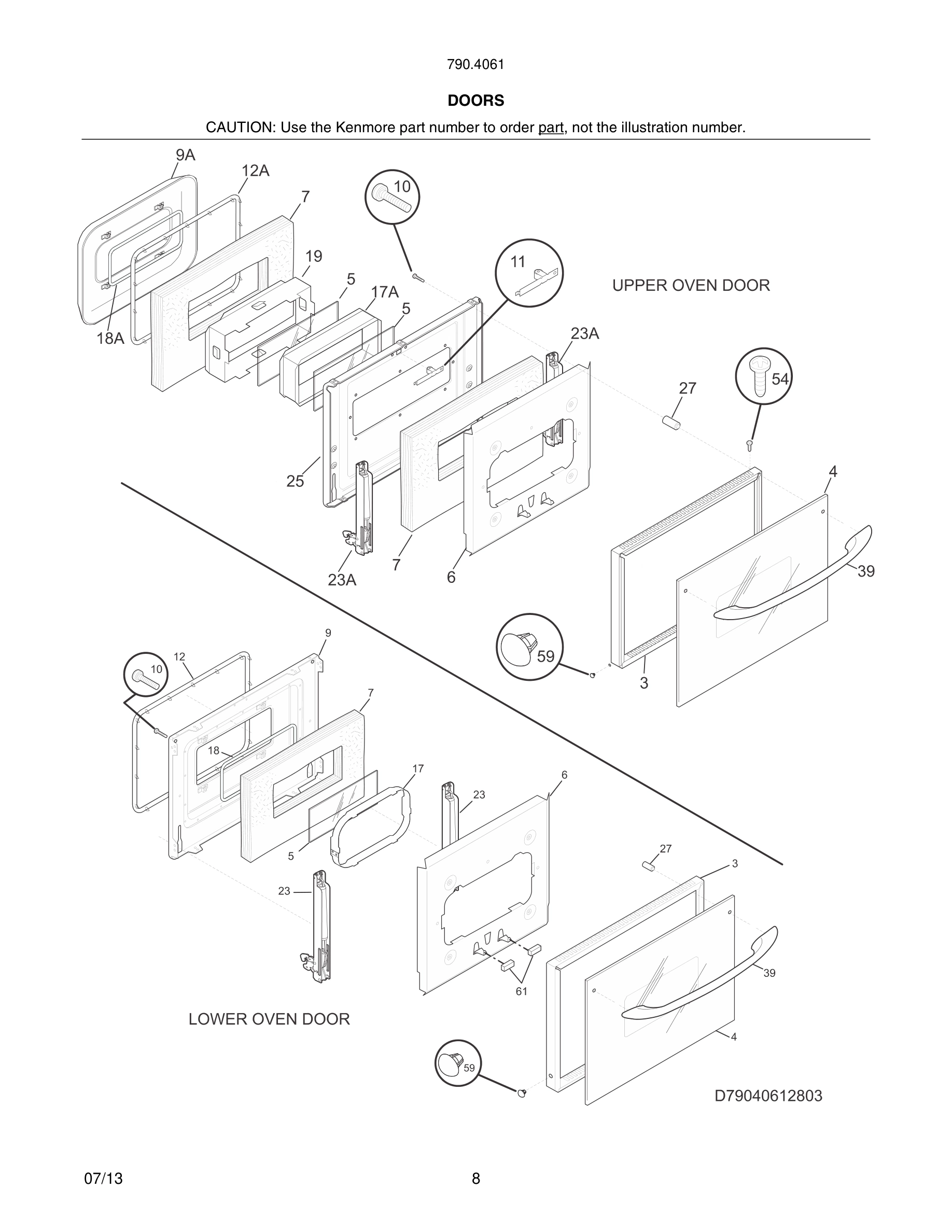

09 - DOORS

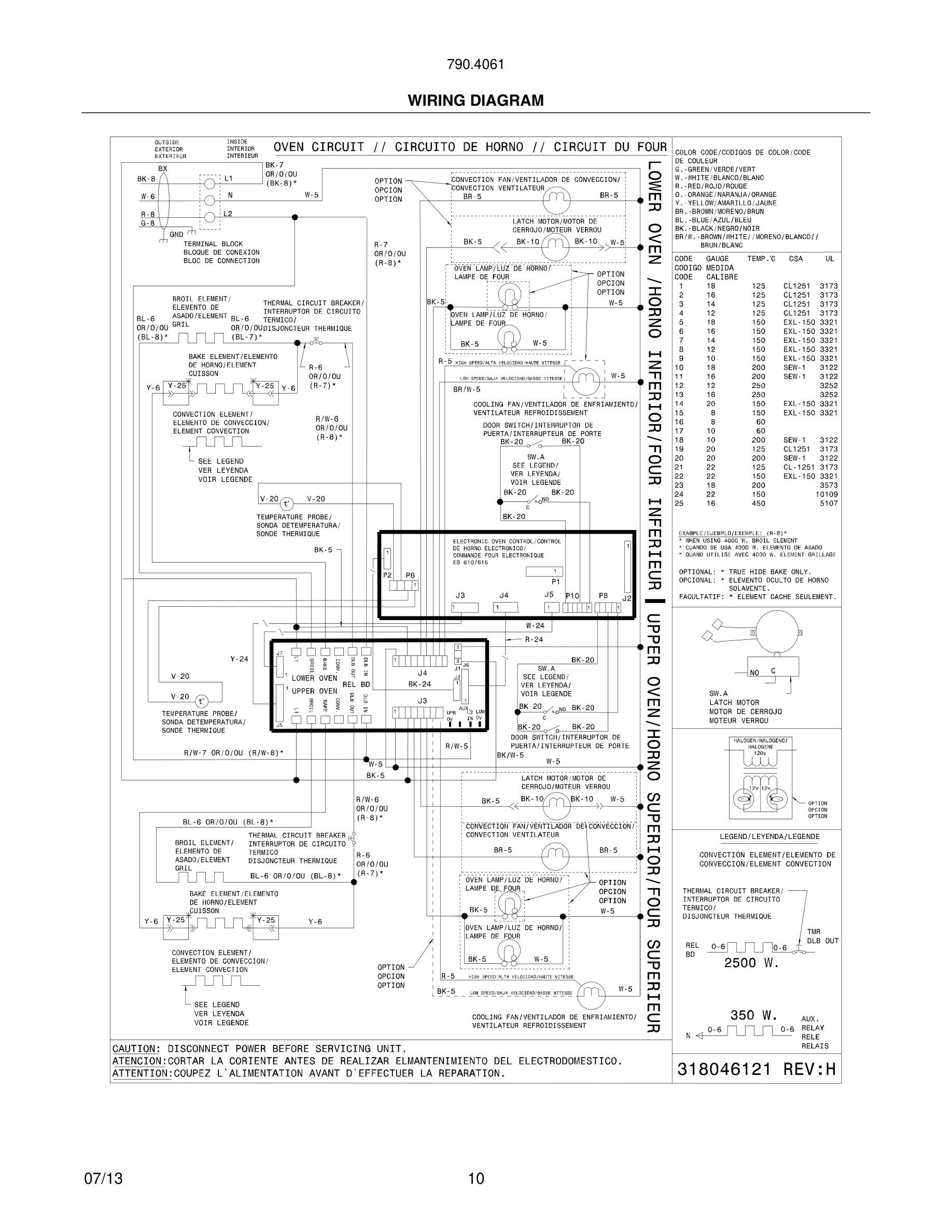

10 - WIRING DIAGRAM
Common parts from model Kenmore 790.40612803 OVEN
*
Screw, 10-24 x 0.500, probe, thrm brkt, shiel WCI 08002868 Contact Us For Availability
*
Foam seal, (2) WCI 5303316982 Contact Us For Availability
*
Screw, 10-16 x 1 1/2 WCI 5303325981 Contact Us For Availability
3
Trim, frame, black WCI 318287400 Contact Us For Availability
3
Trim, frame, white WCI 318287300 Contact Us For Availability
4
Glass, oven door, black, outer WCI 318051556 Contact Us For Availability
4
Glass, oven door, white, outer WCI 318051555 Contact Us For Availability
5
Glass, door, inner WCI 318212410 Contact Us For Availability
6
Rack, oven, (2) WCI 318345304 Contact Us For Availability
6
Shield, air wash WCI 318073610 Contact Us For Availability
7
Insulation, oven door WCI 807108001 Contact Us For Availability
9
Liner, oven door WCI 318156613 Contact Us For Availability
9A
Deflector, upper oven WCI 318160503 Contact Us For Availability
10
Screw, 10-24 x 2 3/16 WCI 5303311217 Contact Us For Availability
11
Latch, door WCI 318065102 Contact Us For Availability
12
Seal, oven door, lower oven WCI 5303316768 Contact Us For Availability
12A
Seal, oven door, upper oven WCI 318178801 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Support, glass, lower oven WCI 318162614 Contact Us For Availability
17A
Spacer, glass, upper oven WCI 318139102 Contact Us For Availability
18
Gasket, door glass seal, inner, lower oven WCI 318053206 Contact Us For Availability
18A
Seal, window, upper oven WCI 318293400 Contact Us For Availability
19
Collar, glass mtg WCI 318139207 Contact Us For Availability
23
Hinge, door, oven, (2) WCI 318567112 Contact Us For Availability
23A
Hinge, oven door WCI 318567104 Contact Us For Availability
25
Liner, oven door WCI 318048321 Contact Us For Availability
27
Spacer, door WCI 318014410 Contact Us For Availability
39
Handle, door, white, oven WCI 318264411 Contact Us For Availability
39
Handle, door, black, oven WCI 318264410 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
58B
Insulation, oven back WCI 807107501 Contact Us For Availability
59
Tube, oven vent, upper WCI 318072593 Contact Us For Availability
59
Plug, button WCI 3202113 Contact Us For Availability
61
Spacer, cork & rubber WCI 5303300414 Contact Us For Availability
71
Shield, rear wall WCI 318071141 Contact Us For Availability
76
Front-oven WCI 318056141 Contact Us For Availability
78
Cover, oven vent, white WCI 318036904 Contact Us For Availability
80
Spring, oven WCI 318192400 Contact Us For Availability
81
Bracket, oven WCI 5303323710 Contact Us For Availability
83
Liner, oven WCI 318089522 Contact Us For Availability
89#
Motor, latch assy, w/brkt & switch WCI 318095955 Contact Us For Availability
96
Duct, oven vent WCI 318294600 Contact Us For Availability
96A
Duct-oven vent WCI 318549827 Contact Us For Availability
96B
Duct-oven vent WCI 318549826 Contact Us For Availability
97
Wrapper, back & sides WCI 318066602 Contact Us For Availability
98
Trim, side, black, inner, RH WCI 318029398 Contact Us For Availability
98A
Trim, side, black, inner, LH WCI 318029399 Contact Us For Availability
101
Bracket, trim, white WCI 318039512 Contact Us For Availability
101
Bracket, trim, black WCI 318039511 Contact Us For Availability
102
Cap, top panel, RH WCI 318070700 Contact Us For Availability
102A
Cap, top panel, LH WCI 318070701 Contact Us For Availability
103
Trim, base, white WCI 318028711 Contact Us For Availability
103
Trim, base, black WCI 318028710 Contact Us For Availability
108#
Motor, blower WCI 318073032 Contact Us For Availability
121
Wrapper, base WCI 318145005 Contact Us For Availability
123
Shield, insulation, top & sides WCI 318071444 Contact Us For Availability
128
Bushing, latch rod WCI 318563000 Contact Us For Availability
156
Bracket, oven vent WCI 5303317198 Contact Us For Availability
189
Plate, retainer WCI 318042500 Contact Us For Availability
219#
Thermostat, safety WCI 318003616 Contact Us For Availability
227
Clip, retainer WCI 318370900 Contact Us For Availability
× ![]()
