Model Kenmore 790.40453800 OVEN – Common Parts & Diagrams

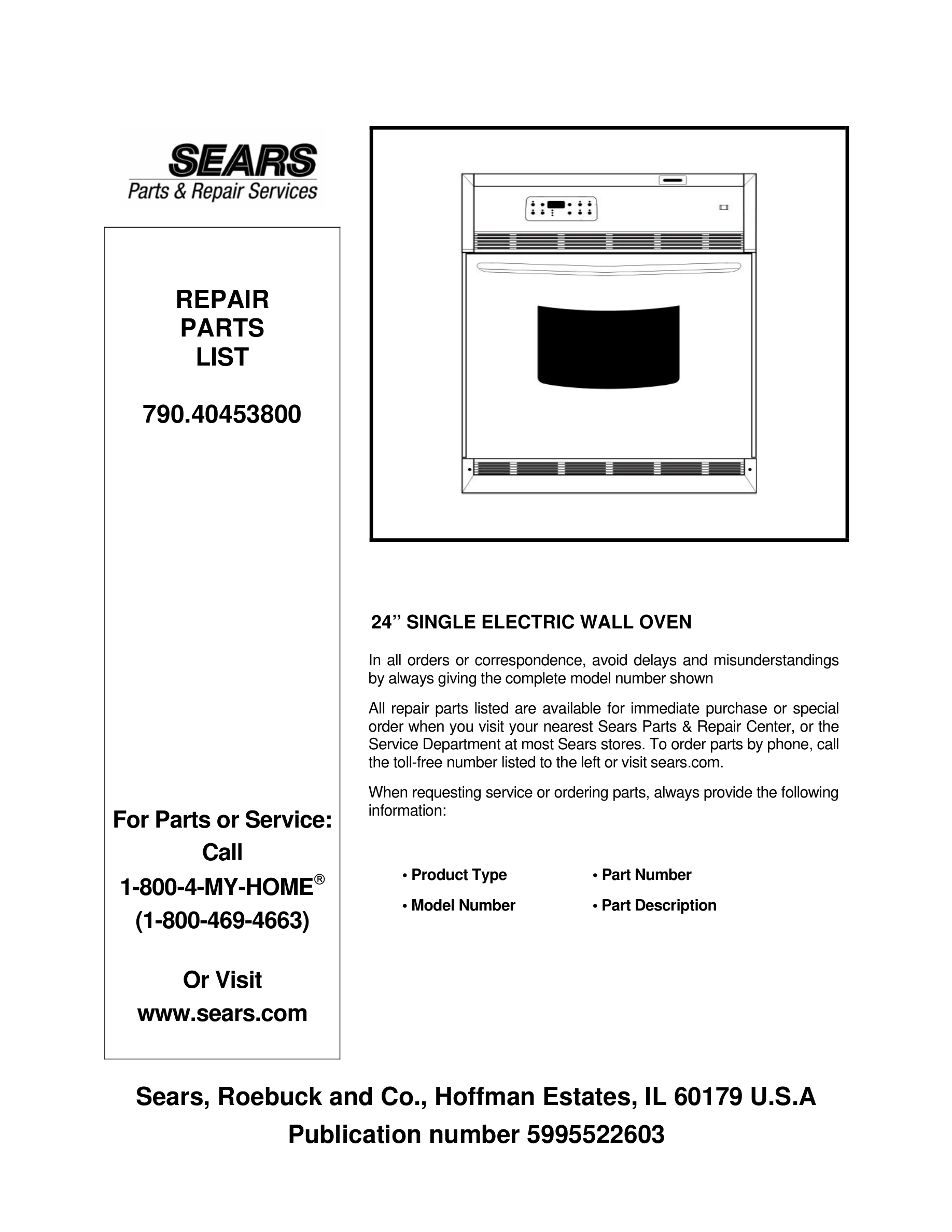

01 - COVER

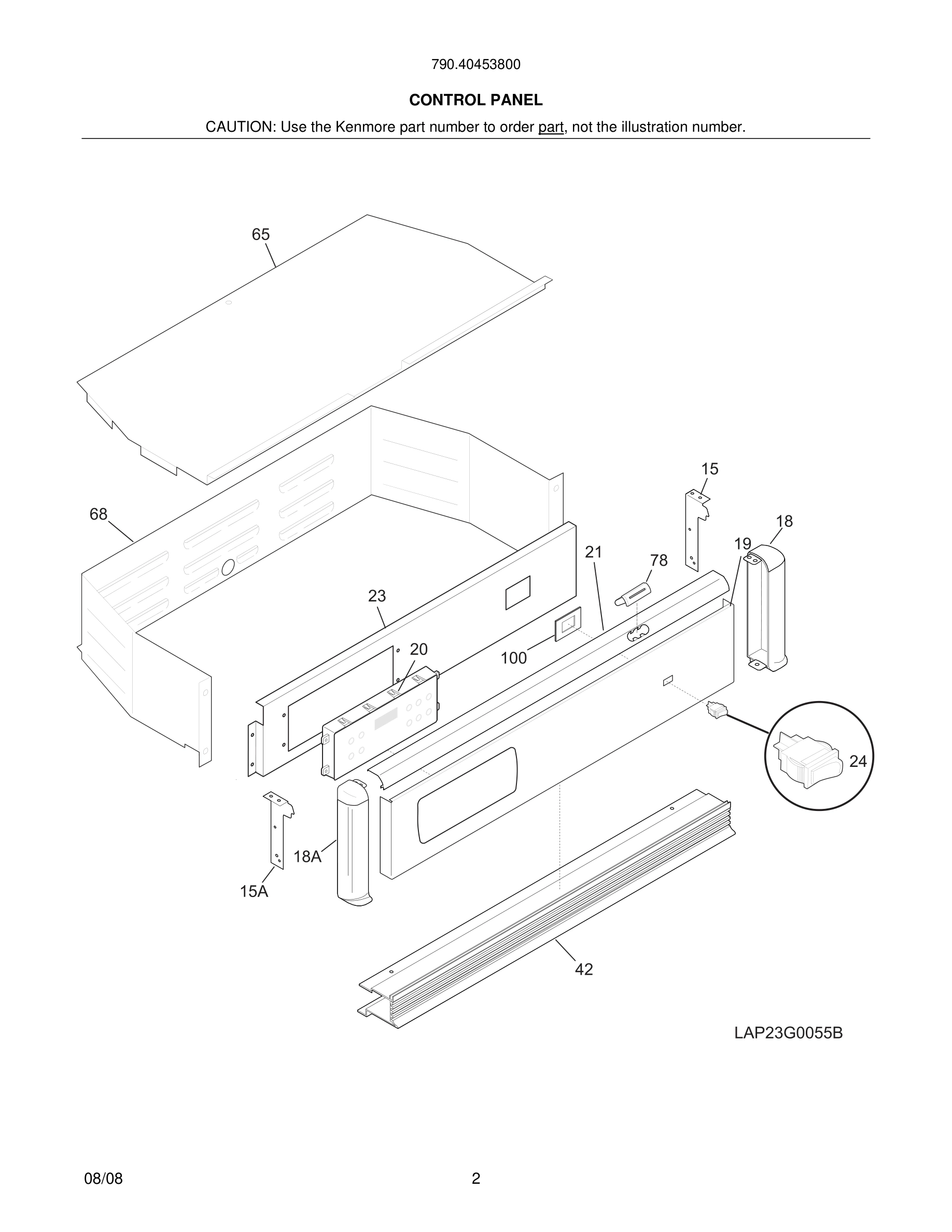

03 - CONTROL PANEL

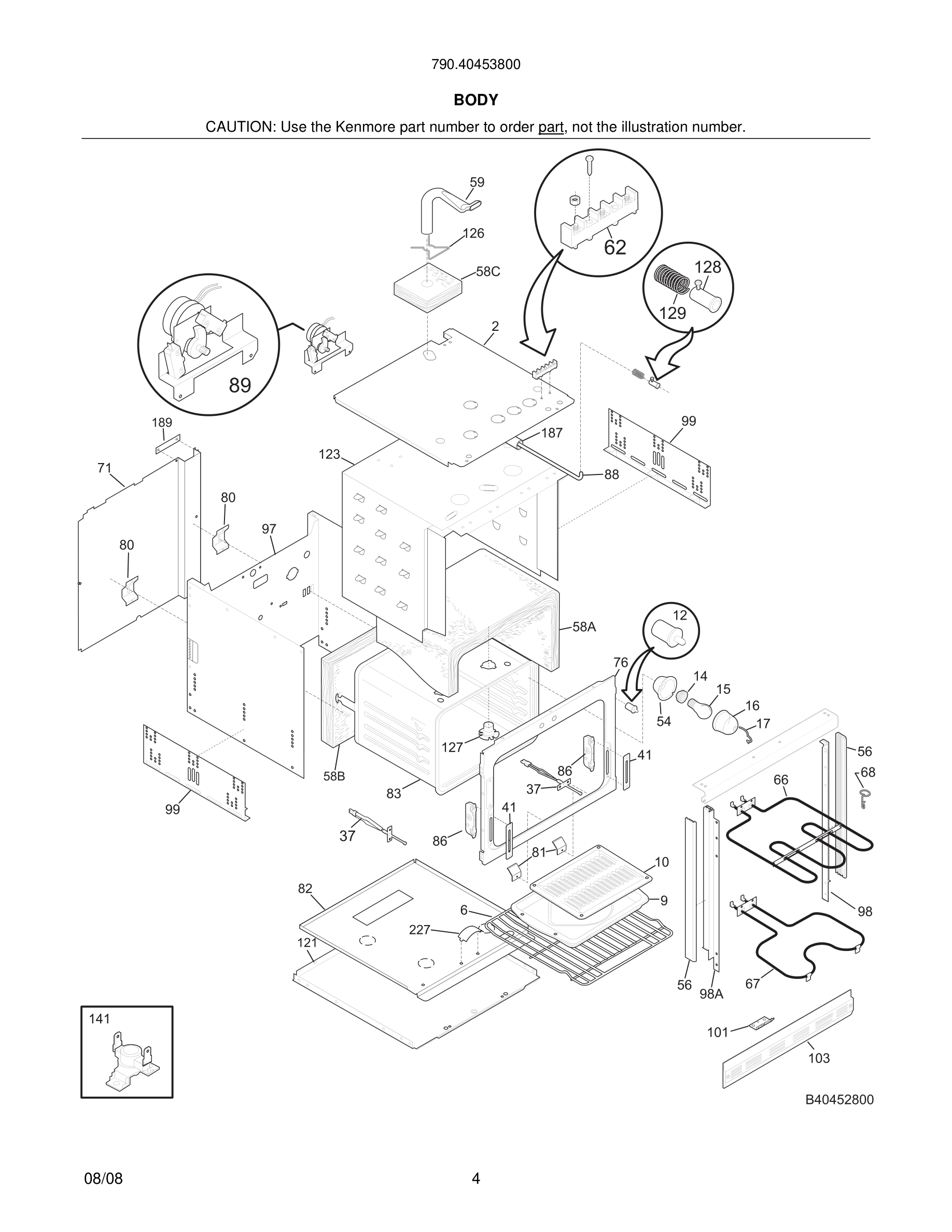

05 - BODY

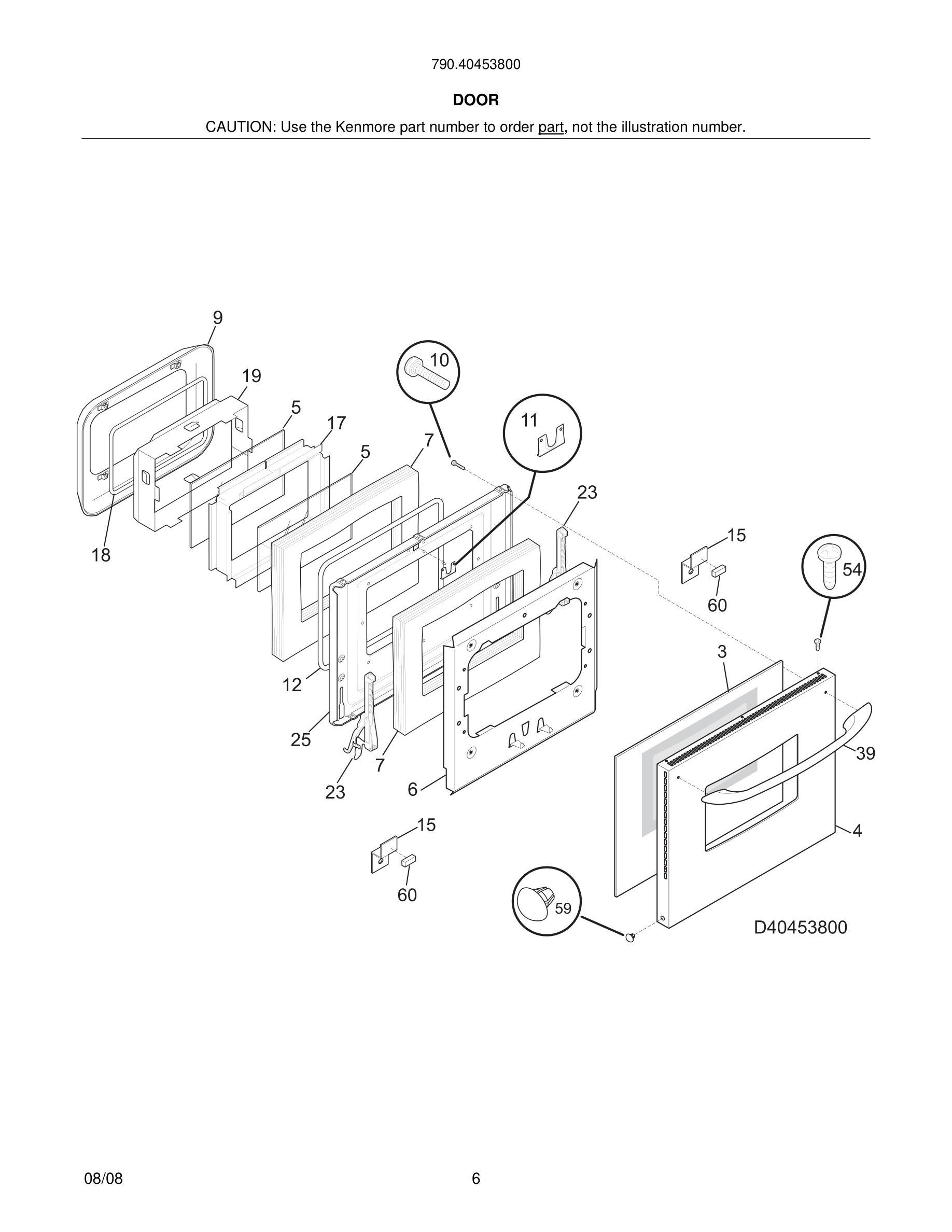

07 - DOOR

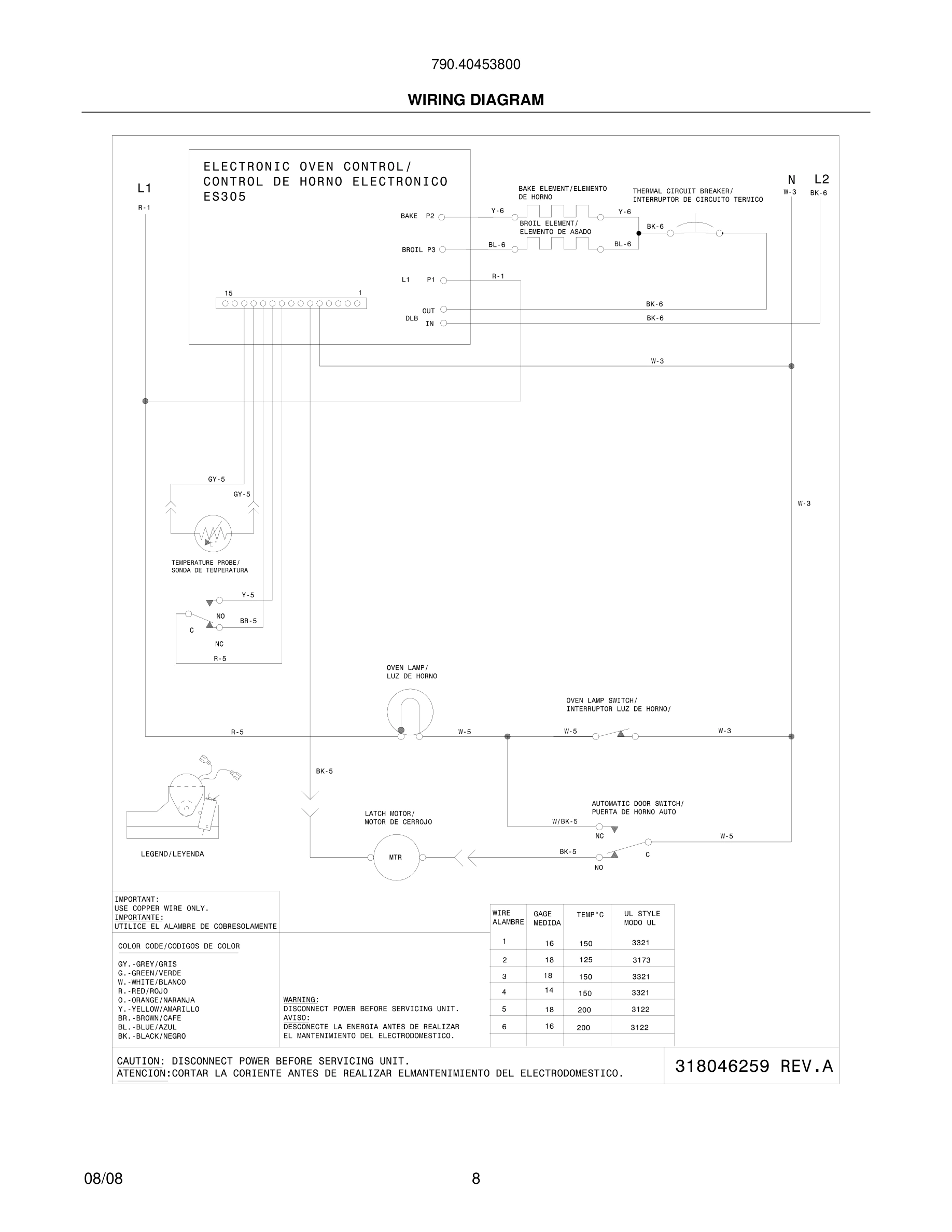

08 - WIRING DIAGRAM
Common parts from model Kenmore 790.40453800 OVEN
*
Screw, 10-24 x 0.500, probe, thrm brkt, shiel WCI 08002868 Contact Us For Availability
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
*
Screw, 10-16 x 1 1/2 WCI 5303325981 Contact Us For Availability
3
Glass, oven door, black, outer WCI 318051527 Contact Us For Availability
4
Panel, exterior door, stainless WCI 318280006 Contact Us For Availability
5
Glass, door, inner, (2) WCI 318212410 Contact Us For Availability
6
Shield, air wash WCI 318073610 Contact Us For Availability
7
Insulation, oven door WCI 318285086 Contact Us For Availability
9
Pan, broilerOPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
9
Deflector, upper oven WCI 318160503 Contact Us For Availability
10
Insert, broiler panOPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
11
Latch, door WCI 318065102 Contact Us For Availability
12
Seal, oven door, upper oven WCI 318178801 Contact Us For Availability
15
Bracket, glass, (3) WCI 318091102 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Spacer, glass, upper oven WCI 318139102 Contact Us For Availability
18
Seal, window, upper oven WCI 318293400 Contact Us For Availability
19
Collar, glass mtg WCI 318139207 Contact Us For Availability
21
Trim, top, black WCI 5303300408 Contact Us For Availability
23
Hinge, door, (2) WCI 318024744 Contact Us For Availability
25
Liner, oven door WCI 318048311 Contact Us For Availability
39
Handle, door, black, oven WCI 318264410 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
59
Plug, button WCI 3202113 Contact Us For Availability
60
Foam seal, (2) WCI 5303316982 Contact Us For Availability
71
Shield, rear wall WCI 318071111 Contact Us For Availability
76
Front, oven WCI 318056139 Contact Us For Availability
78
Cover, oven vent, black WCI 318037121 Contact Us For Availability
80
Spring, oven WCI 318192400 Contact Us For Availability
81
Bracket, oven WCI 5303323710 Contact Us For Availability
82
Shield, insulation WCI 5303305035 Contact Us For Availability
83
Liner, oven WCI 318089521 Contact Us For Availability
86
Receptacle, hinge WCI 318328010 Contact Us For Availability
88
Rod, latch WCI 318118903 Contact Us For Availability
97
Wrapper, back & sides WCI 318066602 Contact Us For Availability
98
Trim, side, inner, RH WCI 318029386 Contact Us For Availability
98A
Trim, side, inner, LH WCI 318029387 Contact Us For Availability
101
Bracket, trim, black WCI 318039511 Contact Us For Availability
103
Trim, base, black WCI 318028710 Contact Us For Availability
121
Wrapper, base WCI 318145005 Contact Us For Availability
123
Shield, insulation, top & sides WCI 318071444 Contact Us For Availability
126
Clip, insulator WCI 3016303 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
187
Tube, latch rod WCI 318013503 Contact Us For Availability
189
Plate, retainer WCI 318042500 Contact Us For Availability
227
Clip, retainer WCI 318370900 Contact Us For Availability
× ![]()
