Model Kenmore 790.36932905 RANGE – Common Parts & Diagrams

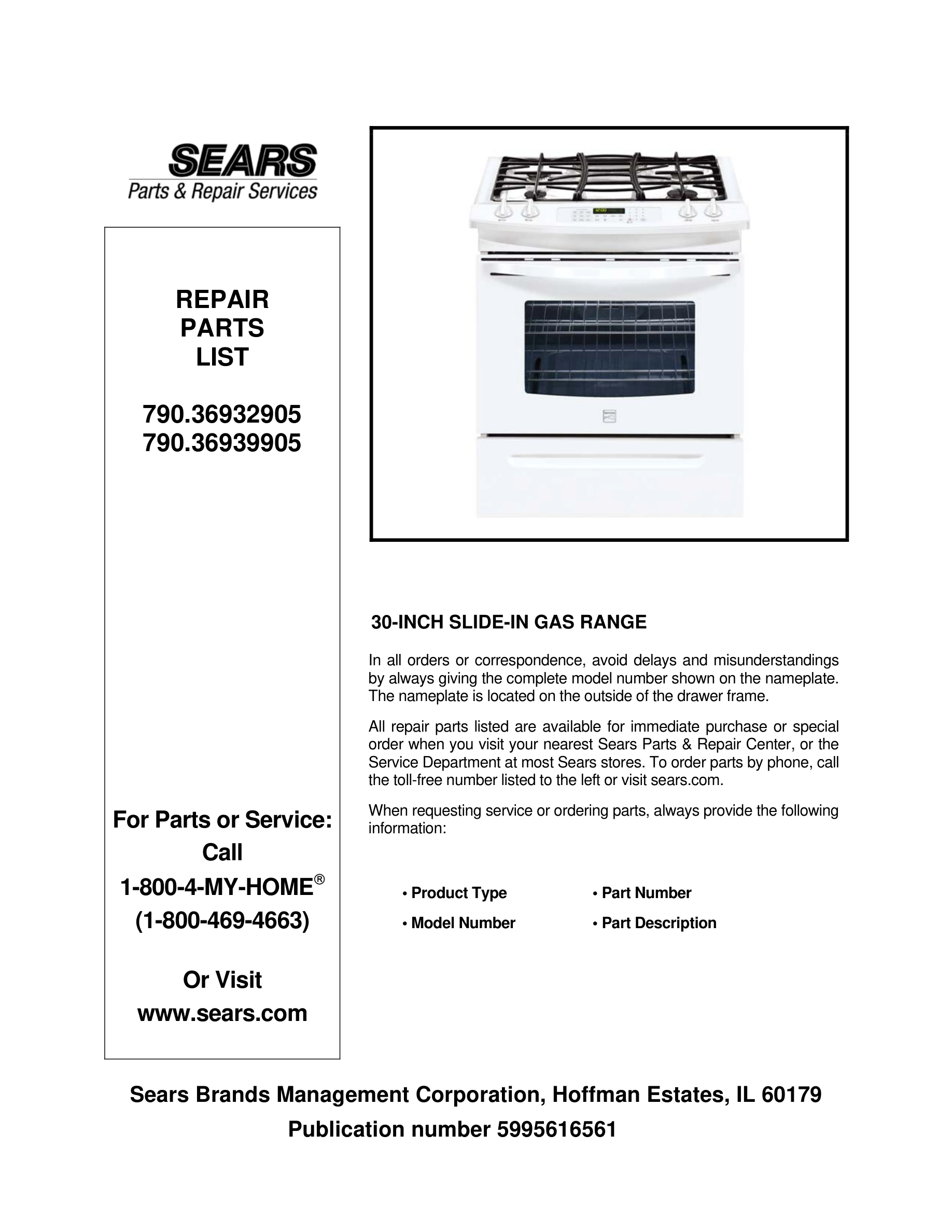

01 - COVER

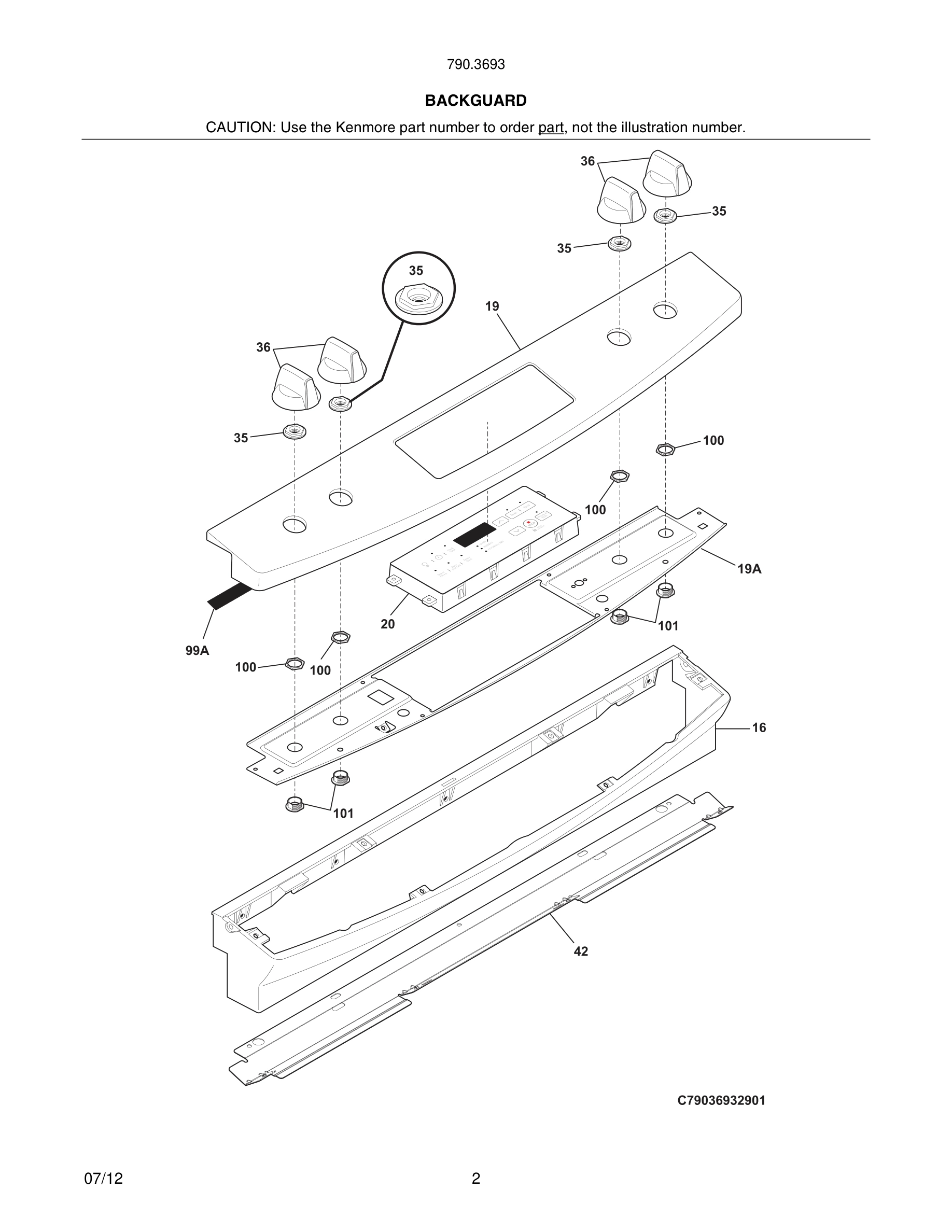

03 - BACKGUARD

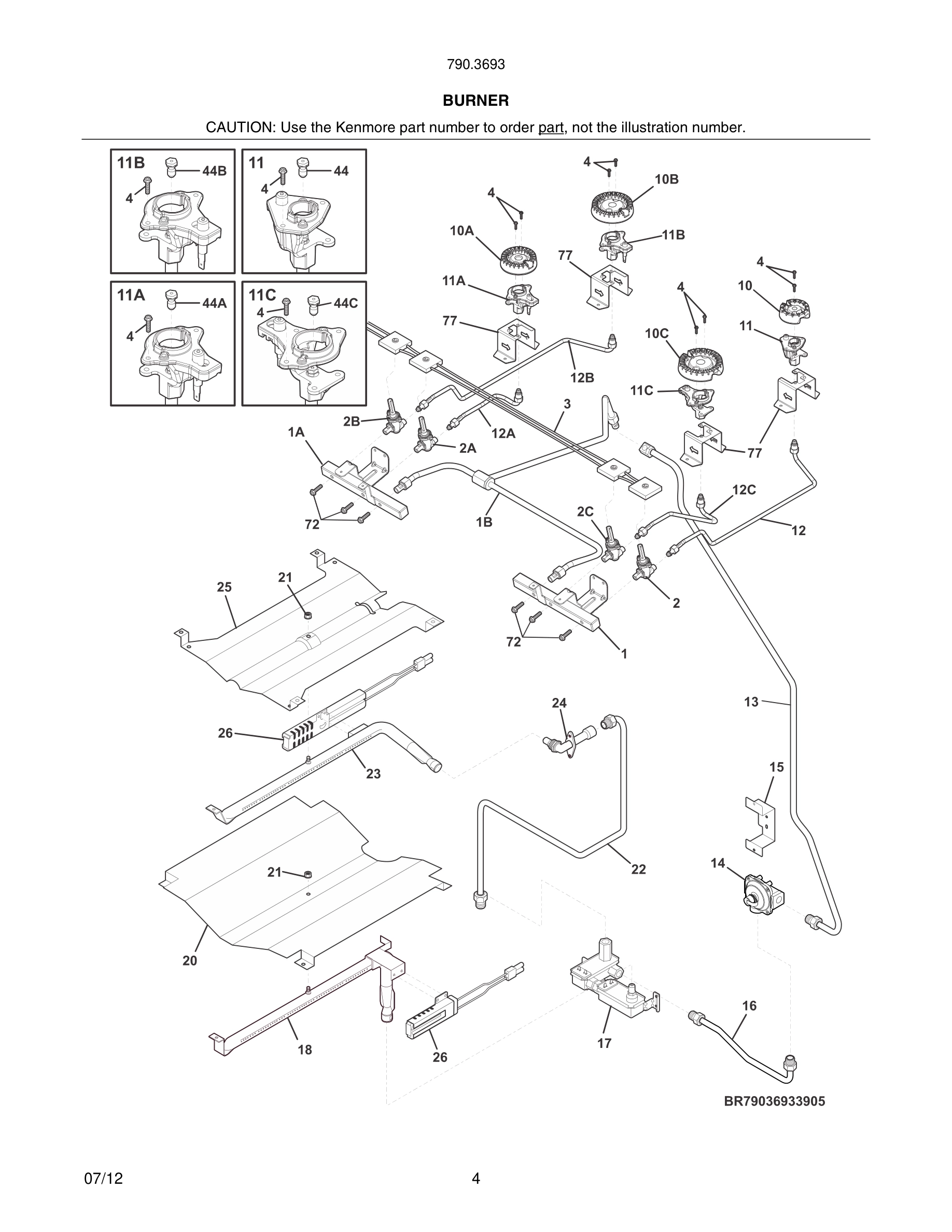

05 - BURNER
07 - BODY

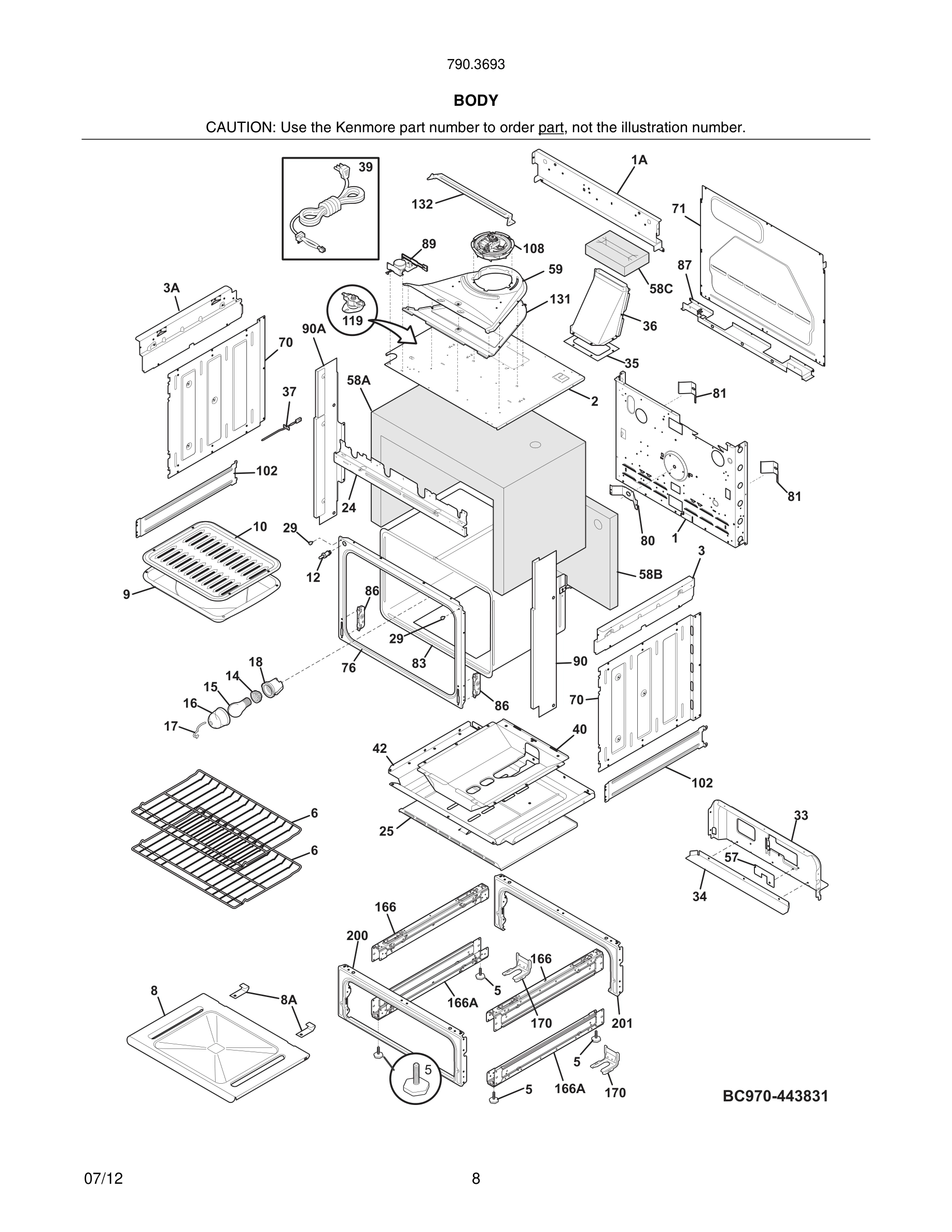

09 - BODY

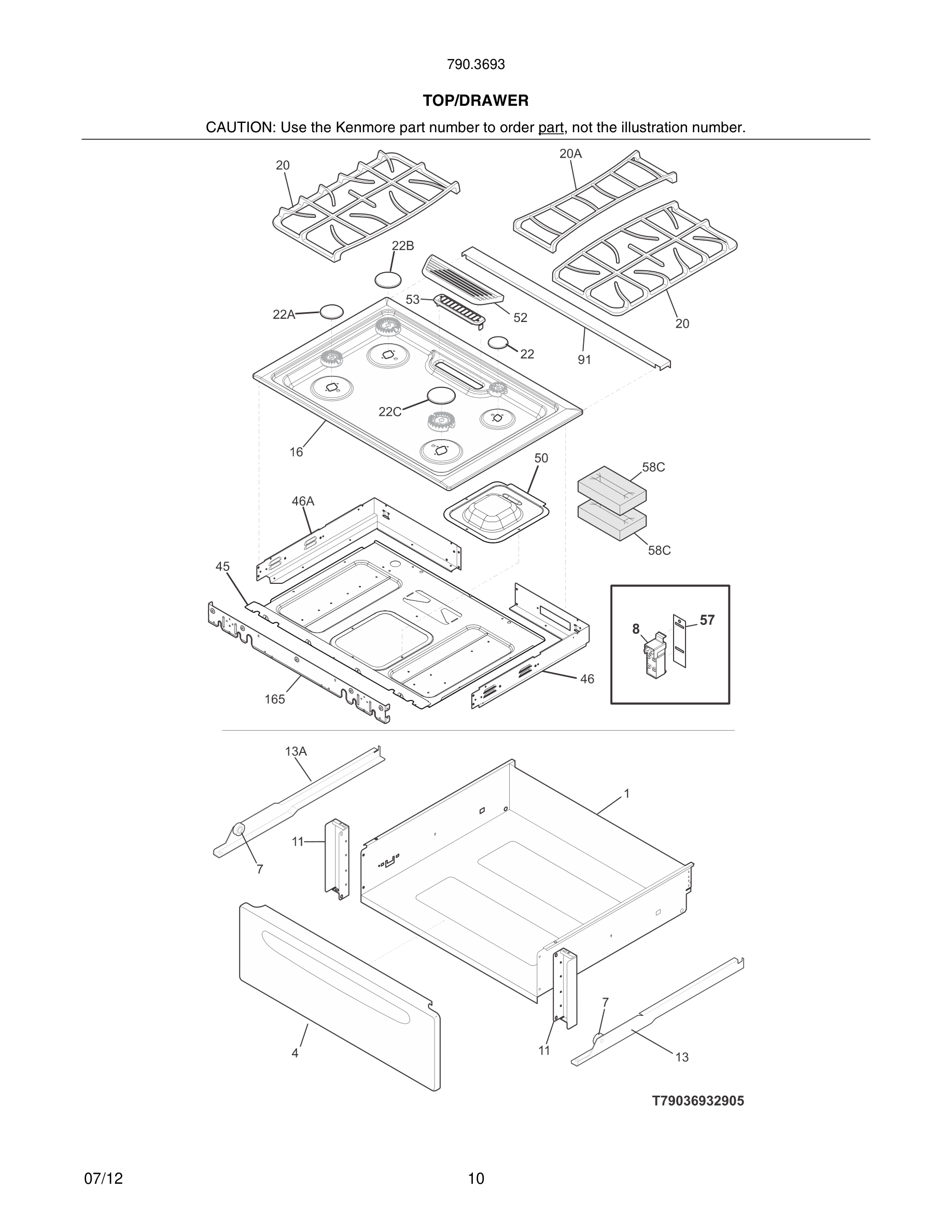

11 - TOP/DRAWER

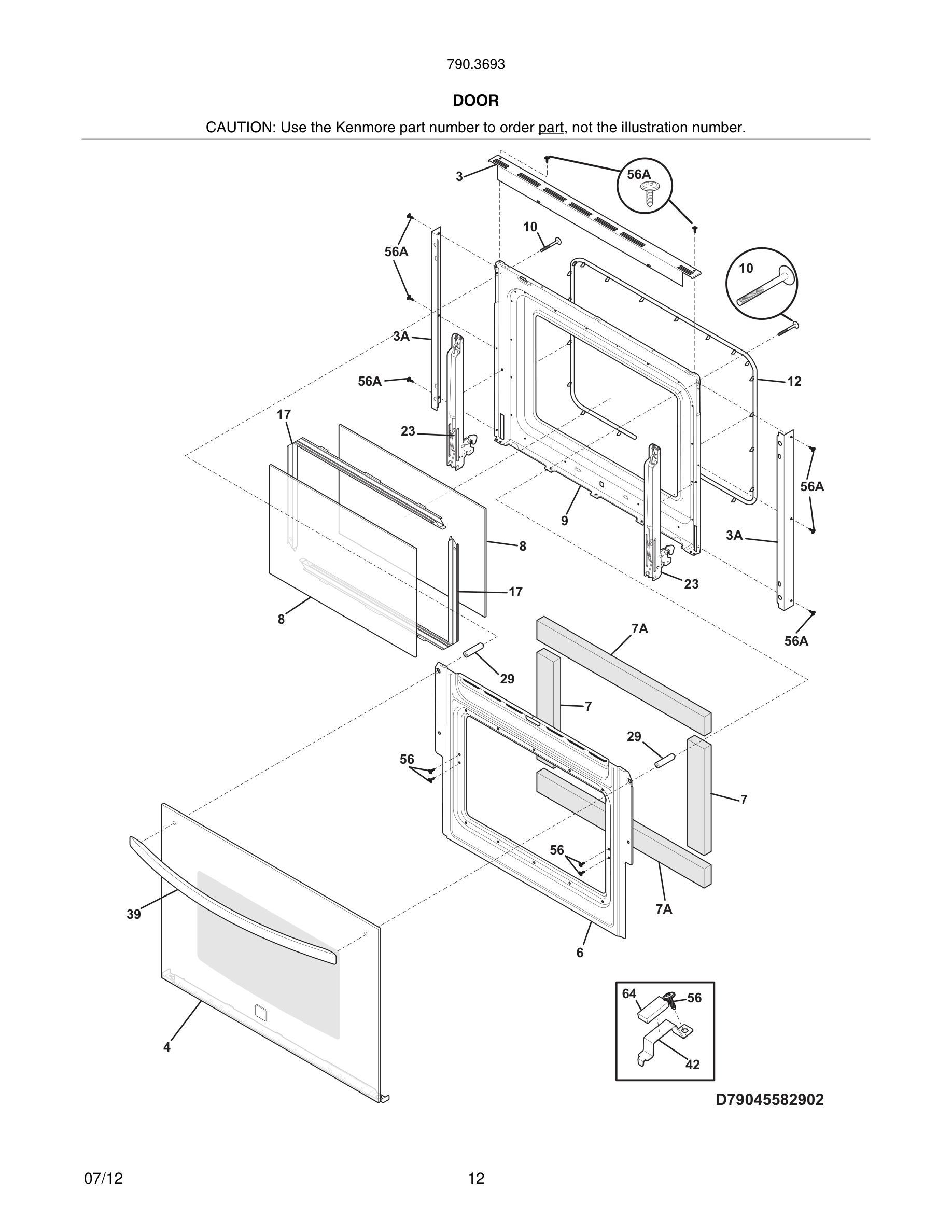

13 - DOOR

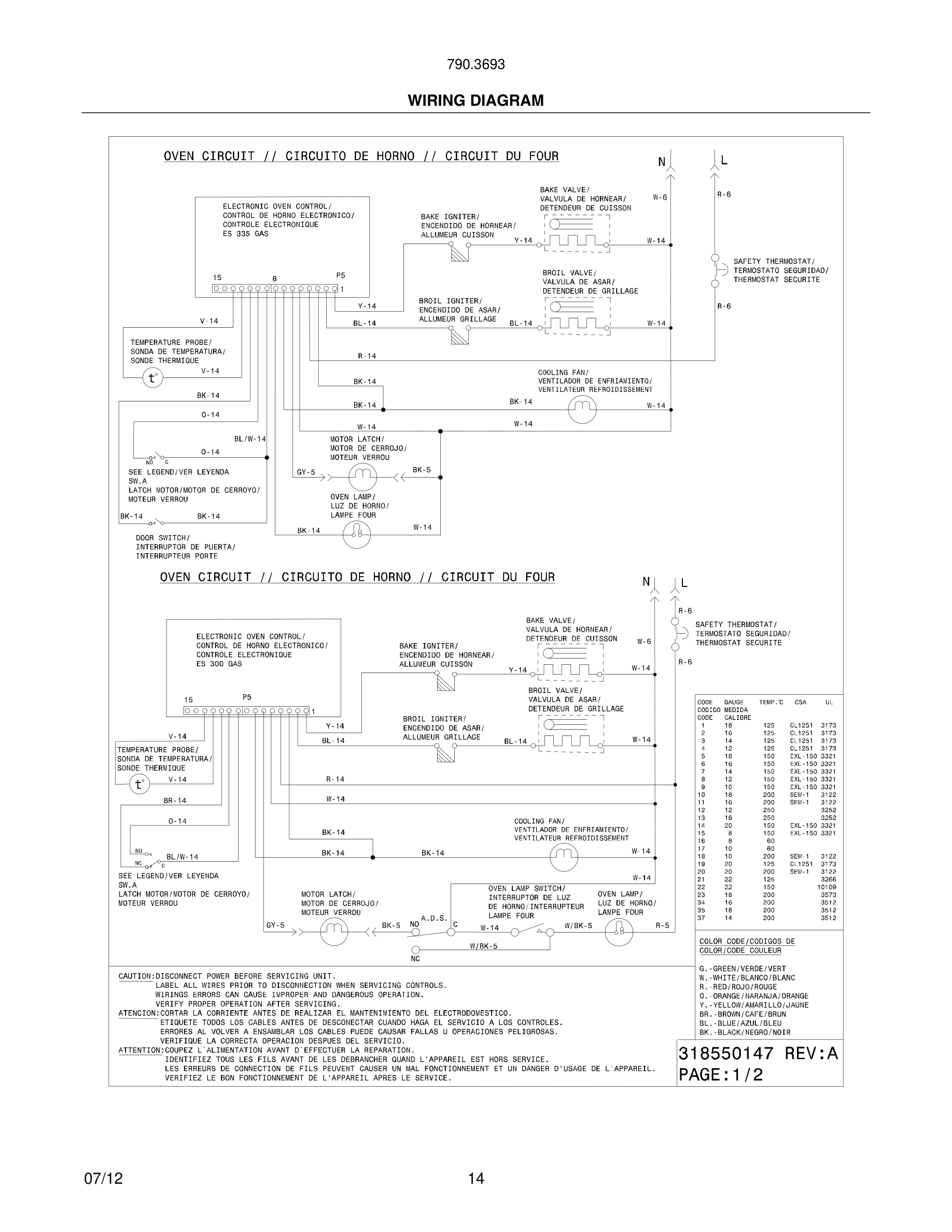

14 - WIRING DIAGRAM

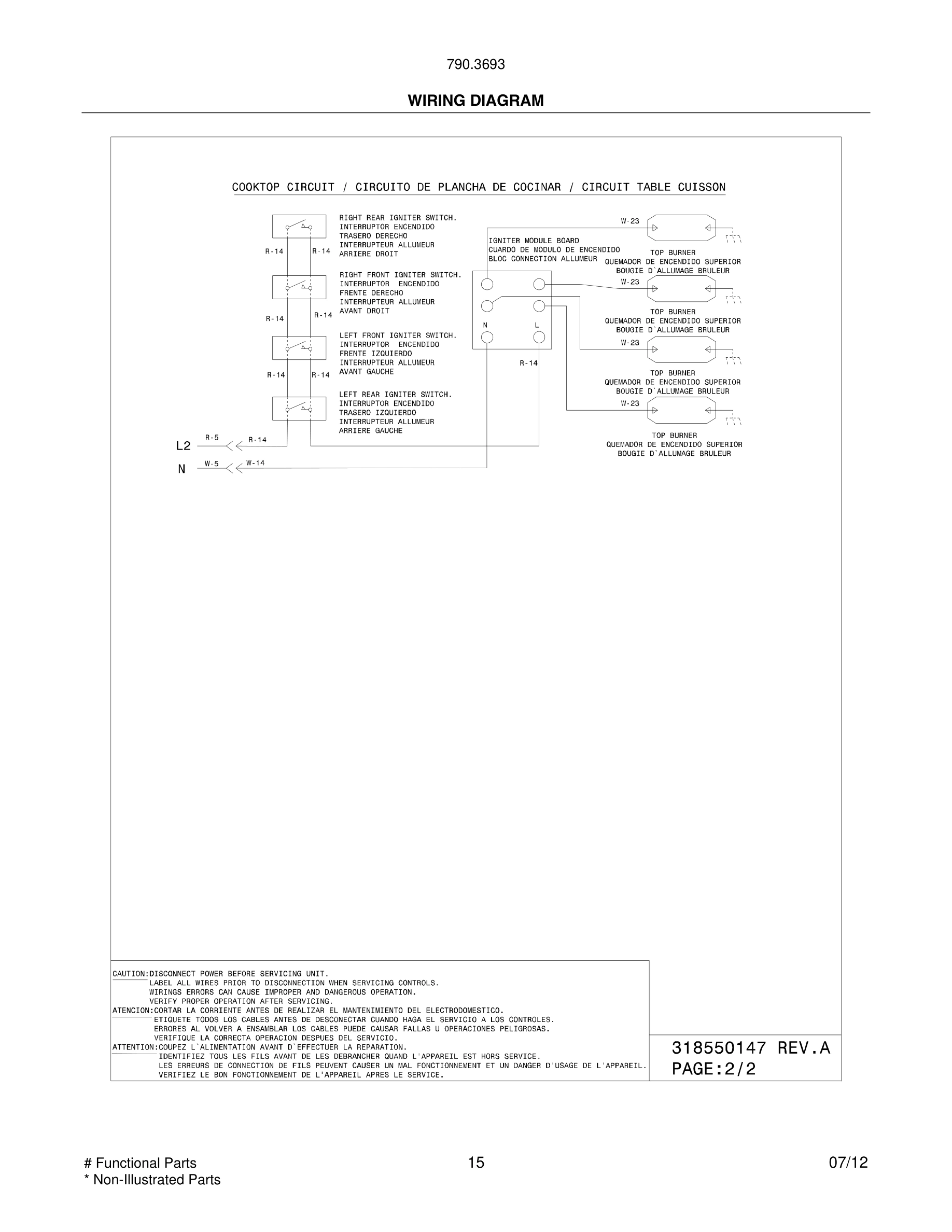

15 - WIRING DIAGRAM
Common parts from model Kenmore 790.36932905 RANGE
*
Screw, 10-24 x 0.500, probe, thrm brkt, shiel WCI 08002868 Contact Us For Availability
2A#
Valve, top burner, 9500 BTU WCI 318233910 Contact Us For Availability
2B#
Valve, top burner, 12000 BTU WCI 318233920 Contact Us For Availability
2C#
Valve, top burner, 14000 BTU WCI 318233930 Contact Us For Availability
3#
Wiring Harness, w/igntr switch WCI 318232668 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Panel, drawer, white, front WCI 318298906 Contact Us For Availability
4
Panel, drawer, black, front WCI 318298908 Contact Us For Availability
4
Glass Assy., oven door, black, outer, w/trim WCI 318403509 Contact Us For Availability
6
Rack, oven WCI 318262504 Contact Us For Availability
8
Panel, oven, bottom WCI 318290501 Contact Us For Availability
9
Liner, oven door WCI 318411650 Contact Us For Availability
10
Screw, 10-24 x 1.770, handle mtg WCI 5304477986 Contact Us For Availability
11
Bracket, drawer support, (2) WCI 318298600 Contact Us For Availability
13
Channel, drawer, RH WCI 318018100 Contact Us For Availability
13A
Channel, drawer, LH WCI 318018101 Contact Us For Availability
16
Tube, regulator valve WCI 318289500 Contact Us For Availability
16
Console, assy., white WCI 318296600 Contact Us For Availability
16
Maintop Assembly, white WCI 318569277 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
18
Housing, oven light WCI 318222400 Contact Us For Availability
18#
Burner, oven, 18000 WCI 318292200 Contact Us For Availability
19
Panel, control, black WCI 318297525 Contact Us For Availability
19A
Panel, control mtg. WCI 318289702 Contact Us For Availability
23
Burner, broil, 14000 WCI 318292300 Contact Us For Availability
23
Hinge, oven door, (2) WCI 318567113 Contact Us For Availability
24#
Elbow, mixer WCI 316409703 Contact Us For Availability
25
Baffle, broil burner WCI 316401301 Contact Us For Availability
35
Retainer, control panel, black WCI 318233720 Contact Us For Availability
35
Retainer, control panel, white WCI 318233721 Contact Us For Availability
39
Handle, door, white, w/spacer WCI 318372416 Contact Us For Availability
39
Handle, door, black, w/spacer WCI 318372417 Contact Us For Availability
56A
Screw, 8-18 x 3/8 WCI 5304476599 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
90
Panel, filler, black, RH WCI 318296904 Contact Us For Availability
90
Panel, filler, white, RH WCI 318296902 Contact Us For Availability
90A
Panel, filler, white, LH WCI 318296903 Contact Us For Availability
91
Trim, filler, white, rear WCI 318304301 Contact Us For Availability
99A
Gasket, black WCI 318313201 Contact Us For Availability
170
Anti-tip & accessories WCI 318335500 Contact Us For Availability
200
Frame & Wheel Assembly, black WCI 318335600 Contact Us For Availability
× ![]()
