Model Kenmore 790.36903902 RANGE – Common Parts & Diagrams

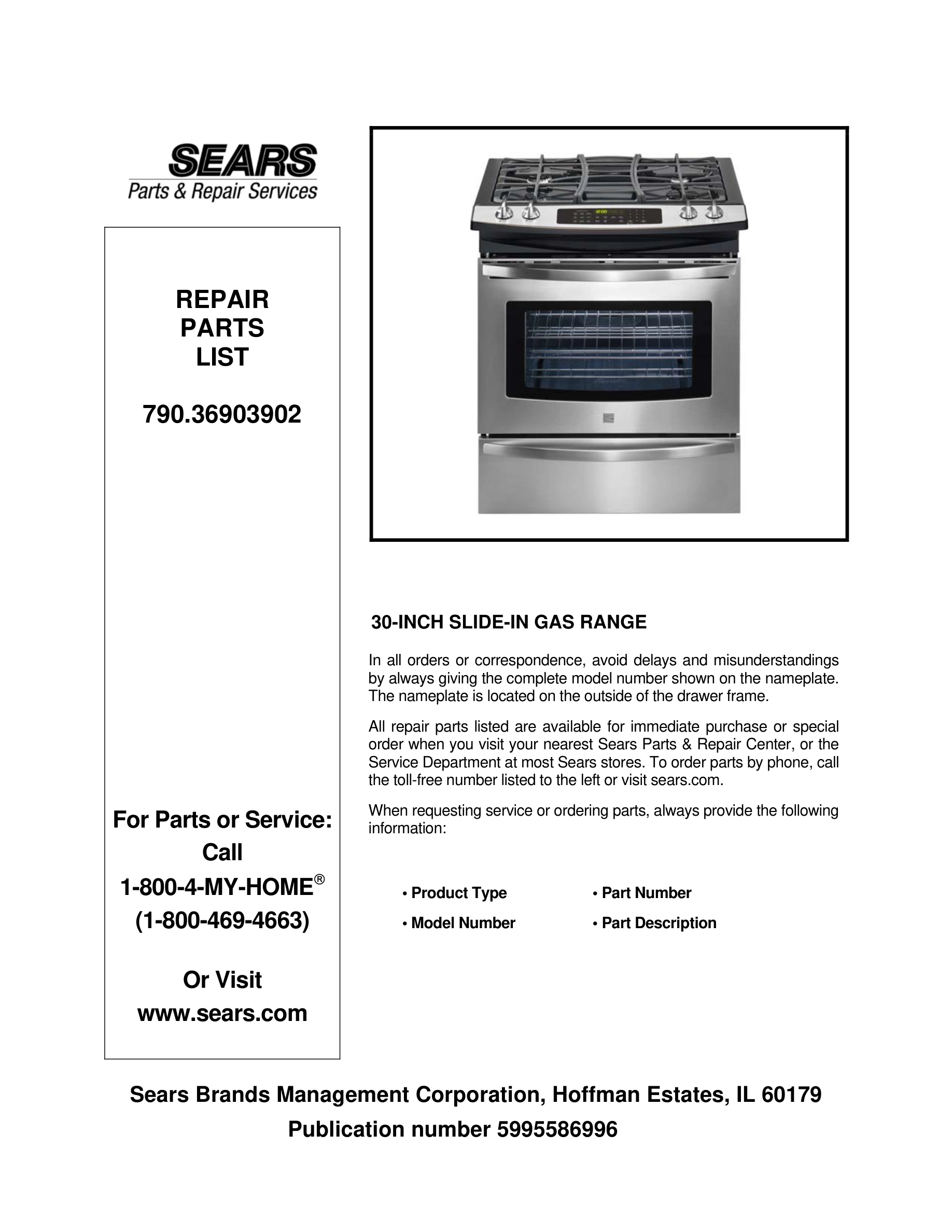

01 - COVER

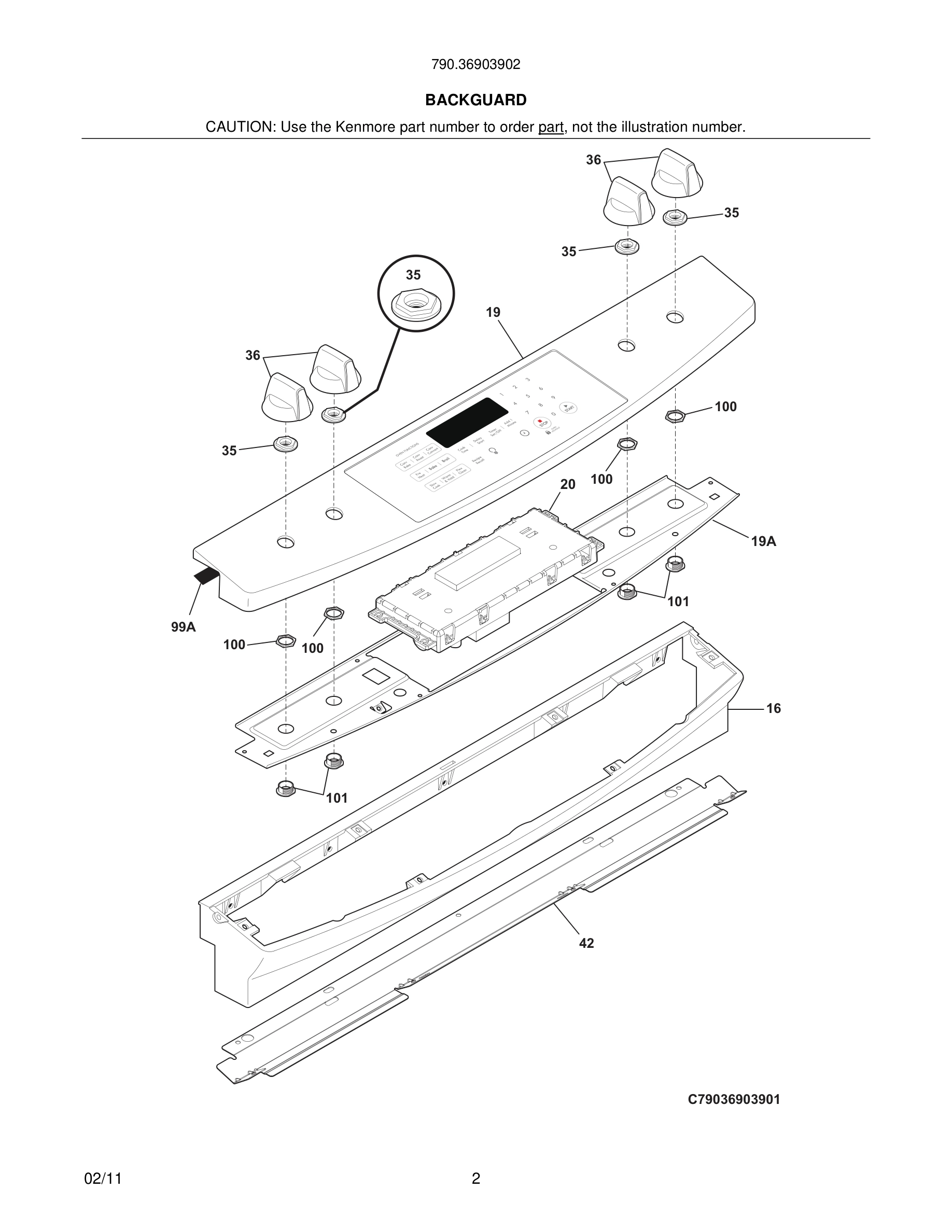

03 - BACKGUARD

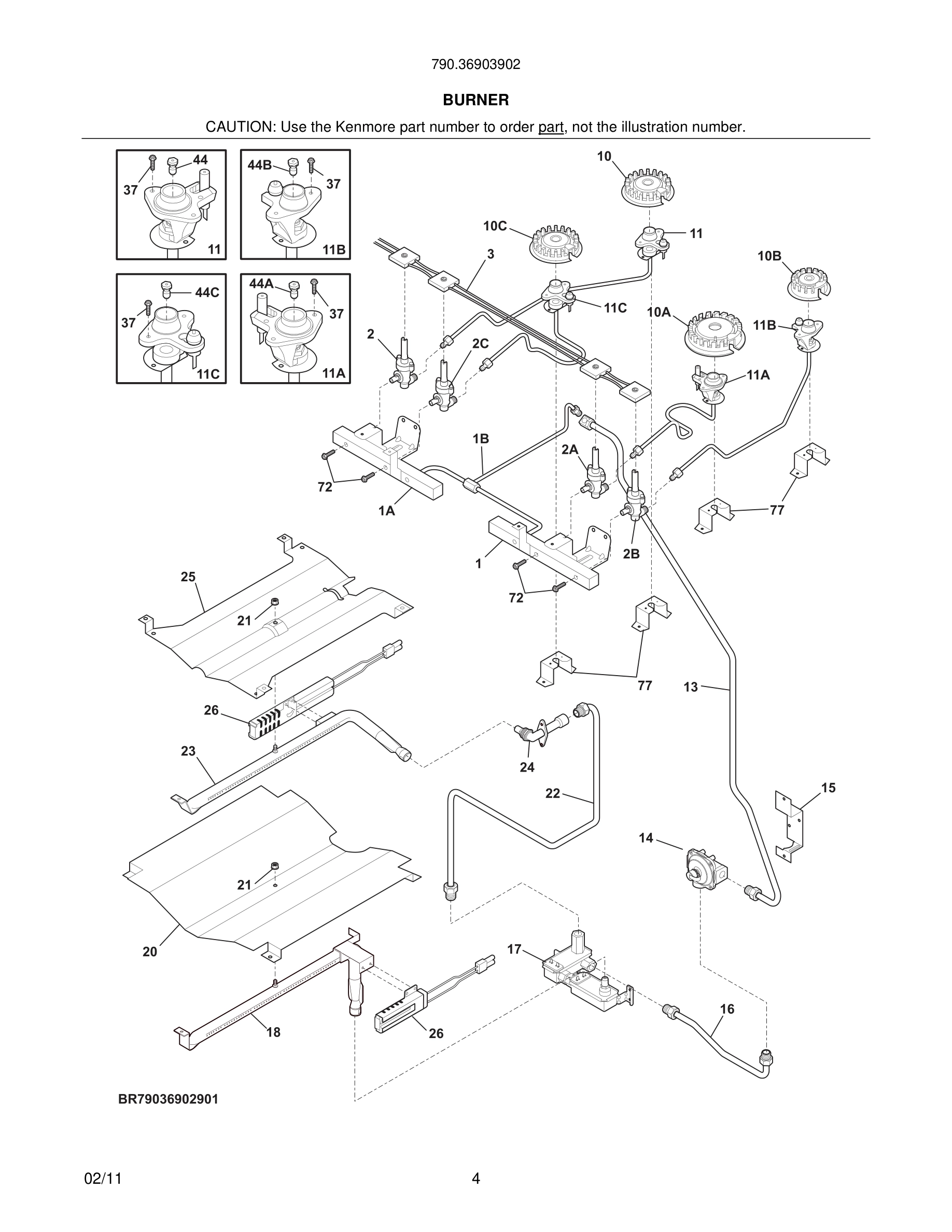

05 - BURNER

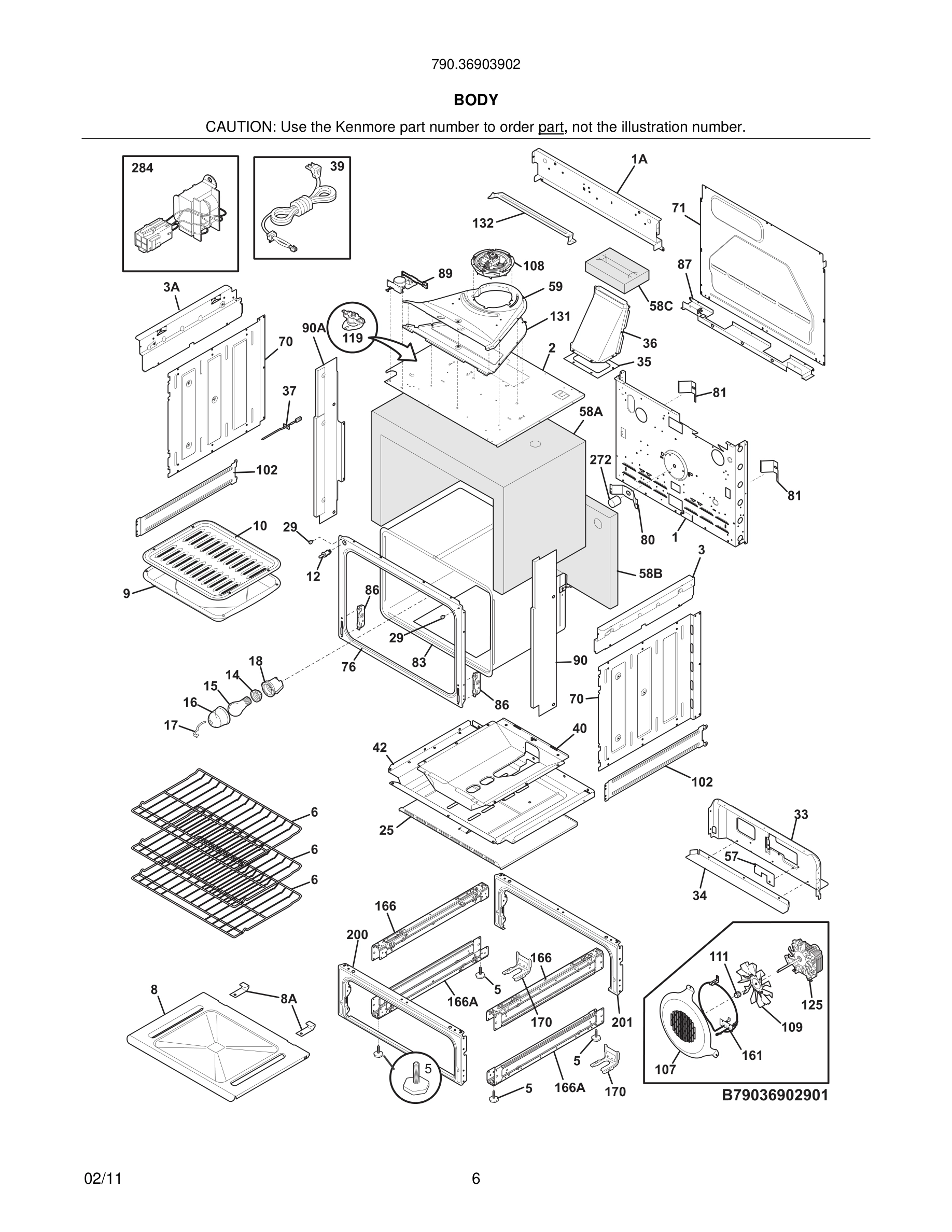

07 - BODY
09 - BODY

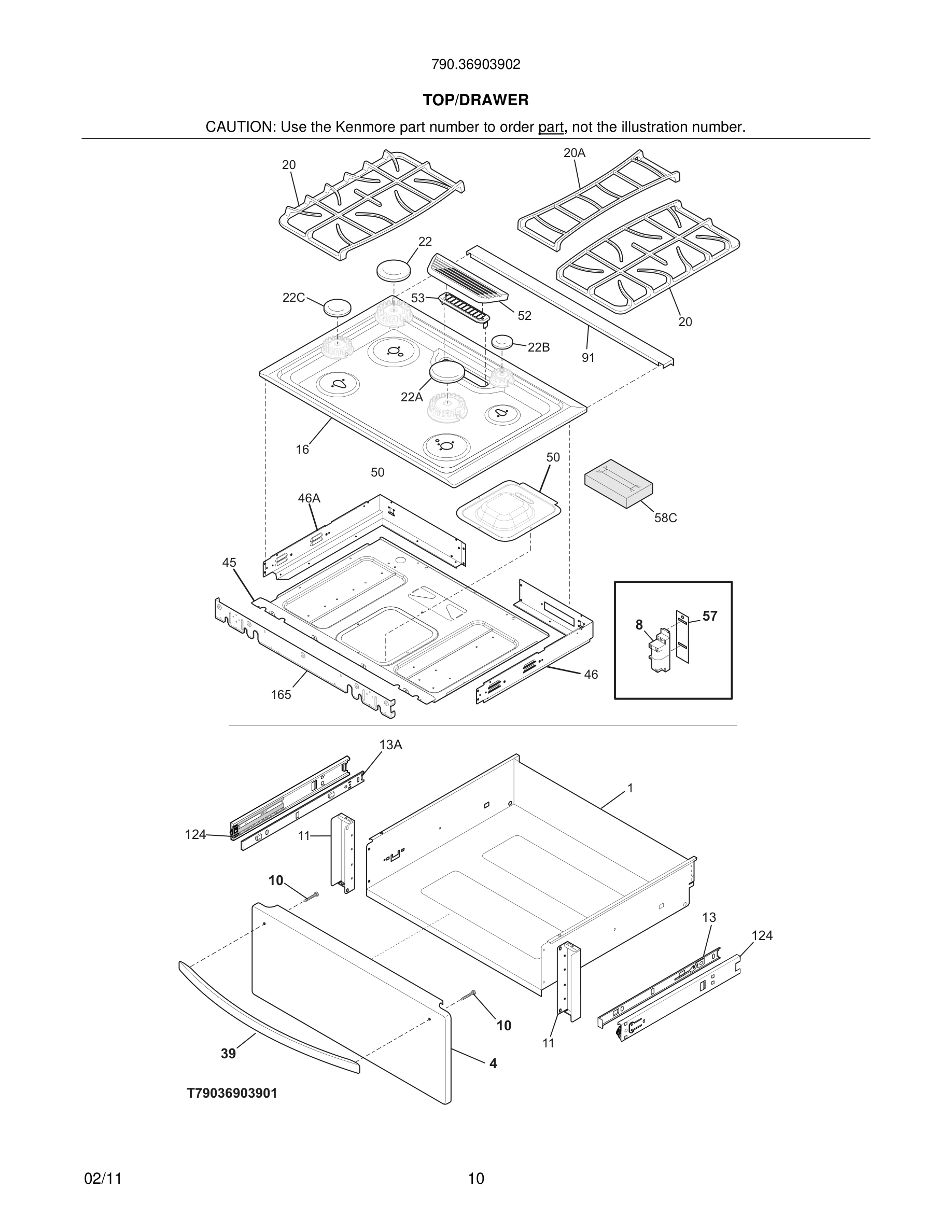

11 - TOP/DRAWER

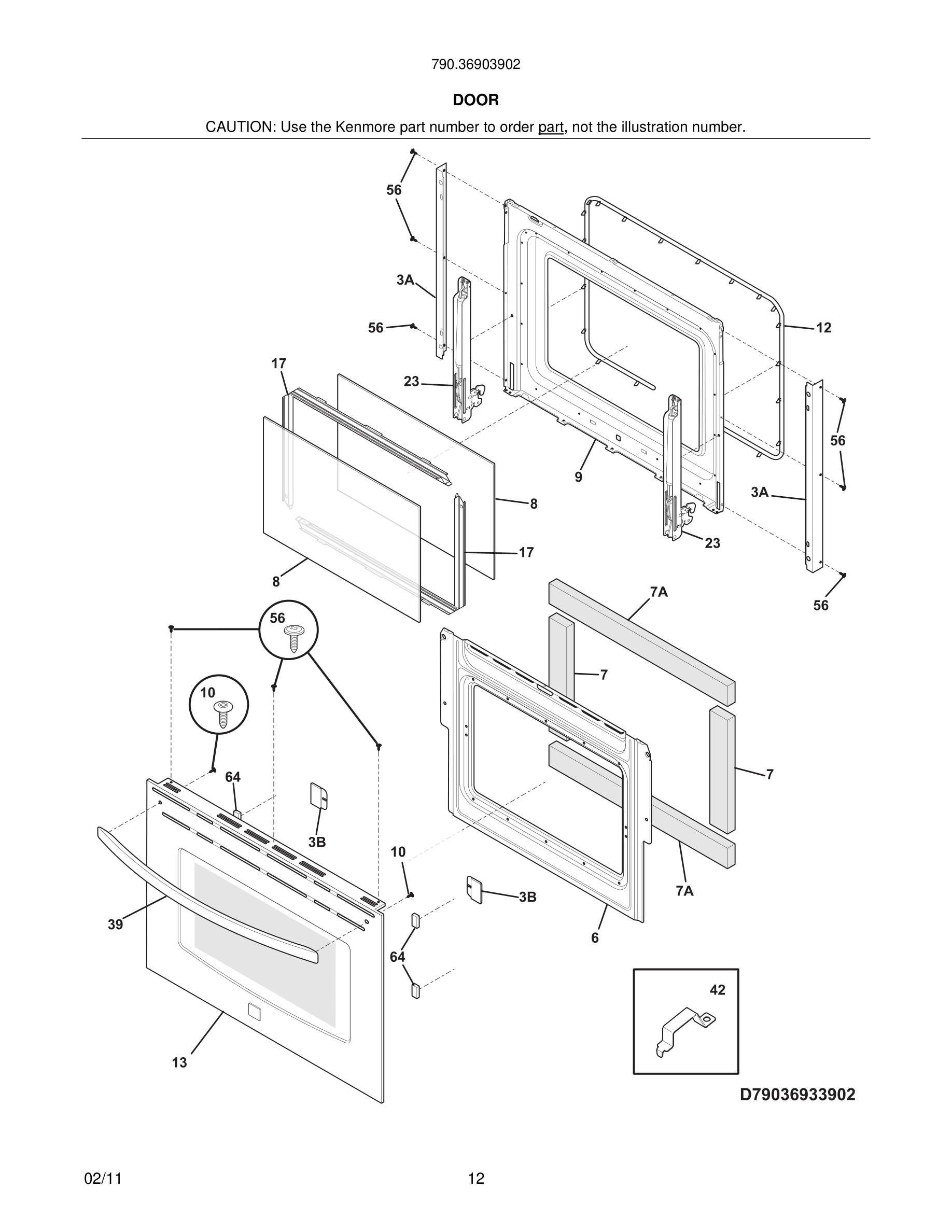

13 - DOOR

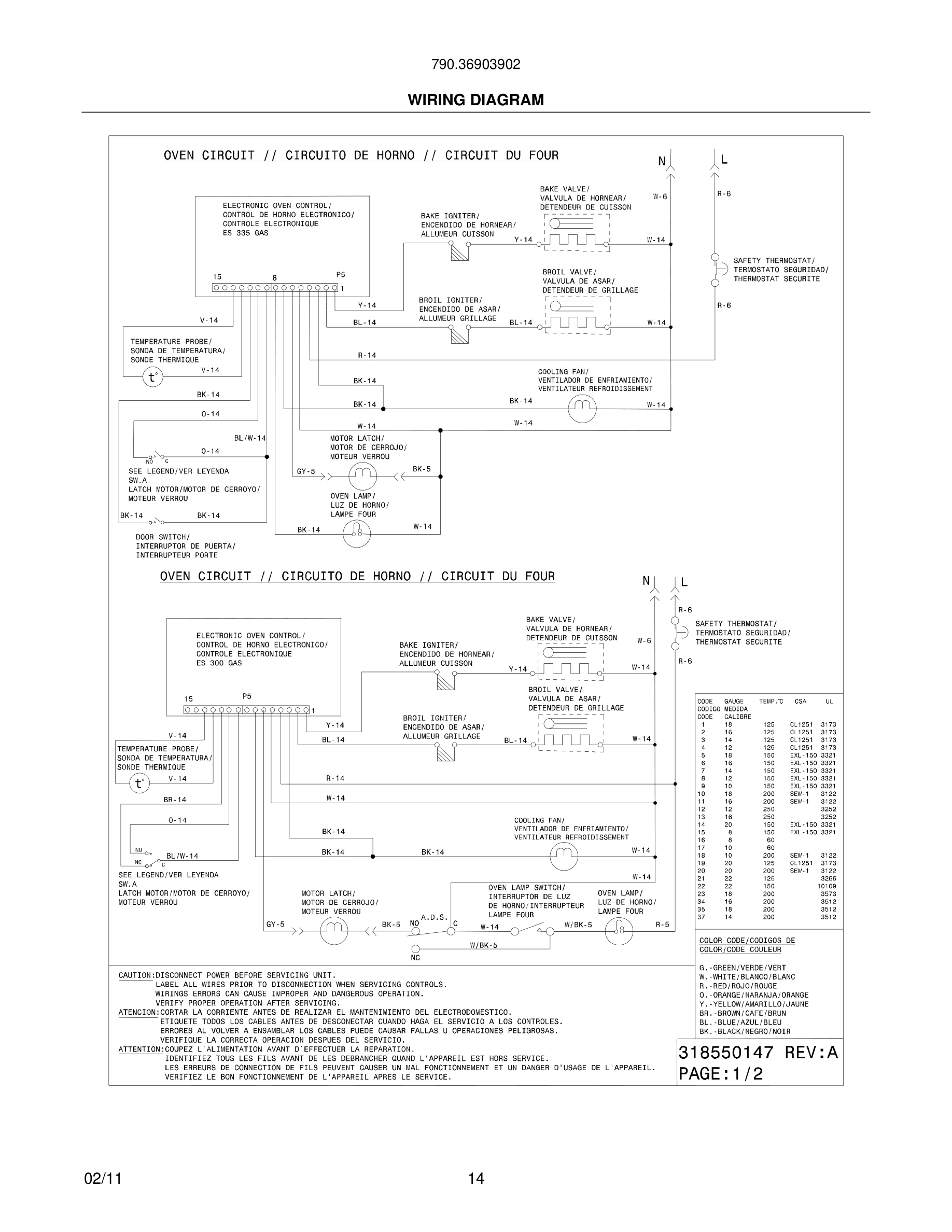

14 - WIRING DIAGRAM

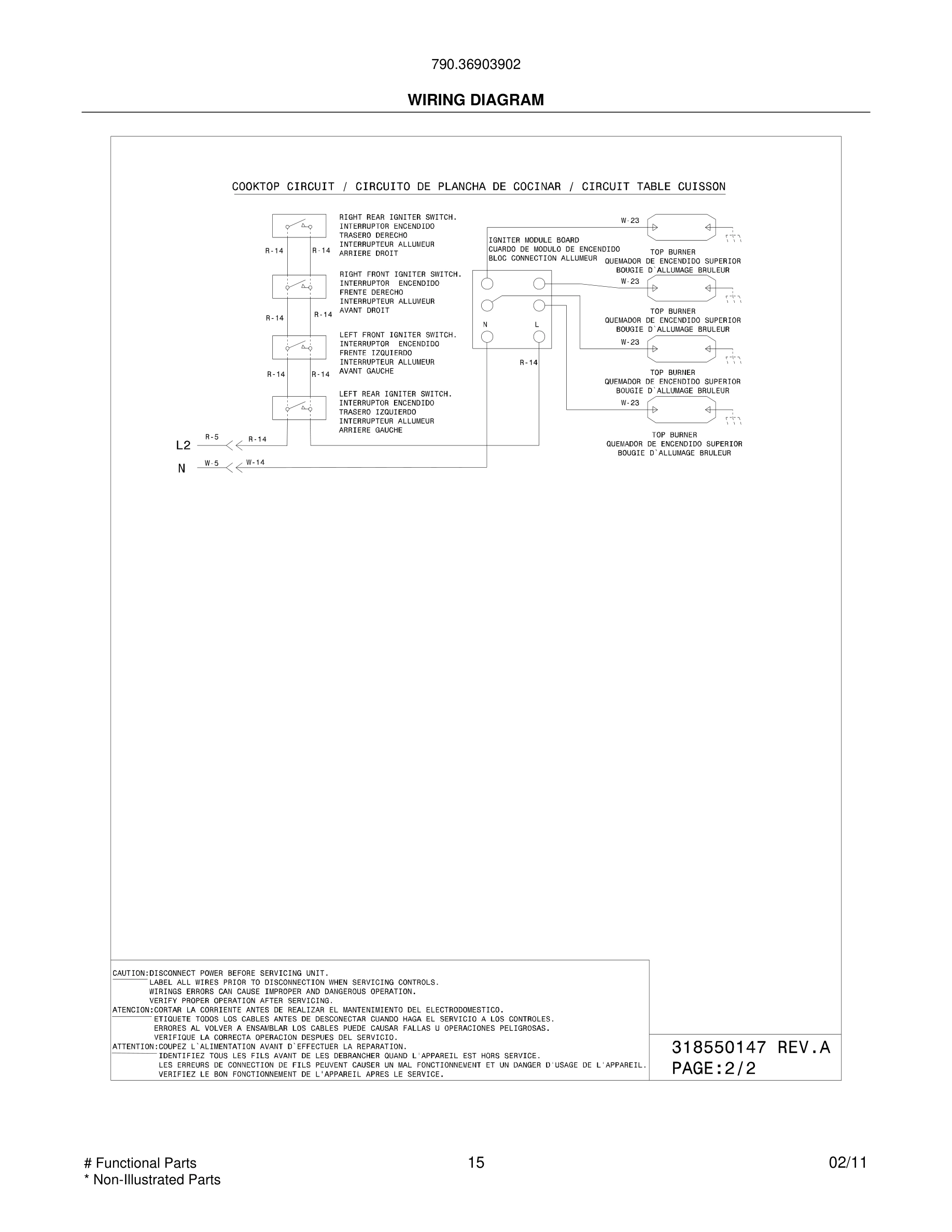

15 - WIRING DIAGRAM
Common parts from model Kenmore 790.36903902 RANGE
*#
LP Conversion Kit WCI 318186909 Contact Us For Availability
2#
Valve, top burner, 14000 BTU WCI 318233930 Contact Us For Availability
2A#
Valve, top burner, 16/17K WCI 318233940 Contact Us For Availability
2C#
Valve, top burner, 9500 BTU WCI 318233910 Contact Us For Availability
3#
Wiring Harness, w/igntr switch WCI 318232618 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
6
Rack, oven WCI 318262504 Contact Us For Availability
8
Panel, oven, bottom WCI 318290501 Contact Us For Availability
9
Pan, broiler OPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
10
Insert, broiler pan OPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
10#
Burner, sealed, 14K WCI 316223400 Contact Us For Availability
10A#
Burner, sealed, 16/17K WCI 316223300 Contact Us For Availability
10B#
Burner, sealed, 5K WCI 316206401 Contact Us For Availability
11
Bracket, drawer support, (2) WCI 318298600 Contact Us For Availability
11#
Ignitor Assembly, 14K, left rear, w/tube & ho WCI 318306006 Contact Us For Availability
11B#
Ignitor Assembly, 5K, right rear, w/tube & ho WCI 318306008 Contact Us For Availability
11C#
Ignitor Assembly, 9.5K, left front, w/tube & WCI 318306004 Contact Us For Availability
13
Glide, warmer, inner RH WCI 318259504 Contact Us For Availability
13A
Glide, warmer, inner LH WCI 318259505 Contact Us For Availability
16#
Tube, regulator valve WCI 318289500 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
18
Housing, oven light WCI 318222400 Contact Us For Availability
18#
Burner, oven, 18000 WCI 318292200 Contact Us For Availability
19
Control Panel Assembly, w/membrane, black/sta WCI 318312319 Contact Us For Availability
19A
Panel, control mtg. WCI 318289702 Contact Us For Availability
20#
Controller, electronic, ES515 WCI 316462862 Contact Us For Availability
22
Cap, 14K burner, black WCI 316219900 Contact Us For Availability
22A
Cap, 17K burner, black WCI 316271900 Contact Us For Availability
22B
Cap, 5K burner, black WCI 316206600 Contact Us For Availability
23
Hinge, oven door, (2) WCI 318567101 Contact Us For Availability
23#
Burner, broil, 14000 WCI 318292300 Contact Us For Availability
24#
Elbow, mixer WCI 316409703 Contact Us For Availability
25
Baffle, broil burner WCI 316401301 Contact Us For Availability
35
Retainer, control panel, black WCI 318233720 Contact Us For Availability
44B#
Orifice, top burner, 5K WCI 316237903 Contact Us For Availability
56A
Screw, 8-18 x 3/8 WCI 5304476599 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
99A
Gasket, black WCI 318313201 Contact Us For Availability
101
Bushing, retainer WCI 318233401 Contact Us For Availability
107
Cover, fan WCI 318219405 Contact Us For Availability
124
Glide, drawer, outer/RH & LH, (2) WCI 318330600 No Longer Available
170
Anti-tip & accessories WCI 318335500 Contact Us For Availability
× ![]()
