Model Kenmore 790.36732701 RANGE – Common Parts & Diagrams

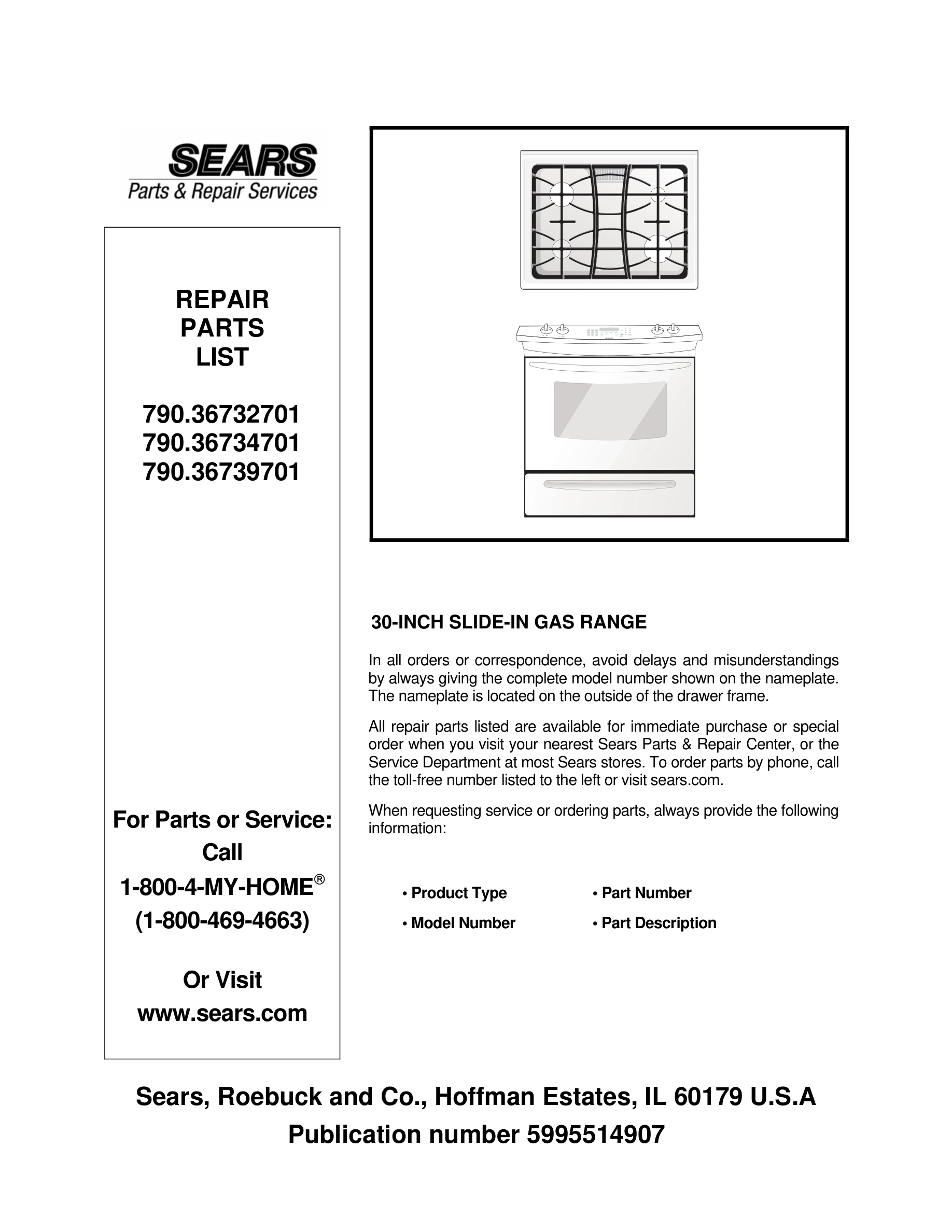

01 - COVER

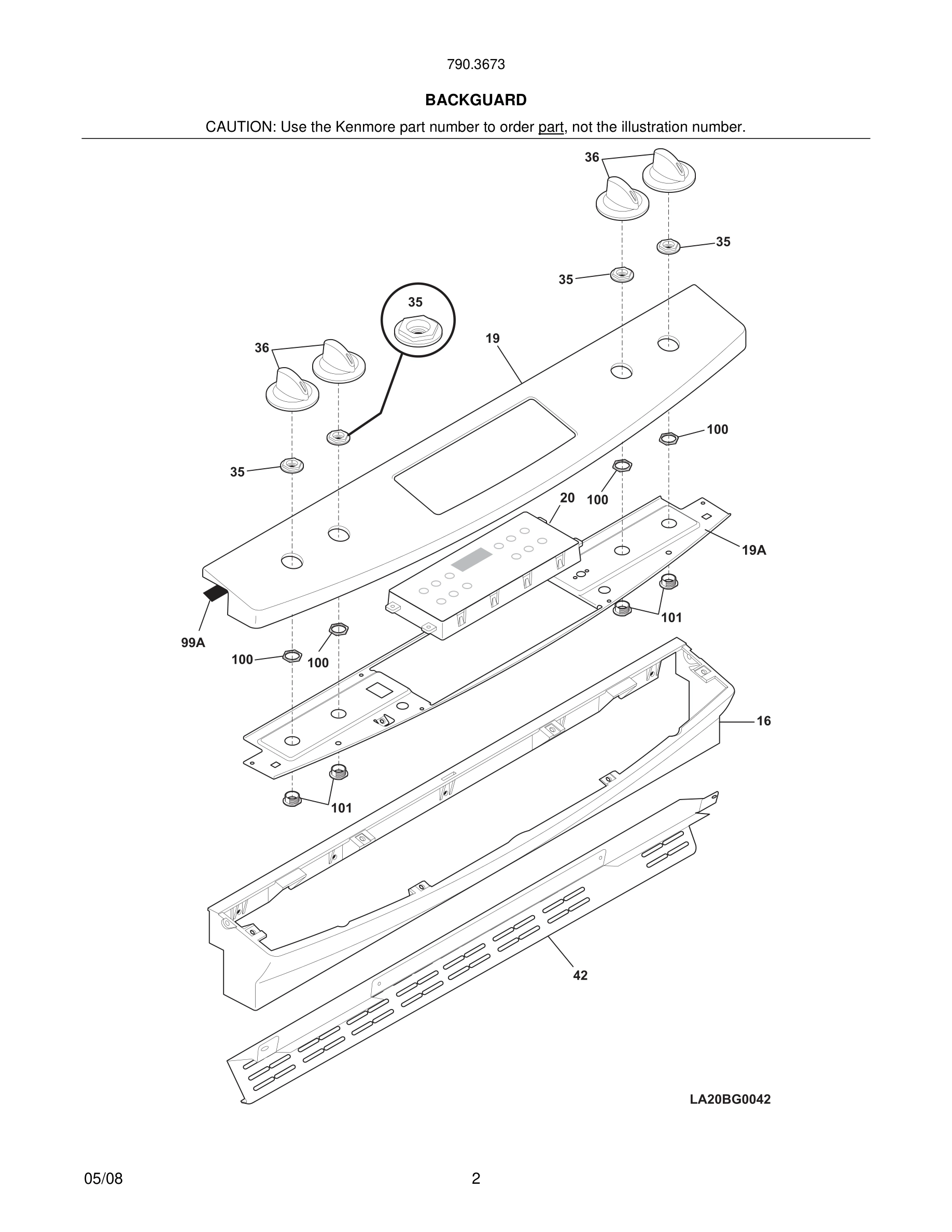

03 - BACKGUARD

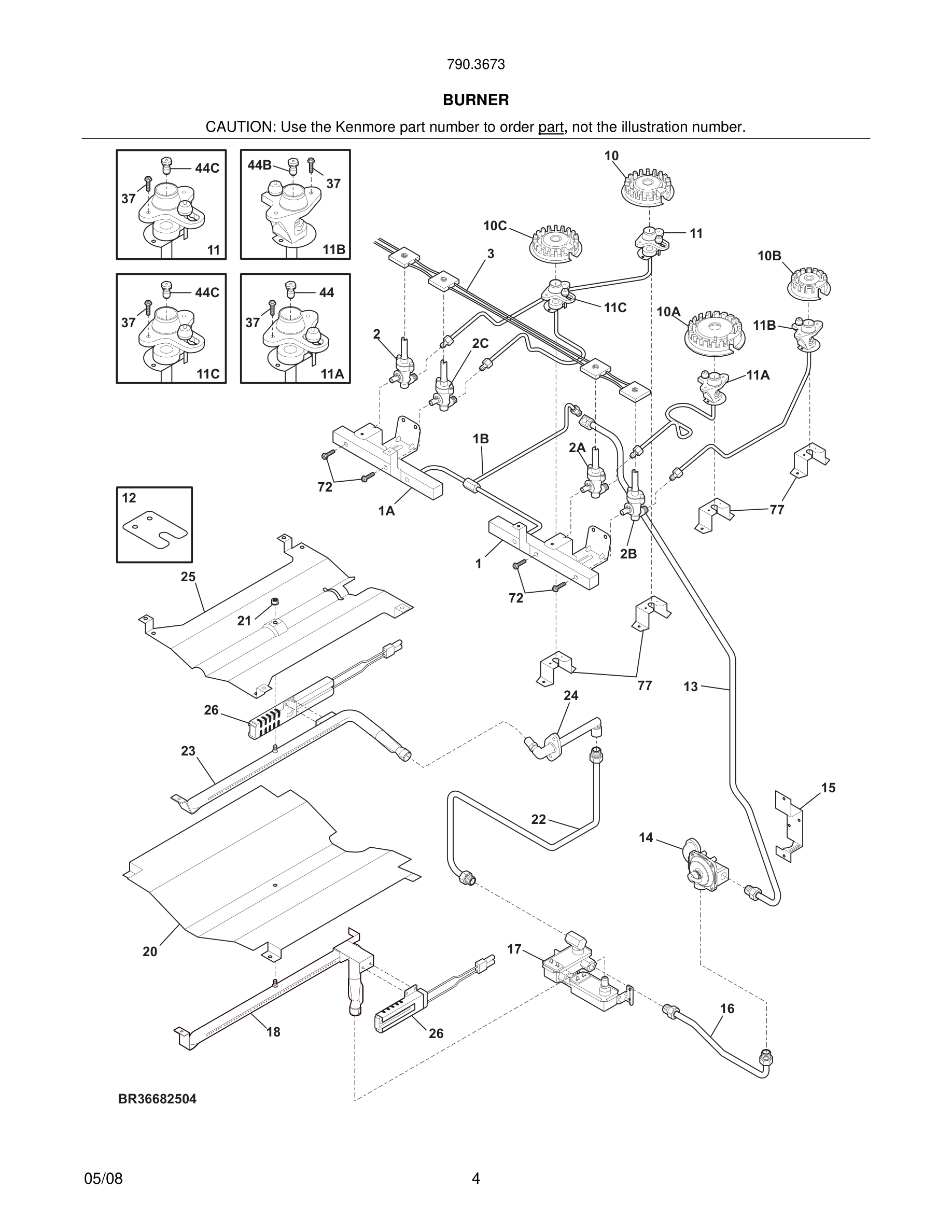

05 - BURNER
07 - BODY

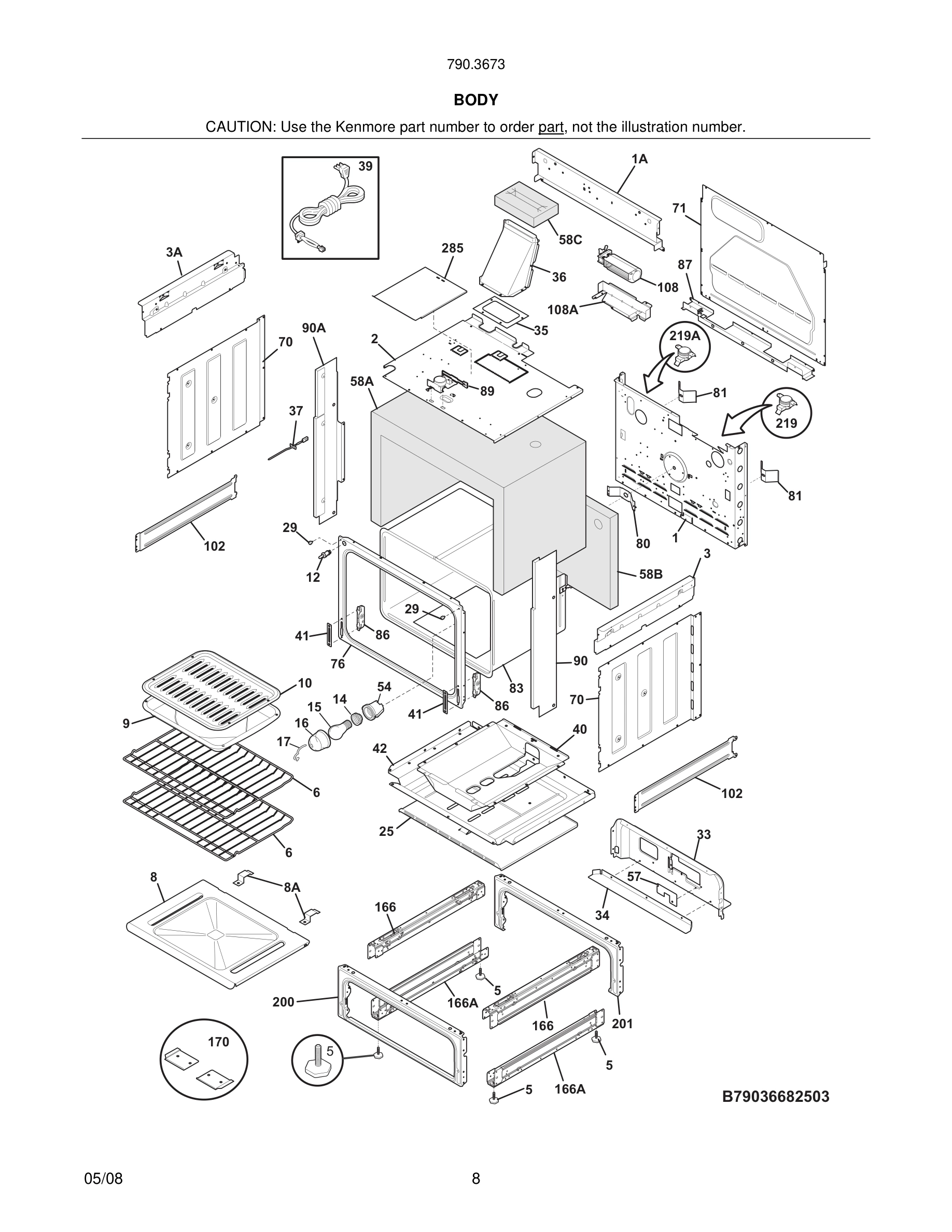

09 - BODY

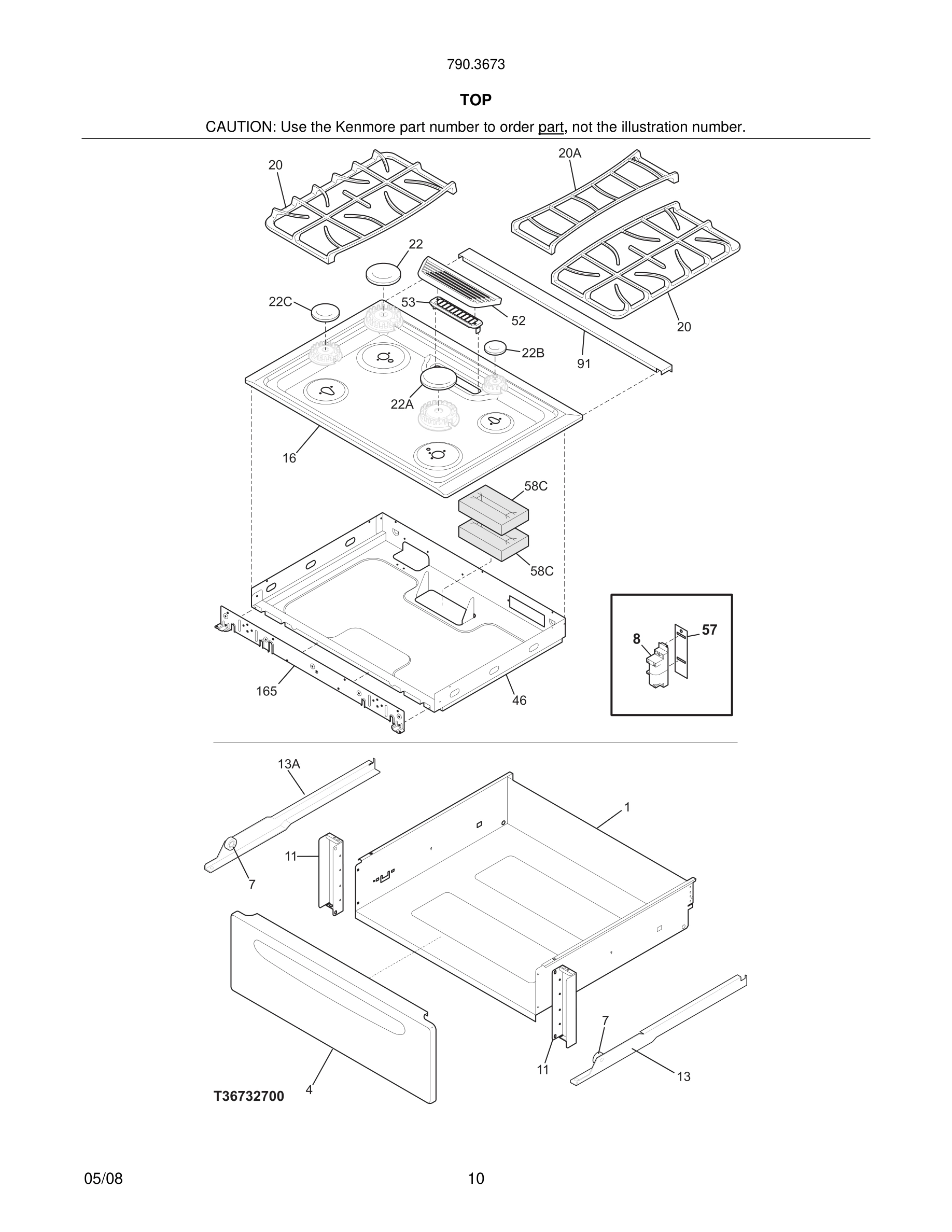

11 - TOP

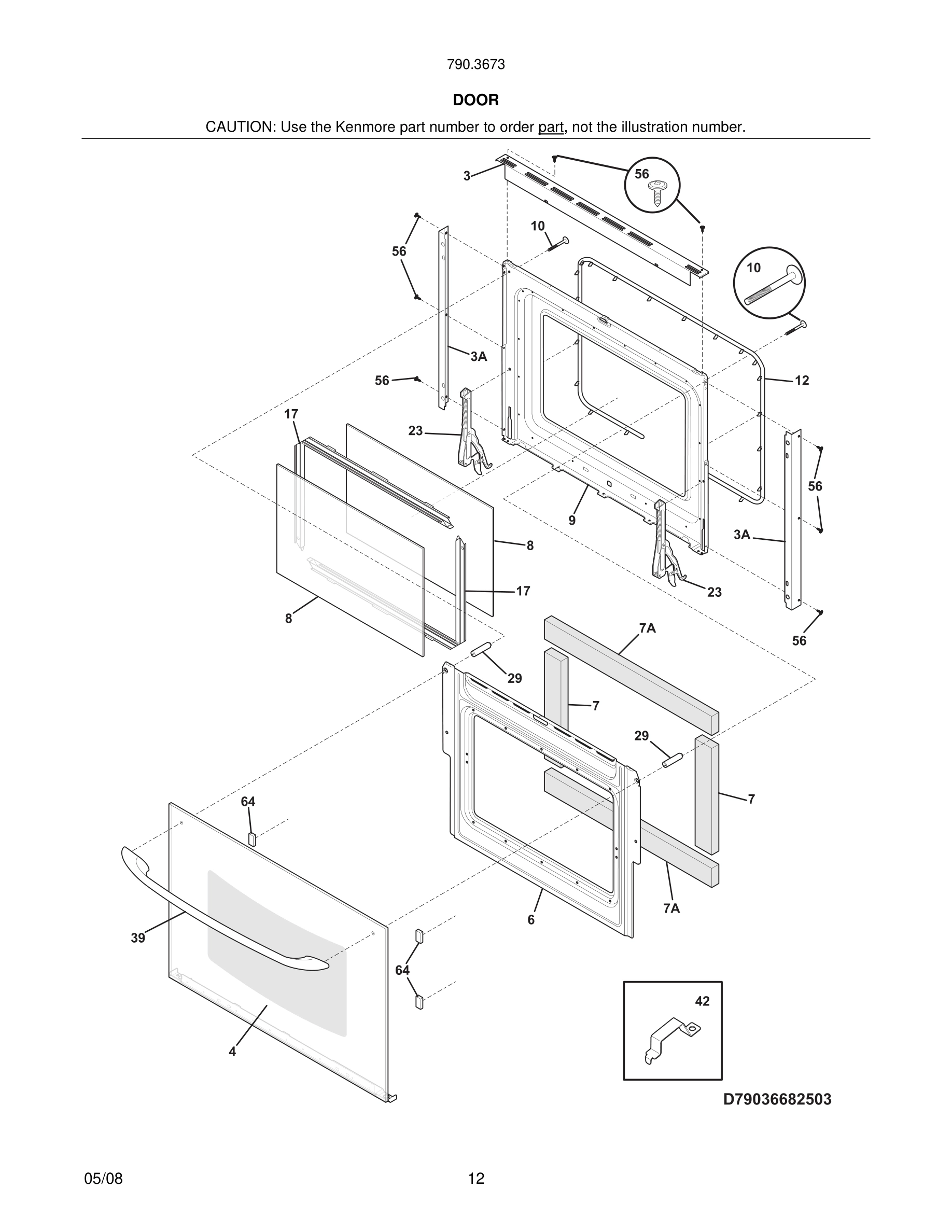

13 - DOOR

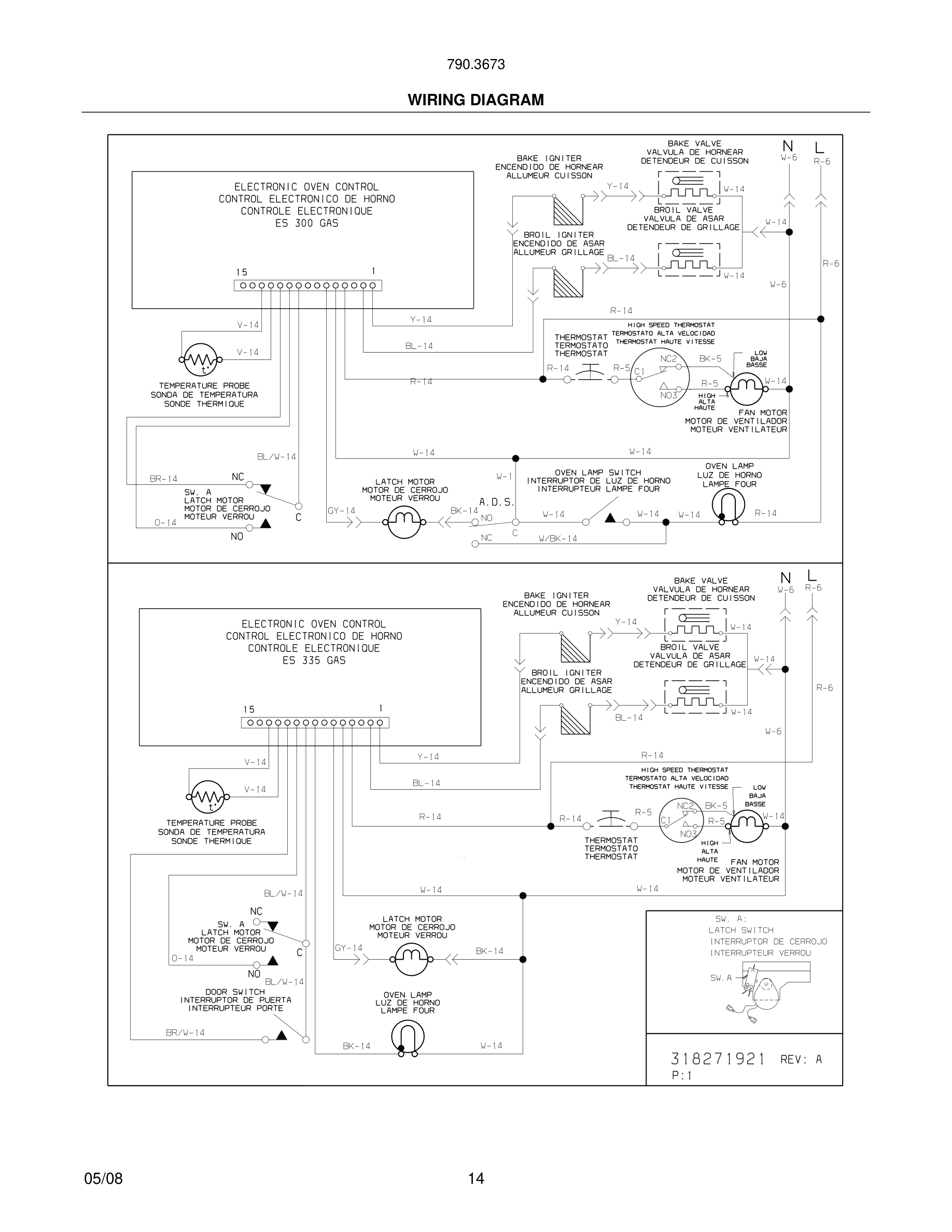

14 - WIRING DIAGRAM

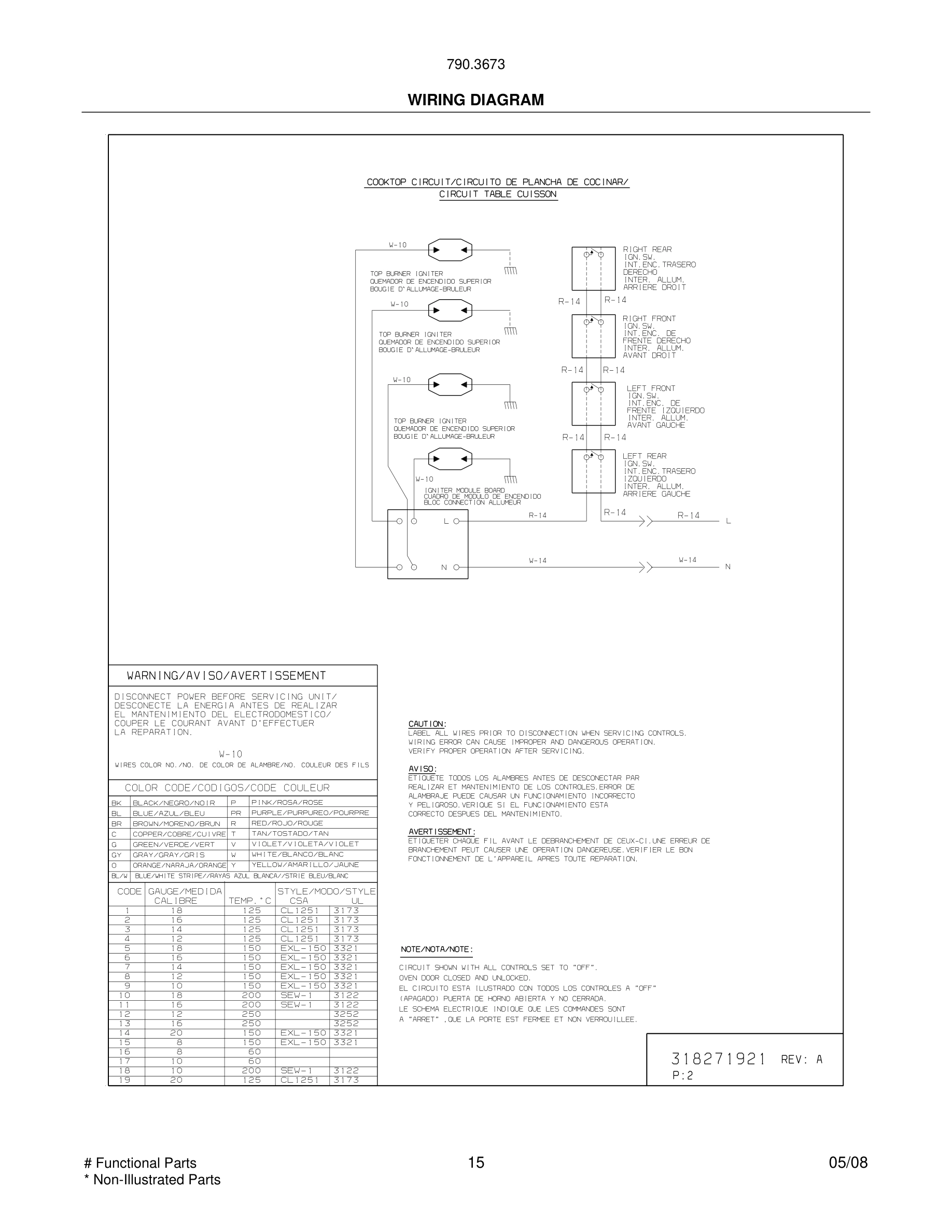

15 - WIRING DIAGRAM
Common parts from model Kenmore 790.36732701 RANGE
*
LP Conversion Kit WCI 318186918 Contact Us For Availability
2#
Valve, top burner, 12000 BTU WCI 318233920 Contact Us For Availability
2A#
Valve, top burner, 14000 BTU WCI 318233930 Contact Us For Availability
2C#
Valve, top burner, 9500 BTU WCI 318233910 Contact Us For Availability
3
Trim, oven door, black, upper WCI 318260201 Contact Us For Availability
3#
Wiring Harness, w/igntr switch WCI 318232618 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Glass Assy., oven door, white, outer, w/trim WCI 318261356 Contact Us For Availability
6
Rack, oven WCI 318262504 Contact Us For Availability
8
Panel, oven, bottom WCI 318290501 Contact Us For Availability
9
Pan, broilerOPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
10
Insert, broiler panOPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
10#
Burner, sealed, 12K WCI 316212300 Contact Us For Availability
10A#
Burner, sealed, 14K WCI 316223400 Contact Us For Availability
11
Ignitor Assembly, 12K, left rear, w/tube & ho WCI 318306005 Contact Us For Availability
11A
Ignitor Assembly, 14K, right front, w/tube & WCI 318306009 Contact Us For Availability
11B
Ignitor Assembly, 5K, right rear, w/tube & ho WCI 318306008 Contact Us For Availability
11C
Ignitor Assembly, 9.5K, left front, w/tube & WCI 318306004 Contact Us For Availability
13
Channel, drawer, RH WCI 318018100 Contact Us For Availability
13A
Channel, drawer, LH WCI 318018101 Contact Us For Availability
16
Tube, regulator valve WCI 318289500 Contact Us For Availability
16
Console, assy., white WCI 318296600 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
18#
Burner, oven, 18000 WCI 318292200 Contact Us For Availability
19
Panel, control, black WCI 318297517 Contact Us For Availability
19A
Panel, control mtg. WCI 318289702 Contact Us For Availability
20*
Overlay, clock, bisque, ES335 WCI 316419308 Contact Us For Availability
22
Cap, 12K burner, black WCI 316213600 Contact Us For Availability
22
Cap, 12K burner, gray WCI 316213604 Contact Us For Availability
22
Cap, 12K burner, brown WCI 316213603 Contact Us For Availability
22A
Cap, 14K burner, black WCI 316219900 Contact Us For Availability
22A
Cap, 14K burner, gray WCI 316219903 Contact Us For Availability
22B
Cap, 5K burner, black WCI 316206600 Contact Us For Availability
22B
Cap, 5K burner, gray, small WCI 316206603 Contact Us For Availability
22C
Cap, 9.5K burner, gray, medium WCI 316213504 Contact Us For Availability
22C
Cap, 9.5K burner, brown WCI 316213503 Contact Us For Availability
23
Burner, broil, 14000 WCI 318292300 Contact Us For Availability
24#
Mixer Elbow, broiler WCI 318267801 Contact Us For Availability
25
Baffle, broil burner WCI 316401301 Contact Us For Availability
35
Retainer, control panel, black WCI 318233720 Contact Us For Availability
35
Retainer, control panel, white WCI 318233721 Contact Us For Availability
36
Knob, control, black WCI 316442413 Contact Us For Availability
36
Knob, control, white WCI 316442412 Contact Us For Availability
39
Handle, oven door, bisque WCI 316443602 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
44A
Orifice, top burner, 14K WCI 316237900 Contact Us For Availability
44B
Orifice, top burner, 5K WCI 316237903 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
76
Front, oven WCI 318056217 Contact Us For Availability
77
Bracket, burner mtg, (4) WCI 318192606 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
86
Receptacle, hinge WCI 318342400 Contact Us For Availability
90
Panel, filler, black, RH WCI 318296904 Contact Us For Availability
90
Panel, filler, white, RH WCI 318296902 Contact Us For Availability
90A
Panel, filler, white, LH WCI 318296903 Contact Us For Availability
91
Trim, filler, white, rear WCI 318304301 Contact Us For Availability
99A
Gasket, black WCI 318313201 Contact Us For Availability
99A
Gasket, grey WCI 318313200 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
170
Anti-tip & accessories WCI 318335500 Contact Us For Availability
200
Frame & Wheel Assembly, black WCI 318335600 Contact Us For Availability
201
Frame, drawer WCI 318298210 Contact Us For Availability
× ![]()
