Model Kenmore 790.36712503 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

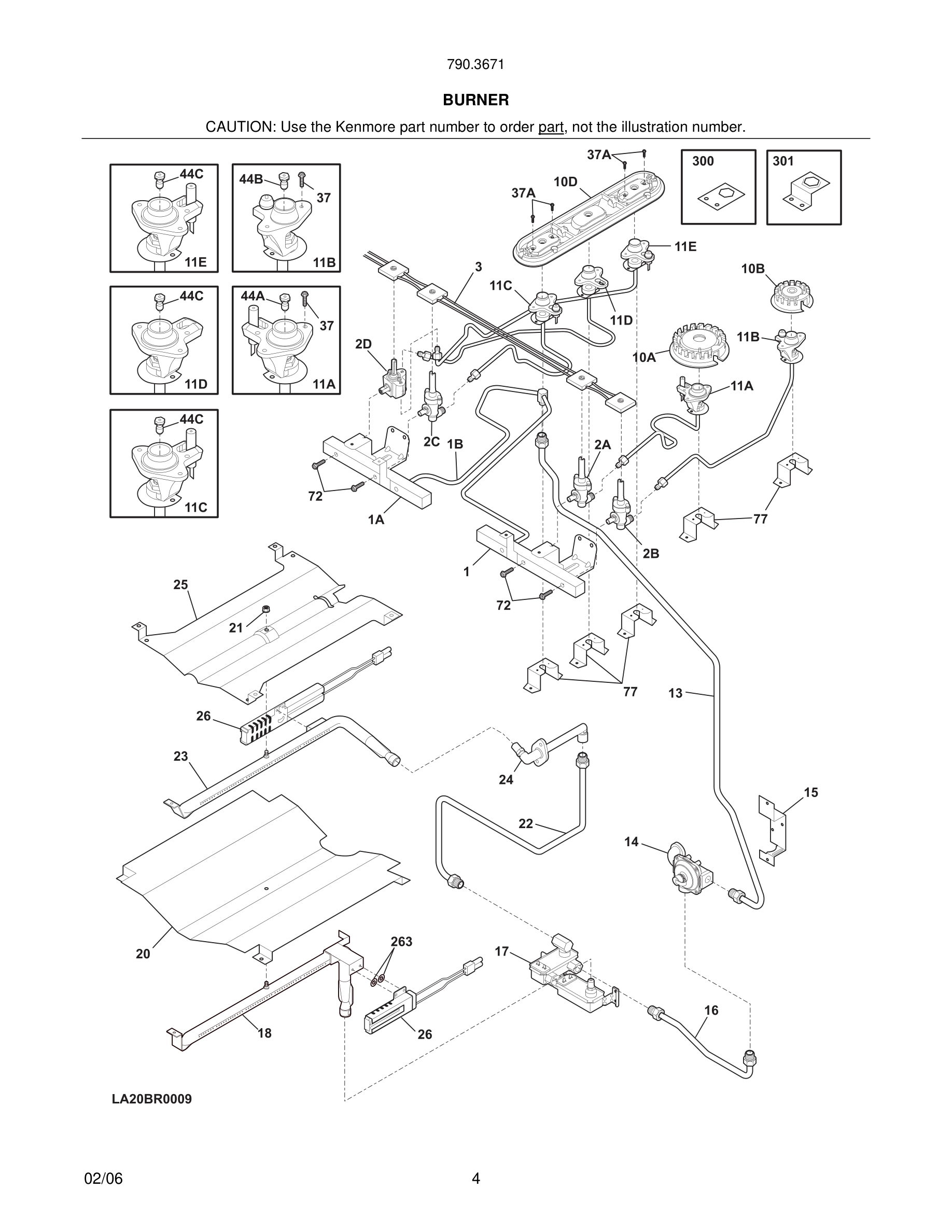

05 - BURNER

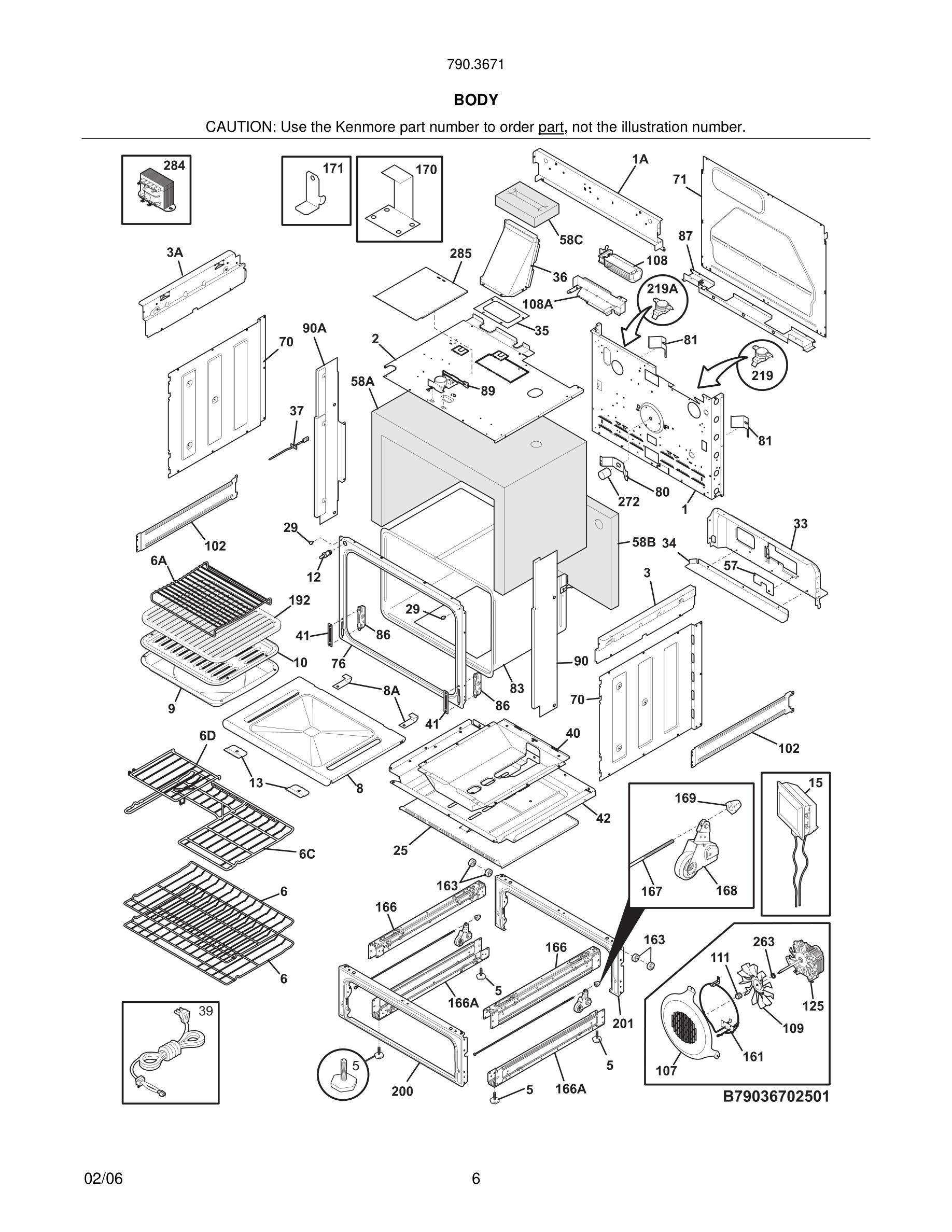

07 - BODY
09 - BODY

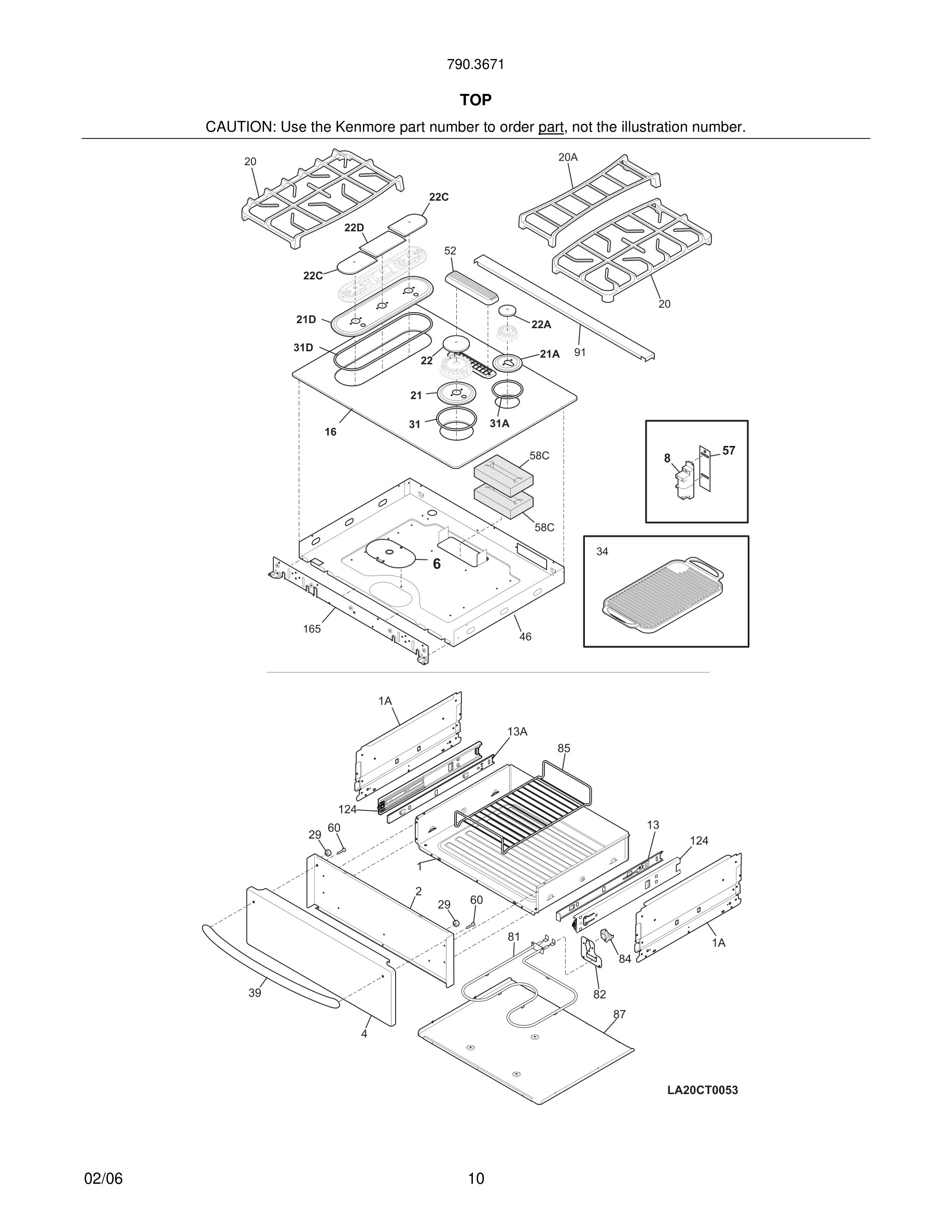

11 - TOP
13 - DOOR

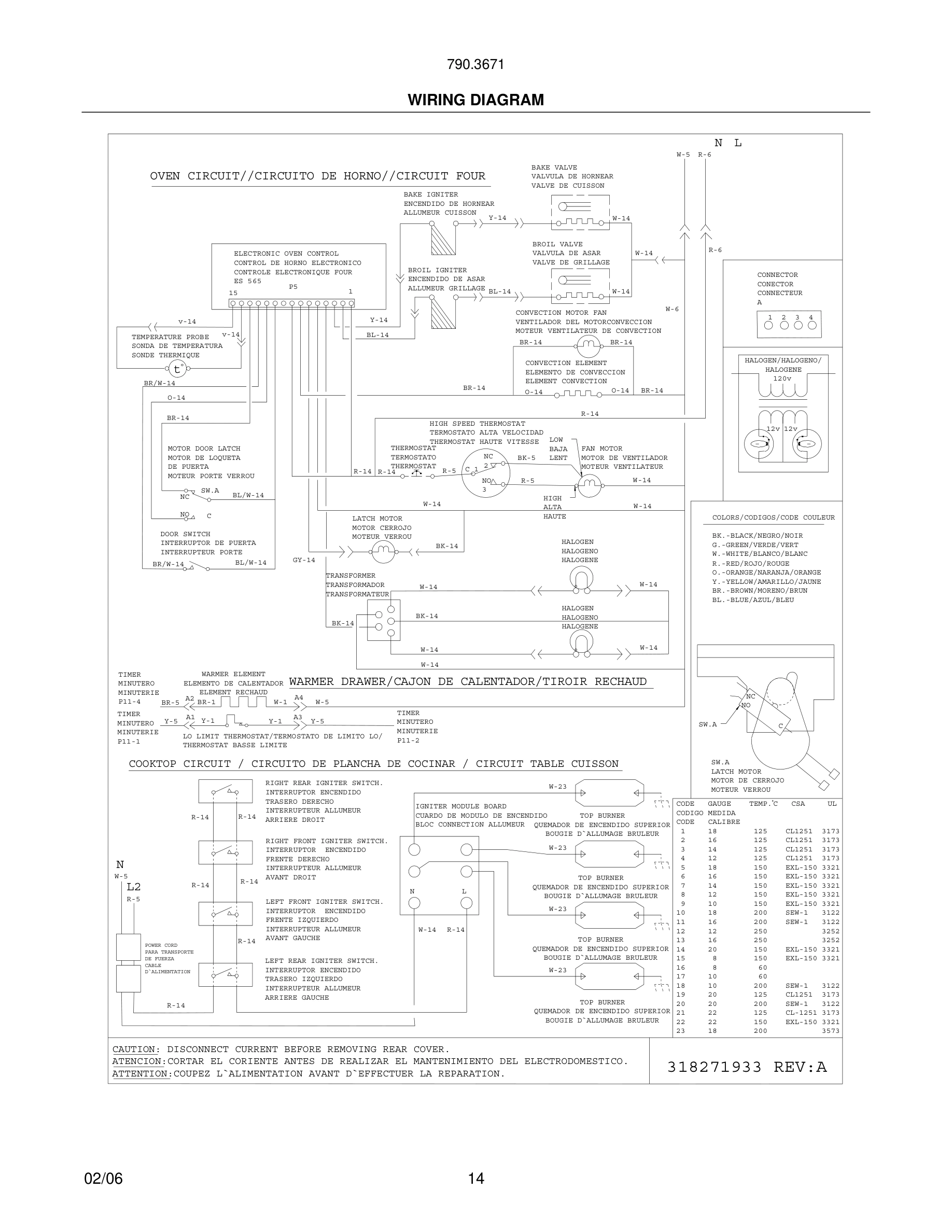

14 - WIRING DIAGRAM
Common parts from model Kenmore 790.36712503 RANGE
*
LP Conversion Kit WCI 318186910 Contact Us For Availability
*
Wiring Harness, drawer WCI 318199748 Contact Us For Availability
*
Washer, plastic WCI 5303325171 Contact Us For Availability
*
Cleaner, grate WCI 316119700 Contact Us For Availability
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
*
Label, anti-tip WCI 316221000 Contact Us For Availability
1
Drawer, body assembly WCI 318304401 Contact Us For Availability
2
Panel, drawer, black, inner WCI 318303901 Contact Us For Availability
2A#
Valve, top burner, 17000 BTU WCI 318233940 Contact Us For Availability
2C#
Valve, top burner, 9500 BTU WCI 318233910 Contact Us For Availability
2D#
Valve, top burner, dual port, 9K WCI 316412502 Contact Us For Availability
3
Trim, oven door, black, upper WCI 318260201 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Glass Assy., oven door, white, outer, w/trim WCI 318261356 Contact Us For Availability
4
Panel, drawer, white, front WCI 318299901 Contact Us For Availability
4
Panel, drawer, bisque, front WCI 318299902 Contact Us For Availability
4
Panel, drawer, black, front WCI 318299903 Contact Us For Availability
4
Glass Assy., oven door, bisque, outer, w/trim WCI 318261357 Contact Us For Availability
5
Screw, leveling WCI 318175503 Contact Us For Availability
6
Cover, wiring WCI 318229900 Contact Us For Availability
6
Baffle, door WCI 318260500 Contact Us For Availability
8
Panel, oven, bottom WCI 318290501 Contact Us For Availability
9
Liner, oven door WCI 318259601 Contact Us For Availability
10A#
Burner, sealed, 17K WCI 316223300 Contact Us For Availability
11A
Ignitor Assembly, 17K, right front, w/tube & WCI 318306213 Contact Us For Availability
11E
Ignitor Assembly, 9K, left rear, w/tube & hol WCI 318306212 Contact Us For Availability
15
Lamp, oven, (2), halogen WCI 318241000 Contact Us For Availability
16
Tube, regulator valve WCI 318289500 Contact Us For Availability
16
Console, assy., white WCI 318296600 Contact Us For Availability
16
Main Top, assy., glass, white WCI 318343500 Contact Us For Availability
16
Main Top, assy., glass, bisque WCI 318343501 Contact Us For Availability
16
Main Top, assy., glass, black WCI 318343502 Contact Us For Availability
18#
Burner, oven, 18000 WCI 318292200 Contact Us For Availability
20
Grate, black, (2) WCI 318221659 Contact Us For Availability
20#
Clock/Timer, electronic, ES565 WCI 316418782 Contact Us For Availability
20A
Grate, center, black WCI 318221504 Contact Us For Availability
21
Skirt, 17K burner, black WCI 316264803 Contact Us For Availability
21A
Skirt, 5K burner, black WCI 316241904 Contact Us For Availability
21D
Skirt, bridge burner, black WCI 316411703 Contact Us For Availability
22
Cap, 17K burner, black WCI 316219705 Contact Us For Availability
22A
Cap, 5K burner, black WCI 316206505 Contact Us For Availability
22C
Cap, 9.5K burner, black, black WCI 316461903 Contact Us For Availability
22D
Cap, 9.5K burner, black, black, center WCI 316462103 Contact Us For Availability
23
Burner, broil, 14000 WCI 318292300 Contact Us For Availability
23
Hinge, oven door, (2) WCI 5303310828 Contact Us For Availability
24#
Mixer Elbow, broiler WCI 318267801 Contact Us For Availability
25
Baffle, broil burner WCI 316401301 Contact Us For Availability
29
Spacer, door WCI 318014402 Contact Us For Availability
31D
Seal, bridge burner WCI 316428300 Contact Us For Availability
34
Griddle WCI 316432202 Contact Us For Availability
35
Retainer, control panel, black WCI 318233720 Contact Us For Availability
35
Retainer, control panel, white WCI 318233721 Contact Us For Availability
39
Handle, door/drawer, white WCI 316432302 Contact Us For Availability
39
Handle, door/drawer, bisque WCI 316432304 Contact Us For Availability
39
Handle, door/drawer, black WCI 316432303 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
44B
Orifice, top burner, 5K WCI 316237903 Contact Us For Availability
44C
Orifice, top burner, 9K WCI 316237911 Contact Us For Availability
46
Box, burner WCI 318225411 Contact Us For Availability
52
Cover, flue, white, outer WCI 318291200 Contact Us For Availability
52
Cover, flue, black, outer WCI 318291202 Contact Us For Availability
57
Panel, service WCI 318295610 Contact Us For Availability
76
Front, oven WCI 318056217 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
82
Bracket, element, warmer drawer WCI 318304500 Contact Us For Availability
90
Panel, filler, black, RH WCI 318296904 Contact Us For Availability
90
Panel, filler, white, RH WCI 318296902 Contact Us For Availability
90A
Panel, filler, white, LH WCI 318296903 Contact Us For Availability
91
Trim, filler, white, rear WCI 318304301 Contact Us For Availability
91
Trim, filler, bisque, rear WCI 318304302 Contact Us For Availability
101
Bushing, retainer WCI 318233401 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
165
Plate, mounting WCI 318227504 Contact Us For Availability
166
Bracket, base support, (4) WCI 318298400 Contact Us For Availability
169
Nut, acorn, 10-32 x 3/8, (2) WCI 5304446440 Contact Us For Availability
170
Anti-tip & accessories WCI 318335700 Contact Us For Availability
200
Frame, drawer, black, front WCI 318298201 Contact Us For Availability
201
Frame, drawer WCI 318298210 Contact Us For Availability
284
Transformer WCI 318244500 Contact Us For Availability
× ![]()
