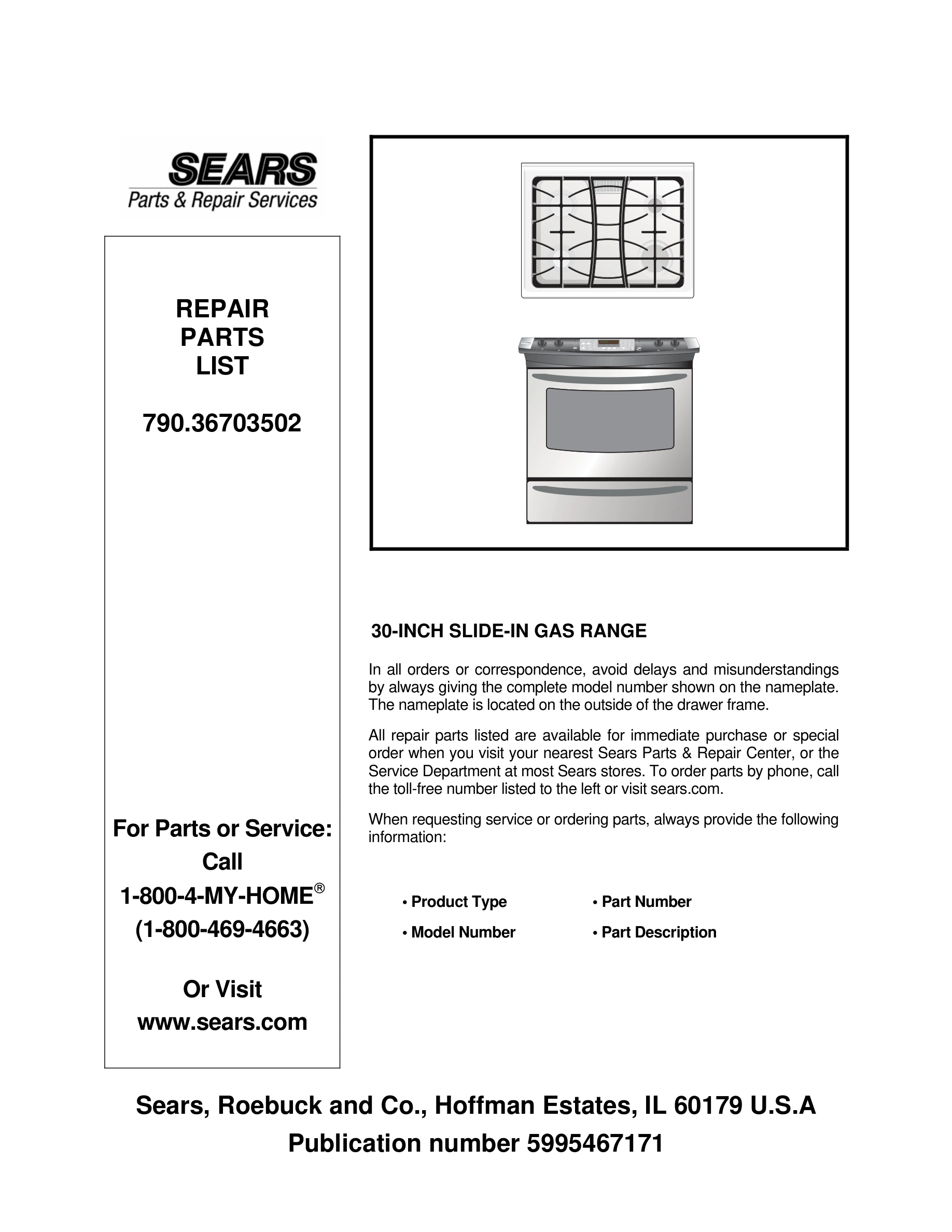

Model Kenmore 790.36703502 RANGE – Common Parts & Diagrams
01 - COVER

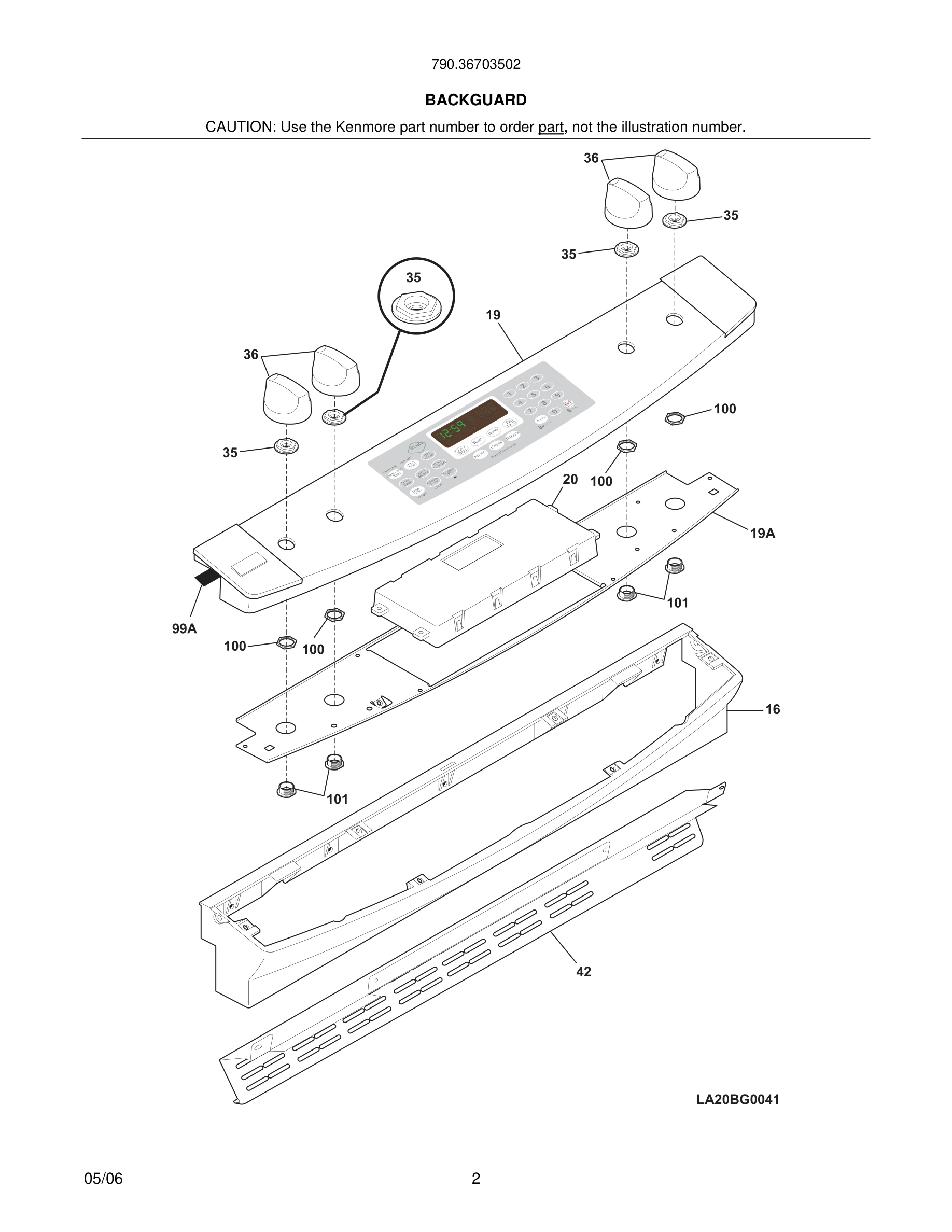

03 - BACKGUARD
05 - BURNER
07 - BODY
09 - BODY
11 - TOP
13 - DOOR
14 - WIRING DIAGRAM
Common parts from model Kenmore 790.36703502 RANGE
*
LP Conversion Kit WCI 318186909 Contact Us For Availability
*
Wiring Harness, drawer WCI 318199748 Contact Us For Availability
*
Washer, plastic WCI 5303325171 Contact Us For Availability
*
Cleaner, grate WCI 316119700 Contact Us For Availability
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
*
Label, anti-tip WCI 316221000 Contact Us For Availability
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
1
Drawer, body assembly WCI 318304401 Contact Us For Availability
2
Panel, drawer, black, inner WCI 318303901 Contact Us For Availability
2#
Valve, top burner, 14000 BTU WCI 318233930 Contact Us For Availability
2A#
Valve, top burner, 17000 BTU WCI 318233940 Contact Us For Availability
2C#
Valve, top burner, 9500 BTU WCI 318233910 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
3B
Cover, rear door, black, (2) WCI 318262111 Contact Us For Availability
4
Panel, drawer, stainless, front WCI 318298800 Contact Us For Availability
5
Screw, leveling WCI 318175503 Contact Us For Availability
6
Baffle, door WCI 318260520 Contact Us For Availability
8
Panel, oven, bottom WCI 318290501 Contact Us For Availability
9
Liner, door WCI 318259605 Contact Us For Availability
10#
Burner, sealed, 14K WCI 316223400 Contact Us For Availability
10A#
Burner, sealed, 17K WCI 316223300 Contact Us For Availability
11
Ignitor Assembly, 14K, left rear, w/tube & ho WCI 318306006 Contact Us For Availability
11B
Ignitor Assembly, 5K, right rear, w/tube & ho WCI 318306008 Contact Us For Availability
11C
Ignitor Assembly, 9.5K, left front, w/tube & WCI 318306004 Contact Us For Availability
13
Door Assy, glass, stainless steel, outer WCI 318272157 Contact Us For Availability
15
Lamp, oven, (2), halogen WCI 318241000 Contact Us For Availability
16
Tube, regulator valve WCI 318289500 Contact Us For Availability
16
Maintop Assembly, graphite WCI 318327306 Contact Us For Availability
18#
Burner, oven, 18000 WCI 318292200 Contact Us For Availability
20
Grate, black, (2) WCI 318221663 Contact Us For Availability
20#
Clock/Timer, electronic, ES565 WCI 316418782 Contact Us For Availability
20A
Grate, center, black WCI 318221508 Contact Us For Availability
22
Cap, 14K burner, black WCI 316219905 Contact Us For Availability
22B
Cap, 5K burner, black WCI 316206604 Contact Us For Availability
22C
Cap, 9.5K burner, black, (2) WCI 316213505 Contact Us For Availability
23
Burner, broil, 14000 WCI 318292300 Contact Us For Availability
23
Hinge, door, (2) WCI 318024714 Contact Us For Availability
24
Trim, door, black, lower WCI 318260301 Contact Us For Availability
24#
Mixer Elbow, broiler WCI 318267801 Contact Us For Availability
25
Baffle, broil burner WCI 316401301 Contact Us For Availability
34
Griddle WCI 316432202 Contact Us For Availability
36
Knob, control, graphite WCI 316121625 Contact Us For Availability
39
Handle, door/drawer, stainless WCI 316432300 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
44
Orifice, top burner, 14K WCI 316237900 Contact Us For Availability
44B
Orifice, top burner, 5K WCI 316237903 Contact Us For Availability
46
Box, burner WCI 318291400 Contact Us For Availability
50
Cover, burner box WCI 318328500 Contact Us For Availability
52
Cover, flue, graphite, outer WCI 318291103 Contact Us For Availability
53
Cover, flue, black WCI 318308303 Contact Us For Availability
58C
Insulation, flue WCI 318285097 Contact Us For Availability
76
Front, oven WCI 318056217 Contact Us For Availability
77
Bracket, burner mtg, (4) WCI 318192606 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
82
Bracket, element, warmer drawer WCI 318304500 Contact Us For Availability
99A
Gasket, black WCI 318313201 Contact Us For Availability
101
Bushing, retainer WCI 318233401 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
165
Plate, mounting WCI 318227504 Contact Us For Availability
166
Bracket, base support, (2) WCI 318298400 Contact Us For Availability
170
Anti-tip & accessories WCI 318335700 Contact Us For Availability
200
Frame, drawer, black, front WCI 318298201 Contact Us For Availability
201
Frame, drawer WCI 318298210 Contact Us For Availability
272
Tube, protector WCI 318249401 Contact Us For Availability
284
Transformer WCI 318244500 Contact Us For Availability
× ![]()
