Model Kenmore 790.36702505 RANGE – Common Parts & Diagrams
01 - COVER

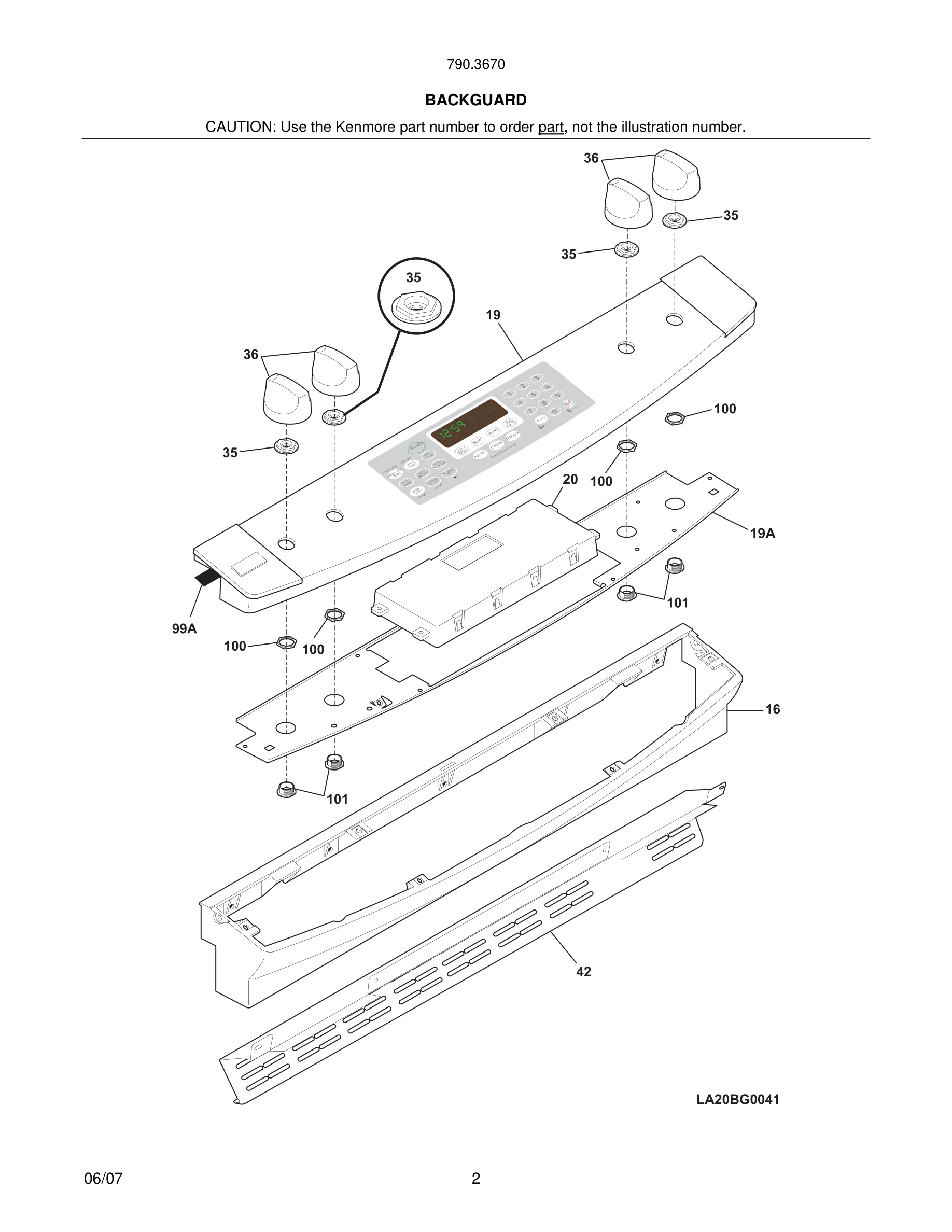

03 - BACKGUARD

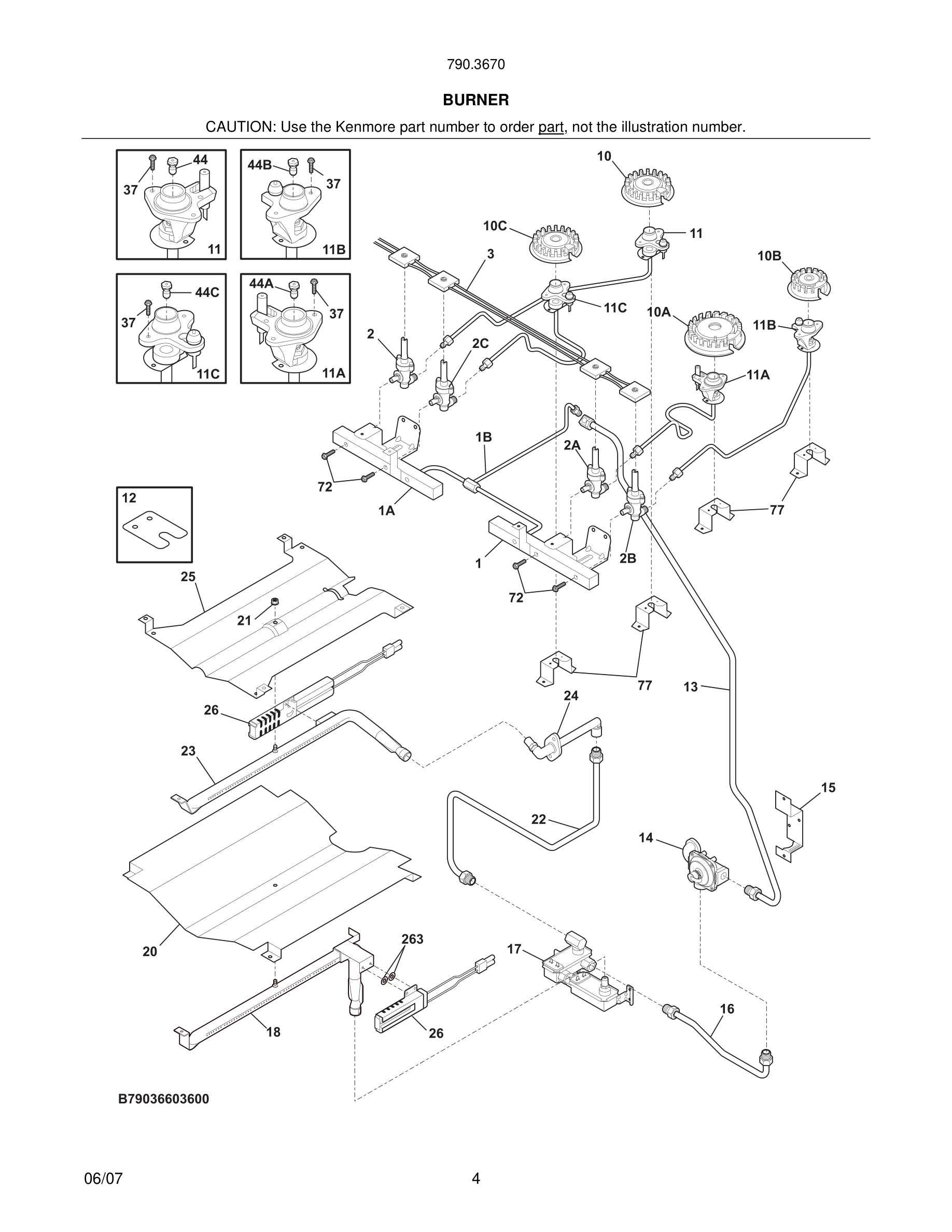

05 - BURNER

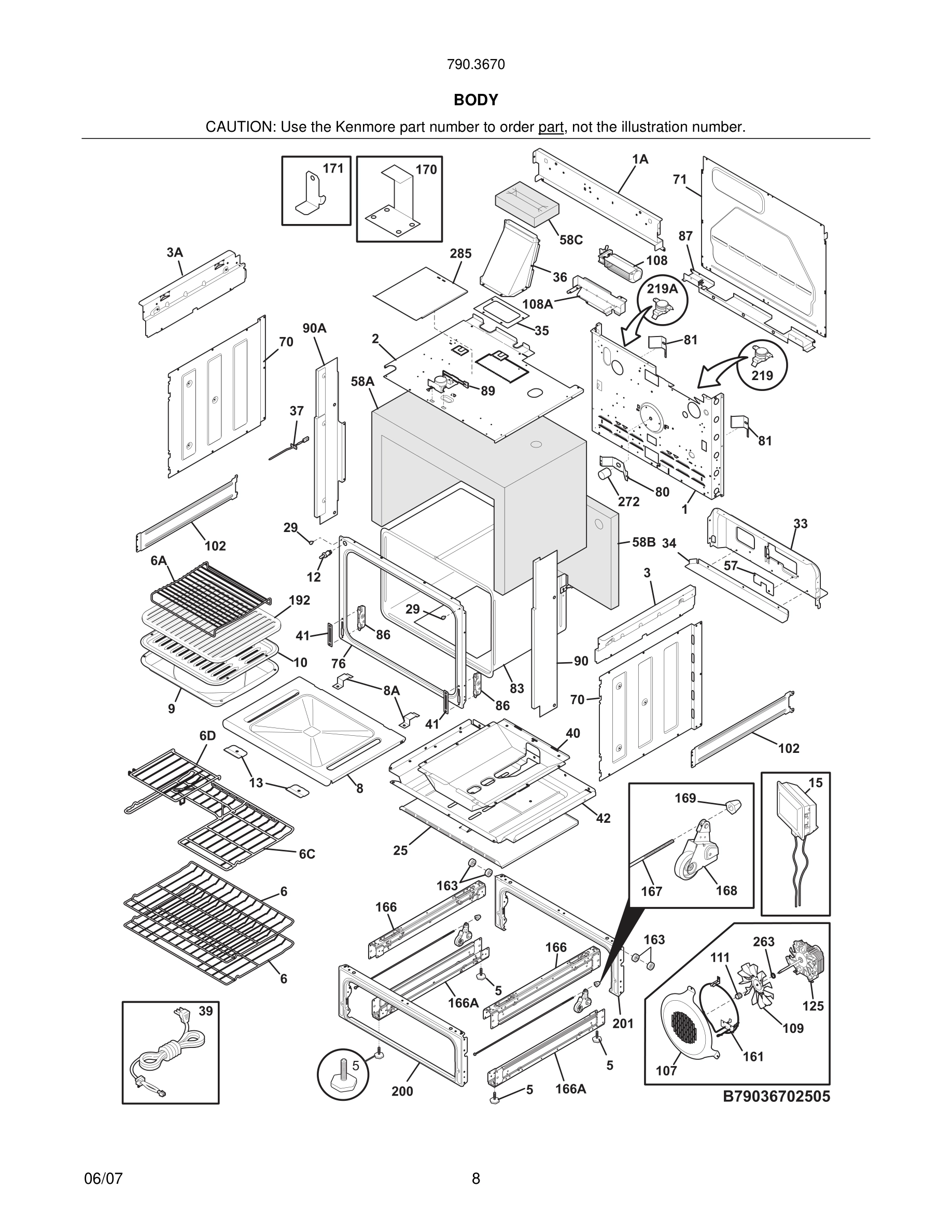

07 - BODY
09 - BODY

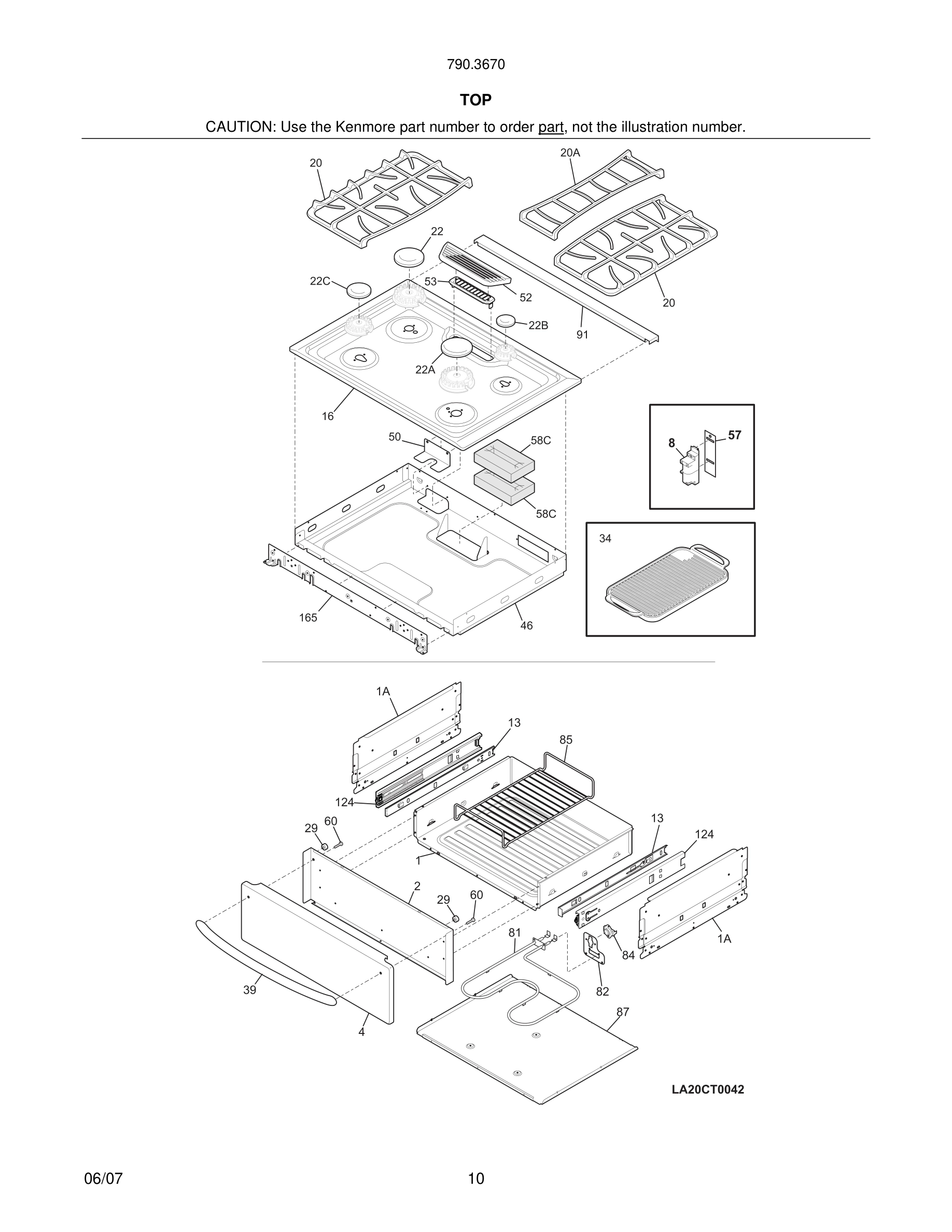

11 - TOP

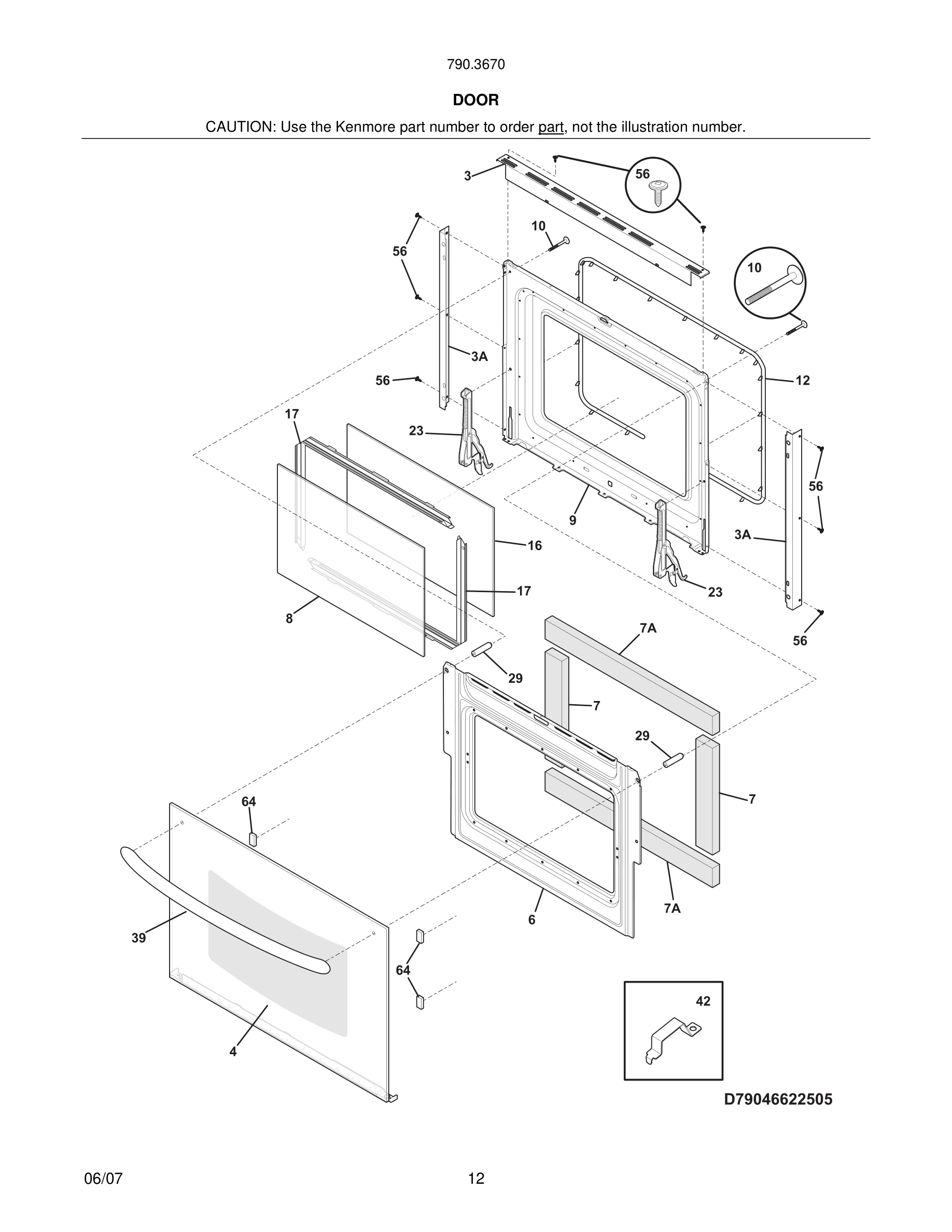

13 - DOOR

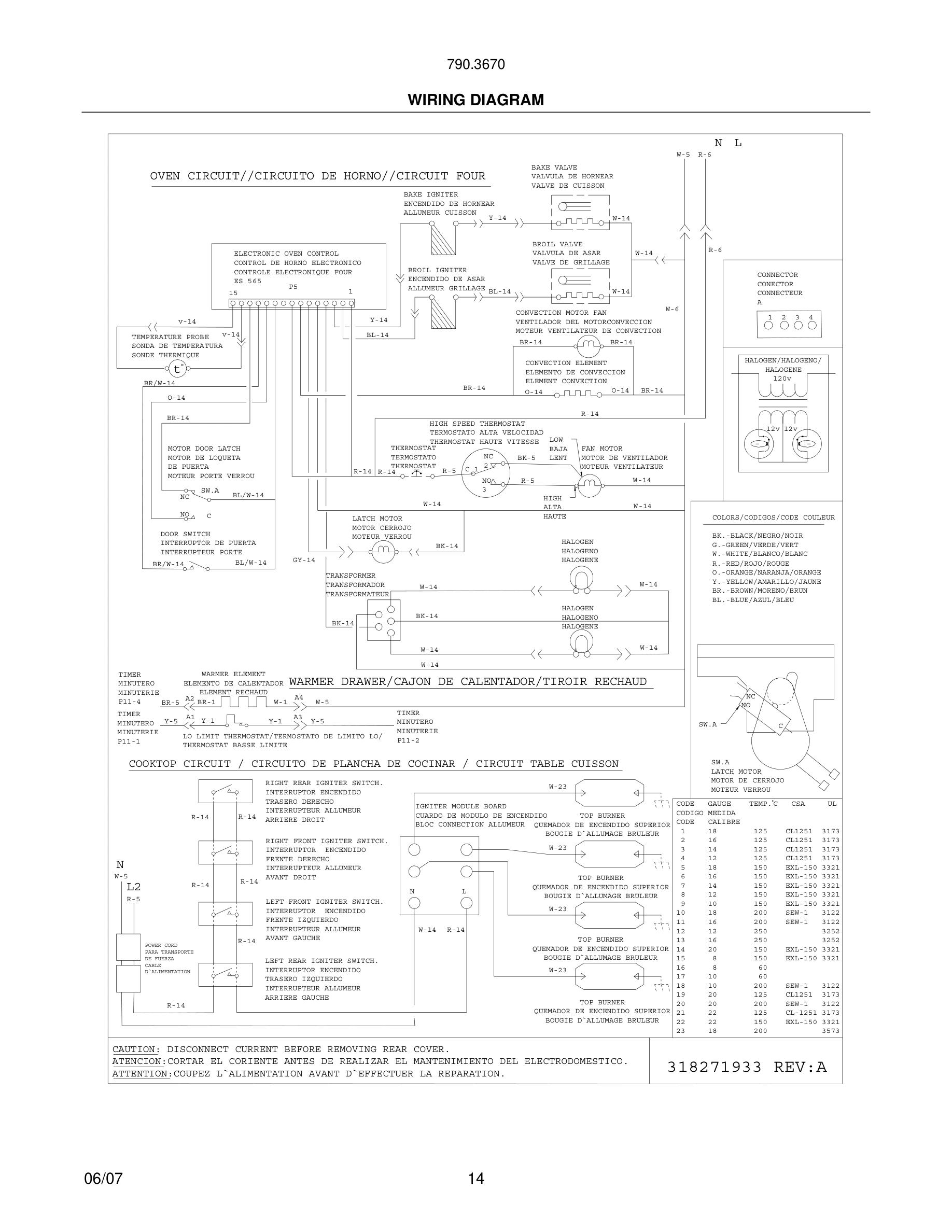

14 - WIRING DIAGRAM
Common parts from model Kenmore 790.36702505 RANGE
*
LP Conversion Kit WCI 318186909 Contact Us For Availability
*
Screw, 8-18 X 1/2, black WCI 5304436875 Contact Us For Availability
*
Screw, 8-32 x 0.437, (4) WCI 5303307980 Contact Us For Availability
*
Screw, 8-18 X 1/2, (2) WCI 5303300265 Contact Us For Availability
*
Screw, 8 x 0.500 WCI 5303211311 Contact Us For Availability
*
Wiring Harness, drawer WCI 318199748 Contact Us For Availability
*
Screw, 8-18 x 0.406 WCI 5304415832 Contact Us For Availability
*
Screw, 8 X 0.750 WCI 5303323129 Contact Us For Availability
*
Label, anti-tip WCI 316221000 Contact Us For Availability
1B
Tube, manifold, 3/8, interconnect WCI 318305410 Contact Us For Availability
2#
Valve, top burner, 14000 BTU WCI 318233930 Contact Us For Availability
2A#
Valve, top burner, 16/17K WCI 318233940 Contact Us For Availability
2B#
Valve, top burner, 5000 BTU WCI 318233900 Contact Us For Availability
2C#
Valve, top burner, 9500 BTU WCI 318233910 Contact Us For Availability
3
Trim, oven door, black, upper WCI 318260201 Contact Us For Availability
3#
Wiring Harness, w/igntr switch WCI 318232618 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Glass Assy., oven door, black, outer, w/trim WCI 318261358 Contact Us For Availability
4
Glass Assy., oven door, white, outer, w/trim WCI 318261356 Contact Us For Availability
4
Glass Assy., oven door, bisque, outer, w/trim WCI 318261357 Contact Us For Availability
5
Screw, leveling WCI 318175503 Contact Us For Availability
6
Baffle, door WCI 318260520 Contact Us For Availability
6A
Rack, broiler pan WCI 318365800 Contact Us For Availability
8
Panel, oven, bottom WCI 318290501 Contact Us For Availability
9
Liner, oven door, upper WCI 318259601 Contact Us For Availability
10
Screw, 10-24 x 3/8 WCI 5303311174 Contact Us For Availability
10#
Burner, sealed, 14K WCI 316223400 Contact Us For Availability
10A#
Burner, sealed, 16/17K WCI 316223300 Contact Us For Availability
10C#
Burner, sealed, 9.5K WCI 316212400 Contact Us For Availability
11
Ignitor Assembly, 14K, left rear, w/tube & ho WCI 318306006 Contact Us For Availability
11A
Ignitor Assembly, 16K, right front, w/tube & WCI 318306007 Contact Us For Availability
11B
Ignitor Assembly, 5K, right rear, w/tube & ho WCI 318306008 Contact Us For Availability
11C
Ignitor Assembly, 9.5K, left front, w/tube & WCI 318306004 Contact Us For Availability
12
Seal, door, lower oven WCI 318053120 Contact Us For Availability
12#
Switch, light WCI 318089916 Contact Us For Availability
13
Glide, warmer, inner RH WCI 318259507 Contact Us For Availability
13A
Glide, warmer, inner LH WCI 318259506 Contact Us For Availability
16
Glass, oven door, heat barrier WCI 318212210 Contact Us For Availability
16
Console, assy., black WCI 318296602 Contact Us For Availability
16
Tube, regulator valve WCI 318289500 Contact Us For Availability
16
Console, assy., white WCI 318296600 Contact Us For Availability
17#
Valve, safety WCI 316404900 Contact Us For Availability
18#
Burner, oven, 18000 WCI 318292200 Contact Us For Availability
19A
Panel, control mtg. WCI 318289709 Contact Us For Availability
20#
Clock/Timer, electronic, ES565 WCI 316418782 Contact Us For Availability
22
Cap, 14K burner, black WCI 316219905 Contact Us For Availability
22A
Cap, 16/17K burner, black WCI 316271904 Contact Us For Availability
22B
Cap, 5K burner, black WCI 316206604 Contact Us For Availability
22C
Cap, 9.5K burner, black, (2) WCI 316213505 Contact Us For Availability
23
Burner, broil, 14000 WCI 318292300 Contact Us For Availability
23
Hinge, door, upper, (2) WCI 318024722 Contact Us For Availability
23
Hinge, oven door, upper, (2) WCI 5303310828 Contact Us For Availability
24#
Mixer Elbow, broiler WCI 318267801 Contact Us For Availability
25
Baffle, broil burner WCI 316401301 Contact Us For Availability
29
Bumper, (2) WCI 318147430 Contact Us For Availability
29
Spacer, door WCI 318014402 Contact Us For Availability
35
Retainer, control panel, black WCI 318233720 Contact Us For Availability
35
Retainer, control panel, white WCI 318233721 Contact Us For Availability
37
Screw, assy mtg, ignitor/orifice WCI 316240600 Contact Us For Availability
37#
Probe, oven temp WCI 316217002 Contact Us For Availability
39
Handle, door/drawer, white WCI 316432302 Contact Us For Availability
39
Handle, door/drawer, bisque WCI 316432304 Contact Us For Availability
39
Handle, door/drawer, black WCI 316432303 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
44
Orifice, top burner, 14K WCI 316237900 Contact Us For Availability
44B
Orifice, top burner, 5K WCI 316237903 Contact Us For Availability
44C
Orifice, top burner, 9.5K WCI 316237902 Contact Us For Availability
57
Panel, service WCI 318295611 Contact Us For Availability
58C
Insulation, flue WCI 318285097 Contact Us For Availability
64
Spacer WCI 318165800 Contact Us For Availability
72
Screw, valve mtg., 1/4 - 20 WCI 316215600 Contact Us For Availability
76
Front, oven WCI 318056217 Contact Us For Availability
77
Bracket, burner mtg, (4) WCI 318192606 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
82
Bracket, element, warmer drawer WCI 318304500 Contact Us For Availability
84#
Thermostat WCI 318005108 Contact Us For Availability
86
Receptacle, hinge WCI 318342400 Contact Us For Availability
90
Panel, filler, white, RH WCI 318296902 Contact Us For Availability
91
Trim, filler, white, rear WCI 318304301 Contact Us For Availability
91
Trim, filler, bisque, rear WCI 318304302 Contact Us For Availability
99A
Gasket, black WCI 318313201 Contact Us For Availability
99A
Gasket, grey WCI 318313200 Contact Us For Availability
101
Bushing, retainer WCI 318233401 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
111
Nut, fan retainer WCI 316136600 Contact Us For Availability
124
Glide, outer/RH & LH, (2) WCI 316105501 Contact Us For Availability
165
Plate, mounting WCI 318227504 Contact Us For Availability
166
Bracket, base support, (2) WCI 318298410 Contact Us For Availability
167
Screw, lock, adjusting WCI 318147811 Contact Us For Availability
168
Wheel & bracket assy, adjustable, (2) WCI 318302400 Contact Us For Availability
170
Anti-tip & accessories WCI 318335700 Contact Us For Availability
201
Frame, drawer WCI 318298210 Contact Us For Availability
219#
Thermostat, safety WCI 318003614 Contact Us For Availability
× ![]()
