Model Kenmore 790.36702502 RANGE – Common Parts & Diagrams
01 - COVER

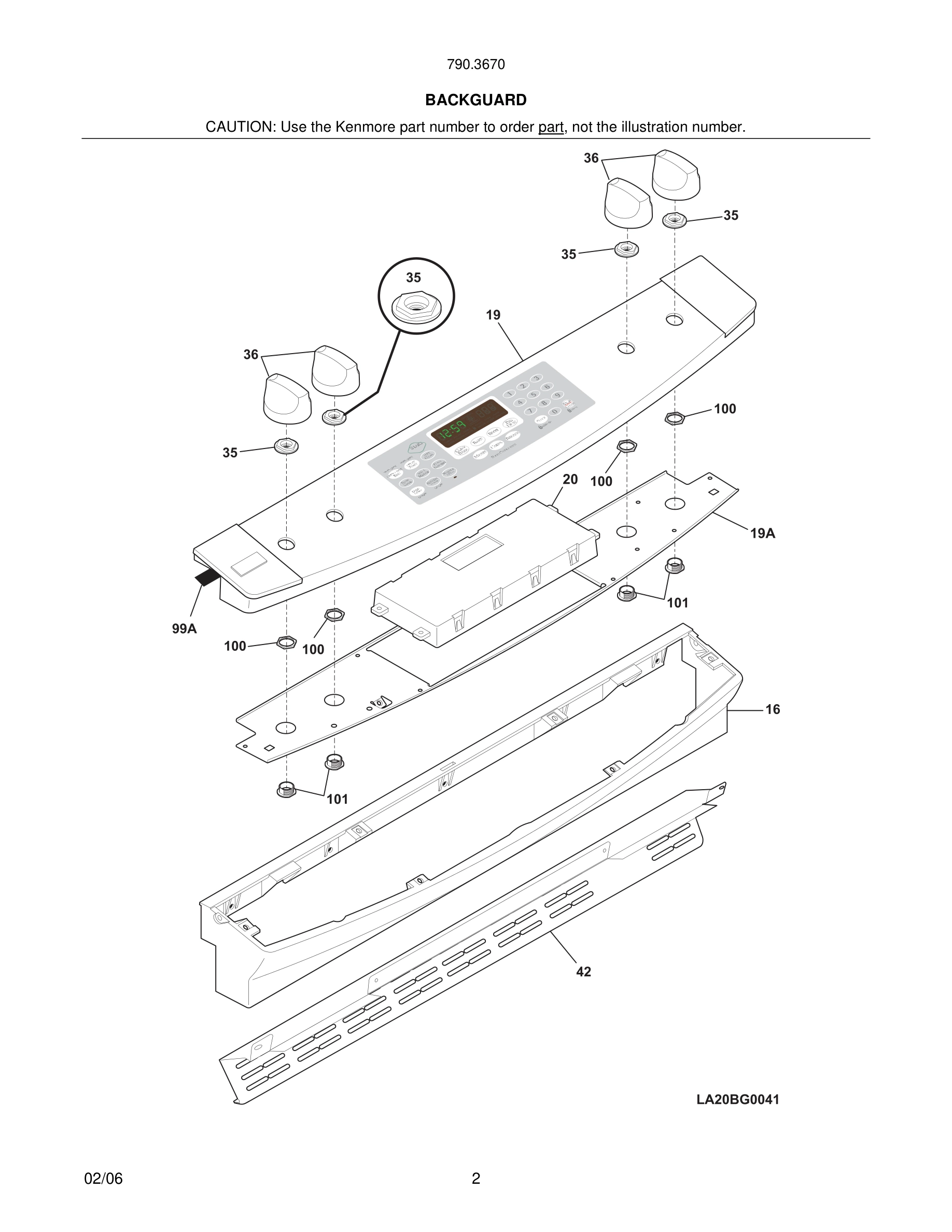

03 - BACKGUARD
05 - BURNER
07 - BODY
09 - BODY
11 - TOP
13 - DOOR
14 - WIRING DIAGRAM
Common parts from model Kenmore 790.36702502 RANGE
*
LP Conversion Kit WCI 318186909 Contact Us For Availability
*
Wiring Harness, drawer WCI 318199748 Contact Us For Availability
*
Washer, plastic WCI 5303325171 Contact Us For Availability
*
Cleaner, grate WCI 316119700 Contact Us For Availability
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
*
Label, anti-tip WCI 316221000 Contact Us For Availability
1
Drawer, body assembly WCI 318304401 Contact Us For Availability
2
Panel, drawer, black, inner WCI 318303901 Contact Us For Availability
2#
Valve, top burner, 14000 BTU WCI 318233930 Contact Us For Availability
2A#
Valve, top burner, 17000 BTU WCI 318233940 Contact Us For Availability
2C#
Valve, top burner, 9500 BTU WCI 318233910 Contact Us For Availability
3
Trim, oven door, black, upper WCI 318260201 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Glass Assy., oven door, white, outer, w/trim WCI 318261356 Contact Us For Availability
4
Panel, drawer, white, front WCI 318299901 Contact Us For Availability
4
Panel, drawer, bisque, front WCI 318299902 Contact Us For Availability
4
Panel, drawer, black, front WCI 318299903 Contact Us For Availability
4
Glass Assy., oven door, bisque, outer, w/trim WCI 318261357 Contact Us For Availability
5
Screw, leveling WCI 318175503 Contact Us For Availability
6
Baffle, door WCI 318260500 Contact Us For Availability
8
Panel, oven, bottom WCI 318290501 Contact Us For Availability
9
Liner, oven door WCI 318259601 Contact Us For Availability
10#
Burner, sealed, 14K WCI 316223400 Contact Us For Availability
10A#
Burner, sealed, 17K WCI 316223300 Contact Us For Availability
11
Ignitor Assembly, 14K, left rear, w/tube & ho WCI 318306006 Contact Us For Availability
11B
Ignitor Assembly, 5K, right rear, w/tube & ho WCI 318306008 Contact Us For Availability
11C
Ignitor Assembly, 9.5K, left front, w/tube & WCI 318306004 Contact Us For Availability
15
Lamp, oven, (2), halogen WCI 318241000 Contact Us For Availability
16
Tube, regulator valve WCI 318289500 Contact Us For Availability
16
Console, assy., white WCI 318296600 Contact Us For Availability
16
Maintop Assembly, white WCI 318327303 Contact Us For Availability
16
Maintop Assembly, bisque WCI 318327304 Contact Us For Availability
16
Maintop Assembly, black WCI 318327305 Contact Us For Availability
18#
Burner, oven, 18000 WCI 318292200 Contact Us For Availability
20
Grate, black, (2) WCI 318221663 Contact Us For Availability
20#
Clock/Timer, electronic, ES565 WCI 316418782 Contact Us For Availability
20A
Grate, center, black WCI 318221508 Contact Us For Availability
22
Cap, 14K burner, black WCI 316219905 Contact Us For Availability
22B
Cap, 5K burner, black WCI 316206604 Contact Us For Availability
22C
Cap, 9.5K burner, black WCI 316213505 Contact Us For Availability
23
Burner, broil, 14000 WCI 318292300 Contact Us For Availability
23
Hinge, oven door, (2) WCI 5303310828 Contact Us For Availability
24#
Mixer Elbow, broiler WCI 318267801 Contact Us For Availability
25
Baffle, broil burner WCI 316401301 Contact Us For Availability
29
Spacer, door WCI 318014402 Contact Us For Availability
34
Griddle WCI 316432202 Contact Us For Availability
35
Retainer, control panel, black WCI 318233720 Contact Us For Availability
35
Retainer, control panel, white WCI 318233721 Contact Us For Availability
39
Handle, door/drawer, white WCI 316432302 Contact Us For Availability
39
Handle, door/drawer, bisque WCI 316432304 Contact Us For Availability
39
Handle, door/drawer, black WCI 316432303 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
44
Orifice, top burner, 14K WCI 316237900 Contact Us For Availability
44B
Orifice, top burner, 5K WCI 316237903 Contact Us For Availability
46
Box, burner WCI 318291400 Contact Us For Availability
50
Cover, burner box WCI 318328500 Contact Us For Availability
52
Cover, flue, bisque, outer WCI 318291101 Contact Us For Availability
53
Cover, flue, black WCI 318308303 Contact Us For Availability
57
Panel, service WCI 318295610 Contact Us For Availability
76
Front, oven WCI 318056217 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
82
Bracket, element, warmer drawer WCI 318304500 Contact Us For Availability
90
Panel, filler, black, RH WCI 318296904 Contact Us For Availability
90
Panel, filler, white, RH WCI 318296902 Contact Us For Availability
90A
Panel, filler, white, LH WCI 318296903 Contact Us For Availability
91
Trim, filler, white, rear WCI 318304301 Contact Us For Availability
91
Trim, filler, bisque, rear WCI 318304302 Contact Us For Availability
99A
Gasket, black WCI 318313201 Contact Us For Availability
99A
Gasket, grey WCI 318313200 Contact Us For Availability
101
Bushing, retainer WCI 318233401 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
165
Plate, mounting WCI 318227504 Contact Us For Availability
166
Bracket, base support, (4) WCI 318298400 Contact Us For Availability
170
Anti-tip & accessories WCI 318335700 Contact Us For Availability
201
Frame, drawer WCI 318298210 Contact Us For Availability
284
Transformer WCI 318244500 Contact Us For Availability
× ![]()
