Model Electrolux 790.36694501 Gas Range (Kenmore 79036694501) – Common Parts & Diagrams
BURNER

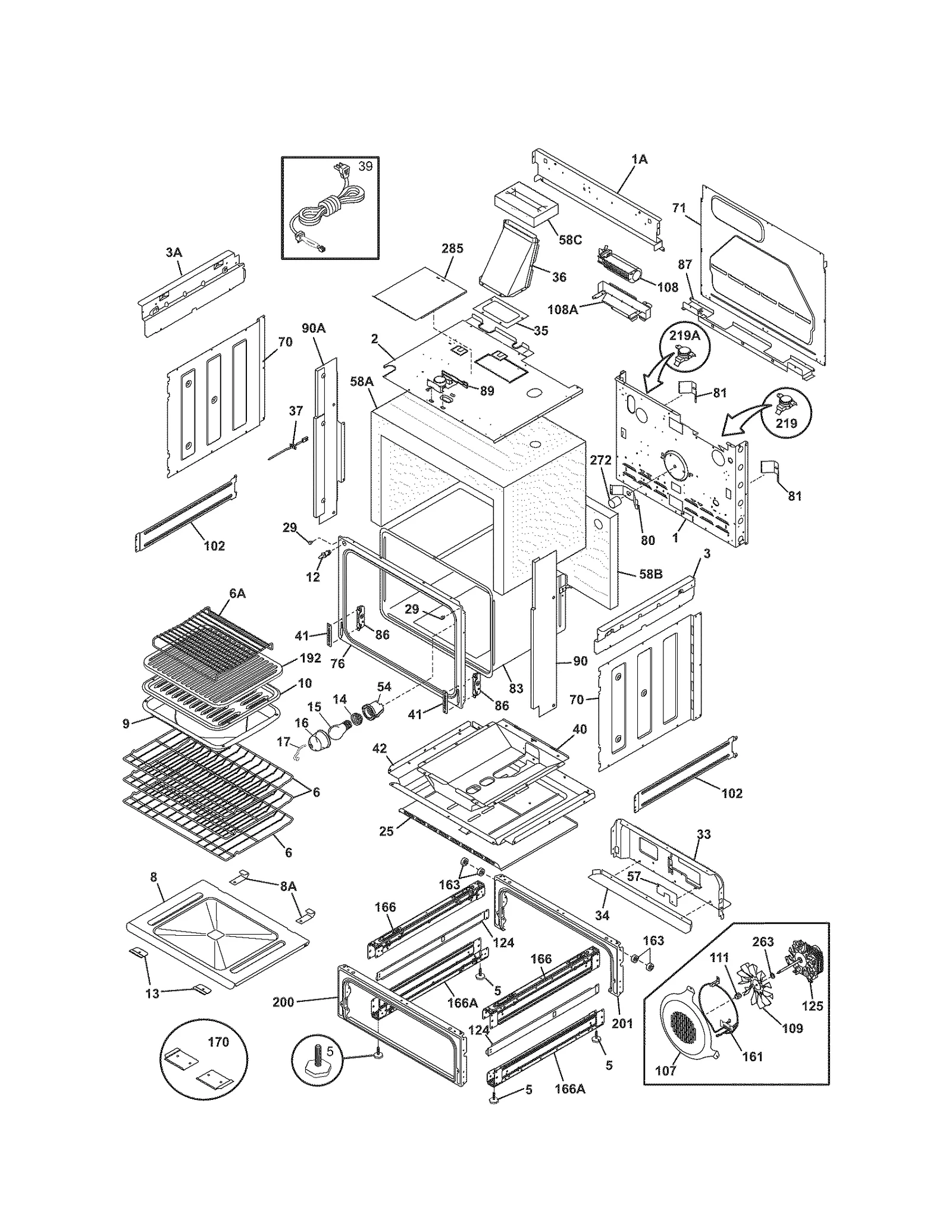

BODY
DOOR

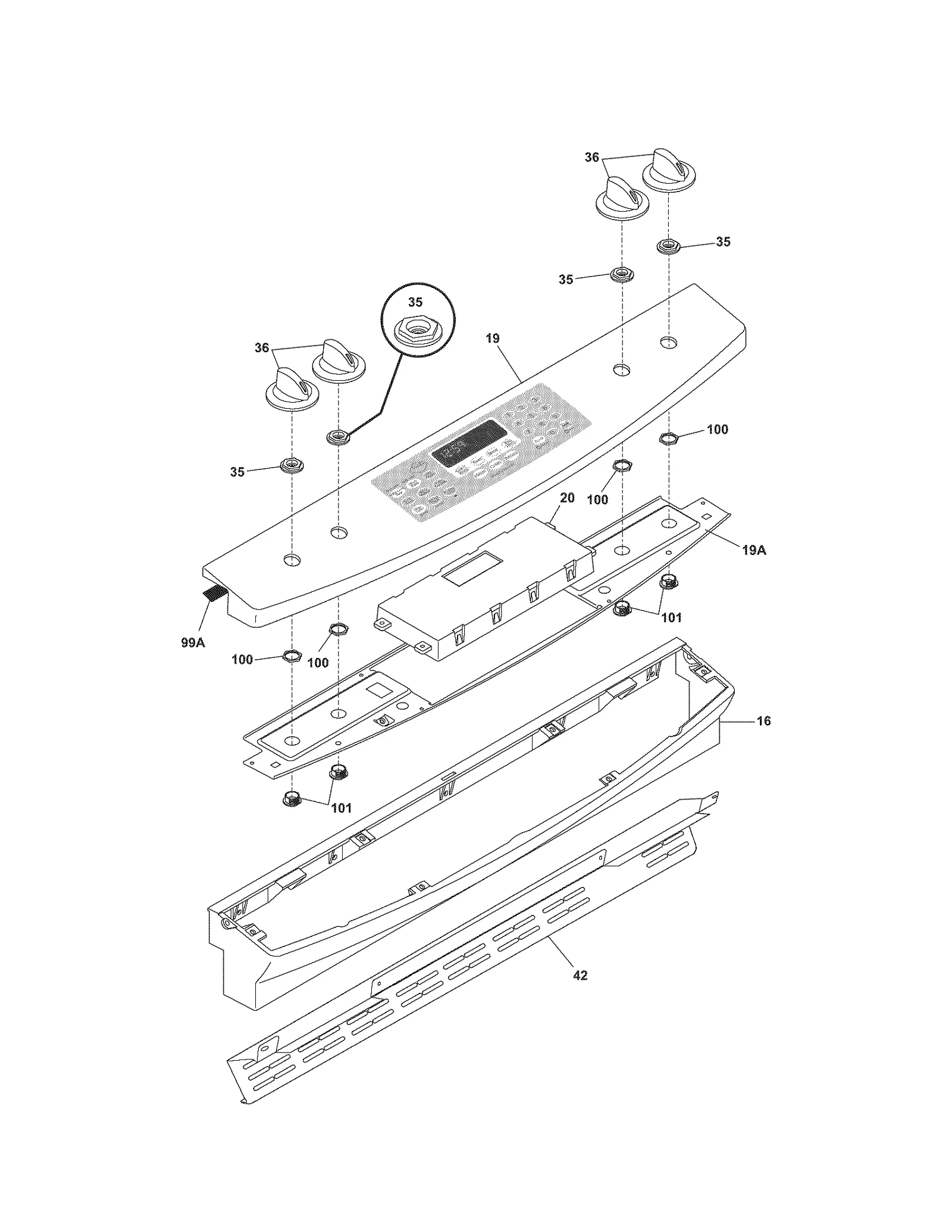

BACKGUARD

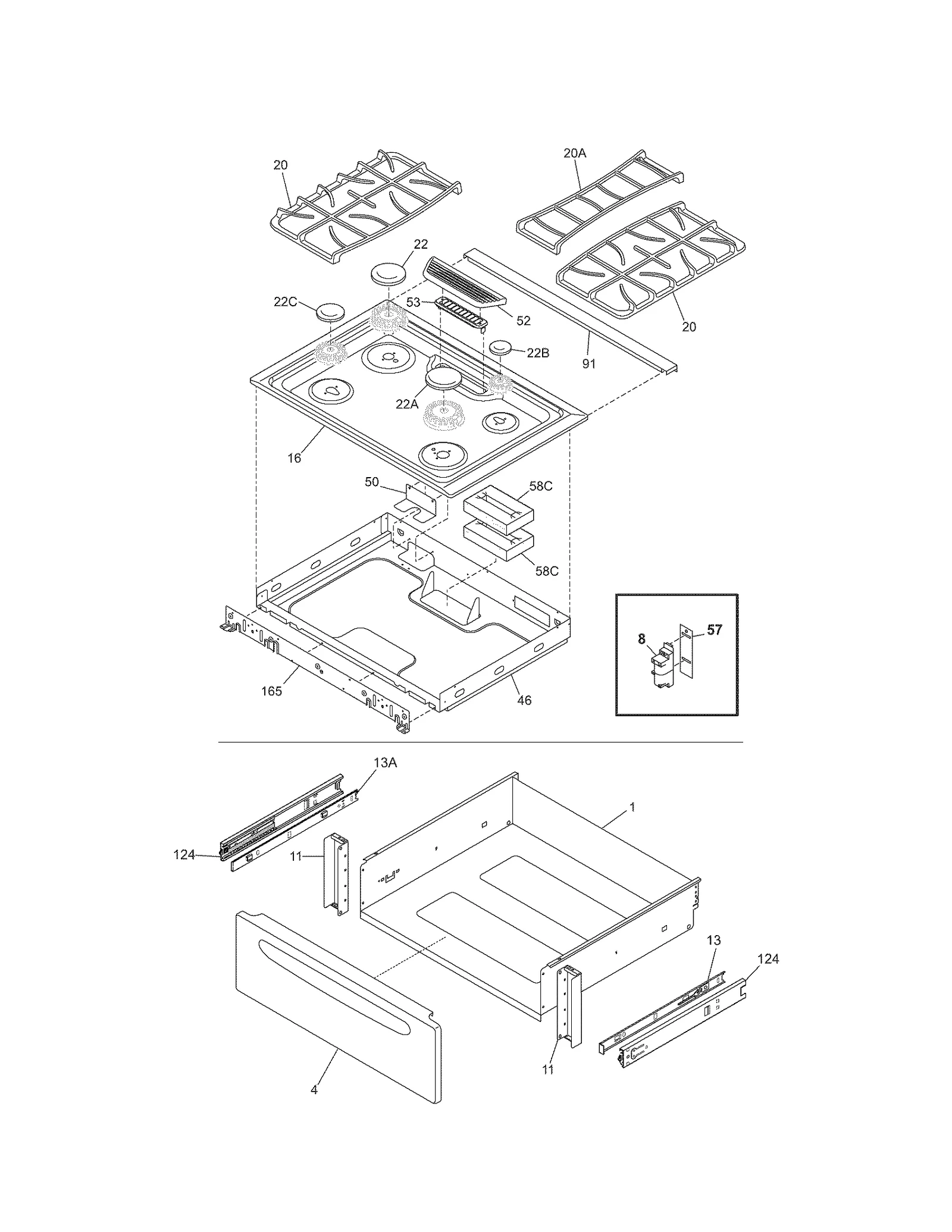

TOP/DRAWER
Common parts from model Electrolux 790.36694501 Gas Range (Kenmore 79036694501)
2
Cooktop Burner Valve WCI 318233920 Contact Us For Availability
2A
Range Surface Burner Valve, 17,000-BTU WCI 318233940 Contact Us For Availability
2C
Cooktop Burner Valve WCI 318233910 Contact Us For Availability
3
Crosley Range Oven Door Trim WCI 318260201 Contact Us For Availability
3A
Range Oven Door Trim WCI 318260401 Contact Us For Availability
4
Range Oven Door Outer Panel Assembly (White) WCI 318261356 Contact Us For Availability
5
Range Leveling Leg WCI 318175503 Contact Us For Availability
6
Range Oven Rack WCI 318262504 Contact Us For Availability
8
Range Oven Bottom Liner WCI 318290501 Contact Us For Availability
10
Range Surface Burner Head WCI 316212300 Contact Us For Availability
10A
Range Surface Burner Head WCI 316223300 Contact Us For Availability
11
Cooktop Igniter Assembly WCI 318306005 Contact Us For Availability
11B
Range Surface Burner Igniter and Orifice Hold WCI 318306008 Contact Us For Availability
11C
Range Surface Burner Igniter and Orifice Hold WCI 318306004 Contact Us For Availability
16
Range Oven Gas Supply Tube WCI 318289500 Contact Us For Availability
16
Range Control Panel WCI 318296600 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
18
Range Bake Burner WCI 318292200 Contact Us For Availability
19
Range Control Panel WCI 318312300 Contact Us For Availability
19
Range Control Panel WCI 318312302 Contact Us For Availability
19A
Range Control Panel Support WCI 318289702 Contact Us For Availability
20
Range Oven Control Board WCI 316418734 Contact Us For Availability
20
Grate WCI 318221686 Contact Us For Availability
20
Range Surface Burner Grate WCI 318221687 Contact Us For Availability
20A
Grate WCI 318221511 Contact Us For Availability
20A
Grate WCI 318221512 Contact Us For Availability
20A
Range Surface Burner Grate WCI 318221513 Contact Us For Availability
22
Range Surface Burner Cap, 12,000-BTU (Black) WCI 316213600 Contact Us For Availability
22
Range Surface Burner Cap, 12,000-BTU (Gray) WCI 316213604 Contact Us For Availability
22
Range Surface Burner Cap, 12,000-BTU (Brown) WCI 316213603 Contact Us For Availability
22A
Range Surface Burner Cap WCI 316271900 Contact Us For Availability
22A
Range Surface Burner Cap (Brown) WCI 316271902 Contact Us For Availability
22A
Cap WCI 316271903 Contact Us For Availability
22B
Range Surface Burner Cap WCI 316206600 Contact Us For Availability
22B
Range Surface Burner Cap (Gray) WCI 316206603 Contact Us For Availability
22B
Range Surface Burner Cap (Brown) WCI 316206602 Contact Us For Availability
22C
Range Surface Burner Cap, 9,500-BTU (Gray) WCI 316213504 Contact Us For Availability
22C
Range Surface Burner Cap, 9,500-BTU (Brown) WCI 316213503 Contact Us For Availability
23
Range Broil Burner WCI 318292300 Contact Us For Availability
24
Range Mixer Elbow WCI 318267801 Contact Us For Availability
25
Range Broil Burner Baffle WCI 316401301 Contact Us For Availability
35
Range Control Panel Knob Retainer WCI 318233720 Contact Us For Availability
35
Range Control Panel Knob Retainer WCI 318233721 Contact Us For Availability
36
Range Surface Burner Knob WCI 316442413 Contact Us For Availability
36
Range Surface Burner Knob WCI 316442412 Contact Us For Availability
39
Range Oven Door Handle WCI 316443602 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
44B
Range Surface Burner Orifice Assembly WCI 316237903 Contact Us For Availability
46
Box WCI 318291400 Contact Us For Availability
50
Oven Cover WCI 318328500 Contact Us For Availability
52
Range Oven Vent Cover (Bisque) WCI 318291101 Contact Us For Availability
53
Range Oven Vent Cover (Black) WCI 318308303 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
57
Panel WCI 318295610 Contact Us For Availability
76
Front WCI 318056217 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
90
Range Side Filler Panel, Right (Black) WCI 318296904 Contact Us For Availability
90
Panel Filler, Right WCI 318296902 Contact Us For Availability
90A
Range Panel WCI 318296903 Contact Us For Availability
91
Crosley Range Main Top Filler Trim, Rear WCI 318304301 Contact Us For Availability
91
Range Trim WCI 318304302 Contact Us For Availability
99A
Range Control Panel Gasket (Black) WCI 318313201 Contact Us For Availability
99A
Gasket WCI 318313200 Contact Us For Availability
108
Range Convection Fan Motor Support Bracket WCI 318251300 Contact Us For Availability
165
Plate WCI 318227504 Contact Us For Availability
166
Range Base WCI 318298400 Contact Us For Availability
170
Anti-Tip WCI 318335500 Contact Us For Availability
201
Frame WCI 318298210 Contact Us For Availability
NI
Range LP Conversion Kit WCI 318186911 Contact Us For Availability
NI
Screw WCI 08016432 Contact Us For Availability
NI
Range Surface Burner Grate Cleaner WCI 316119700 Contact Us For Availability
NI
Screw WCI 5303325171 Contact Us For Availability
× ![]()
