Model Kenmore 790.36693500 RANGE – Common Parts & Diagrams

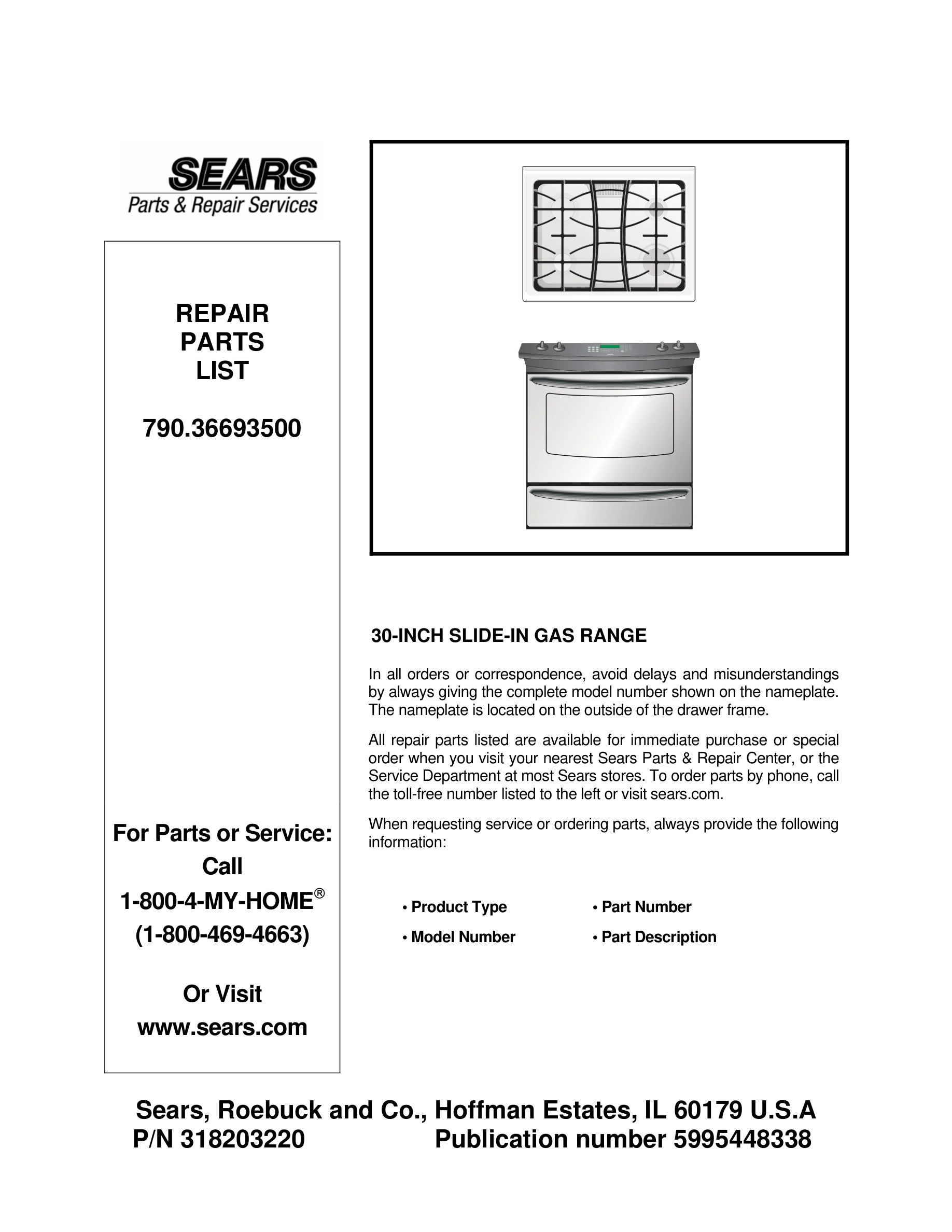

01 - COVER

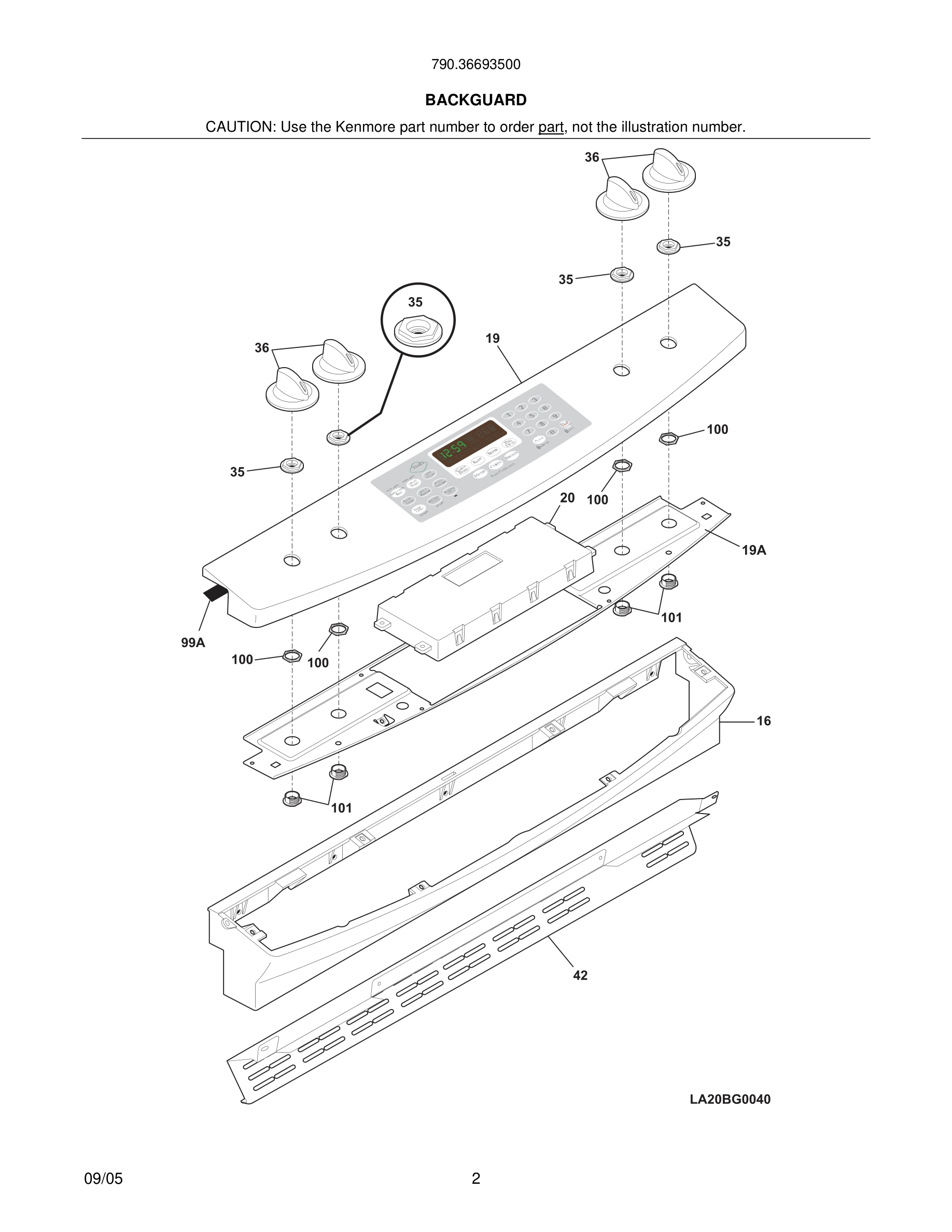

03 - BACKGUARD
05 - BURNER
07 - BODY
09 - BODY
11 - TOP
13 - DOOR
14 - WIRING DIAGRAM
Common parts from model Kenmore 790.36693500 RANGE
*
LP Conversion Kit WCI 318186911 Contact Us For Availability
*
Cleaner, grate WCI 316119700 Contact Us For Availability
*
Cap, plug WCI 5303325173 Contact Us For Availability
*
Washer, plastic WCI 5303325171 Contact Us For Availability
*
Screw, 8 x 5/8 WCI 3131048 Contact Us For Availability
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
*
Label, anti-tip WCI 316221000 Contact Us For Availability
1
Drawer WCI 318107308 Contact Us For Availability
2#
Valve, top burner, 11000 btu WCI 318233920 Contact Us For Availability
2A#
Valve, top burner, 17000 BTU WCI 318233940 Contact Us For Availability
2C#
Valve, top burner, 9500 BTU WCI 318233910 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Panel, drawer, stainless, front WCI 318298800 Contact Us For Availability
5
Screw, leveling WCI 318175503 Contact Us For Availability
6
Baffle, door WCI 318260500 Contact Us For Availability
8
Panel, oven, bottom WCI 318290501 Contact Us For Availability
9
Liner, door WCI 318259605 Contact Us For Availability
10
Screw, 10-14 x 1/2, (2), handle mtg. WCI 5304448455 Contact Us For Availability
10#
Burner, sealed, 12K WCI 316212300 Contact Us For Availability
10A#
Burner, sealed, 17K WCI 316223300 Contact Us For Availability
11
Ignitor Assembly, 12K, left rear, w/tube & ho WCI 318306005 Contact Us For Availability
11
Bracket, drawer support, (2) WCI 318298601 Contact Us For Availability
11B
Ignitor Assembly, 5K, right rear, w/tube & ho WCI 318306008 Contact Us For Availability
11C
Ignitor Assembly, 9.5K, left front, w/tube & WCI 318306004 Contact Us For Availability
13
Door Assy, glass, stainless steel, outer WCI 318272157 Contact Us For Availability
16
Tube, regulator valve WCI 318289500 Contact Us For Availability
16
Maintop Assembly, black WCI 318327302 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
18#
Burner, oven, 18000 WCI 318292200 Contact Us For Availability
19
Control Panel Assembly, w/membrane, black WCI 318312302 Contact Us For Availability
19A
Panel, control mtg. WCI 318289702 Contact Us For Availability
20
Grate, black, (2) WCI 318221687 Contact Us For Availability
20#
Clock/Timer, electronic, ES515 WCI 316418734 Contact Us For Availability
20A
Grate, center, black WCI 318221513 Contact Us For Availability
22
Cap, 12K burner, black WCI 316213600 Contact Us For Availability
22A
Cap, 17K burner, black WCI 316271900 Contact Us For Availability
22B
Cap, 5K burner, black WCI 316206600 Contact Us For Availability
23
Burner, broil, 14000 WCI 318292300 Contact Us For Availability
23
Hinge, door, (2) WCI 318024714 Contact Us For Availability
24
Trim, door, black, lower WCI 318260301 Contact Us For Availability
24#
Mixer Elbow, broiler WCI 318267801 Contact Us For Availability
25
Baffle, broil burner WCI 316401301 Contact Us For Availability
36
Knob, control, black WCI 316442413 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
44B
Orifice, top burner, 5K WCI 316237903 Contact Us For Availability
46
Box, burner WCI 318291400 Contact Us For Availability
50
Cover, burner box WCI 318328501 Contact Us For Availability
53
Cover, flue, black WCI 318308301 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
57
Panel, service WCI 318295610 Contact Us For Availability
76
Front, oven WCI 318056217 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
90
Panel, filler, black, RH WCI 318296904 Contact Us For Availability
99A
Gasket, black WCI 318313201 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
165
Plate, mounting WCI 318227504 Contact Us For Availability
170
Anti-tip & accessories WCI 318335500 Contact Us For Availability
201
Frame, drawer WCI 318298210 Contact Us For Availability
272
Tube, protector WCI 318249401 Contact Us For Availability
× ![]()
