Model Kenmore 790.36692500 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

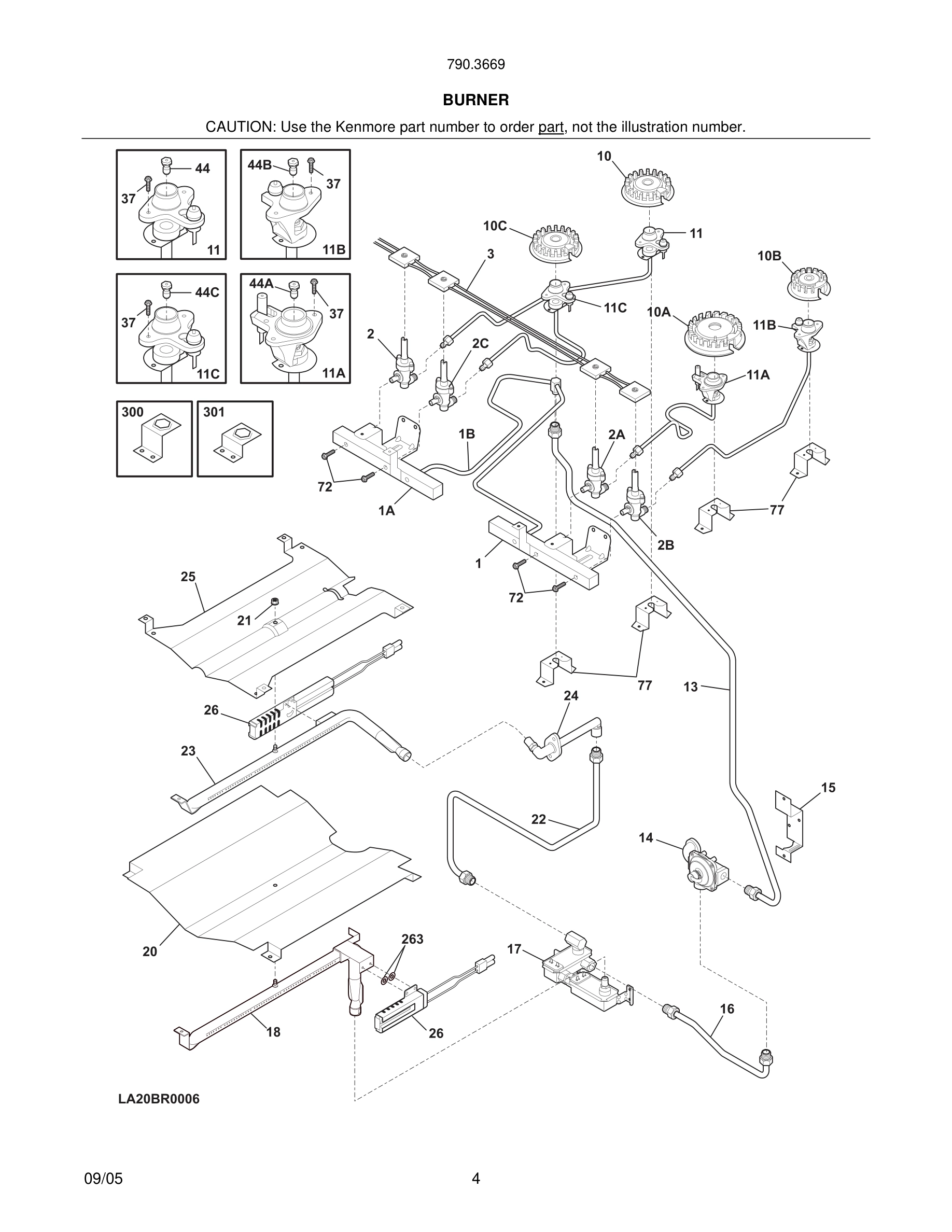

05 - BURNER

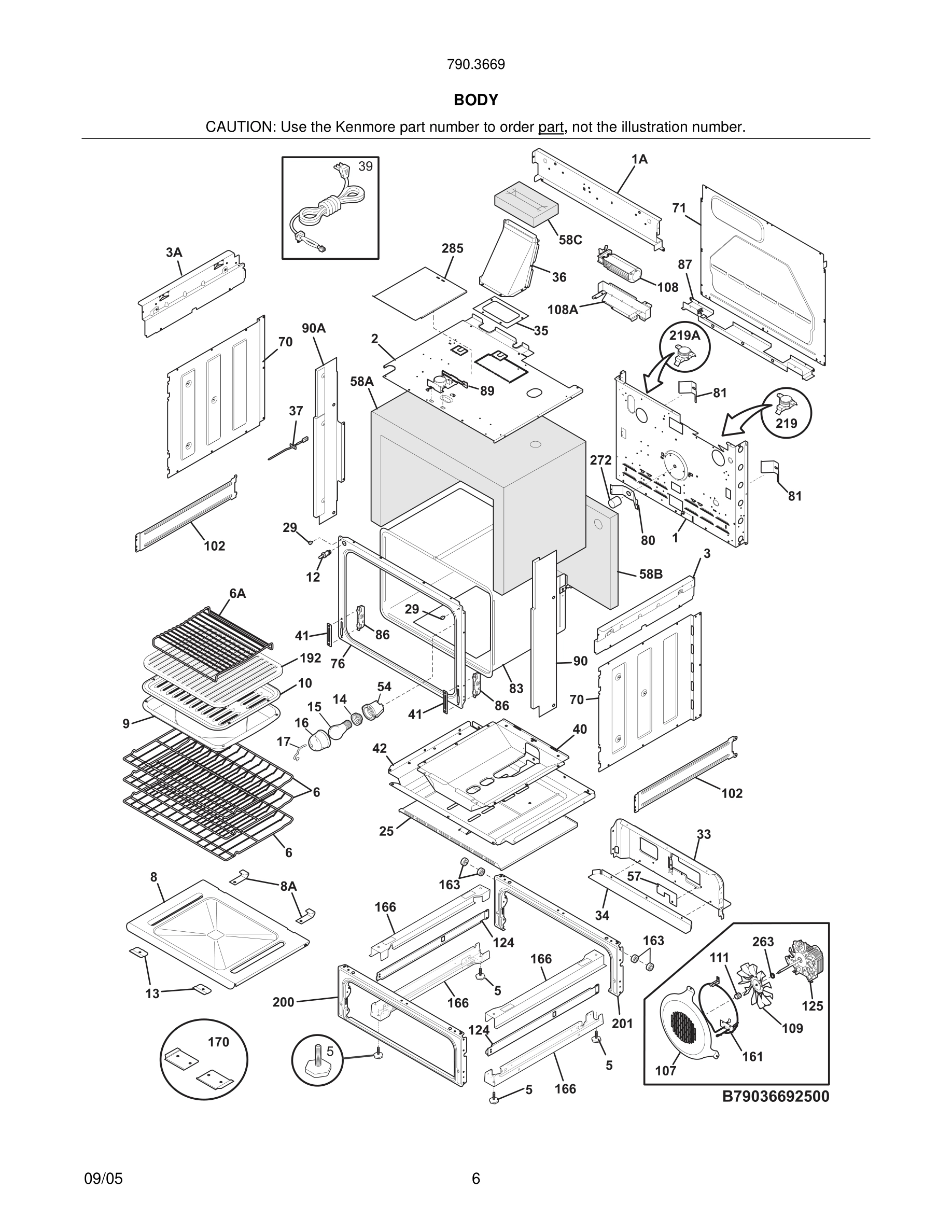

07 - BODY
09 - BODY
11 - TOP
13 - DOOR
14 - WIRING DIAGRAM
Common parts from model Kenmore 790.36692500 RANGE
*
LP Conversion Kit WCI 318186911 Contact Us For Availability
*
Label, anti-tip WCI 316221000 Contact Us For Availability
2#
Valve, top burner, 11000 btu WCI 318233920 Contact Us For Availability
2A#
Valve, top burner, 17000 BTU WCI 318233940 Contact Us For Availability
2C#
Valve, top burner, 9500 BTU WCI 318233910 Contact Us For Availability
3
Trim, oven door, black, upper WCI 318260201 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Glass Assy., oven door, bisque, outer, w/trim WCI 318261306 Contact Us For Availability
4
Panel, drawer, black, front WCI 318298903 Contact Us For Availability
5
Screw, leveling WCI 318175503 Contact Us For Availability
6
Baffle, door WCI 318260500 Contact Us For Availability
8
Panel, oven, bottom WCI 318290501 Contact Us For Availability
9
Liner, oven door WCI 318259601 Contact Us For Availability
10#
Burner, sealed, 12K WCI 316212300 Contact Us For Availability
10A#
Burner, sealed, 17K WCI 316223300 Contact Us For Availability
11
Ignitor Assembly, 12K, left rear, w/tube & ho WCI 318306005 Contact Us For Availability
11
Bracket, drawer support, (2) WCI 318298601 Contact Us For Availability
11B
Ignitor Assembly, 5K, right rear, w/tube & ho WCI 318306008 Contact Us For Availability
11C
Ignitor Assembly, 9.5K, left front, w/tube & WCI 318306004 Contact Us For Availability
16
Tube, regulator valve WCI 318289500 Contact Us For Availability
16
Console, assy., white WCI 318296600 Contact Us For Availability
16
Maintop Assembly, white WCI 318327300 Contact Us For Availability
16
Maintop Assembly, bisque WCI 318327301 Contact Us For Availability
16
Maintop Assembly, black WCI 318327302 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
18#
Burner, oven, 18000 WCI 318292200 Contact Us For Availability
19
Control Panel Assembly, w/membrane, white WCI 318312300 Contact Us For Availability
19
Control Panel Assembly, w/membrane, black WCI 318312302 Contact Us For Availability
19A
Panel, control mtg. WCI 318289702 Contact Us For Availability
20
Grate, gray, (2) WCI 318221685 Contact Us For Availability
20
Grate, brown, (2) WCI 318221686 Contact Us For Availability
20
Grate, black, (2) WCI 318221687 Contact Us For Availability
20#
Clock/Timer, electronic, ES515 WCI 316418734 Contact Us For Availability
20A
Grate, center, gray WCI 318221511 Contact Us For Availability
20A
Grate, center, brown WCI 318221512 Contact Us For Availability
20A
Grate, center, black WCI 318221513 Contact Us For Availability
22
Cap, 12K burner, black WCI 316213600 Contact Us For Availability
22
Cap, 12K burner, gray WCI 316213604 Contact Us For Availability
22
Cap, 12K burner, brown WCI 316213603 Contact Us For Availability
22A
Cap, 17K burner, black WCI 316271900 Contact Us For Availability
22A
Cap, 17K burner, brown WCI 316271902 Contact Us For Availability
22A
Cap, 17K burner, gray WCI 316271903 Contact Us For Availability
22B
Cap, 5K burner, black WCI 316206600 Contact Us For Availability
22B
Cap, 5K burner, gray, small WCI 316206603 Contact Us For Availability
22B
Cap, 5K burner, brown WCI 316206602 Contact Us For Availability
22C
Cap, 9.5K burner, gray, medium WCI 316213504 Contact Us For Availability
22C
Cap, 9.5K burner, brown WCI 316213503 Contact Us For Availability
23
Burner, broil, 14000 WCI 318292300 Contact Us For Availability
23
Hinge, upper door, (2) WCI 318024722 Contact Us For Availability
24#
Mixer Elbow, broiler WCI 318267801 Contact Us For Availability
25
Baffle, broil burner WCI 316401301 Contact Us For Availability
29
Spacer, door WCI 318014402 Contact Us For Availability
36
Knob, control, black WCI 316442413 Contact Us For Availability
36
Knob, control, white WCI 316442412 Contact Us For Availability
39
Handle, oven door, bisque WCI 316443602 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
44B
Orifice, top burner, 5K WCI 316237903 Contact Us For Availability
46
Box, burner WCI 318291400 Contact Us For Availability
50
Cover, burner box WCI 318328501 Contact Us For Availability
52
Cover, flue, bisque, outer WCI 318291105 Contact Us For Availability
53
Cover, flue, black WCI 318308301 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
57
Panel, service WCI 318295610 Contact Us For Availability
76
Front, oven WCI 318056217 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
90
Panel, filler, black, RH WCI 318296904 Contact Us For Availability
90
Panel, filler, white, RH WCI 318296902 Contact Us For Availability
90A
Panel, filler, white, LH WCI 318296903 Contact Us For Availability
91
Trim, filler, white, rear WCI 318304301 Contact Us For Availability
91
Trim, filler, bisque, rear WCI 318304302 Contact Us For Availability
99A
Gasket, black WCI 318313201 Contact Us For Availability
99A
Gasket, grey WCI 318313200 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
165
Plate, mounting WCI 318227504 Contact Us For Availability
166
Bracket, base support, (4) WCI 318298400 Contact Us For Availability
170
Anti-tip & accessories WCI 318335500 Contact Us For Availability
201
Frame, drawer WCI 318298210 Contact Us For Availability
× ![]()
