Model Kenmore 790.36683501 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

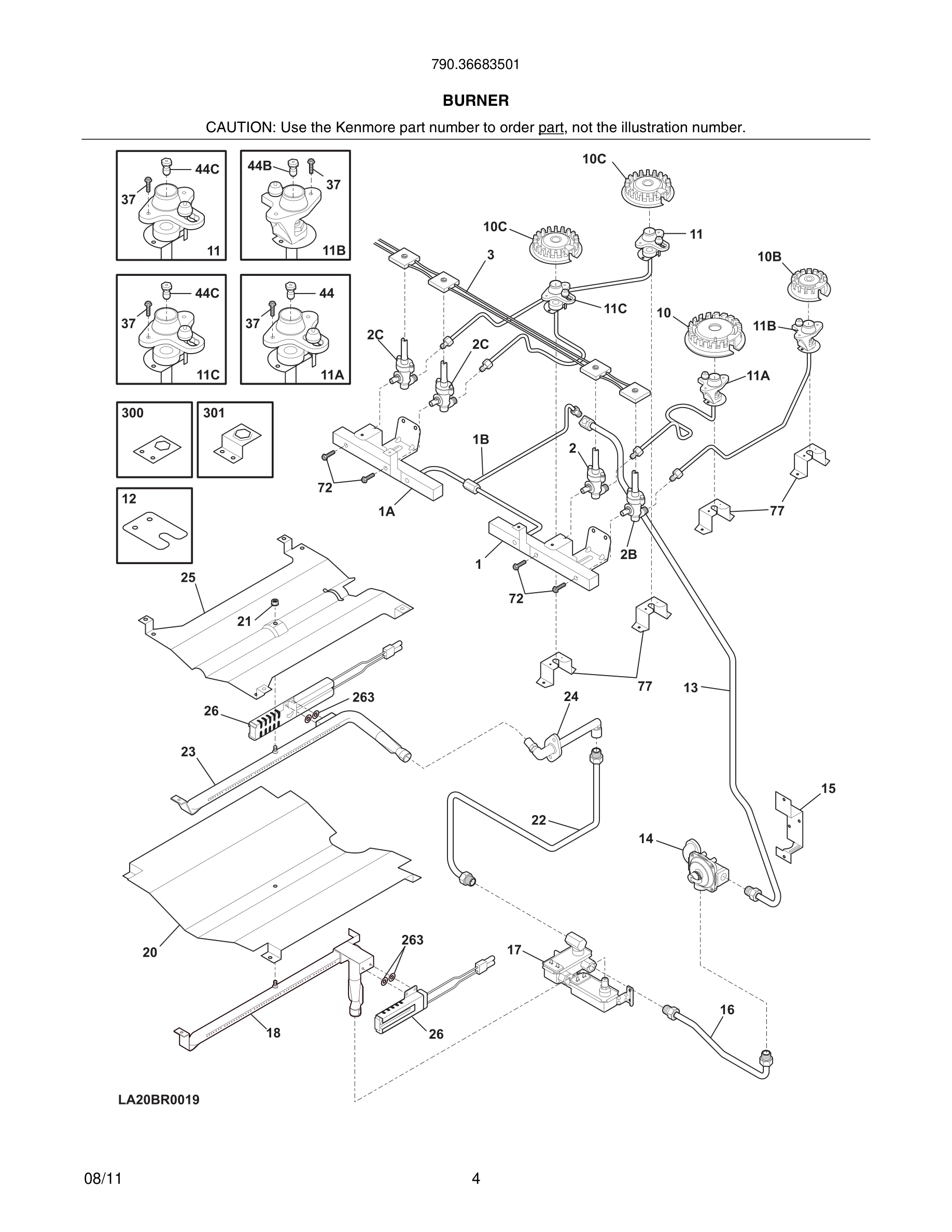

05 - BURNER

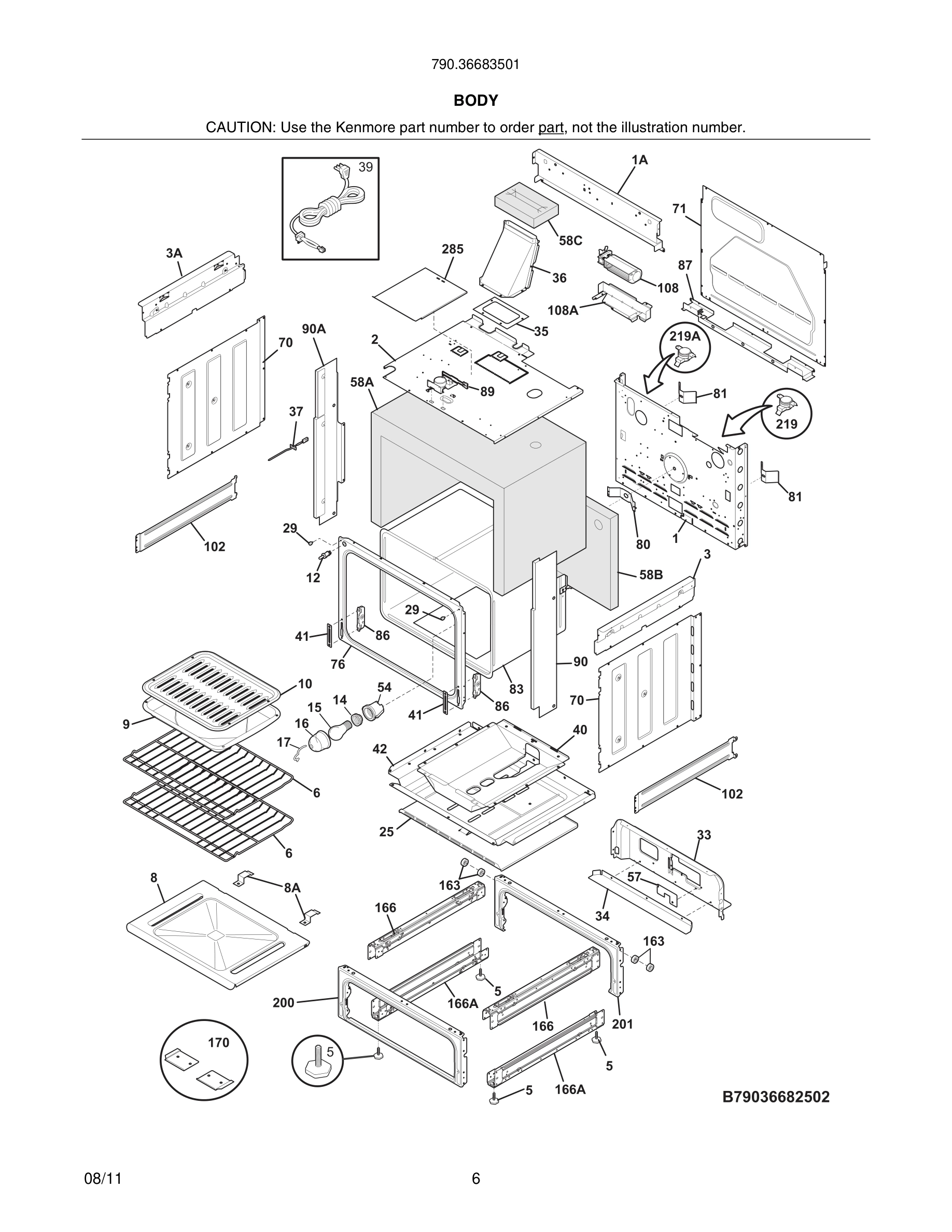

07 - BODY

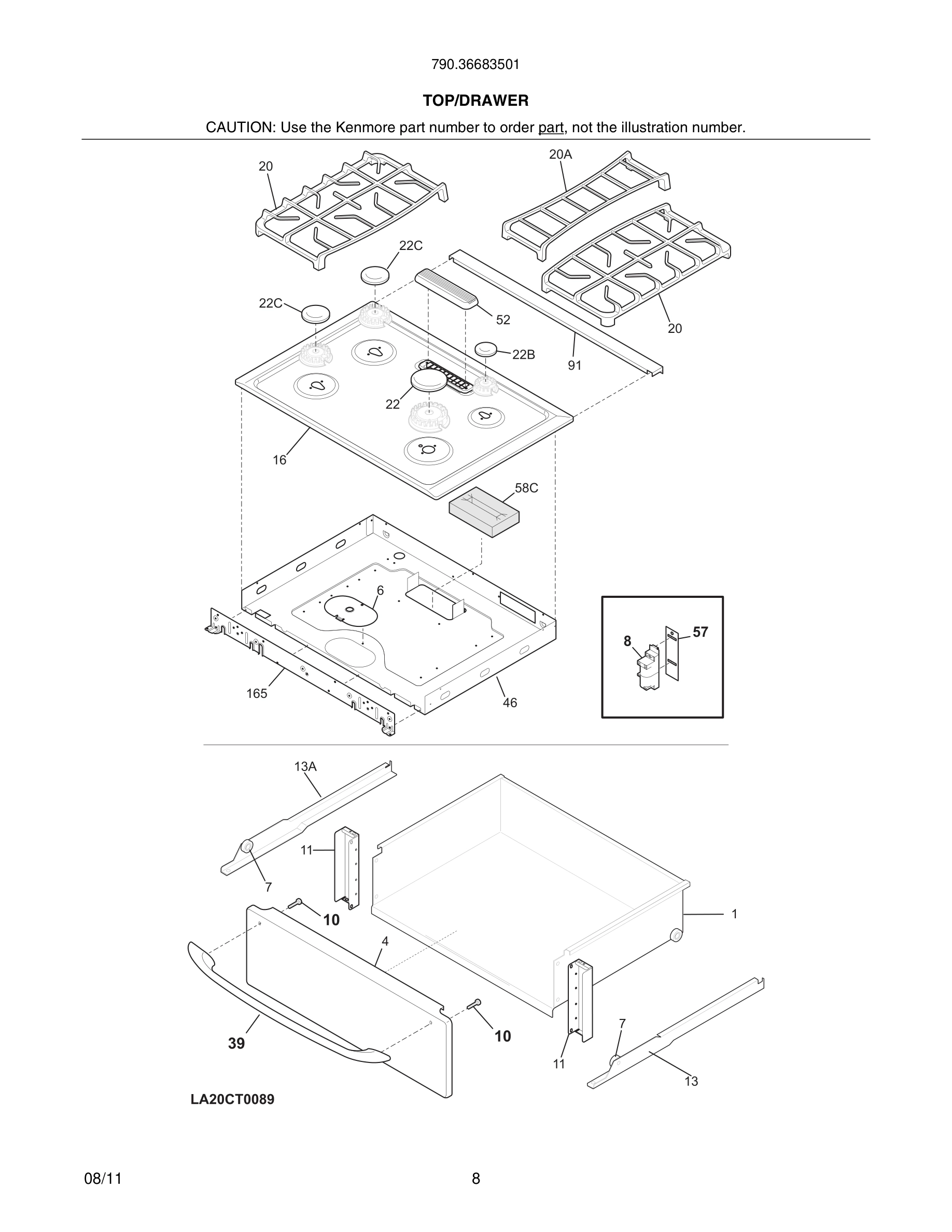

09 - TOP/DRAWER

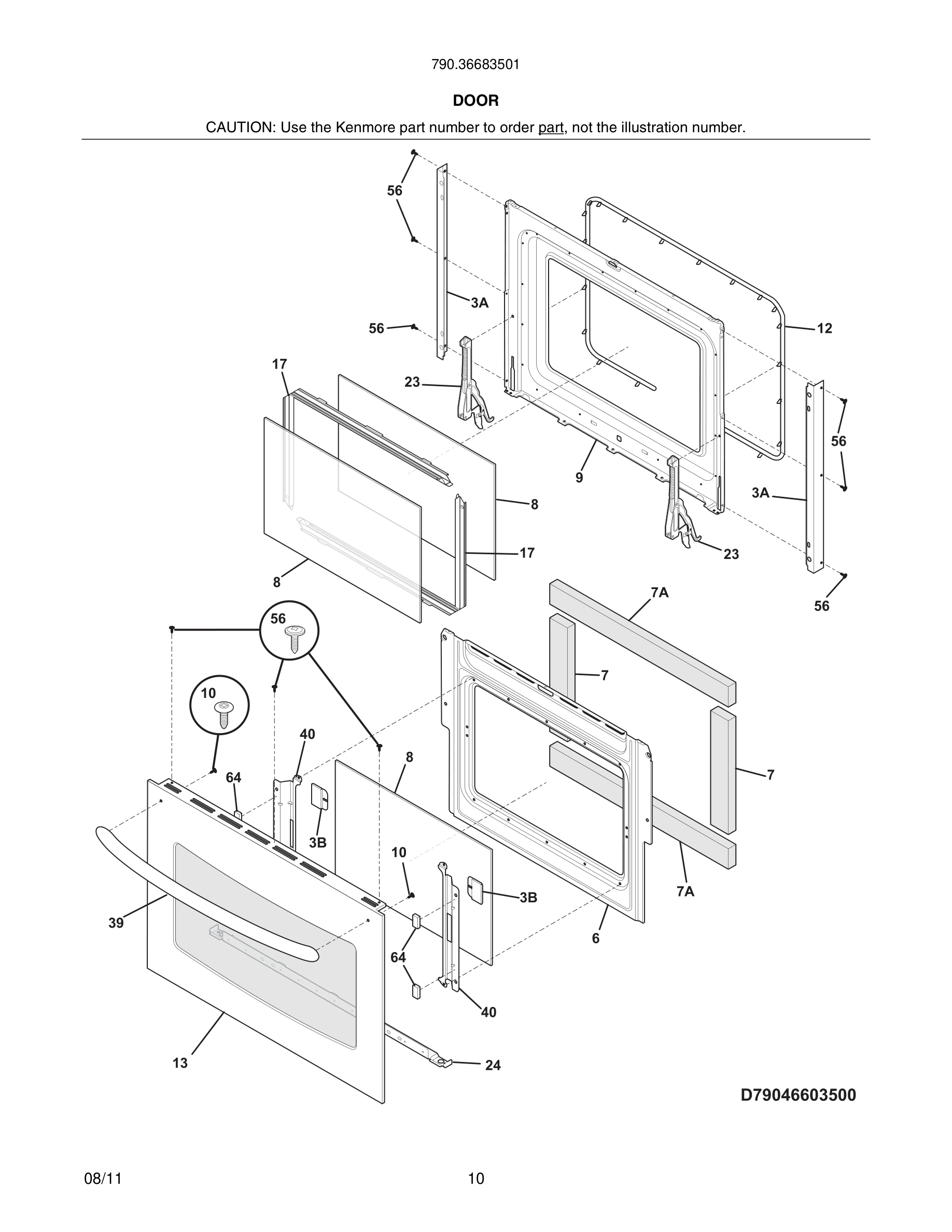

11 - DOOR

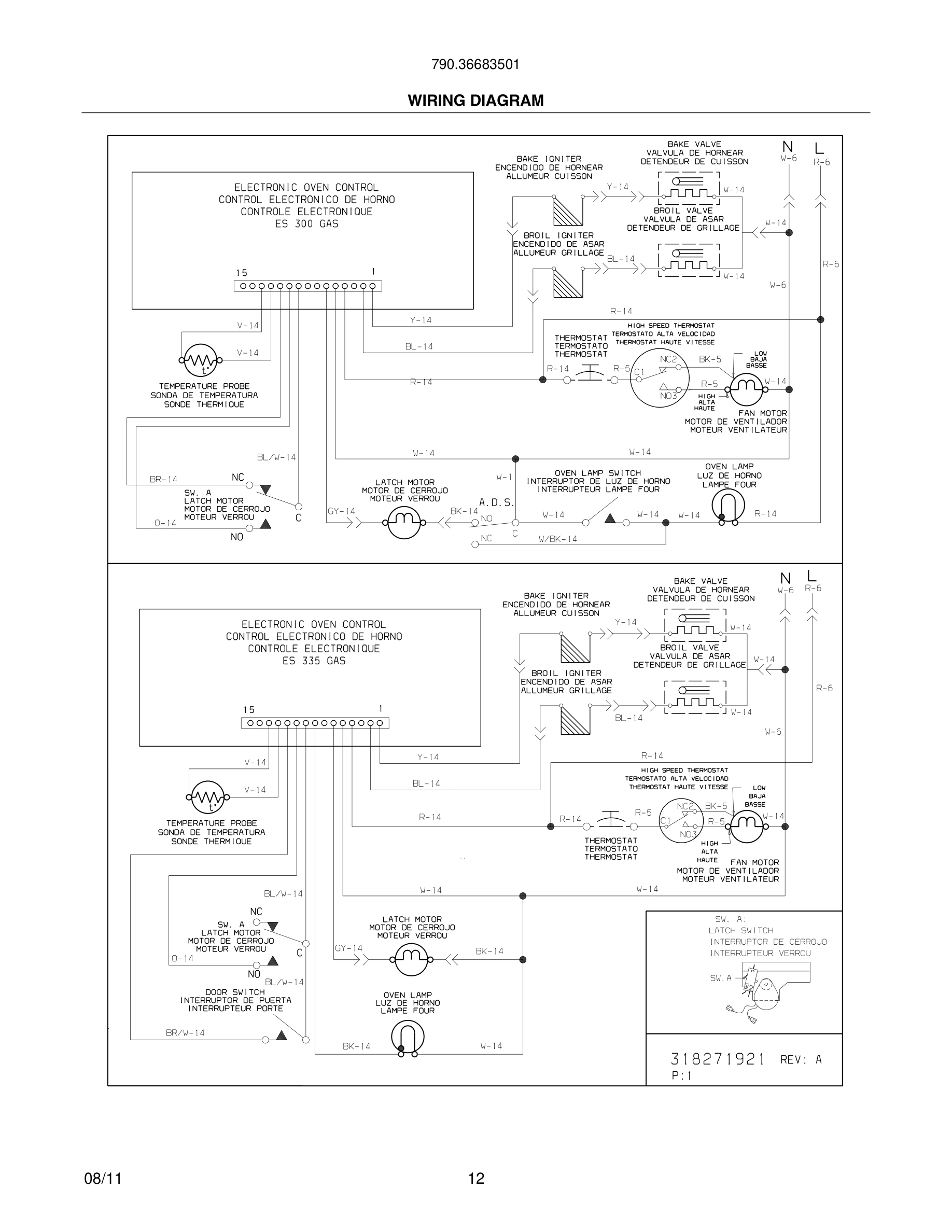

12 - WIRING DIAGRAM

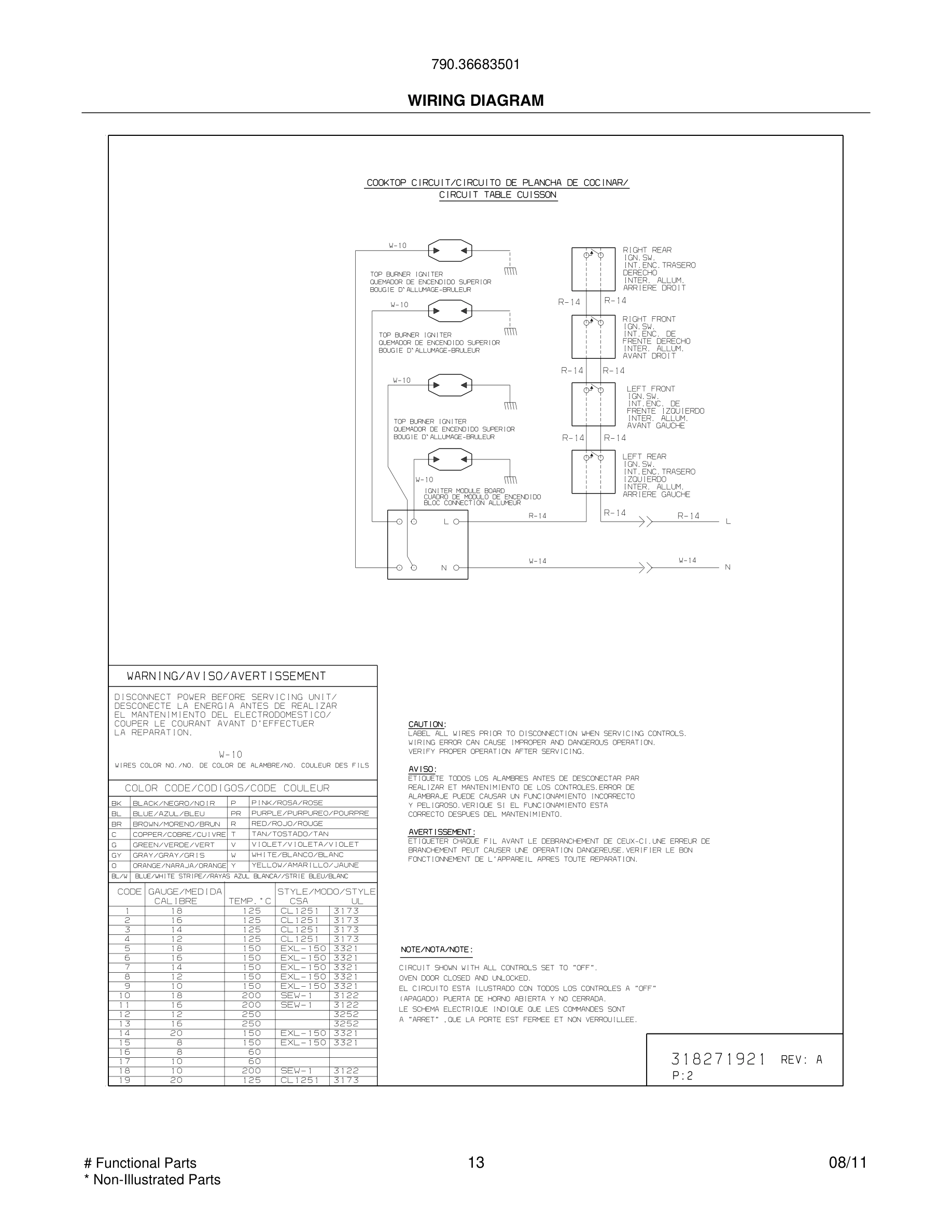

13 - WIRING DIAGRAM
Common parts from model Kenmore 790.36683501 RANGE
*
LP Conversion Kit WCI 318186908 Contact Us For Availability
*
Label, anti-tip WCI 316221000 Contact Us For Availability
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
2#
Valve, top burner, 12000 BTU WCI 318233920 Contact Us For Availability
2C#
Valve, top burner, 9500 BTU WCI 318233910 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
3B
Cover, rear door, black, (2) WCI 318262111 Contact Us For Availability
6
Rack, oven WCI 318262504 Contact Us For Availability
6
Baffle, door WCI 318260520 Contact Us For Availability
8
Panel, oven, bottom WCI 318290501 Contact Us For Availability
9
Liner, door WCI 318259605 Contact Us For Availability
10
Screw, 10-14 x 1/2, (2), handle mtg. WCI 5304448455 Contact Us For Availability
10#
Burner, sealed, 12K WCI 316212300 Contact Us For Availability
11
Ignitor Assembly, 9.5K, left rear, w/tube & h WCI 318306206 Contact Us For Availability
11A
Ignitor Assembly, 12K, right front, w/tube & WCI 318306208 Contact Us For Availability
11C
Ignitor Assembly, 9.5K, left front, w/tube & WCI 318306207 Contact Us For Availability
13
Channel, drawer, RH WCI 318018100 Contact Us For Availability
13
Door Assy, glass, stainless steel, outer WCI 318272157 Contact Us For Availability
13A
Channel, drawer, LH WCI 318018101 Contact Us For Availability
16
Tube, regulator valve WCI 318289500 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
18#
Burner, oven, 18000 WCI 318292200 Contact Us For Availability
19
Panel, control, black WCI 318297517 Contact Us For Availability
19A
Panel, control mtg. WCI 318289702 Contact Us For Availability
20
Grate, black, (2) WCI 318221658 Contact Us For Availability
22
Cap, 11K burner, black WCI 316242800 Contact Us For Availability
22B
Cap, 5K burner, black WCI 316206500 Contact Us For Availability
22C
Cap, 9.5K burner, black WCI 316242900 Contact Us For Availability
23
Burner, broil, 14000 WCI 318292300 Contact Us For Availability
23
Hinge, door, (2) WCI 318024714 Contact Us For Availability
24
Trim, door, black, lower WCI 318260301 Contact Us For Availability
24#
Mixer Elbow, broiler WCI 318267801 Contact Us For Availability
25
Baffle, broil burner WCI 316401301 Contact Us For Availability
35
Retainer, control panel, black WCI 318233720 Contact Us For Availability
36
Knob, control, black WCI 316442413 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
44B
Orifice, top burner, 5K WCI 316237903 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
76
Front, oven WCI 318056217 Contact Us For Availability
77
Bracket, burner mtg, (4) WCI 318192606 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
99A
Gasket, black WCI 318313201 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
165
Plate, mounting WCI 318227504 Contact Us For Availability
170
Anti-tip & accessories WCI 318335500 Contact Us For Availability
200
Frame & Wheel Assembly, black WCI 318335600 Contact Us For Availability
201
Frame, drawer WCI 318298210 Contact Us For Availability
× ![]()
